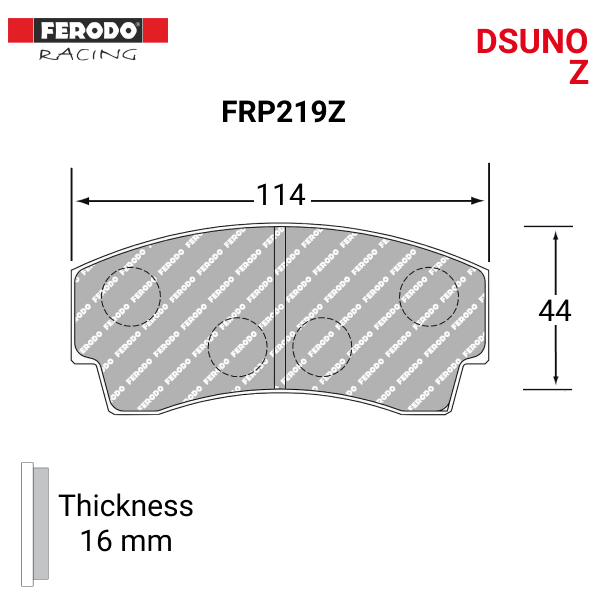

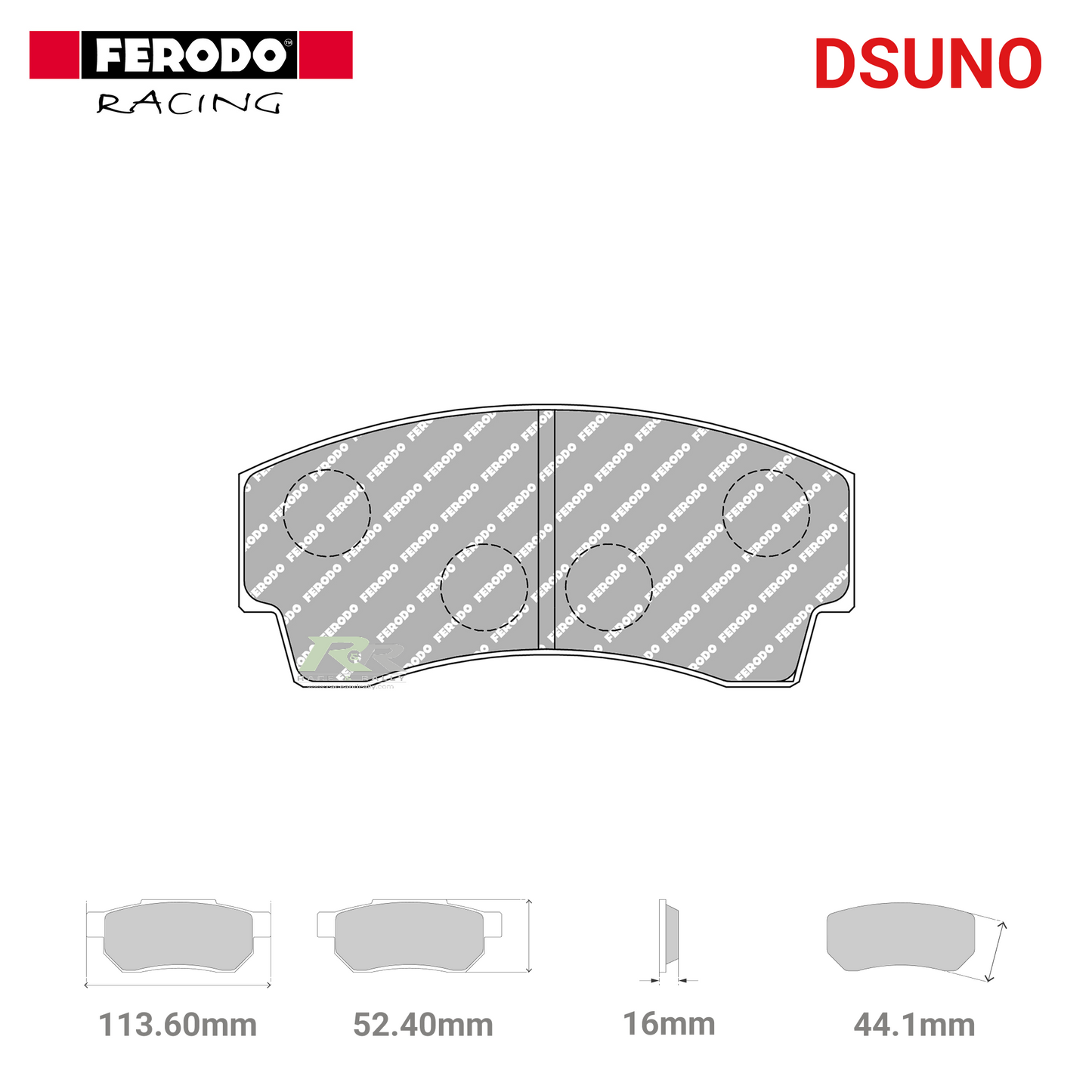

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP219Z |
| Pad Width | 113.6mm |
| Pad Height | 52.4mm |
| Radial Depth | 44.1mm |
| Thickness | 16.0mm |
| Compound | (Z/ZB) Dsuno |
| Barcode | 4044197552573 |
How to correctly measure your brake pads:
Download our measurement sheet guide (PDF)
Brake Pad Compound Information:
DSUNO (Z/ZB)
The ultimate feel good pad benefiting from Siloxane technology provides a high friction output, whilst improving pad and disc life and offers excellent modulation which means the risk of wheel lock is significantly reduced.
Main Applications:
- Rally
- Rear GT
- Formula
- Track car with OE brakes
Main Features:
- Heavy duty with semi-endurance material
- Very controllable torque output
- Very kind to discs
- Long life
- Short bedding timeAverage friction coefficient 0.48 over working temperature range of 200°C to 750°C

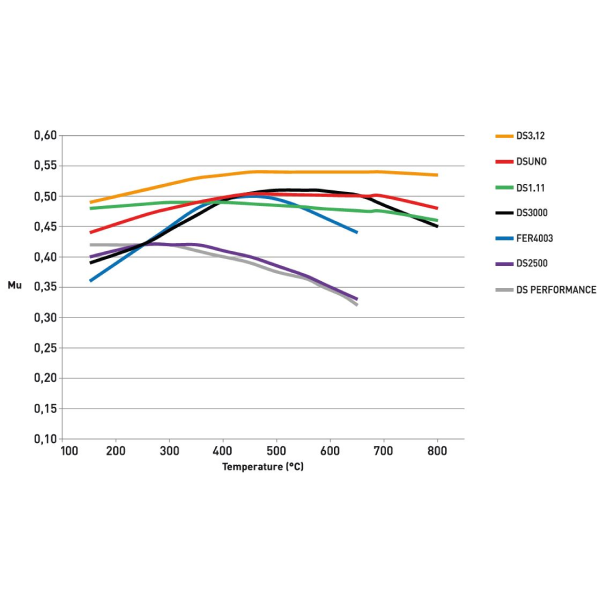

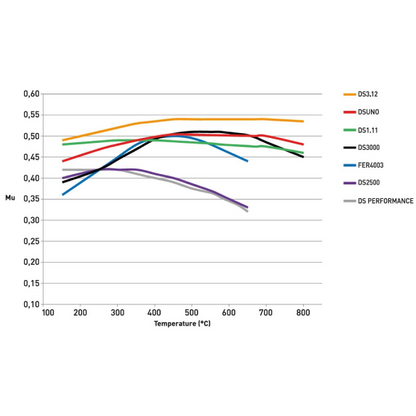

DSUNO Friction Coefficient (MU) Versus Temperature (°C)

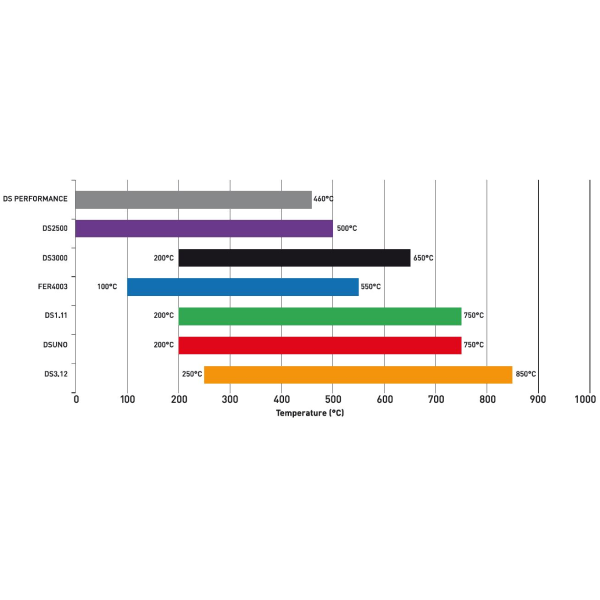

Optimal operating temperature

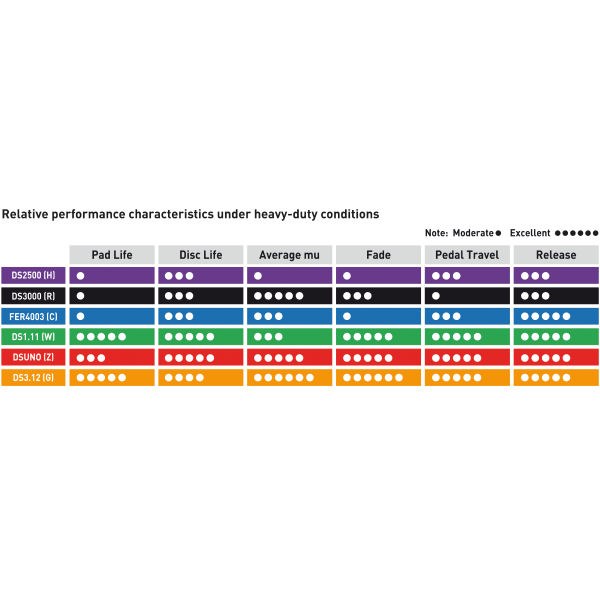

Relative performance characteristics under heavy-duty race conditions

Suggested applications

Cross References:
| AP Racing | CP3345D44 |
| Carbon Lorraine | 5007W43 |
| Endless | RCP075 |
| Ferodo Racing | FRP219 |
| Pagid | 2127 |
| Performance Friction | 7745 |
Compatible Calipers:
| AP Racing |
|---|
| CP3344 |
| CP3345 |
| CP4152 |
| CP4567 |
| CP5100 |
| CP5104 |
