DS2500 (H) is amongst the foremost high performance track day pads in the business. It is also suitable for some light duty front and many rear pure race applications. It offers excellent refinement for such a high performance pad. The main characteristics of DS2500 are:

• Track day & light race use for all vehicle types
• Road style refinement but with race material ability to withstand heat with respect to life and µ
• Average friction coefficient of 0.42 over working temperature range of 20°-500°C

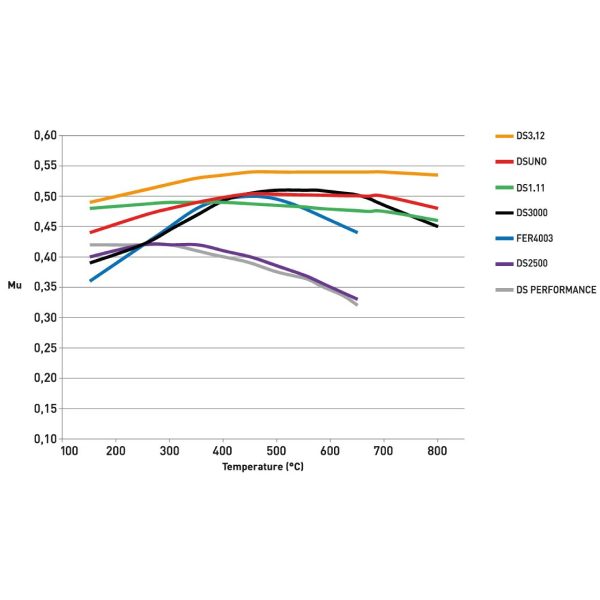

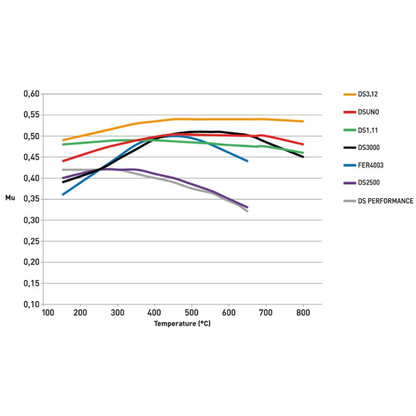

Mu Vs Temperature

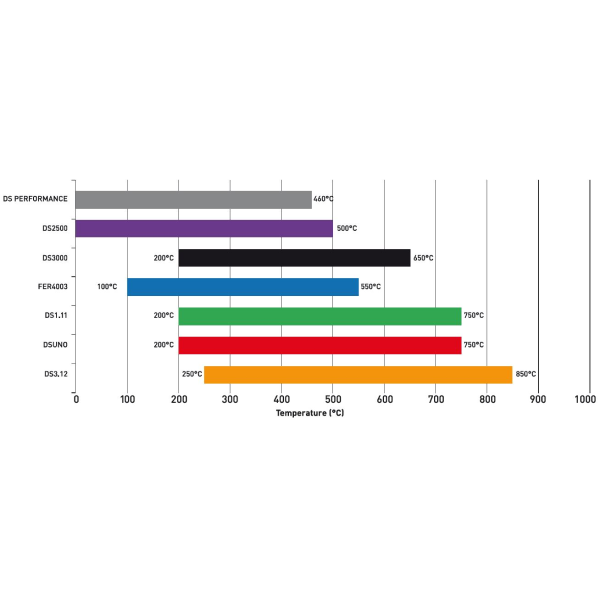

Optimal Operating Temperature

Applications

Calipers

Cross Reference

Alcon - PNF4489X532.4

AP Racing - CP3894D54

Brembo - B5118

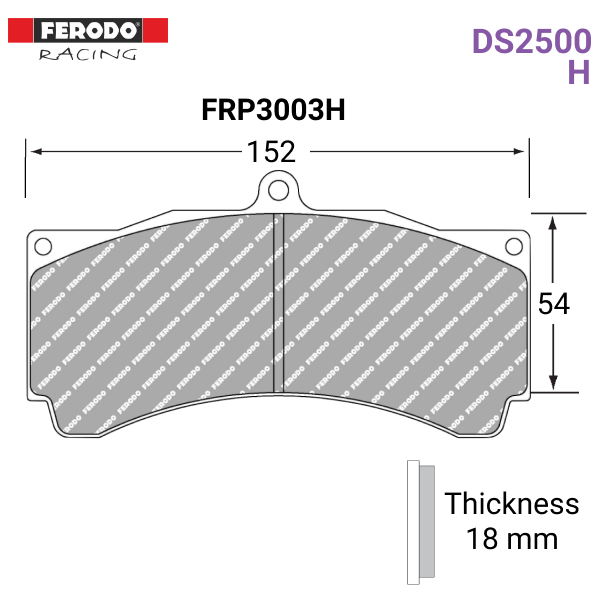

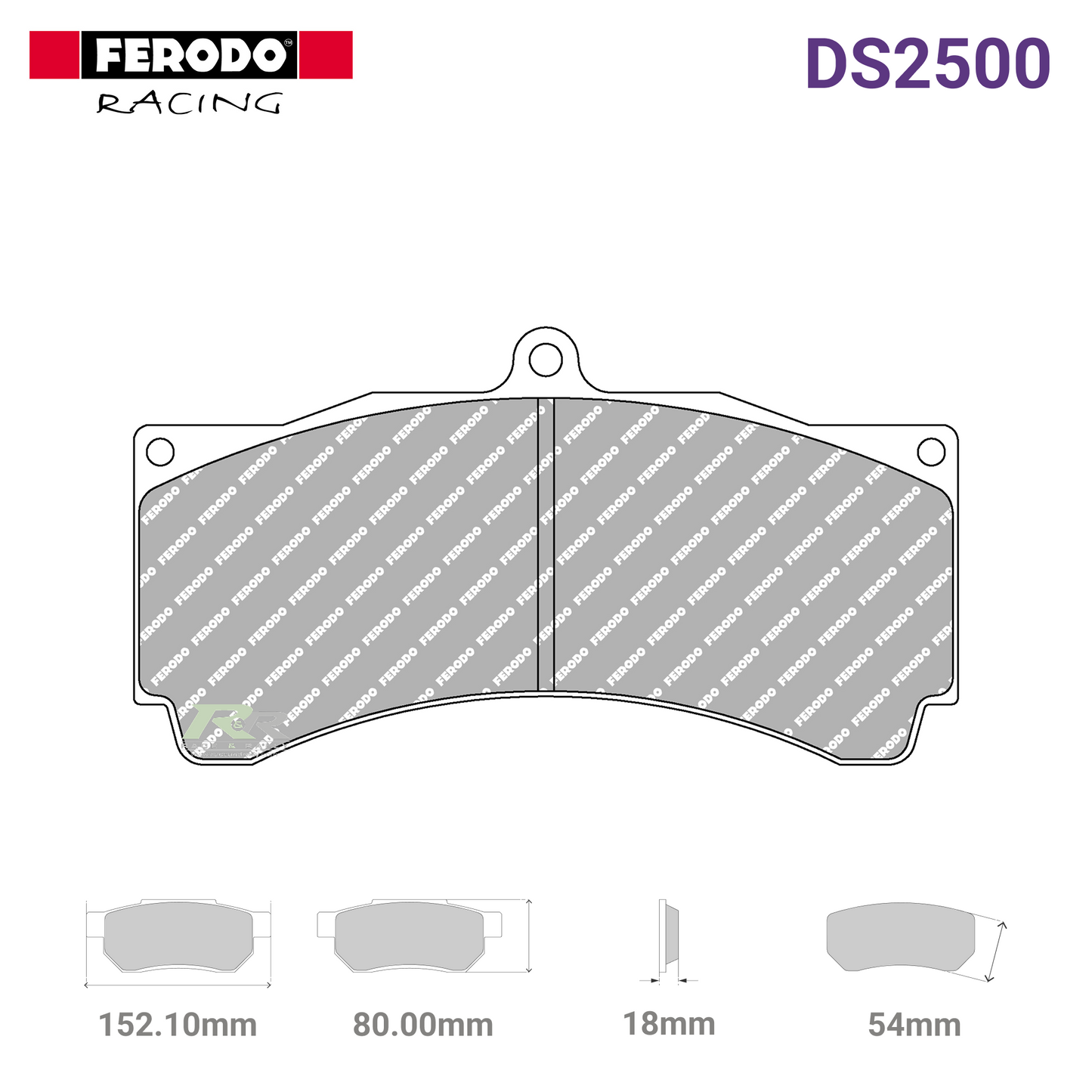

Ferodo - FRP3003

Ferodo - FRP3144

Hawk - HB109 0.71

Pagid - 1904

PFC - 7790.xx.18.44

Raybestos - DR2600 0.71

Wilwood - 8818
