Regular price
€166.44
€204.72
113.8mm
59.0mm
16.2mm
46.1mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

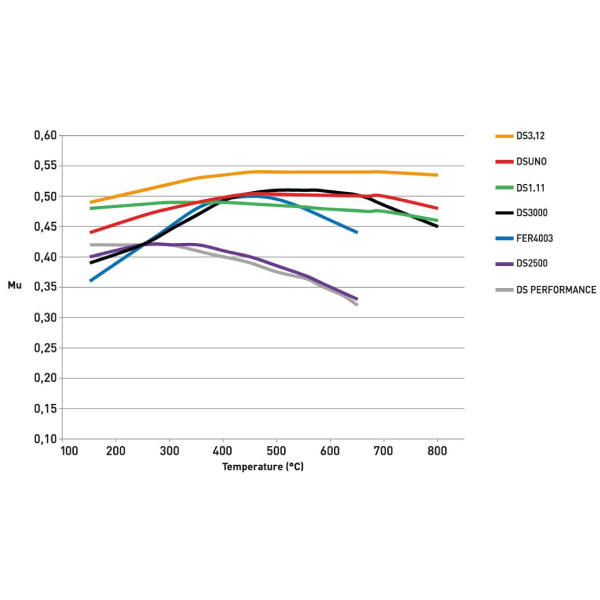

DS2500 Friction Coefficient (MU) Versus Temperature (°C)

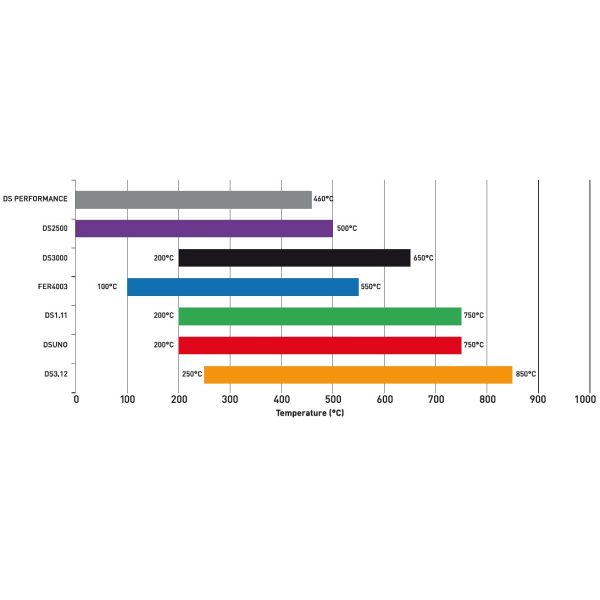

Optimal operating temperature

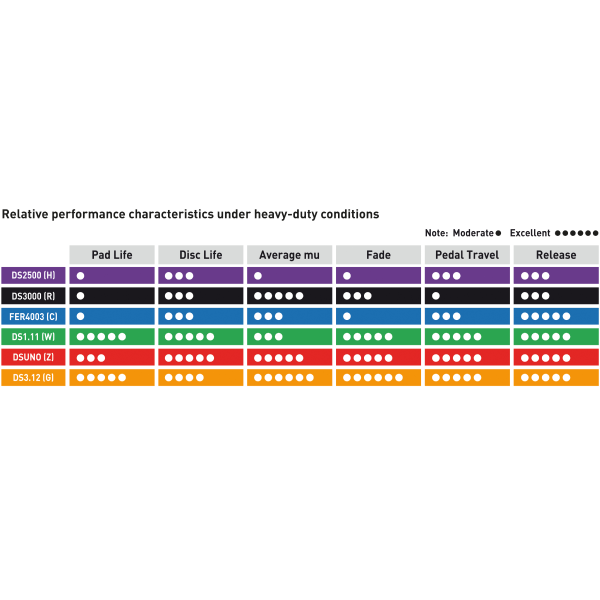

Relative performance characteristics under heavy-duty race conditions
Suggested applications
Optional Extras
In stock

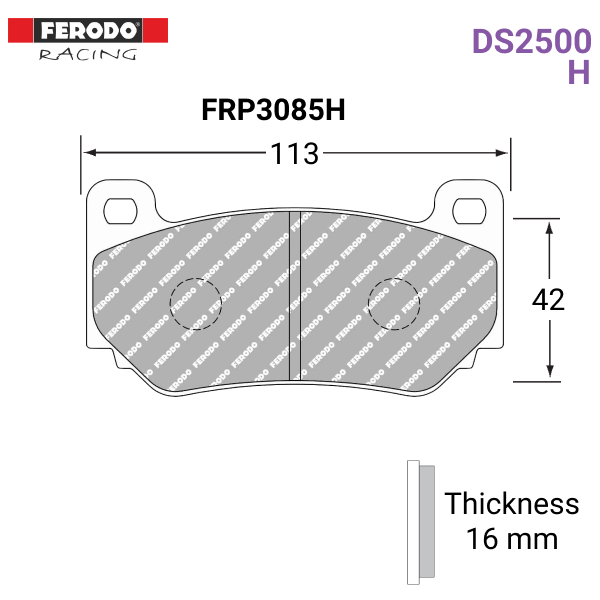

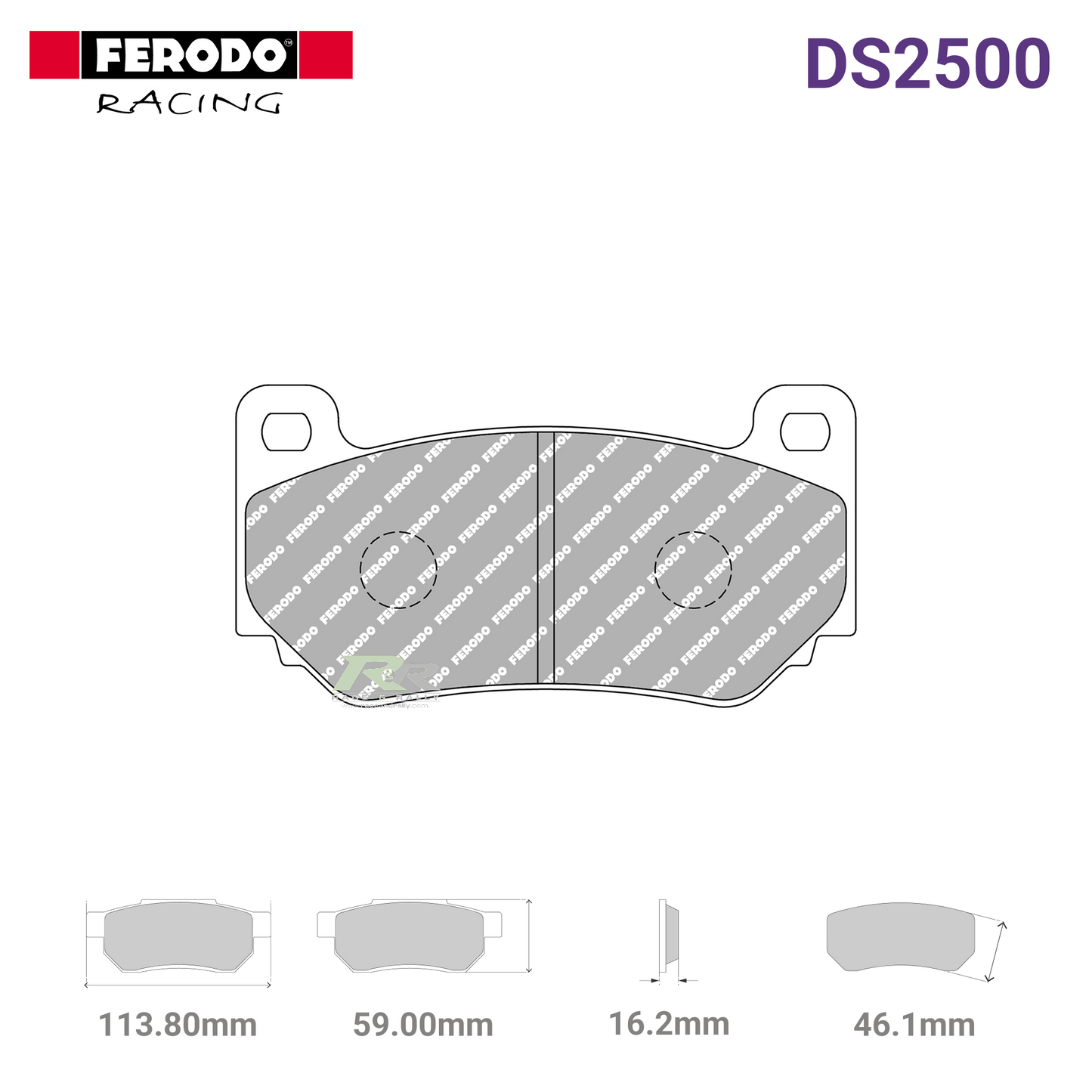

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP3085H |
| Pad Width | 113.8mm |
| Pad Height | 59.0mm |
| Radial Depth | 46.1mm |
| Thickness | 16.2mm |
| Compound | (H) DS2500 |
| Barcode | 5016687357271 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

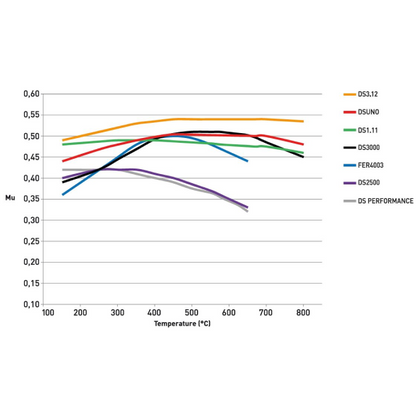

DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP7600D46 |
| Carbon Lorraine | 5038W45 |
| Endless | RCP101 |
| Ferodo Racing | FRP3085 |
| Performance Friction | 7834 |
Compatible Calipers:
| AP Racing |
|---|
| CP7600 (16mm Thickness) |
| CP7611 |
| CP7613 |
Ferodo Racing - Pad Bedding.pdf
