Regular price
€246.28
€302.92
133.2mm
61.0mm
20.4mm
41.0mm
Compound Information
Compound Information
DS1.11 (W/WB)
Based around a silaxone resin structure that enables the DS1.11 compound to work up to the highest temperatures a brake pad could ever see which means it wont fade and has excellent long pad life.
Main Applications:
- Formula
- Rear touring car
- GT
- Track car with OE brakes
Main Features:
- Heavy duty endurance material
- Long life
- Very kind to discs
- Average friction coefficient of 0.46 over working temperature range of 200°C to 750°C
DS1.11 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, expected in 3-5 days from order

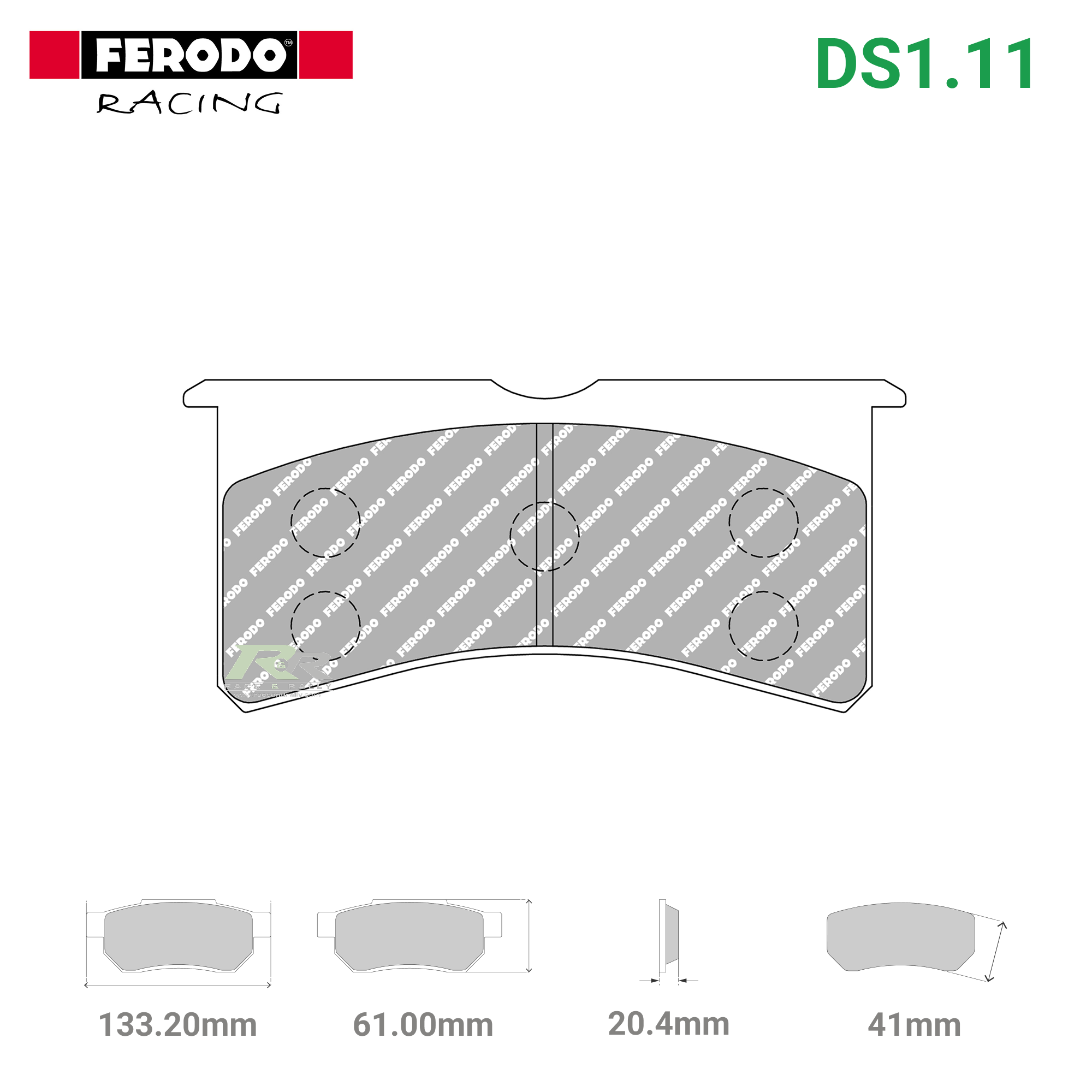

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP3097W |
| Pad Width | 133.2mm |
| Pad Height | 61.0mm |
| Radial Depth | 41.0mm |
| Thickness | 20.4mm |
| Compound | (W/WB) DS1.11 |
| Barcode | 4044197403165 |
Brake Pad Compound Information:
DS1.11 (W/WB)
Based around a silaxone resin structure that enables the DS1.11 compound to work up to the highest temperatures a brake pad could ever see which means it wont fade and has excellent long pad life.
Main Applications:
- Formula
- Rear touring car
- GT
- Track car with OE brakes
Main Features:
- Heavy duty endurance material
- Long life
- Very kind to discs
- Average friction coefficient of 0.46 over working temperature range of 200°C to 750°C
DS1.11 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP8250D41 |
| Carbon Lorraine | 5051W43 |
| Ferodo Racing | FRP3097 |
Compatible Calipers:
| AP Racing |
|---|
| CP8350 (20mm Thickness) |
Ferodo Racing - Pad Bedding.pdf
