Regular price
€332.41
€408.86
175.6mm
100.8mm
16.8mm
68.5mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, expected in 3-5 days from order

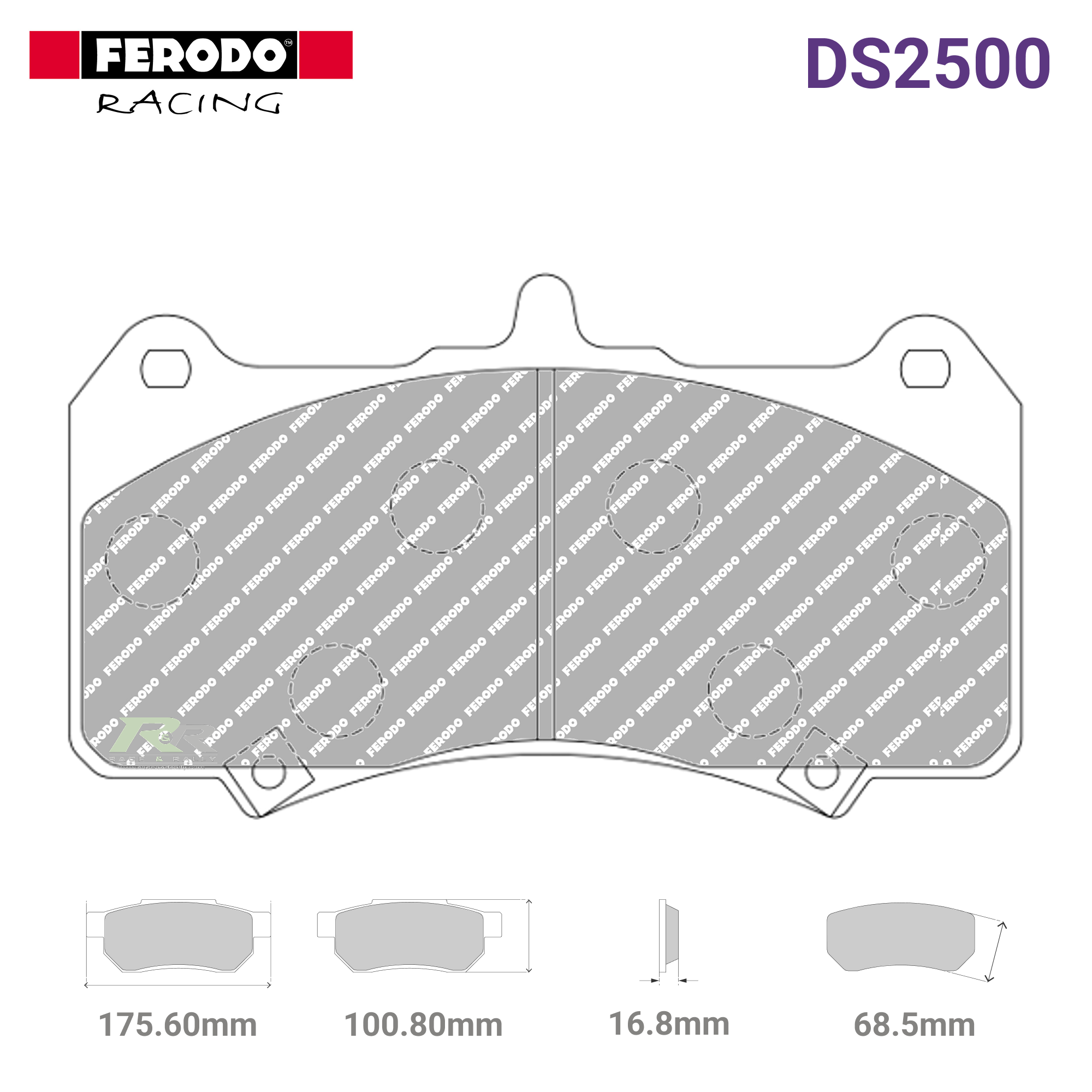

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP3147H |
| Pad Width | 175.6mm |
| Pad Height | 100.8mm |
| Radial Depth | 68.5mm |
| Thickness | 16.8mm |
| Compound | (H) DS2500 |
| Barcode | 4044197955213 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP7555D70 |
| Ferodo Racing | FRP3147 |
Compatible Calipers:
| AP Racing |
|---|
| CP8520 |
| CP8521 |
| CP8522 |
Ferodo Racing - Pad Bedding.pdf
