Regular price
€122.34
€150.48
100.7mm
60.0mm
12.5mm
46.4mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

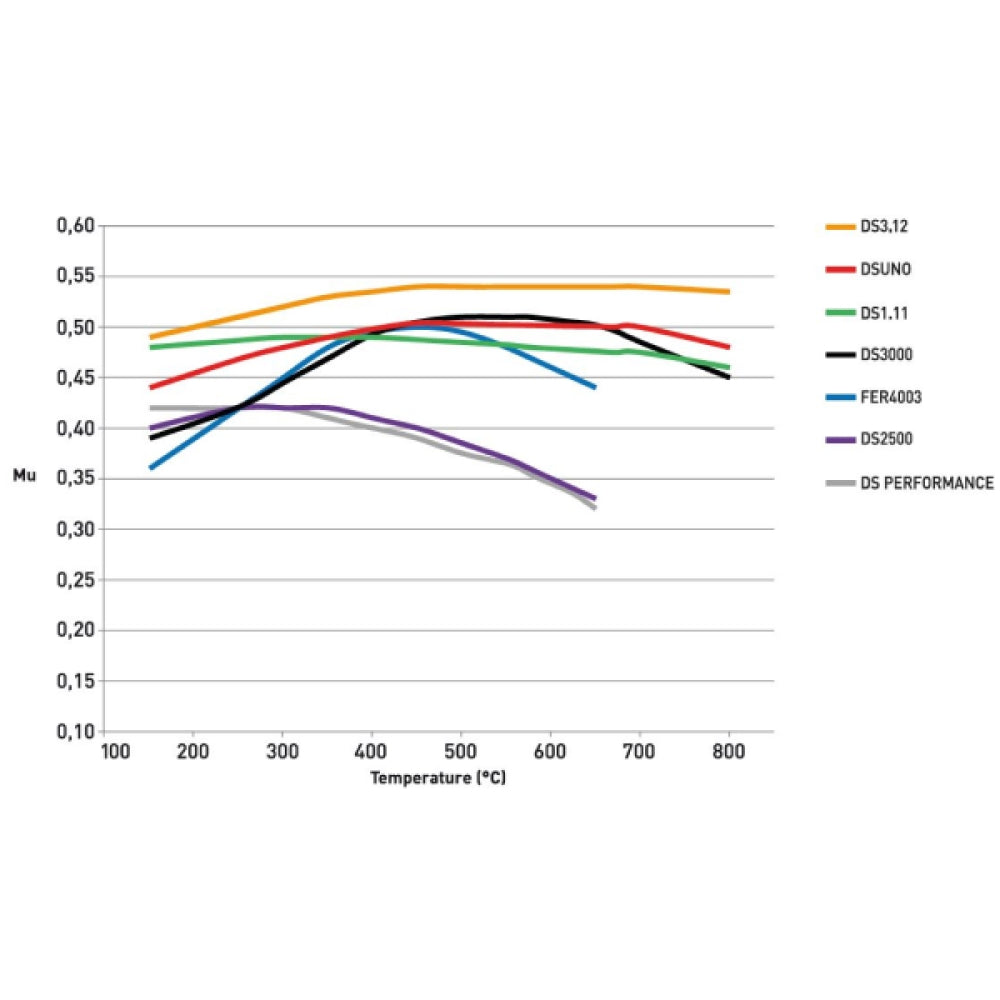

DS2500 Friction Coefficient (MU) Versus Temperature (°C)

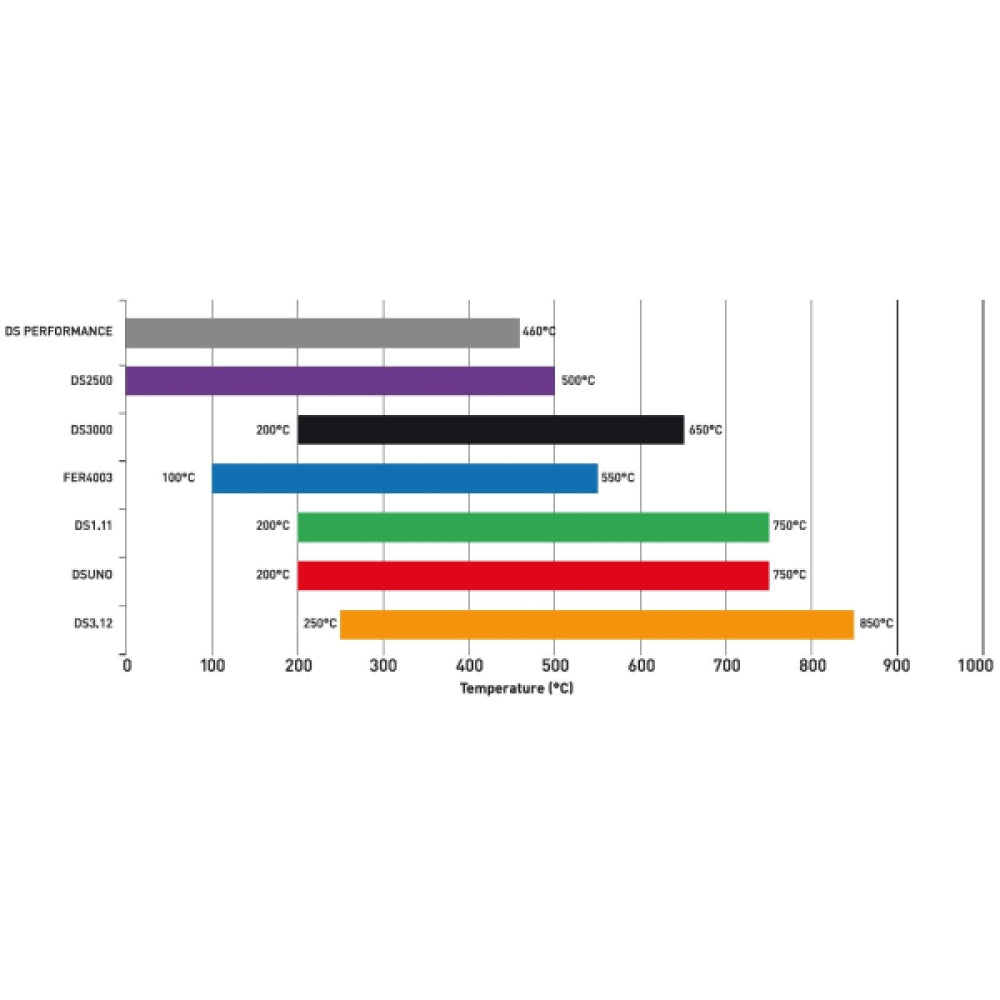

Optimal operating temperature

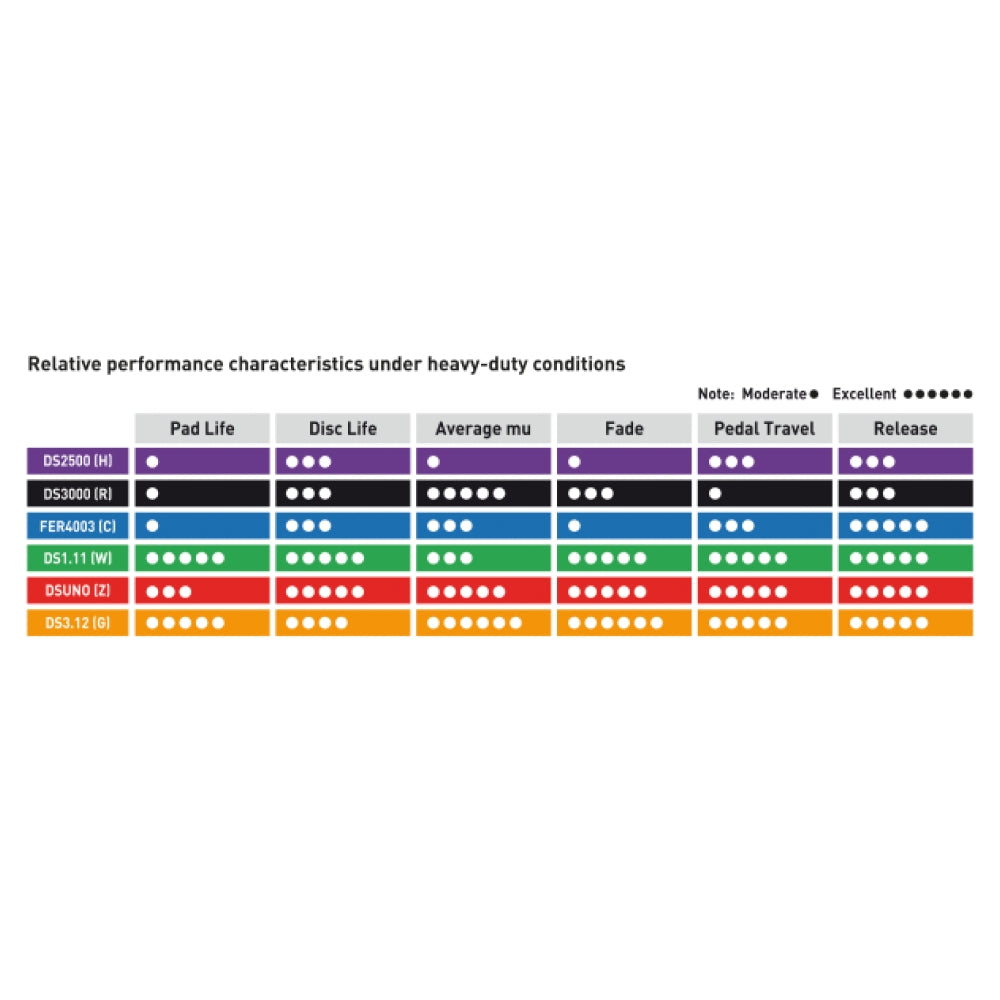

Relative performance characteristics under heavy-duty race conditions
Suggested applications
In stock

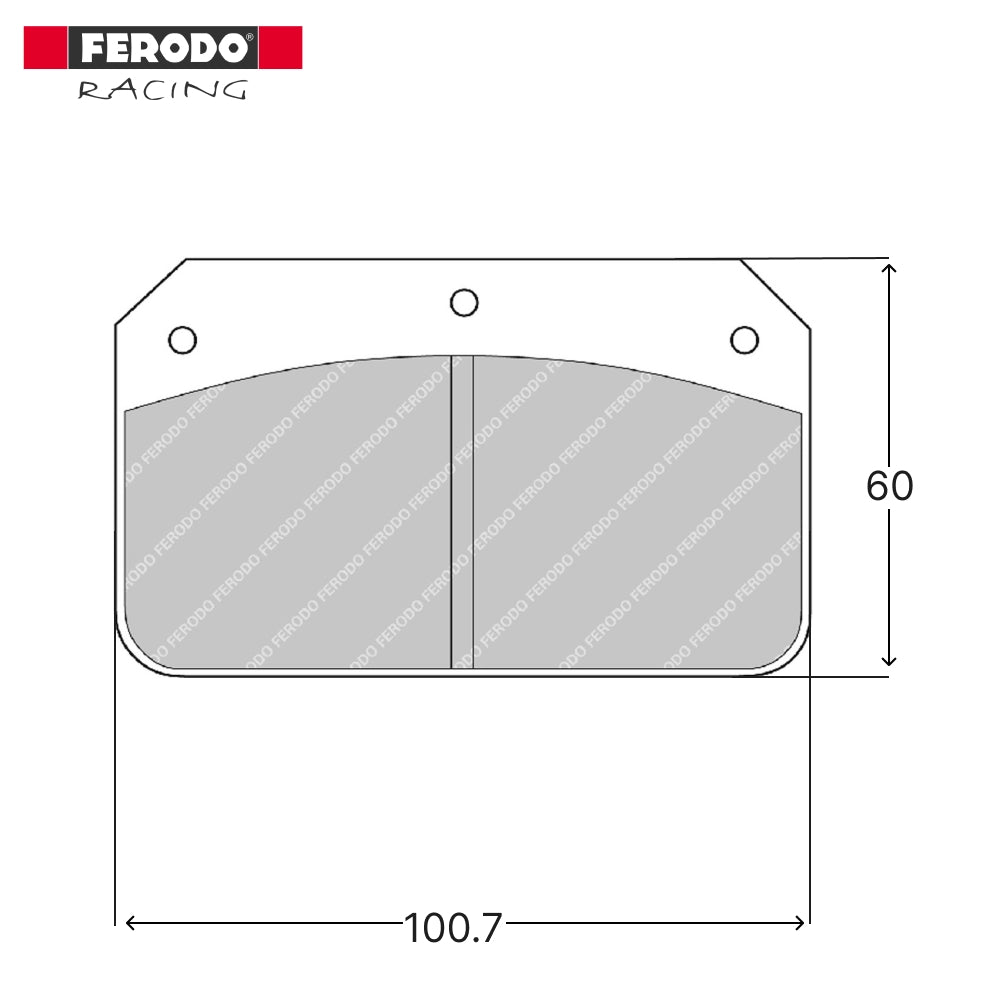

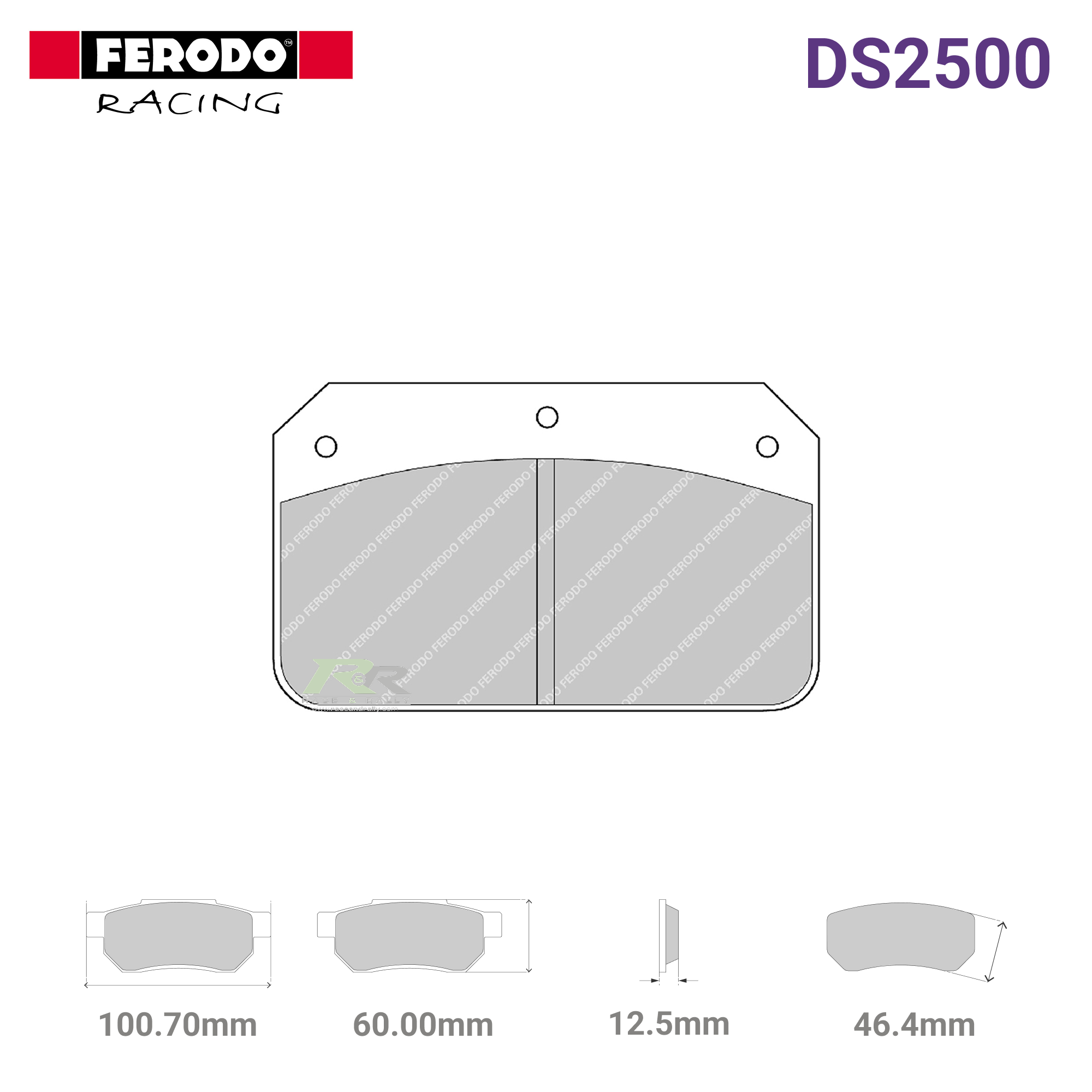

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP502H |
| Pad Width | 100.7mm |
| Pad Height | 60.0mm |
| Radial Depth | 46.4mm |
| Thickness | 12.5mm |
| Compound | (H) DS2500 |
| Barcode | 5016687215175 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

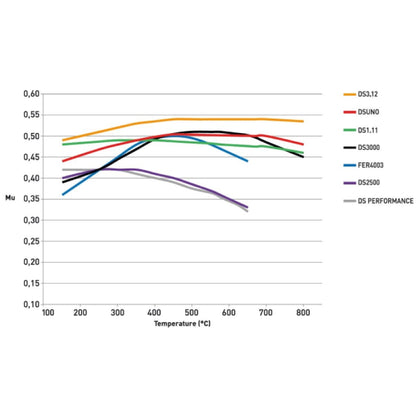

DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature

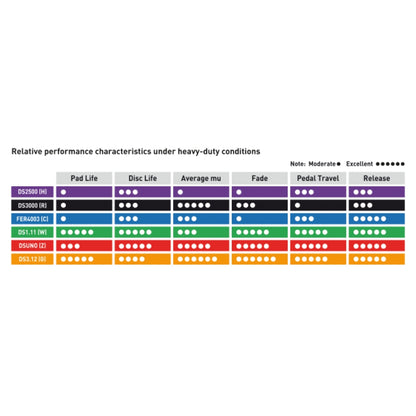

Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| Carbon Lorraine | 5025W46 |
| Ferodo Racing | FRP502 |
| Performance Friction | 7752 |
Ferodo Racing - Pad Bedding.pdf
