• Goodridge G-Link Bayonet Type Dry Break Fitting, bayonet connector with secure dry break mechanism, shown in the image.
  • Goodridge G-Link Bayonet Type Dry Break Fitting showing the bayonet connector and dry break mechanism in metallic finish.
1 2

G-Link Bayonet Type Plug

G-Link Bayonet Type Plug

GQD03BP03EB

€173.38 €213.26
Sale Sold out
  • Feature Icon Seals: TFE/P - Tetrafluoroethylene & Propylene
Nominal Size
Seal
Thread Size

Low stock
View full details

The bayonet type dry break coupling uses a locking mechanism designed for single-handed operation, a 'push and twist of the outer sleeve will couple/uncouple the G-Link with no separate actuation required for operation. Both halves, plug and socket, are equipped with self-acting valves to stop fluid loss and air ingress. The bayonet type can hold pressure up to 200 bar (AN-03).

Available in JIC/UNF AN-03, AN-04, AN-06 and AN-08 thread fitments.

Technical Information:

Seal Type Description Operating Temperatures Fluids
FPM B Fluorocarbon -20°C to 200°C Fuel, Ethanol, Vegetable oil
TFE/P Tetrafluoroethylene & Propylene -5°C to 170°C Brake Fluid

*For motorsport and off-road use only.

** Plugs and Sockets are sold separately.

Brand Goodridge
Option SKU Barcode

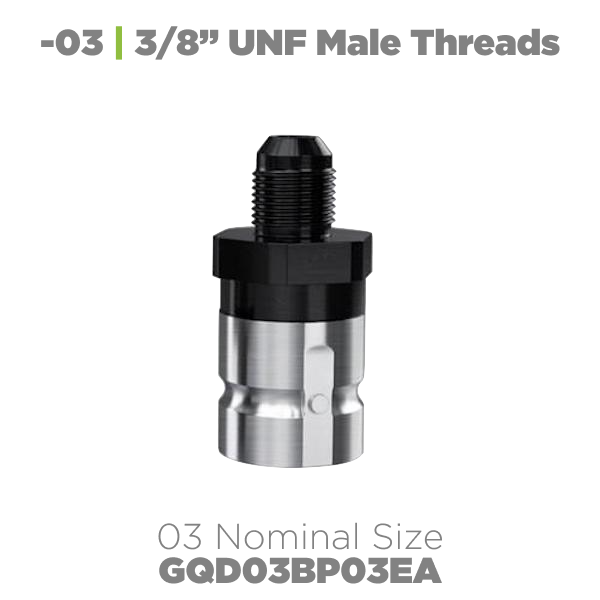

3 / TFE/P (Brake Fluid) / -03 | 3/8" UNF GQD03BP03EB

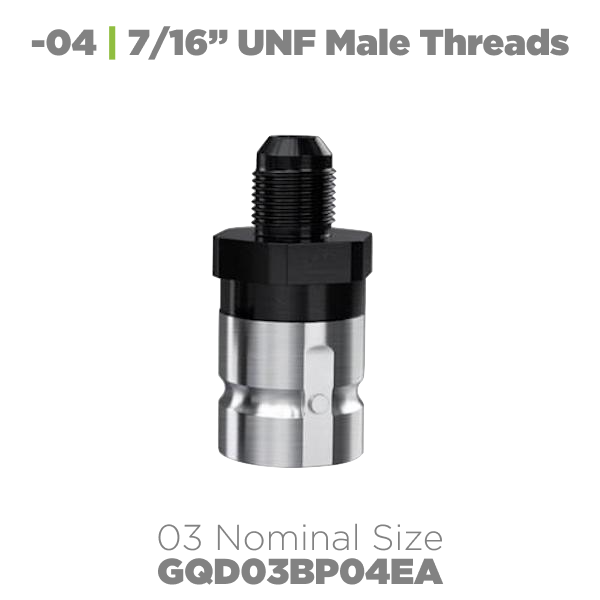

3 / TFE/P (Brake Fluid) / -04 | 7/16" UNF GQD03BP04EA


Established in 1969, Goodridge has evolved into a globally renowned manufacturer of performance fluid transfer systems.
For over 55 years, original equipment manufacturers, high-level racing teams and privateers have utilised Goodridge products, whether through the company's consultancy-based 'design and build approach' or through its range of 'off-the-shelf' performance plumbing products.

Why choose Goodridge
We provide bespoke systems and an extensive range of off-the-shelf products to high-end customers in the automotive, industrial and defence and aerospace sectors. Our product range covers the full spectrum of fluid transfer systems, including battery cooling for electric vehicles. Our off-the-shelf product range also serves a strong aftermarket for performance and racing components.
