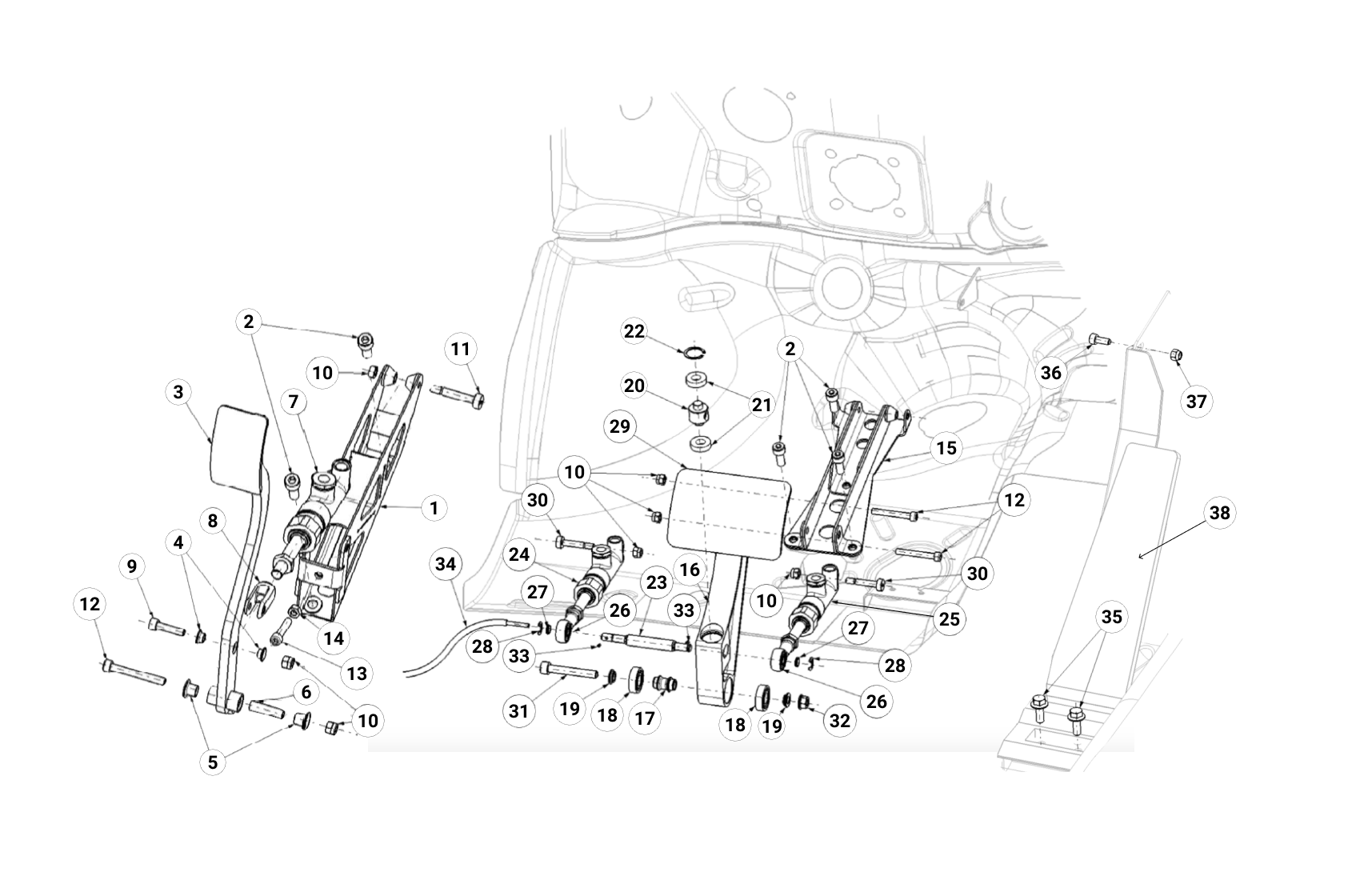

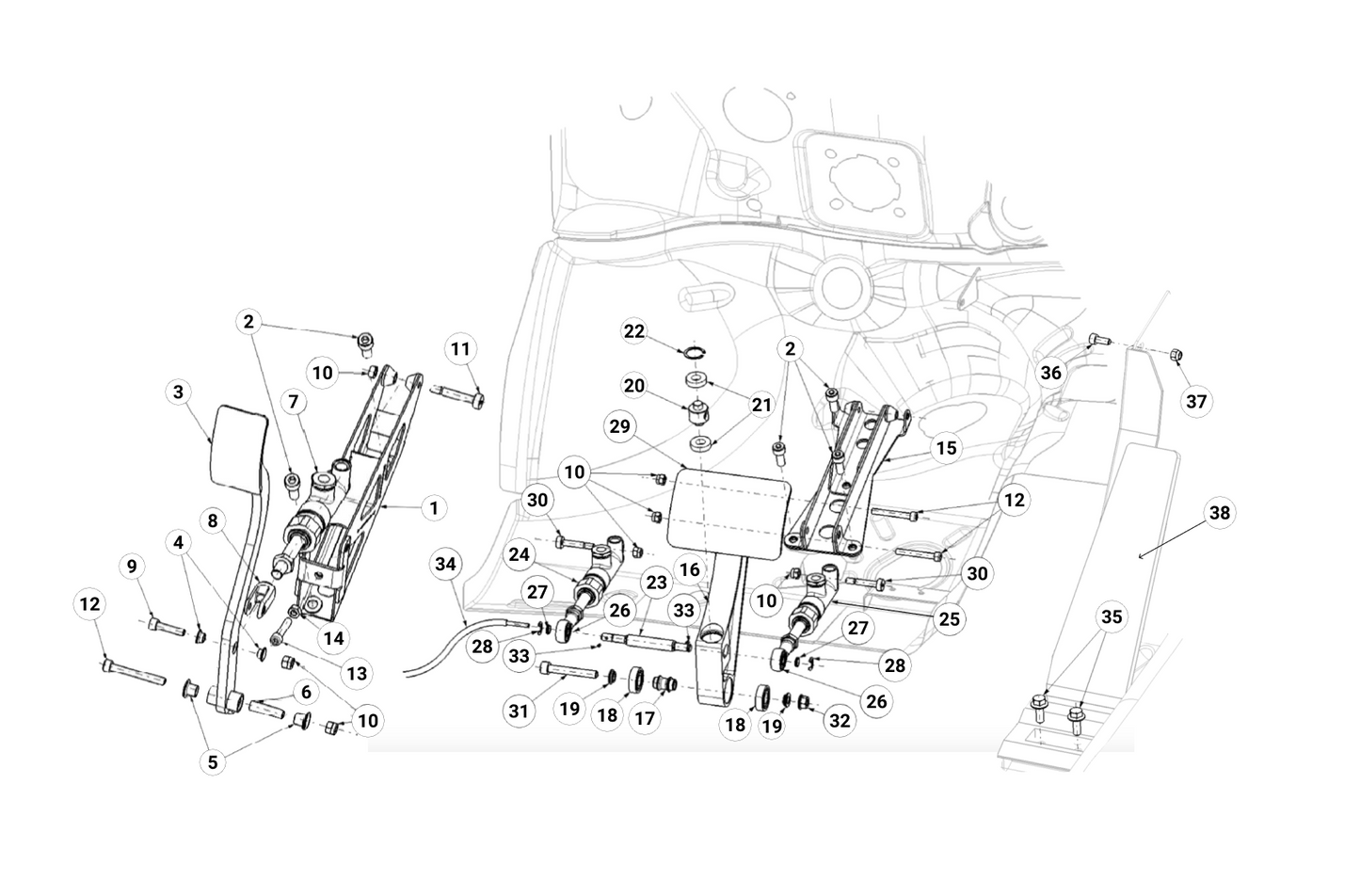

G11 - Pedal Assembly

G11 - Pedal Assembly

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Clutch Pedal Mount

1G1163766D

1

€119.89 €147.46
2
Screw M8x125-20

422822

2

€1.73 €2.13
3
Clutch Pedal

1G1163767B

1

€132.75 €163.28
4
Inner Shouldered Ring Ø6x12-4

CS210034ST

2

€1.09 €1.34
5
Inner Shouldered Ring Ø8x10-5,5

CS210035ST

2

€0.59 €0.73
6

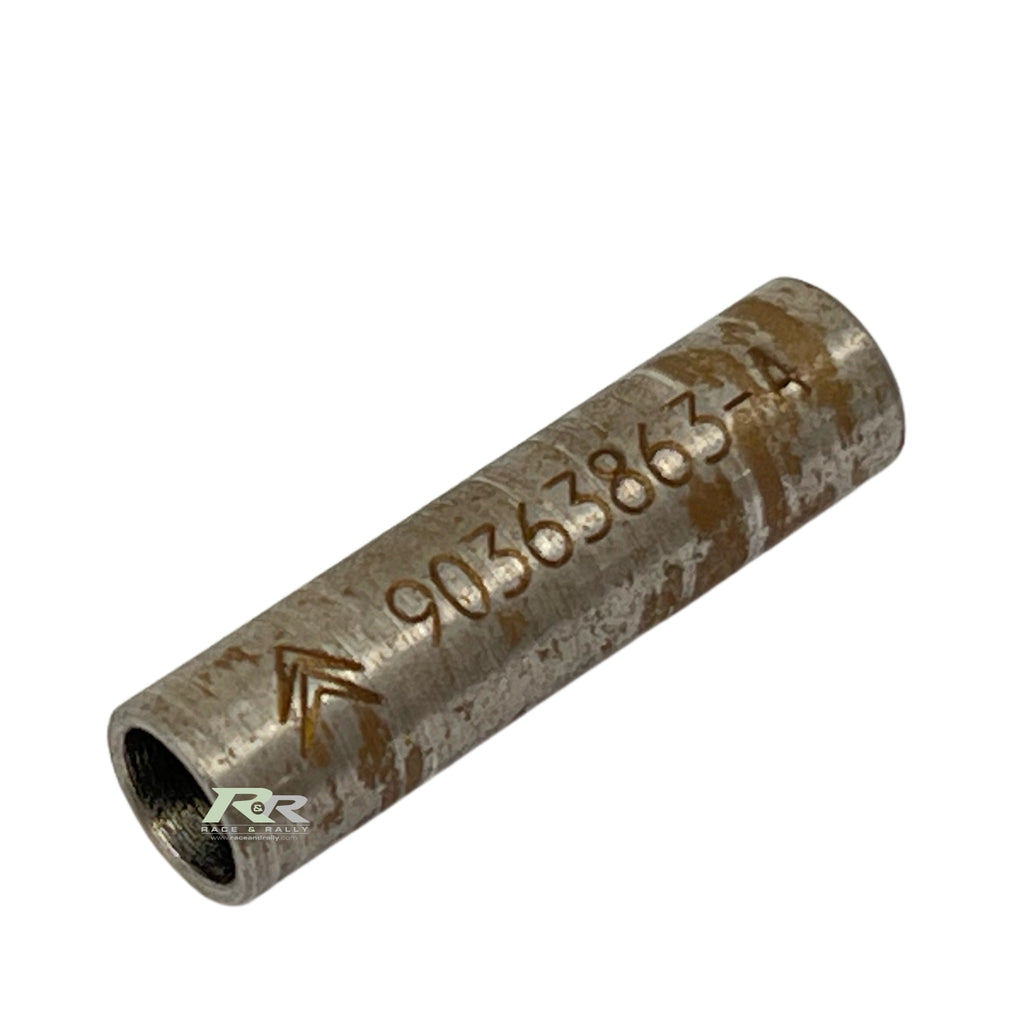

Clutch pedal spacer

1G1163863A

1

€14.94 €18.38
7
Clutch Master Cylinder 15.9 (0.625")

1G3264044A

1

€581.15 €714.81
8
Handbrake master cylinder clevis

1F6363536C

1

€52.33 €64.37
9

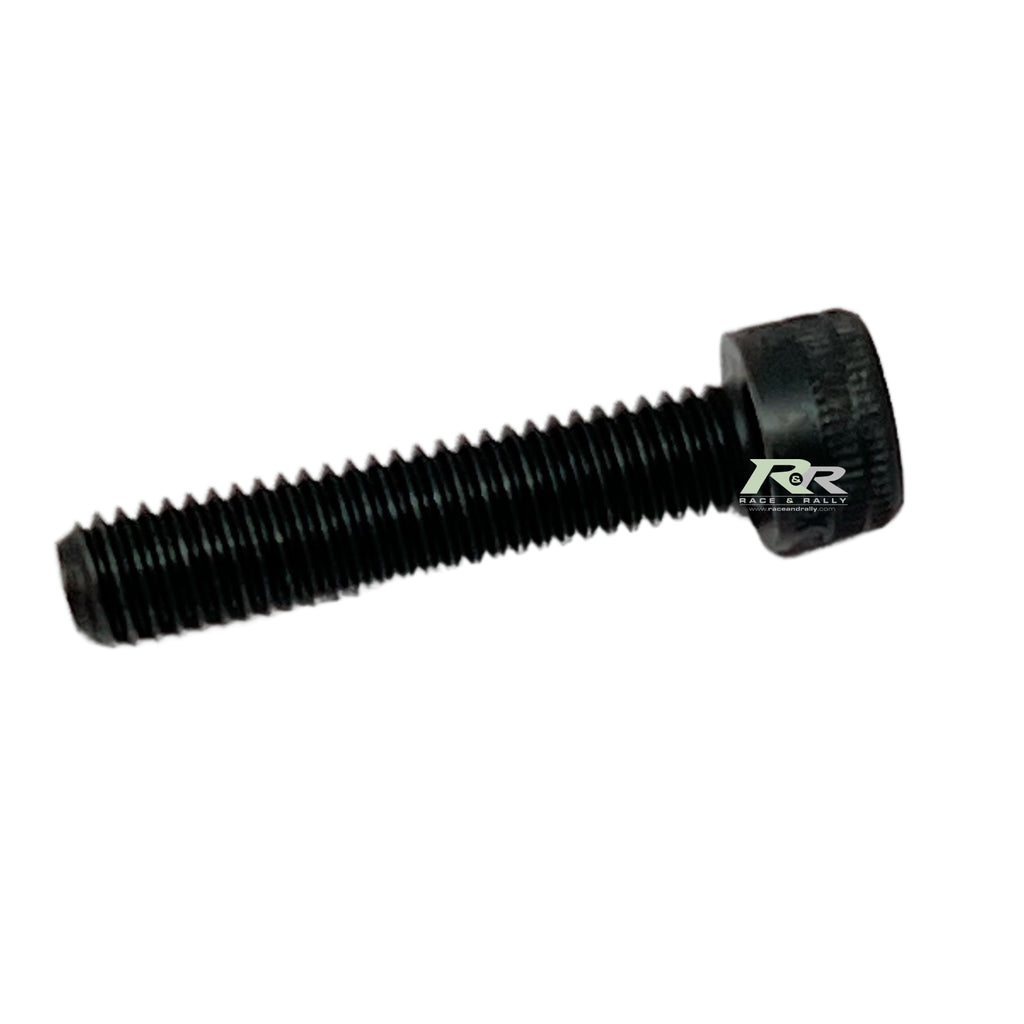

Screw CHC M6x30 cl.12.9

PS82120A10

1

€0.62 €0.76
10
M6 Lock Nut

693586

3

€0.37 €0.46
11
Clucth Master Cylinder Mounting Screw

1G1163812B

1

€8.68 €10.68
12

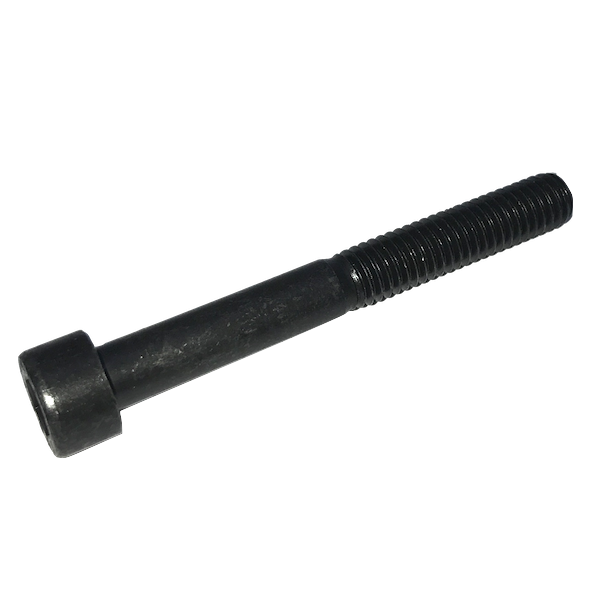

RCN Screw M6x100 L50 CL10.9

CS530261ST

3

€0.26 €0.32
13
Socket cheesehead screw M6x30

6913N8

1

€2.26 €2.78
14
Hexagonal Nut

6936-26

1

€1.94 €2.39
15
Brake Pedal Mount

1G1163687E

1

€122.02 €150.08
16
Brake Pedal

1G1163401B

1

€133.49 €164.19
17

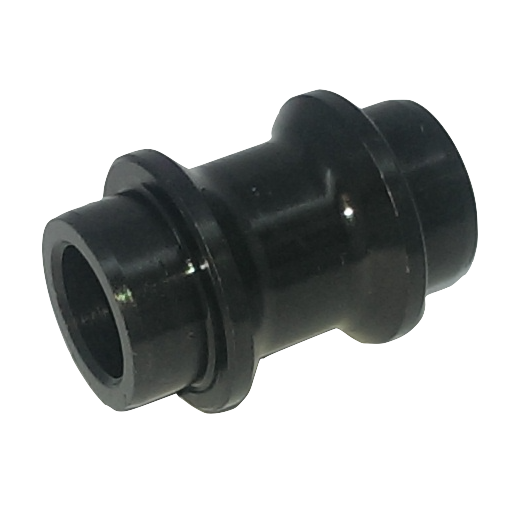

Brake Pedal Axis Inner Spacer

1G1160831A

1

€53.01 €65.20
18

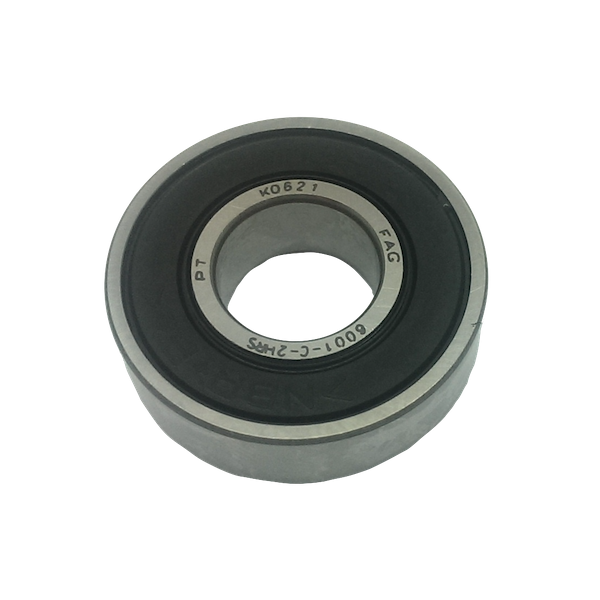

Ball Bearing Ø12x28

CS460048ST

2

€11.20 €13.78
19

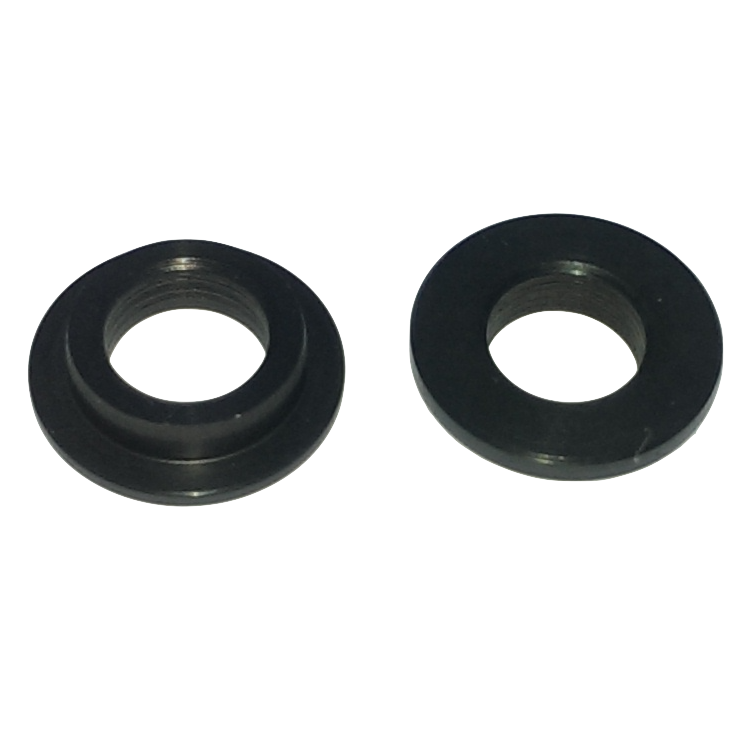

Brake Pedal Axis Outer Spacer

1G1160832A

2

€33.79 €41.56
20

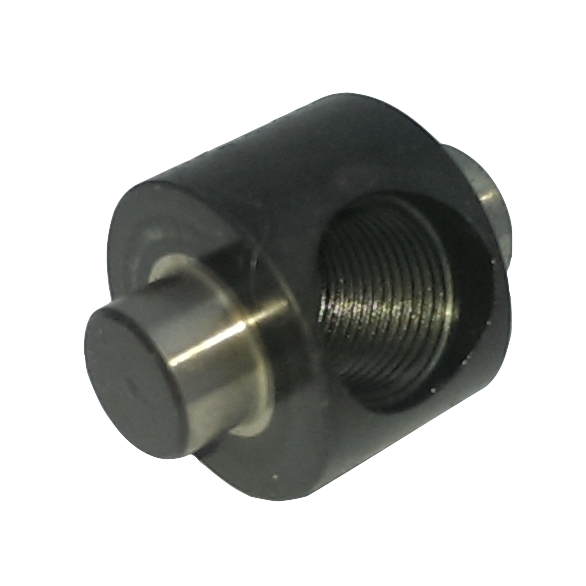

Balance Bar Swivel Axis

1G1163684A

1

€55.71 €68.52
21

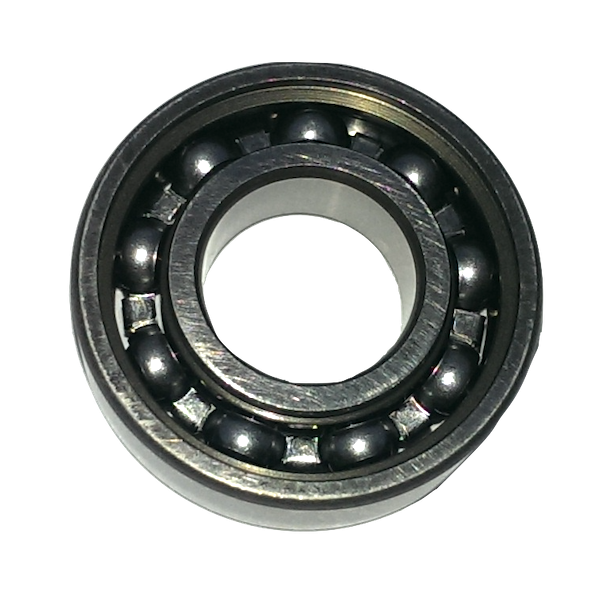

Ball Bearing Ø10x22

CS460077ST

2

€15.60 €19.19
22
Retaining Ring AI 22

PS72055A10

1

€0.34 €0.42
23

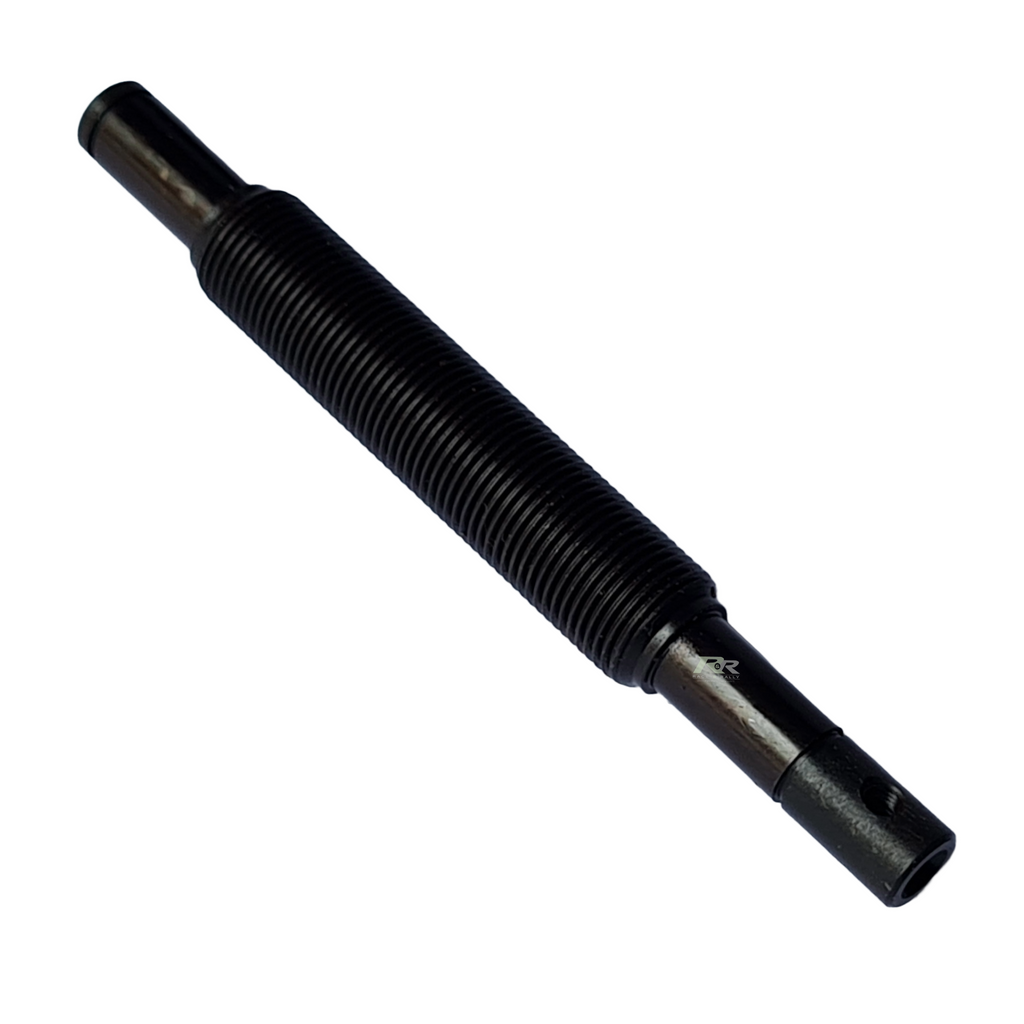

Brake Balance Bar

1G1163683C

1

€18.60 €22.88
24

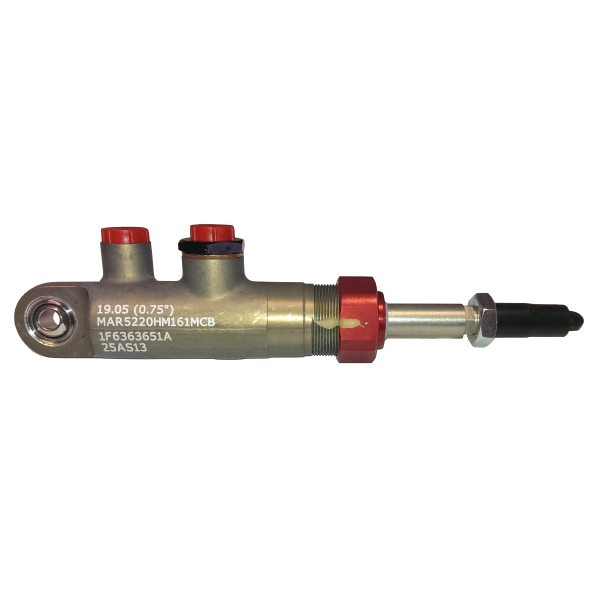

Brake master cylinder Ø19.05 (0.75) FIA

1F6363651B

1

€334.67 €411.64
25
Brake master cylinder Ø17.8 (0.700")

1F6363650B

€295.29 €363.21
26
Rotule SI8TK M10x100

1F6323843A

2

€85.85 €105.60
27

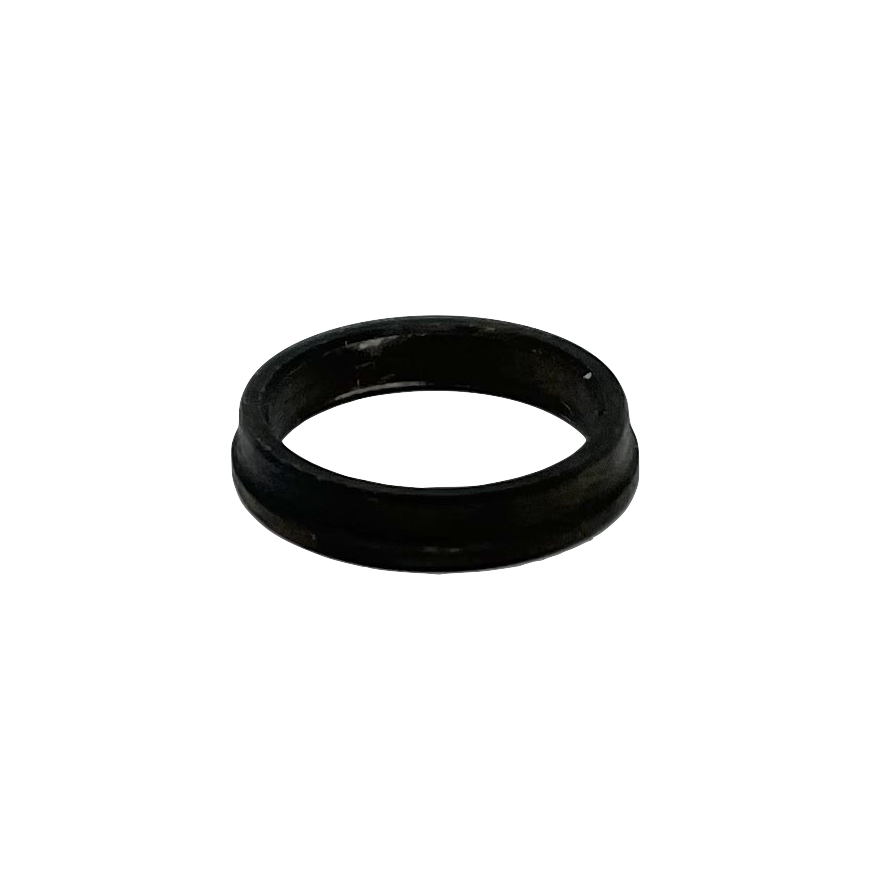

Balance Bar Setting Washer

1G1163730C

2

€15.87 €19.52
28

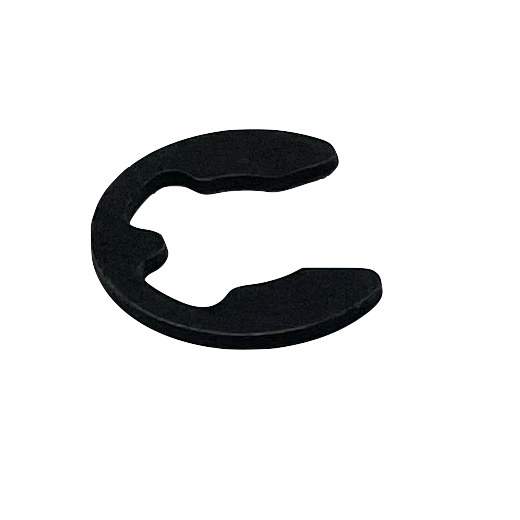

Retaining Ring RA 7 DIN6799

CS060104ST

2

€0.03 €0.04
29
Brake Pedal Pad

1G1163688B

1

€148.80 €183.02
30

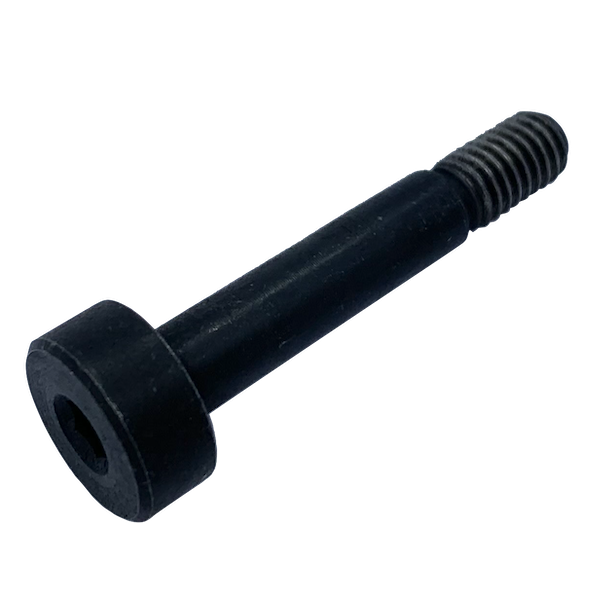

Brake Master Cylinder Mounting Screw

1G1163811A

2

€6.51 €8.01
31
Screw M8x55

PS82048A10

1

€0.62 €0.76
32
Nut with washer M8-7-10 cl 10.9

7238ET

2

€1.41 €1.73
33

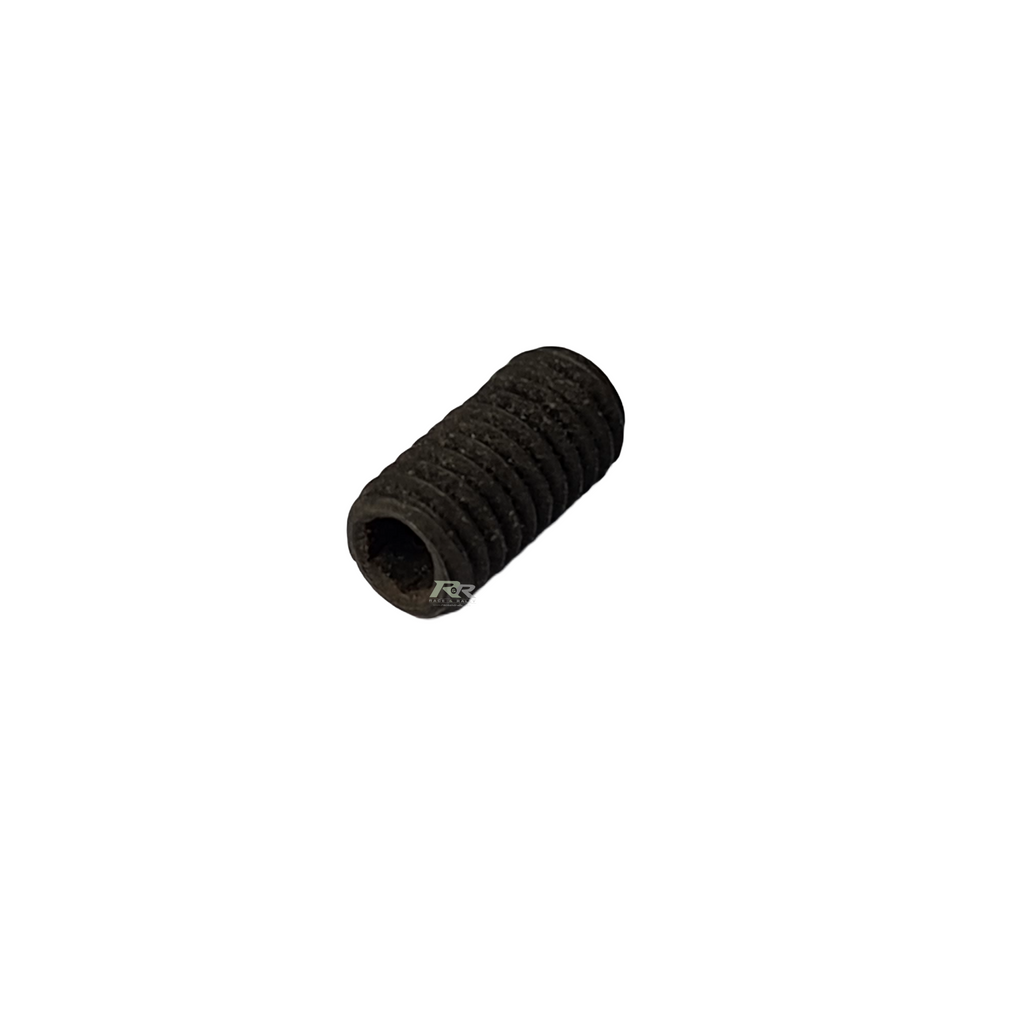

Headless Screw HC BPL M3x050 L6

CS560004ST

2

€0.06 €0.07
34

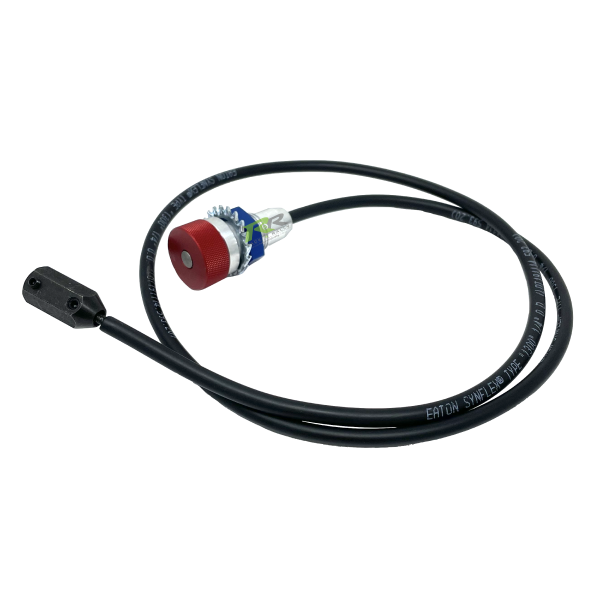

Balance Bar Cable

1G1163803A

1

€233.12 €286.74
35
Collar screw M6-16

6925W6

14

€2.62 €3.22
36
Screw CHC M5x12 cl.12.9

PS82027A10

1

€0.25 €0.31
37
Locking nut M5

693673

1

€0.37 €0.46
38
Throttle pedal

1G1163990A

1

€148.00 €182.04
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
