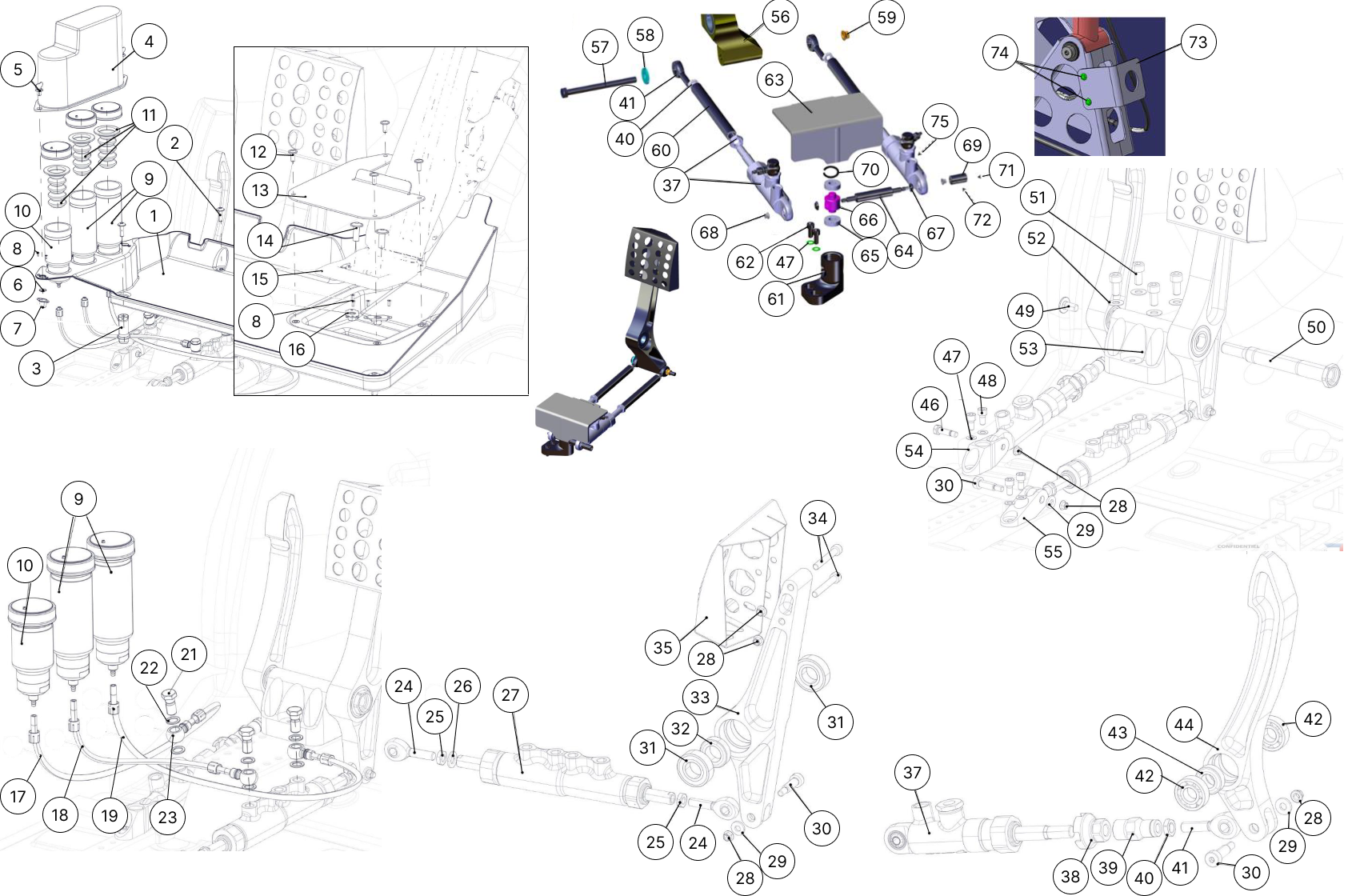

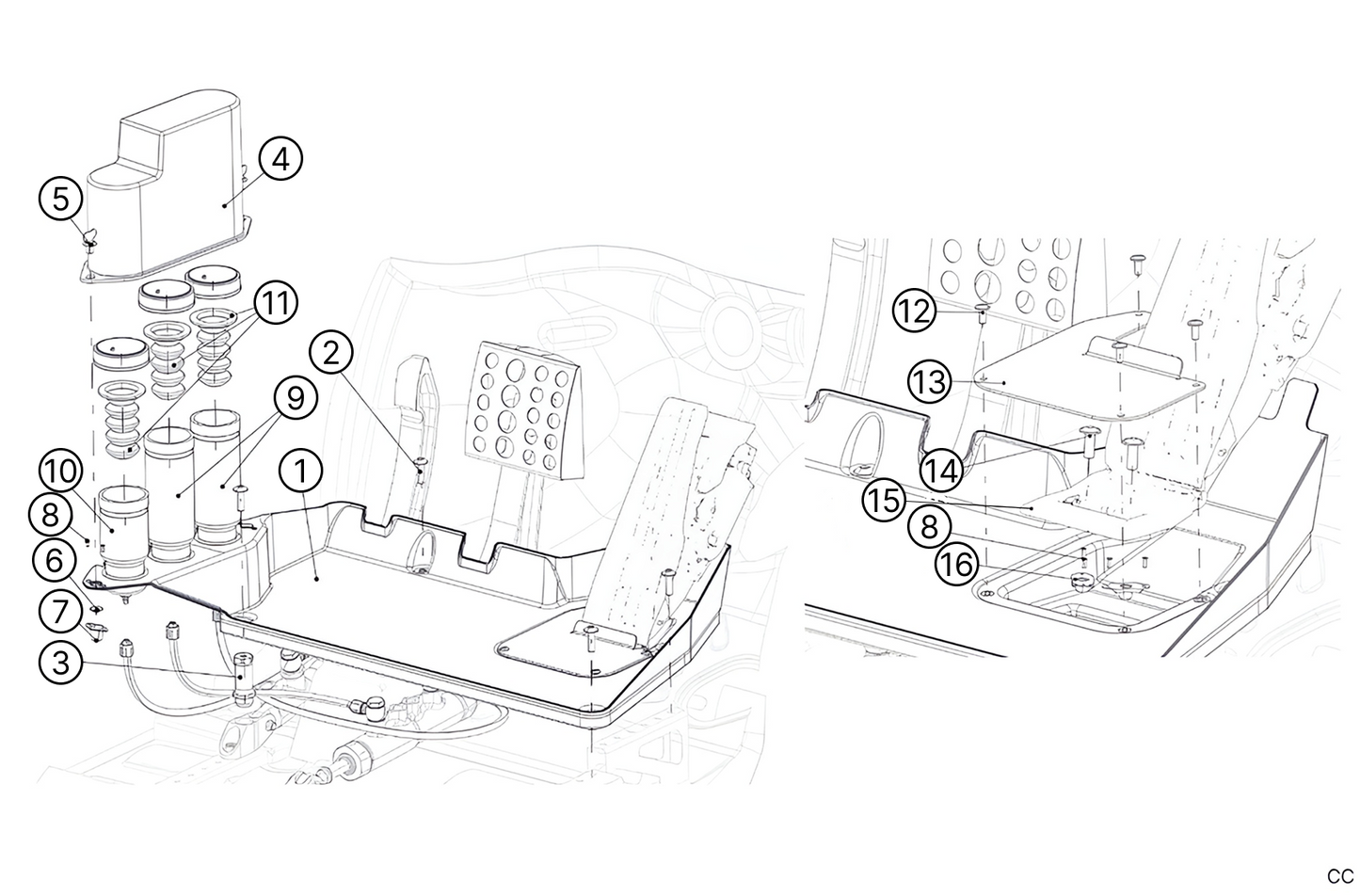

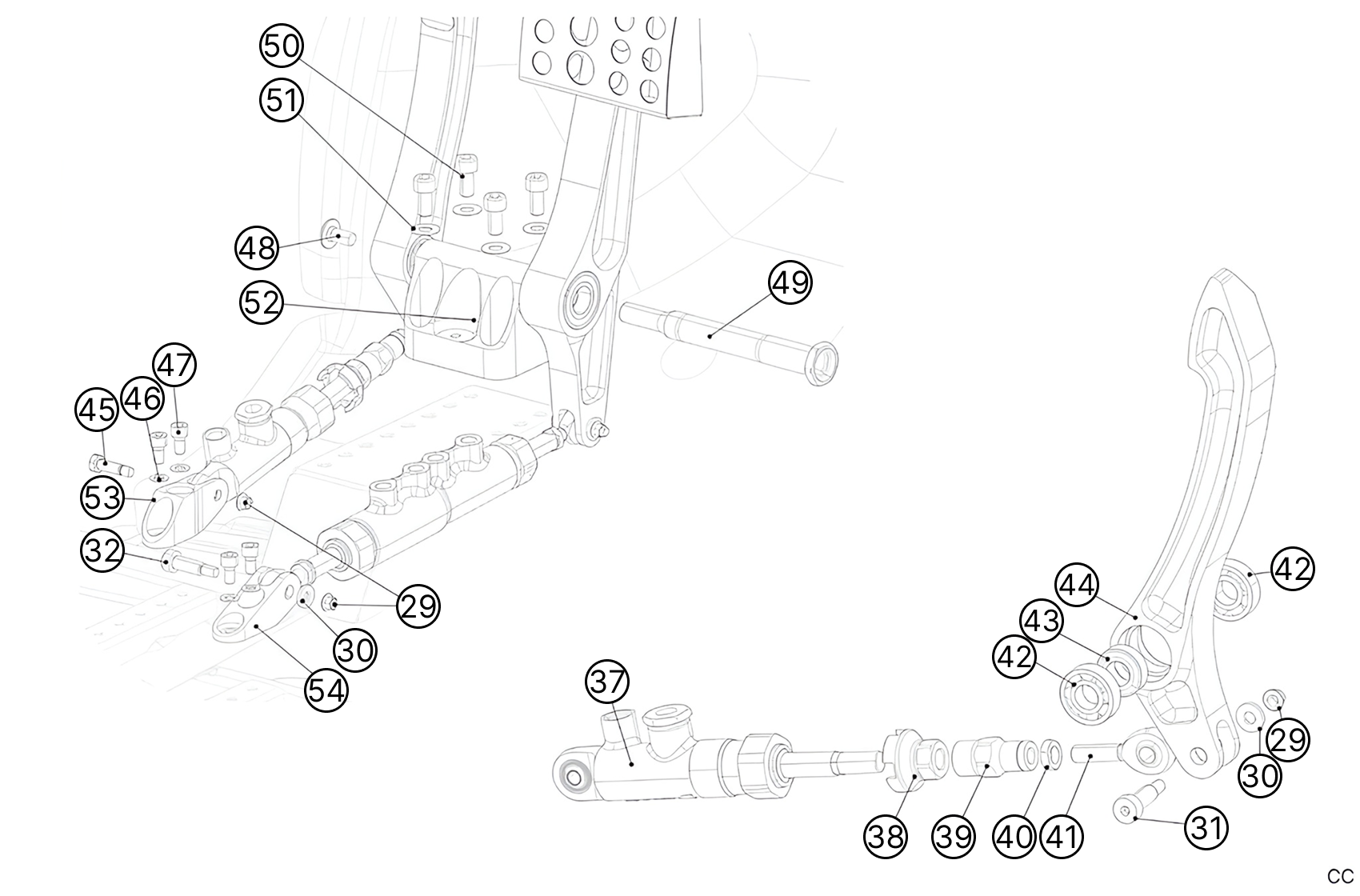

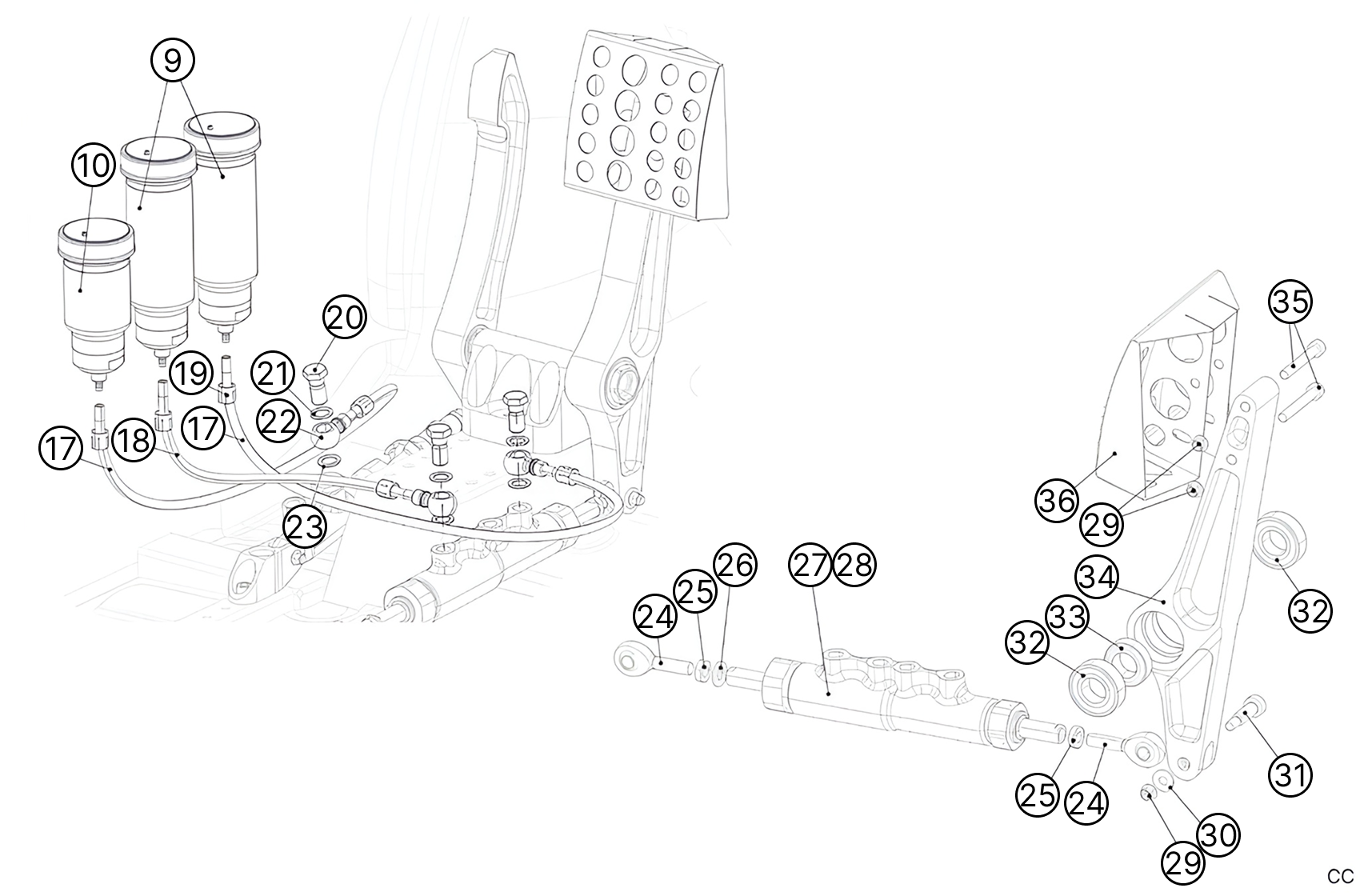

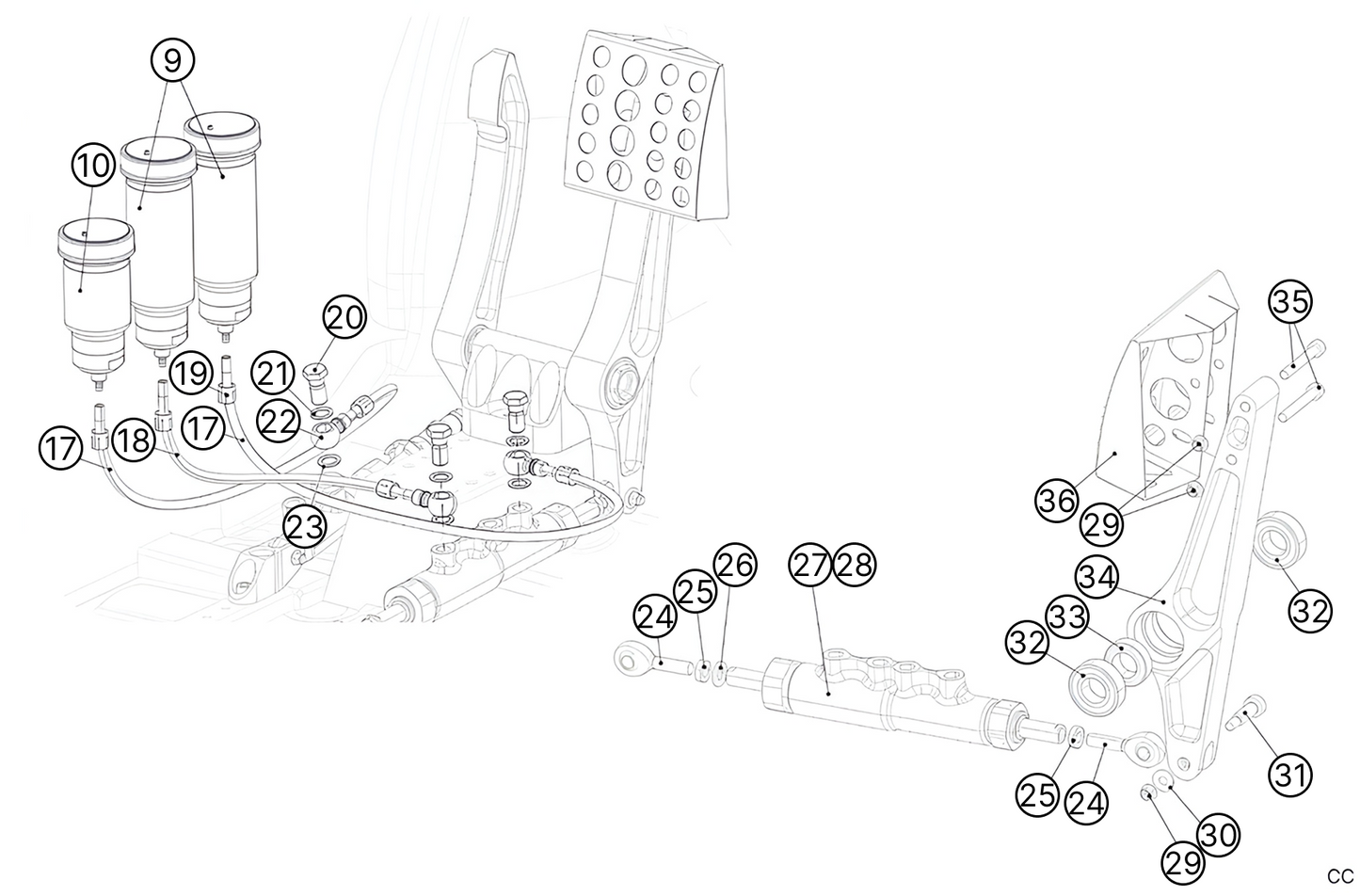

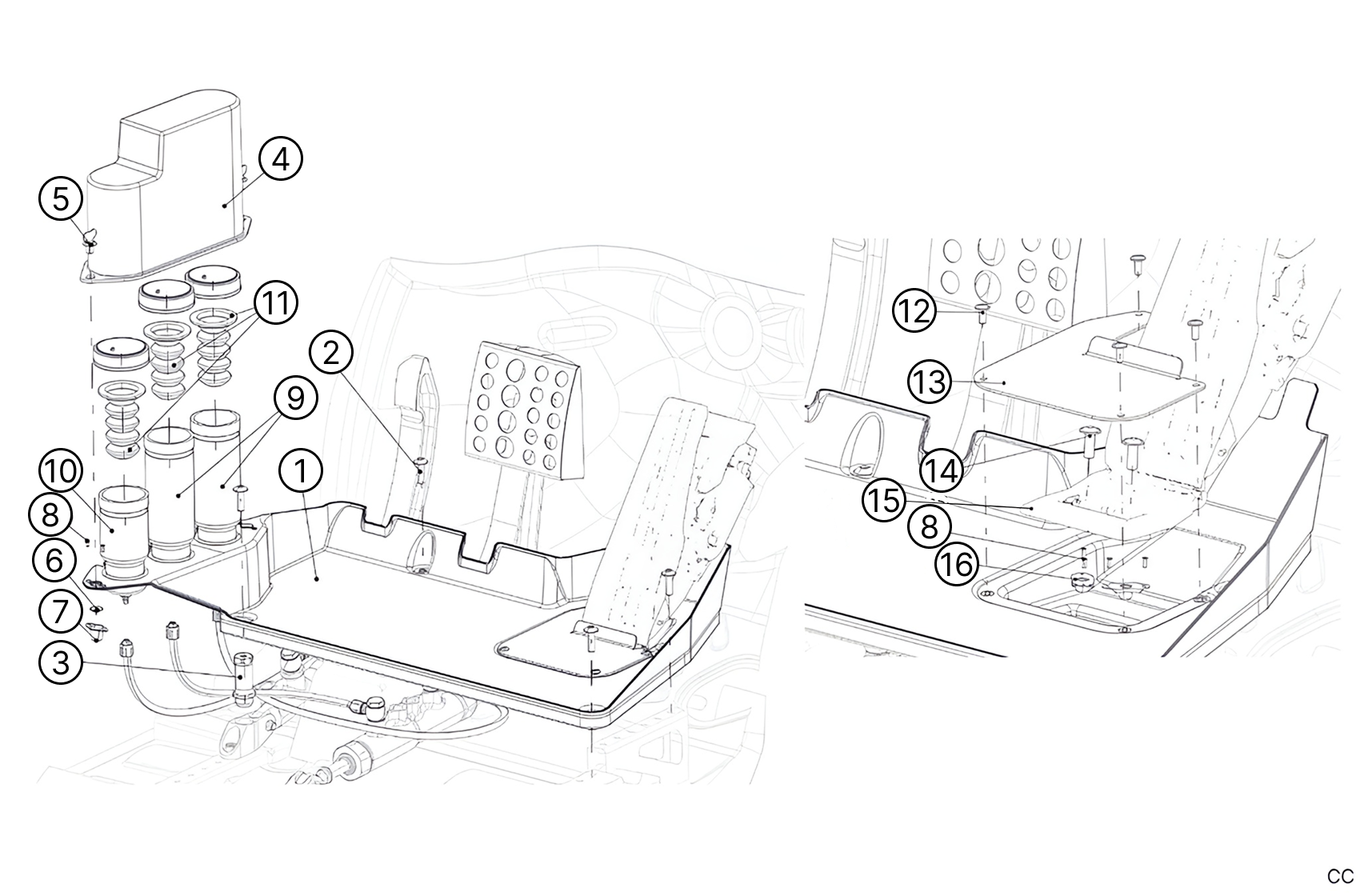

G11 - Pedal Box - Non-EVO

G11 - Pedal Box - Non-EVO

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Driver Footrest

904490978C

1

€936.00 €1151.28
2
Screw ULF M6x100-L20

ST05800002

4

€0.45 €0.55
3
Footrest Spacer

904490988A

1

€192.00 €236.16
4

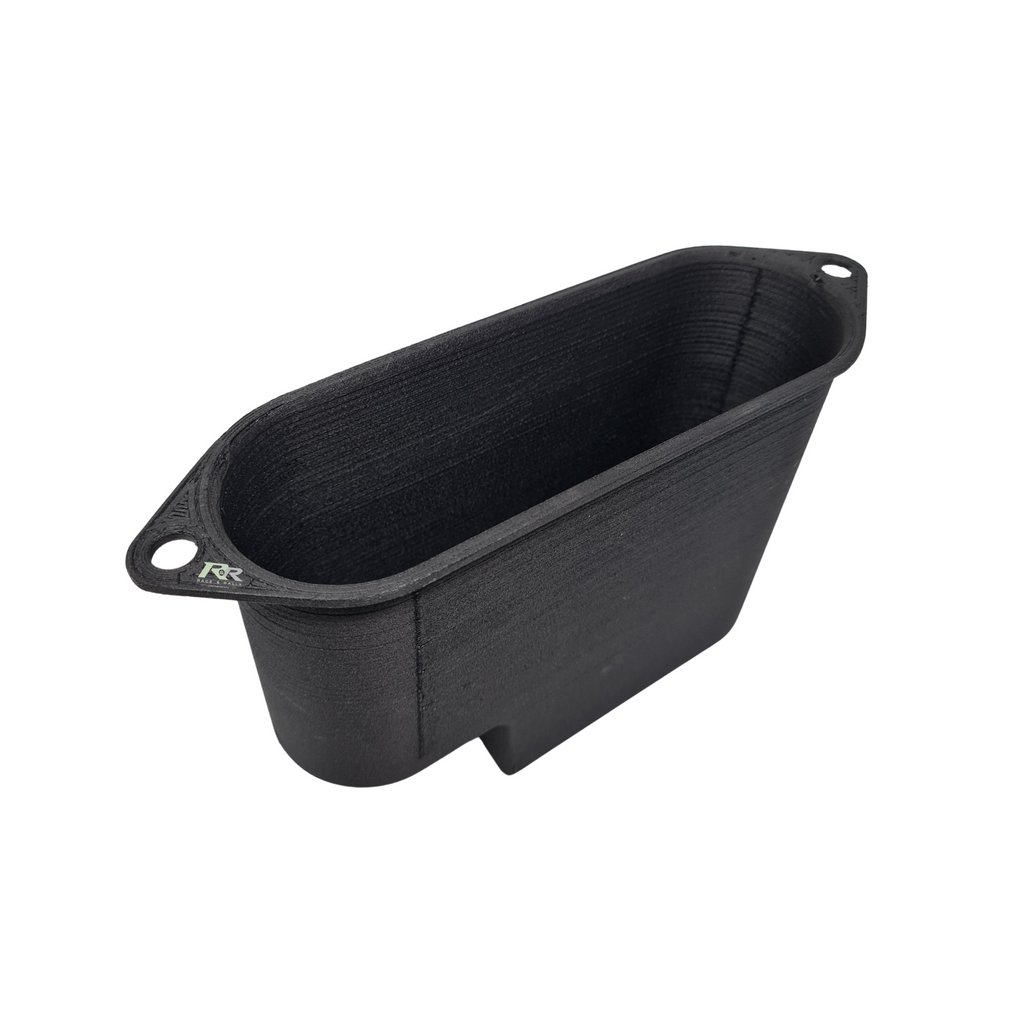

Cover

904847048A

€288.40 €354.73
5
Wing axis

265375

2

€73.92 €90.92
6
Axis setting washer

PS86135A10

2

€2.02 €2.48
7
Axis receiver

PS74130A10

2

€8.48 €10.43
8
Countersunk head rivet Ø2,4x6,5

PS92502A10

8

€1.13 €1.39
9

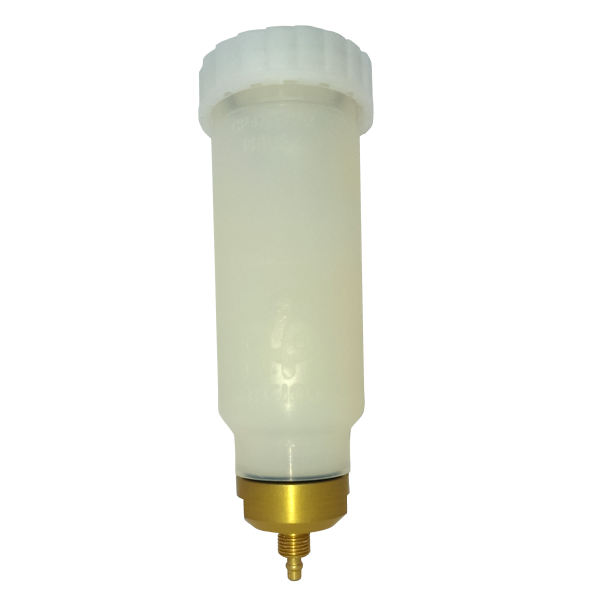

Brake fluid reservoir

1F6362849A

2

€75.21 €92.51
10

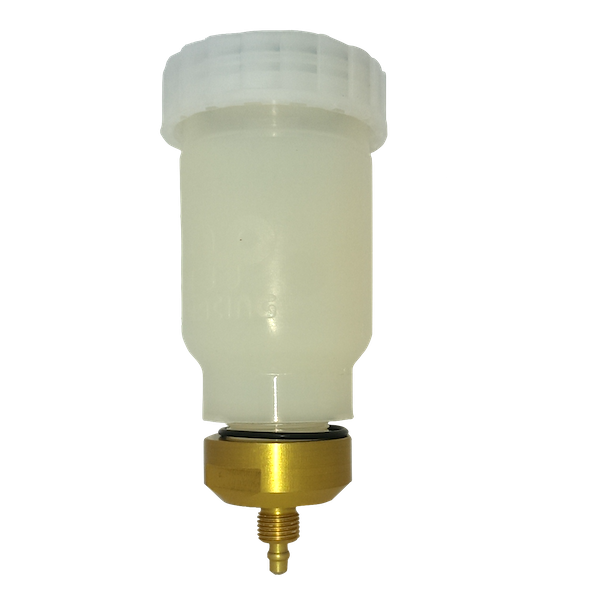

Cutch fluid reservoir

1G3262850A

1

€92.96 €114.34
11
Reservoir boot

1F6362743A

3

€40.01 €49.21
12
Screw ULF M4x10 cl10.9

PS82628A10

4

€0.23 €0.28
13
Throttle Pedal Cover

904602588A

1

€60.76 €74.73
14
Hex Screw With Washer M6-20

692254

2

€2.60 €3.20
15
Throttle pedal

1G1163990A

1

€148.00 €182.04
16
Captive Nut M6

PS74673A10

2

€6.23 €7.66
17
Tank To Front Mc Hose 0,25M

904491708A

1

€9.72 €11.96
18
Tank To Rear Mc Hose 0,25M

904491698A

1

€4.88 €6.00
19

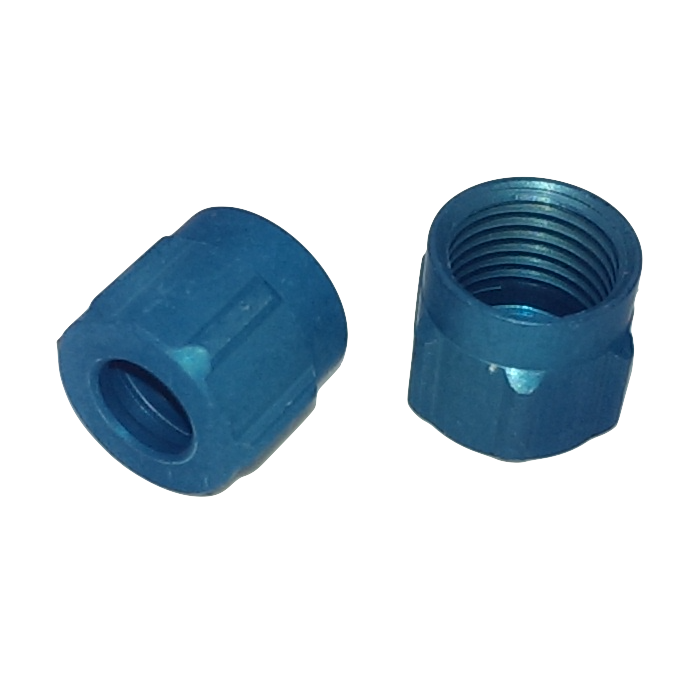

PK4 coupling nut

PS73031A10

6

€2.68 €3.30
20
Master Cylinder Banjo Coupling Screw

1F6363866A

3

€37.69 €46.36
21
Copper Seal ø10,2x13,9x1

PS81031A10

3

€0.74 €0.91
22
Master Cylinder Banjo Coupling

1F6363865A

3

€38.89 €47.83
23
Copper Seal D10X14X2

PS81610A10

3

€2.61 €3.21
24
M8 Ball Joint Rod End

PS88731A10

2

€66.80 €82.16
25
Handbrake MC Mount Locknut - M8 Nut

ST02300026

2

€0.18 €0.22
26
Plain Washer Ø8x16-1,5

6947-78

1

€1.19 €1.46
27
Dual Master Cylinder 23.8/19.05 (Tarmac)

904491828A

1

Sold Out

€582.35 €716.29
28

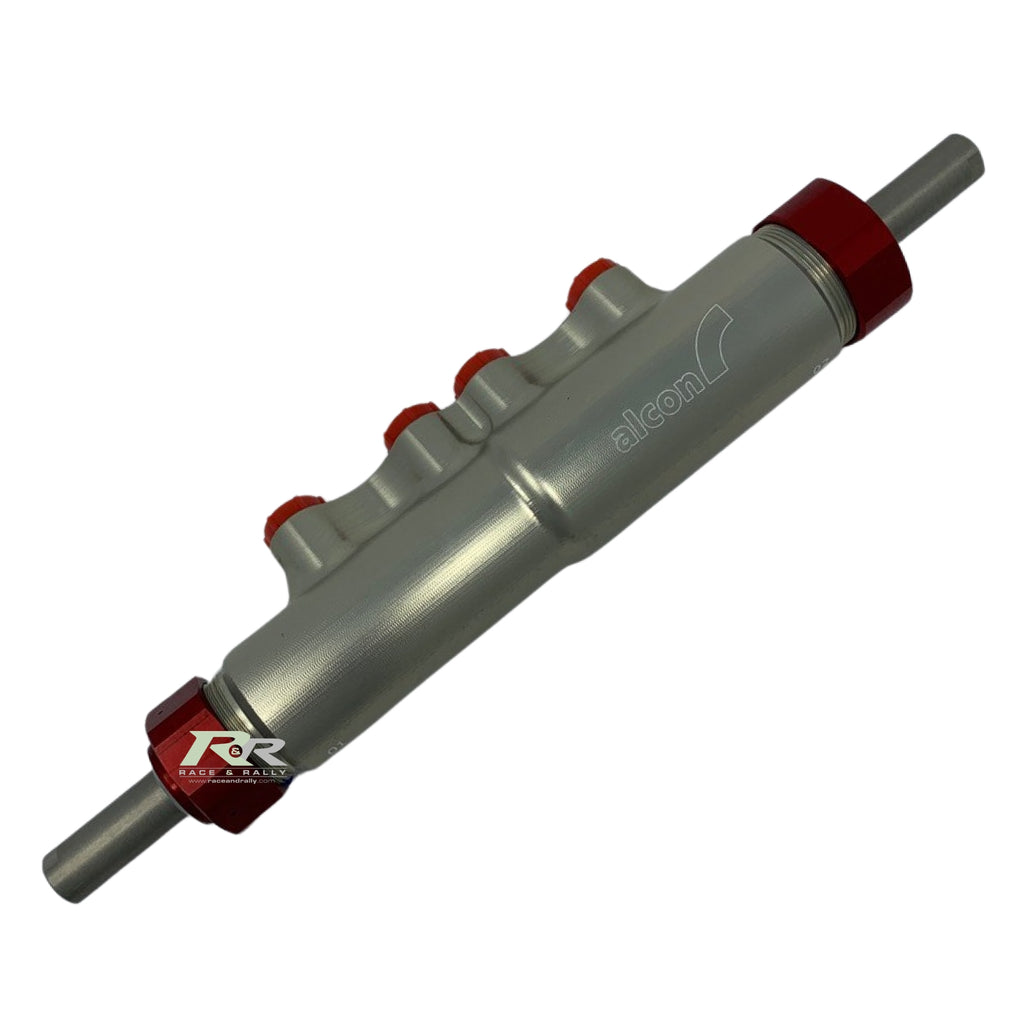

M Cyl Tandem 22.22 17.8 (Gravel)

904491808A

1

€582.35 €716.29
29
Collar nut M6

PS74001A10

6

€7.61 €9.36
30
Plain washer Ø6x14-2

6946-38

2

€0.58 €0.71
31

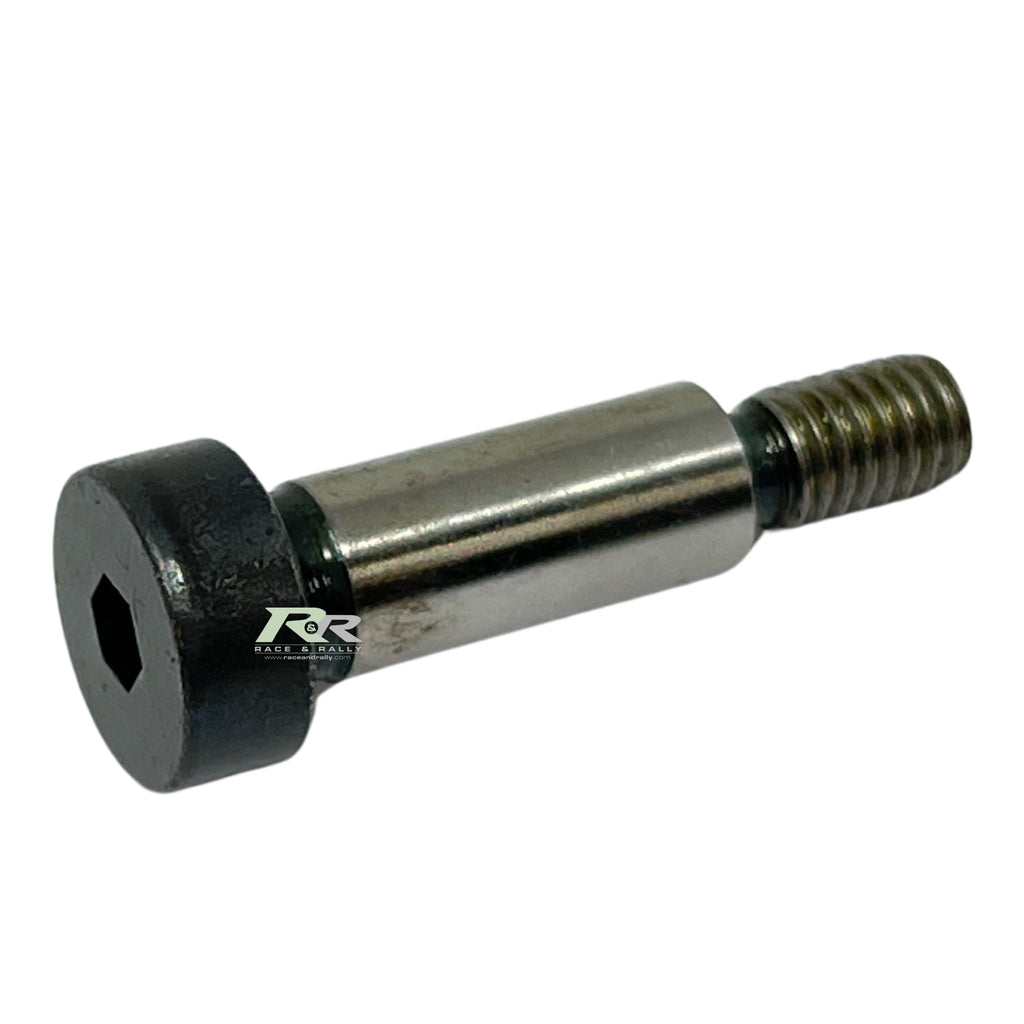

UPS screw D8 M6x100 L20

ST05900002

3

€4.08 €5.02
32
Bearing B 17X35X10

PS89064A10

2

€6.75 €8.30
33
Brake Pedal Bearing Spacer

904491068A

1

€68.04 €83.69
34
Brake Pedal

904490938B

1

€240.00 €295.20
35

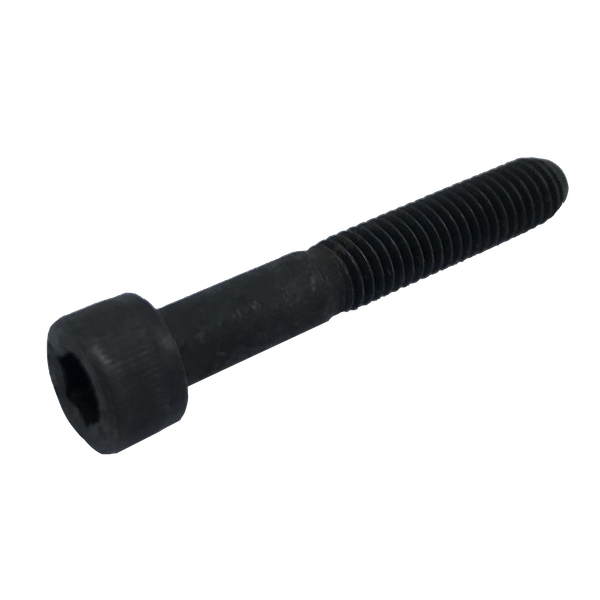

Screw chc M6x40 cl.12.9

PS82021A10

2

€0.44 €0.54
36
Brake Pedal Pad

904490958B

1

€324.00 €398.52
37
Brake master cylinder Ø17.8 (0.700")

1F6363650B

1

€295.29 €363.21
Alternative
37
Brake master cylinder Ø17.8 (0.700") - Used

1F6363650B-#

1

€221.47 €272.41
38
Clutch Mc Stop

904602698A

1

€138.00 €169.74
39
Clutch Mc Adjuster

904602688A

1

€101.60 €124.97
40
LH thread nut HM M8

PS74064A10

1

€0.68 €0.84
41
SMLE 8 LH thread bearing

PS88653A10

1

€251.44 €309.27
42
Ball Bearing Ø12x28

CS460048ST

2

€11.20 €13.78
43
Clutch Pedal Bearing Spacer

904491078A

1

€57.76 €71.04
44
Clutch Pedal

904490948B

1

€380.00 €467.40
45
Screw M6X100

904606248A

1

€52.00 €63.96
46
Onduflex washer 6 type A

PS86004A10

4

€0.09 €0.11
47
Screw M6x12

PS82119A10

4

€0.25 €0.31
48
Vis Bhc Emb M8X125 L16-16 Acier Cl10.9

ST05800001

1

€0.56 €0.69
49
Pedals Axle

904490888A

1

€192.00 €236.16
50
Screw CHC M8x16 cl12.9

PS82130A10

4

€1.25 €1.54
51
Spring Washer Ø8

PS86510A10

4

€0.09 €0.11
52
Pedals Bracket

904601328B

1

€420.00 €516.60
53
Clutch Mc Bracket

904490918A

1

€160.00 €196.80
54
Brake Mc Bracket - No Longer Available

904490928A

1

Sold Out

€101.80 €125.21
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
