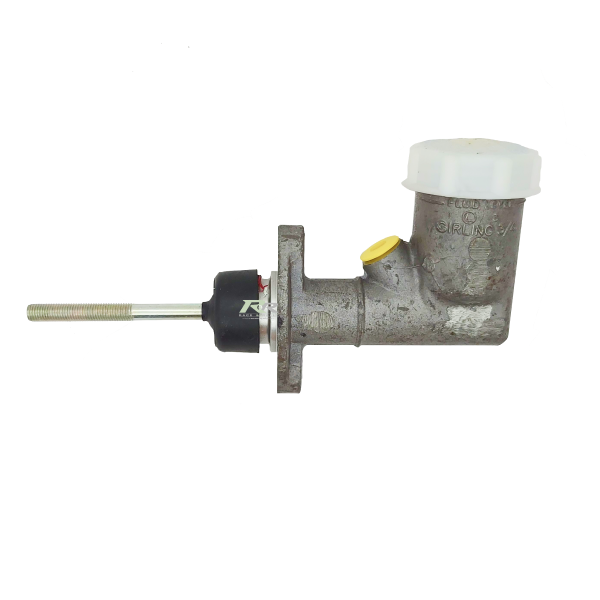

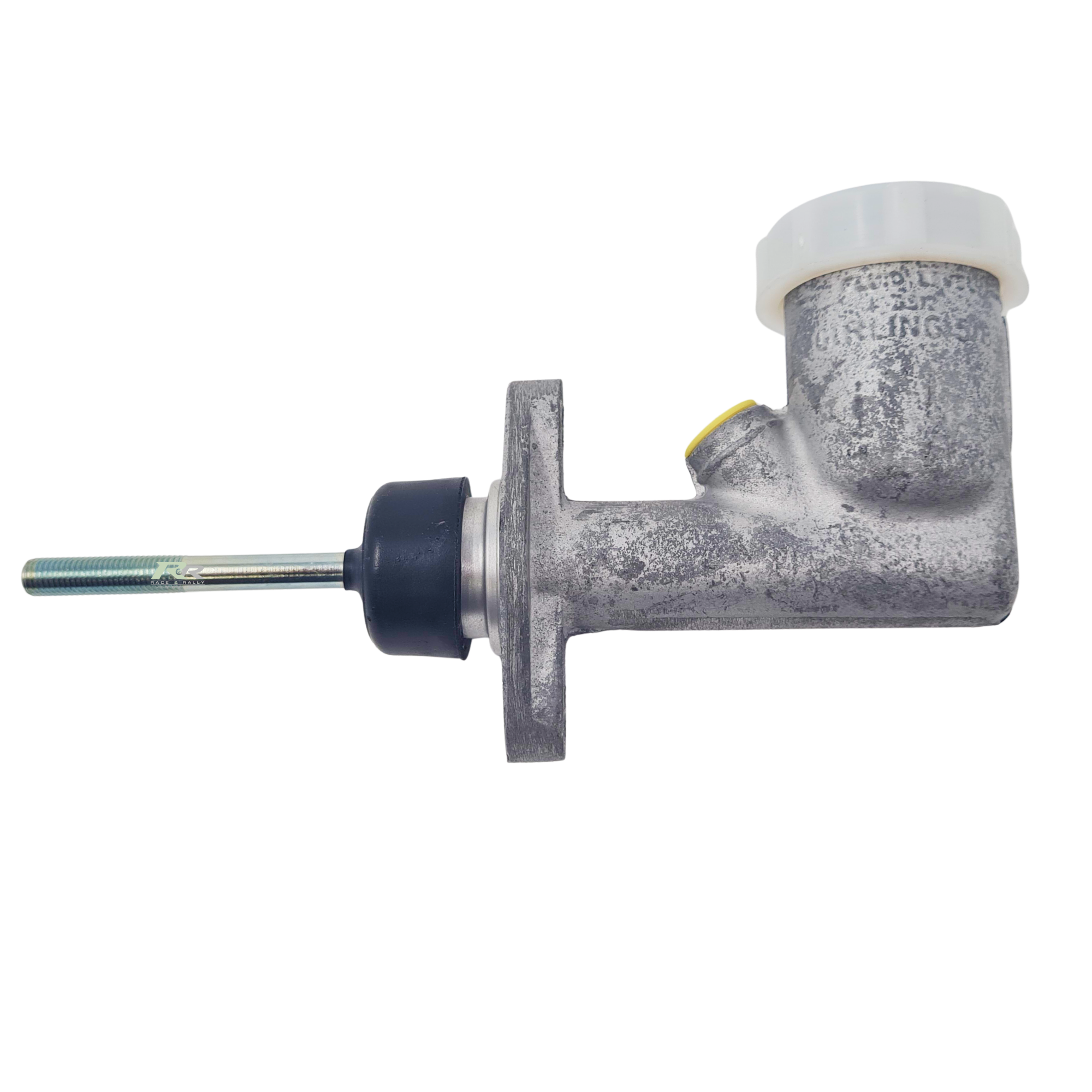

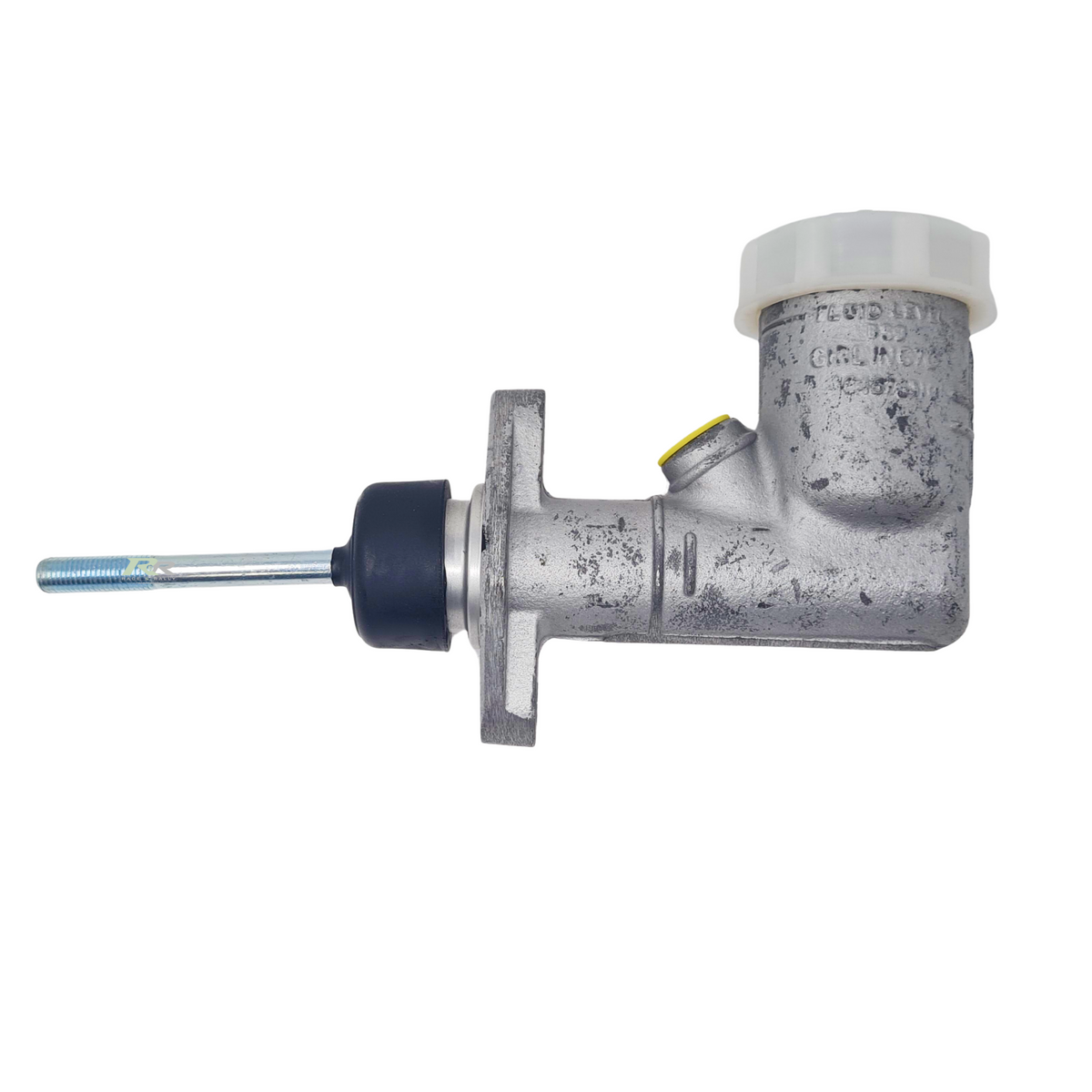

Girling Flange Mounted Integral Master Cylinder
Girling Flange Mounted Integral Master Cylinder
SKU:64068604
Regular price
€107.71
€132.48
-
3 Bore Sizes Available -
5/16" UNF Push-rod Threads
-
57mm Flange Mounting Centres
3 Bore Sizes Available
A compact forged bodied flanged master cylinder suitable for all brake and clutch applications especially where space is restricted.
FEATURES:
- Forged Aluminium Alloy Body
- 3 Available bore sizes
- Hydraulic threads are imperial.
- Integral fitted fluid reservoir
Tecnical Details:
- Weight: 0.45kg
- Hydraulic Thread:
- Outlet: 3/8"x20 JIC/UNF
- Push Rod Threads: 5/16" UNF
- Flange Mounting Centres: 57mm
| Brand | Girling | |
|---|---|---|
| Option | SKU | Barcode |
| 15.90mm | (.625") | 5/8" | 64068604 | |
| 17.80mm | (0.70") | 64676310 | |
| 19.10mm | (0.75") | 3/4" | 64068606 | |
