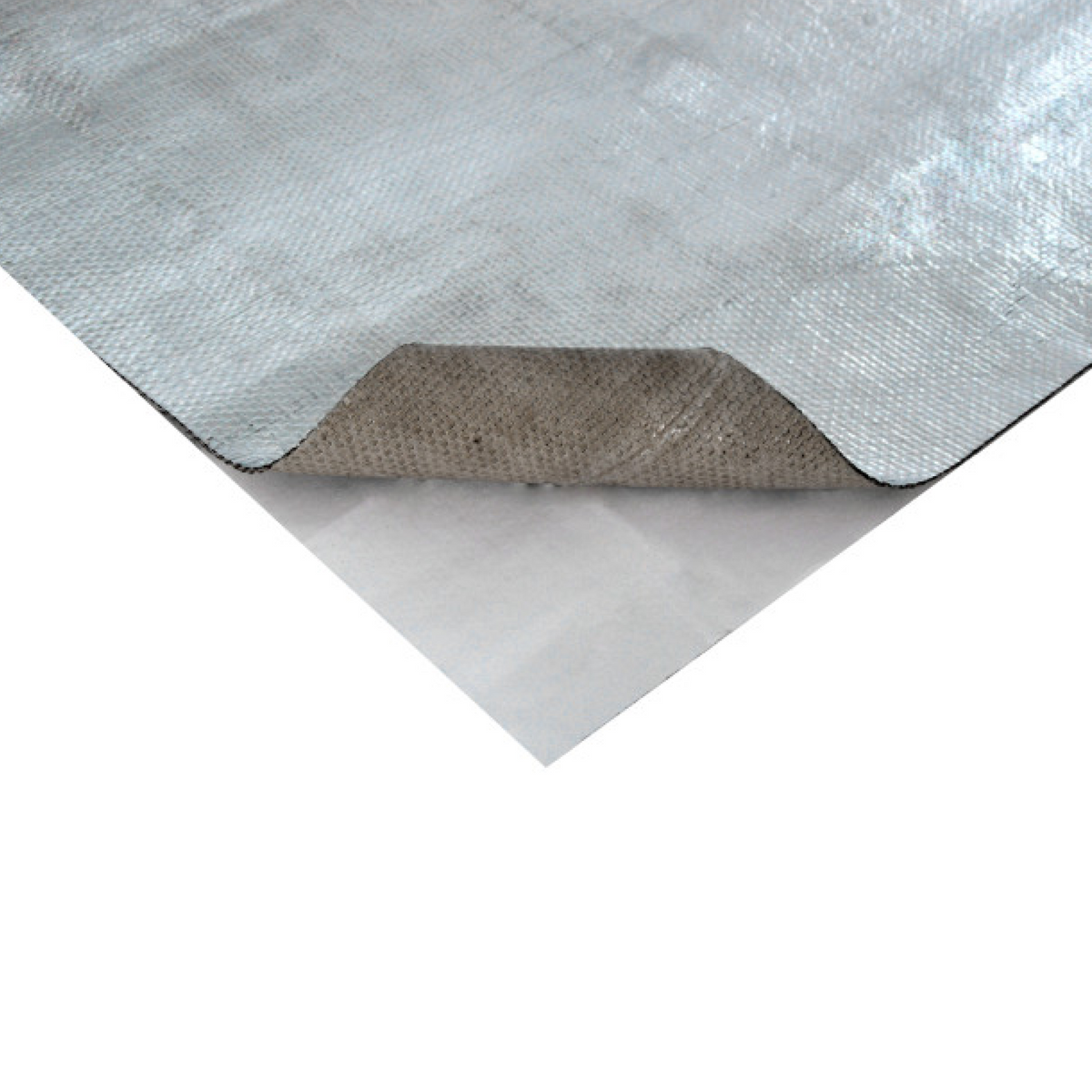

• B-G Racing aluminium self-adhesive foil fibreglass sheet used as a heat shield with a smooth, reflective surface and adhesive backing.
1 1

B-G Racing - Aluminium Self-Adhesive Foil Fibreglass Sheet

B-G Racing - Aluminium Self-Adhesive Foil Fibreglass Sheet

BG5306

€27.41 €33.71
Sale Sold out
  • Feature Icon Lightweight
  • Feature Icon Flexible
Width
Length

Out of stock, expected in 2-3 days from order

View full details
The B-G Aluminium Adhesive Foil Fibreglass Sheet is a versatile heat barrier designed to withstand radiant heat of up to 590°C (1100°F) and direct contact of up to 230°C (450°F). The adhesive backing makes it easy to use in various locations for effective heat management, including firewalls, bulkheads and floorpans.

24” x 24” (610mm x 610mm) and a thickness of 0.8mm, the aluminised material is easily cut to shape using scissors or a sharp knife, and is capable of reflecting up to 90% of radiant heat.

Dimensions may vary due to manufacturing tolerances.

Technical Specification

  • Part Number: BG5306
  • Thickness: 0.8mm – 0.03”
  • Brand: B-G
  • Material: Aluminium and Fibreglass
  • Colour: Silver
  • Finish: Reflective
  • Width: 610mm – 24”
  • Length: 610mm – 24”
  • Operating Temperature Range: Radiant: 590°C (1100°F) / Direct Contact: 230°C (450°F)
  • Nett Weight: BG5305: 100g – 0.22lb / BG5306: 340g – 0.75lb
Brand BG Racing
Option SKU Barcode
24" / 24" BG5306


B-G Racing Motorsport equipment is designed and created with the know-how that can only come from years of competing, with hands-on experience trackside and back at base.

All B-G Racing equipment gives you an unbeatable combination of labour-saving design, tough, highest-quality manufacture, practicality and exceptional value.
