Goodridge Assortment of Brake/Clutch Fittings

Goodridge Assortment of Brake/Clutch Fittings

GR-ASSORT-0304-P

€1021.35 €1256.26 €765.00 €940.95
Sale Sold out
  • Feature Icon Assortment Kit of Dash 03 and Dash 04 Fittings
  • Feature Icon Ideal Spares box for Brake and Clutch Applications
Fitting Material

Out of stock
View full details

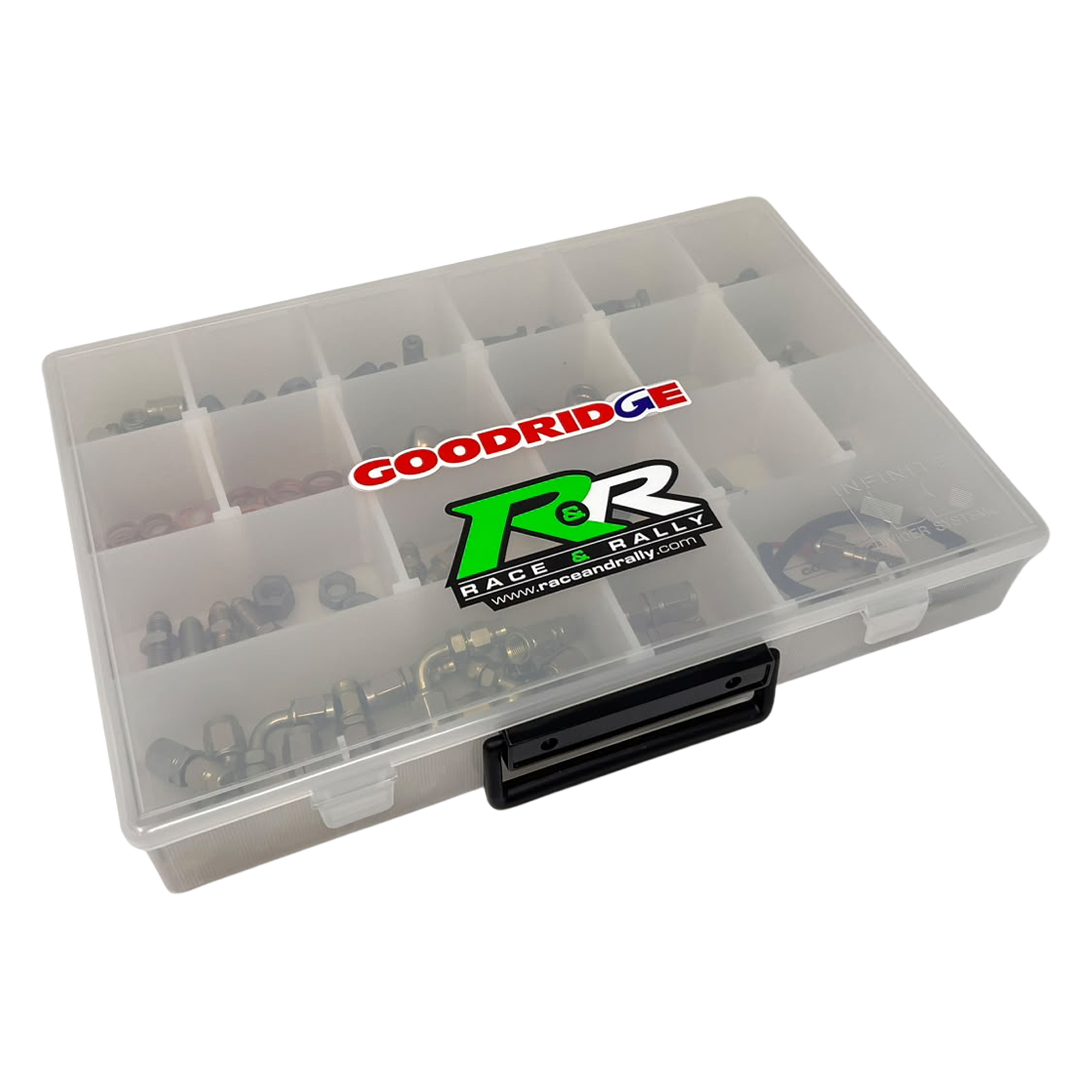

Goodridge Assortment of Brake & Clutch Fittings

Race & Rally Assortment of Goodridge 600 Series Dash 03 and Dash 04 Brake and Clutch Fittings supplied in Zinc Plated Steel. Kit includes Dash 03 flaring mandrel to aid assembly of hoses.

**Stainless Steel variations available on request

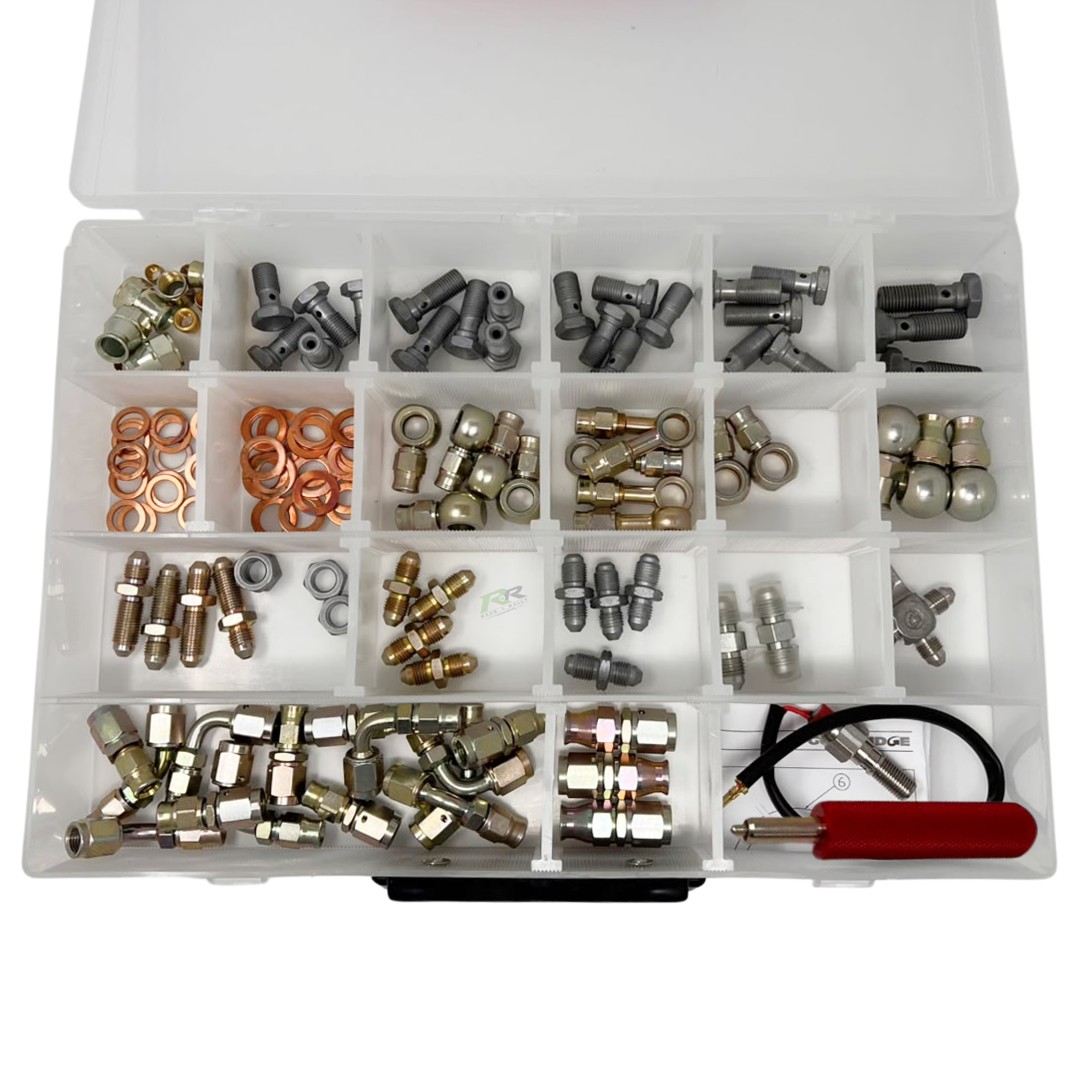

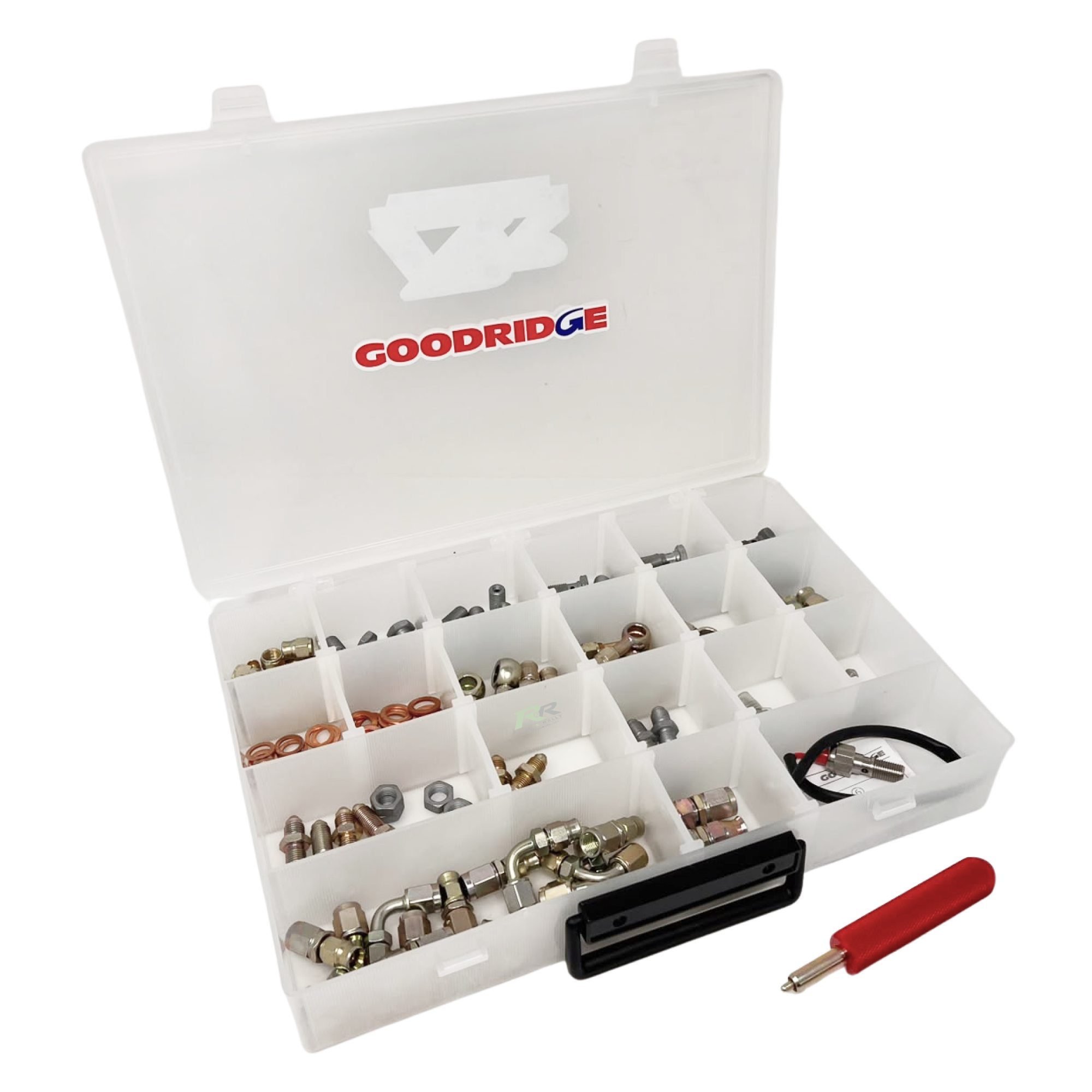

Kit Contents

Quantity Description Zinc Plated Steel

DASH 3
10 -03 600 Series Brass Olive 1205-03B
3 -03 600 Series Socket 1206-03P
6 -03 600 Series Straight Female 6001-03P
4 -03 600 Series 90° Female 6091-03P
4 -03 600 Series 45° Female 6046-03P
1 3/8" UNF Male T-Piece 5130-03C
5 -03 Straight Short Banjo 5091-03P
5 -03 Straight Extneded Neck Banjo 5092-03P
2 -03 Straight Short Neck Banjo with 7/16" Hole 5091-03-04P
4 3/8" UNF Striaght Adaptor 815-03P
4 3/8" UNF to M10x1.00 Straight Adaptor 305-03-31Z1
4 3/8" UNF Striaght Bulkhead Adaptor 832-03P
4 3/8" UNF Locknut 924-03Z1
5 3/8" UNF Banjo Bolt 775-03Z1
5 3/8" UNF Banjo Bolt - Long 775-03LZ1
5 M10x1.00 Banjo Bolt 992-03-31Z1
5 M10x1.00 Banjo Bolt - Long 992-03-31LZ1
1 3/8" UNF Brake Light Banjo Bolt BL775-03C
20 3/8" / M10 Copper Washer 44516
1 -03 Flaring Mandrel GM100

DASH 4
5 -04 600 Series Brass Olive 1205-04B
3 -04 600 Series Socket
 1206-04P
20 7/16" Copper Washer 44518
2 7/16" UNF Striaght Adaptor 815-04P
3 -04 Straight Short Banjo 5091-04P
3 -04 600 Series Straight Female 6001-04P
3 7/16" UNF Banjo Bolt - Long 775-04LZ1



Brand Race and Rally
Option SKU Barcode
Zinc Plated Steel GR-ASSORT-0304-P
