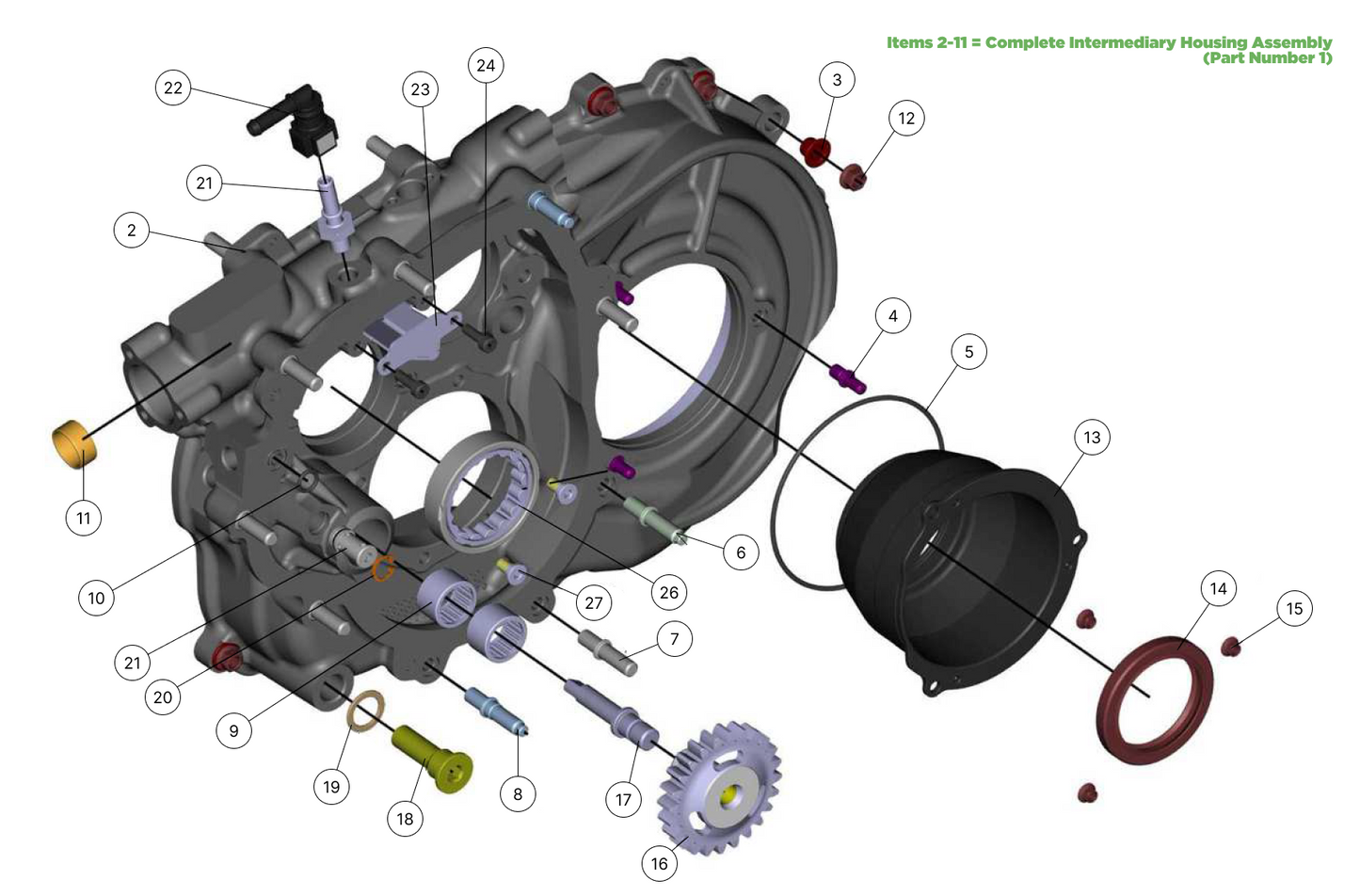

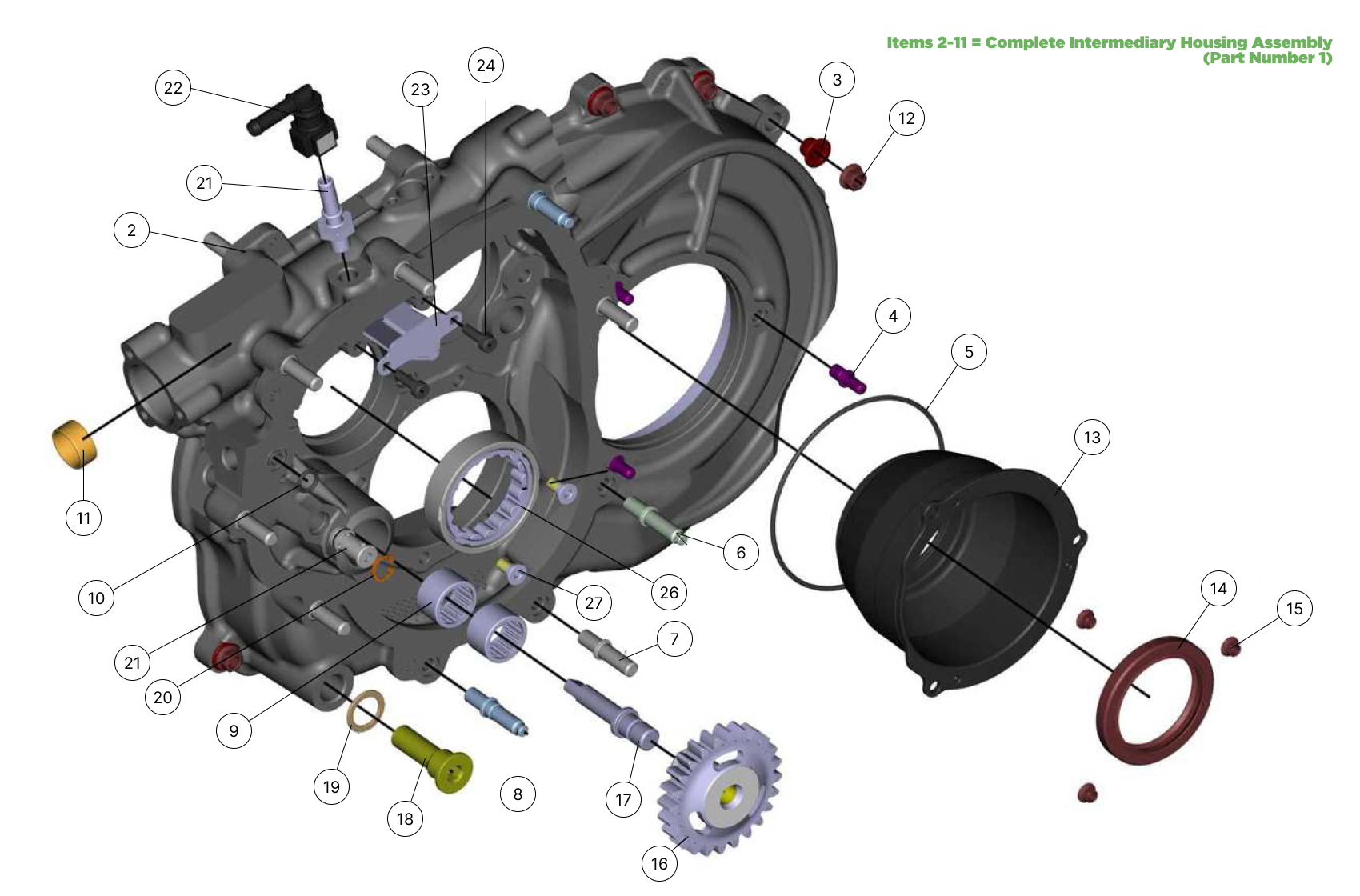

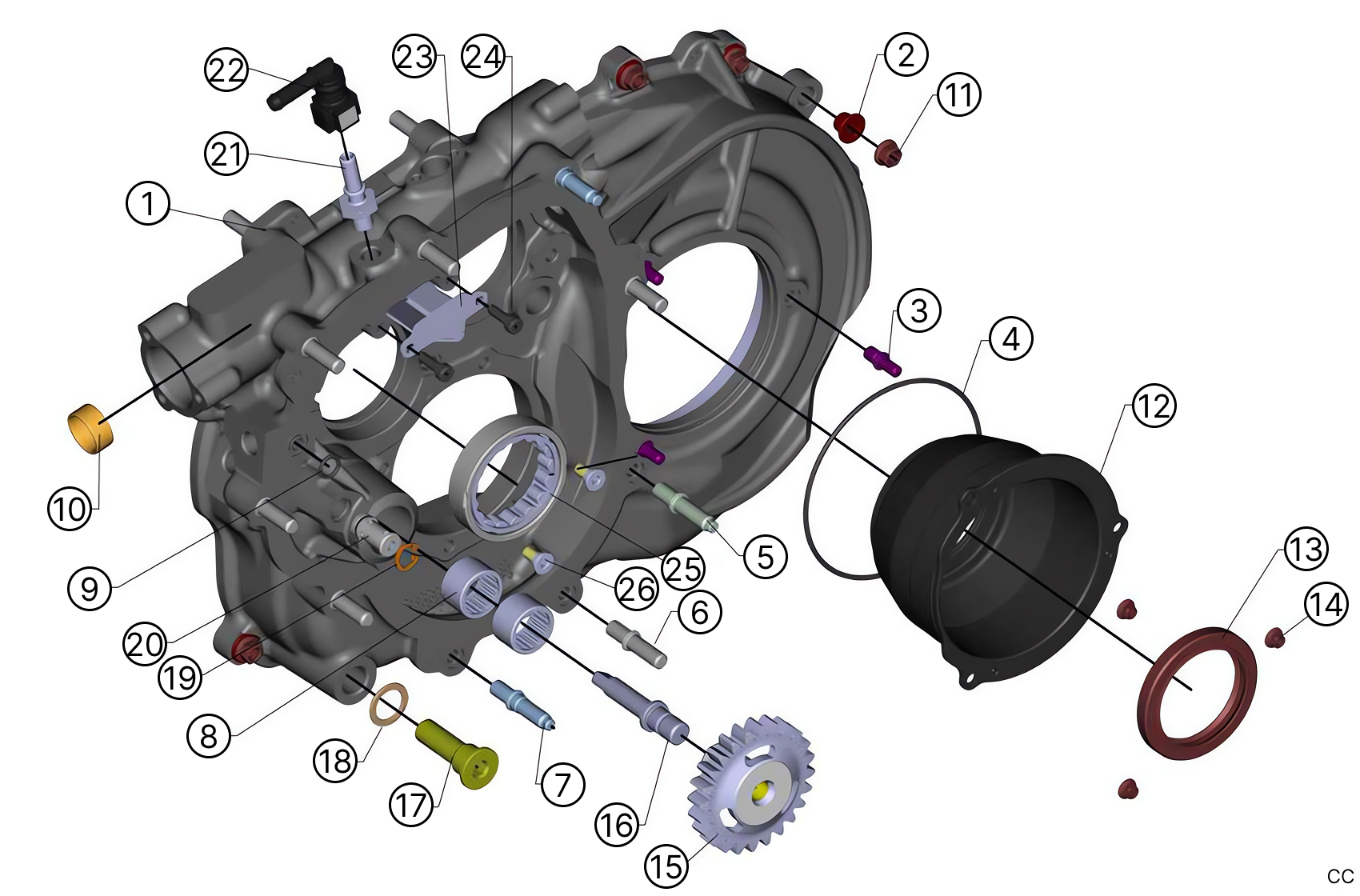

C236 - Intermediary Housing 1

C236 - Intermediary Housing 1

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
C3 Gearbox Intermediary Housing Assembly

F15130171

1

€9342.10 €11490.78
2
Bushing Ø10.2

F9037032

9

€28.27 €34.77
3
M7/M6 Stud

F9053008

3

€46.93 €57.72
4

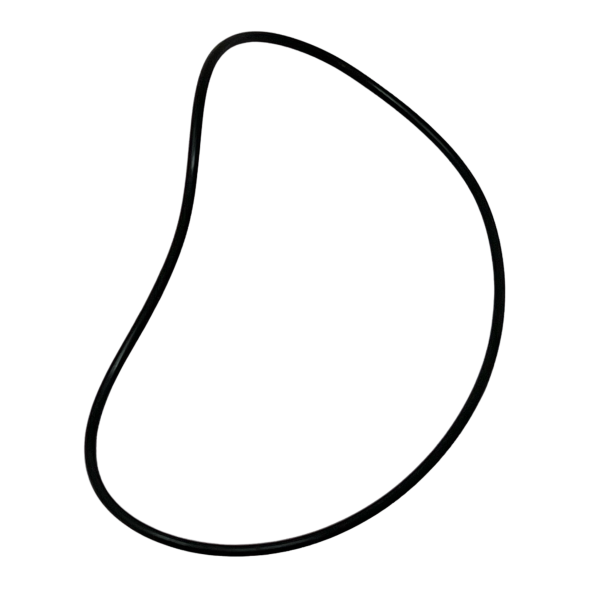

Viton O'Ring Ø102

202069

1

€12.66 €15.57
5
M8 Stud Lg 44mm

F1412043

1

€61.14 €75.20
6
M8 Shoulder Stud 44mm

F1412018

6

€38.81 €47.74
7
M8 Shoulder Stud 44mm

F1412017

2

€39.42 €48.49
8

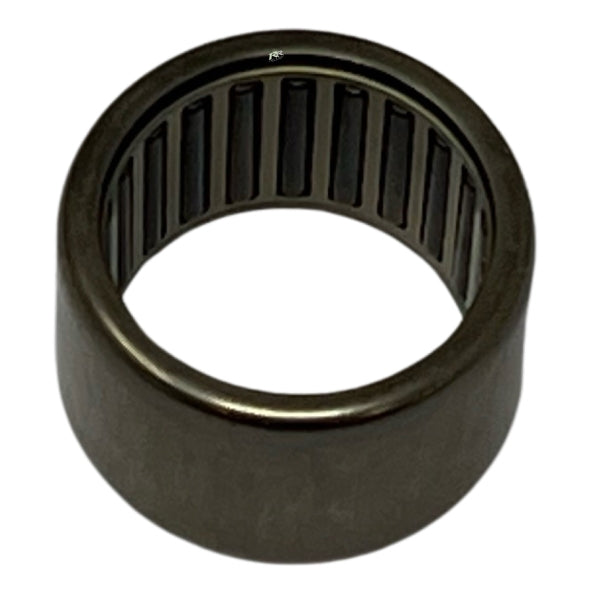

HK 20/16 Needle Sleeve

106021

2

€12.93 €15.90
9
O-Ring Nitrile 9x2

201140

1

€0.43 €0.53
10
Insert

1202028

1

€9.36 €11.51
11
M8 Simmonds Nut

499003

9

€4.62 €5.68
12

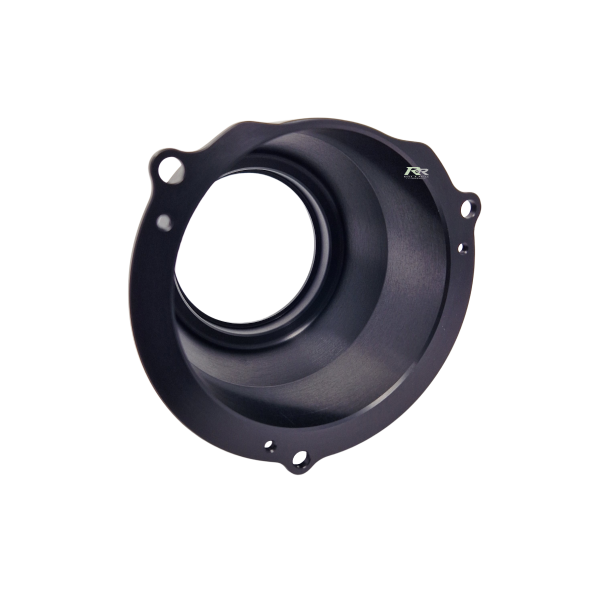

Lip Seal Bracket

F9053021

1

€312.85 €384.81
13

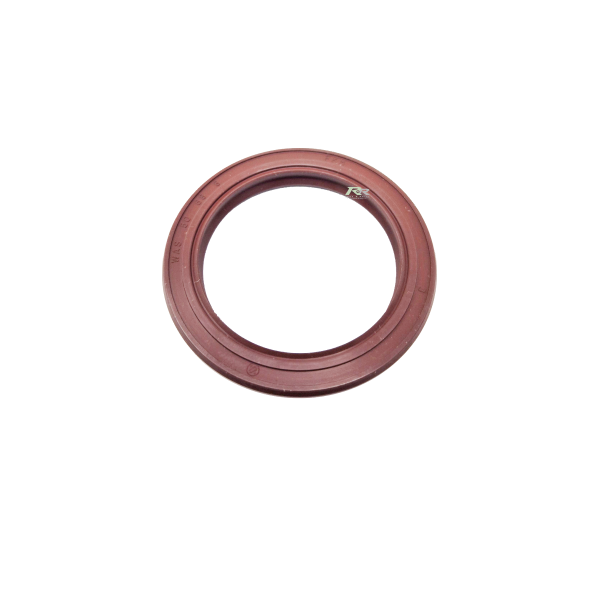

Double Lip Viton Seal 50x68x8

206015

1

€56.54 €69.54
14
M6 Simmonds Nut

0499010

3

€2.86 €3.52
15
Reverse Gear Idler

F9053057

1

€888.86 €1093.30
16
Pump Axle

F9053058

1

€79.95 €98.34
17
Drain Plug

F9053023

1

€97.56 €120.00
18
Washer 16.1 x 23 x 1

599002

1

€2.24 €2.76
19
Ø13 Inner Circlip

0602055

1

€0.49 €0.60
20
Check Valve Insert (5bars)

9999525

1

€137.73 €169.41
21
Breather tip

F9022106

1

€32.68 €40.20
22
Venting Plug

9999683

1

€4.83 €5.94
23

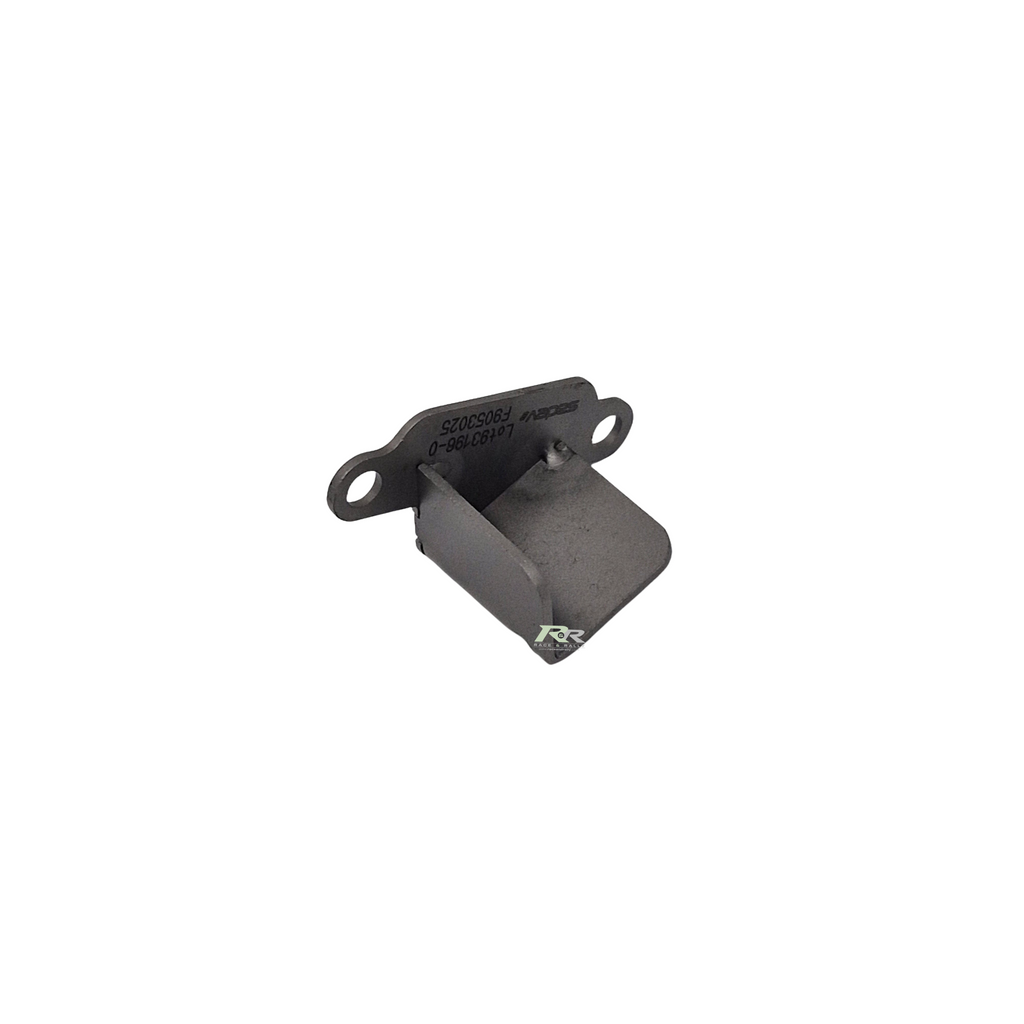

Deflector

F9053025

1

€85.56 €105.24
24
M5x16 CHC Screw

0301061

2

€0.55 €0.68
25
Machined NU1008 Bearing

F9053102

1

€158.19 €194.57
26
M6 Bearing Bolt

F9053104

2

€21.55 €26.51
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
