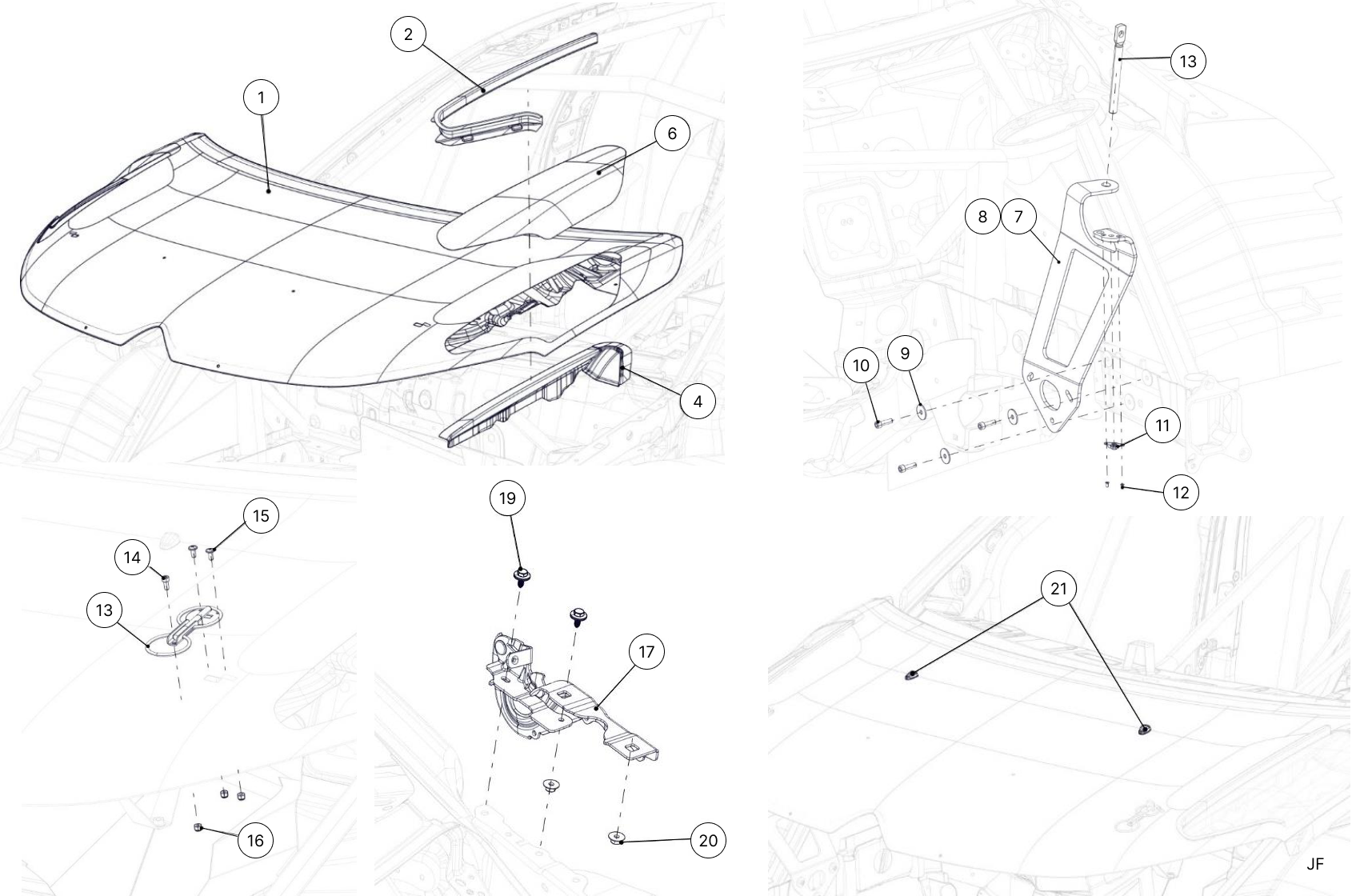

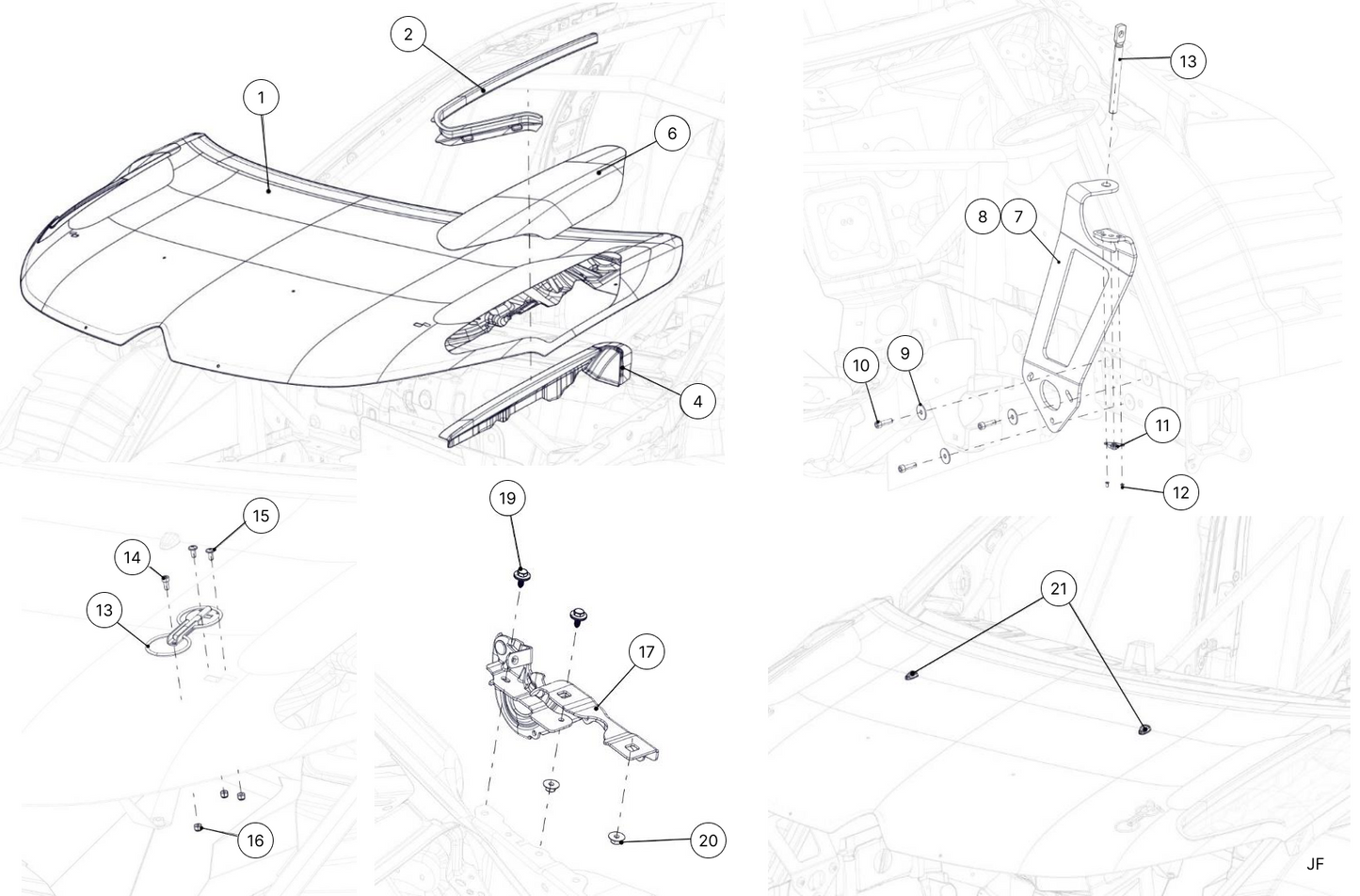

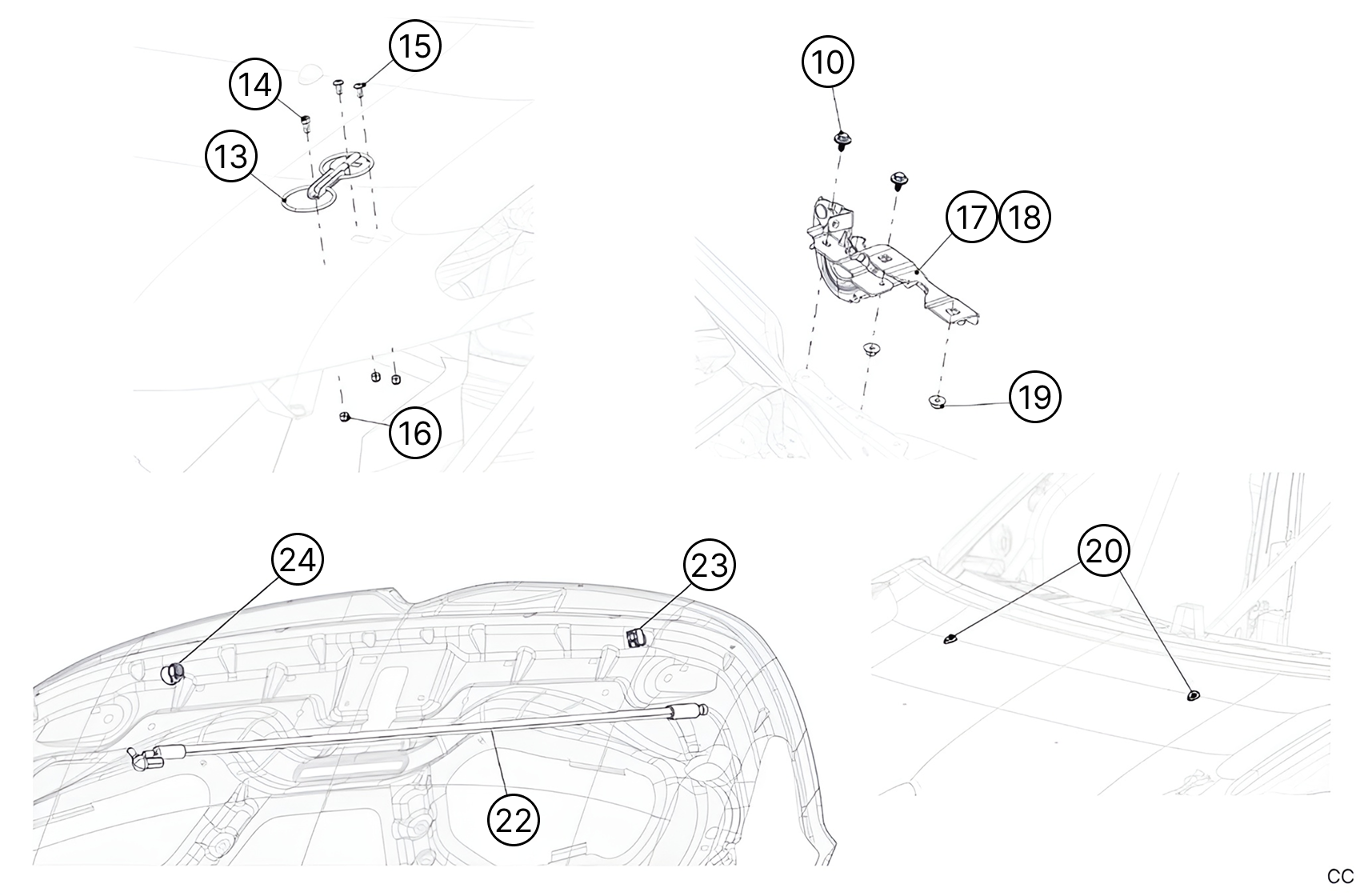

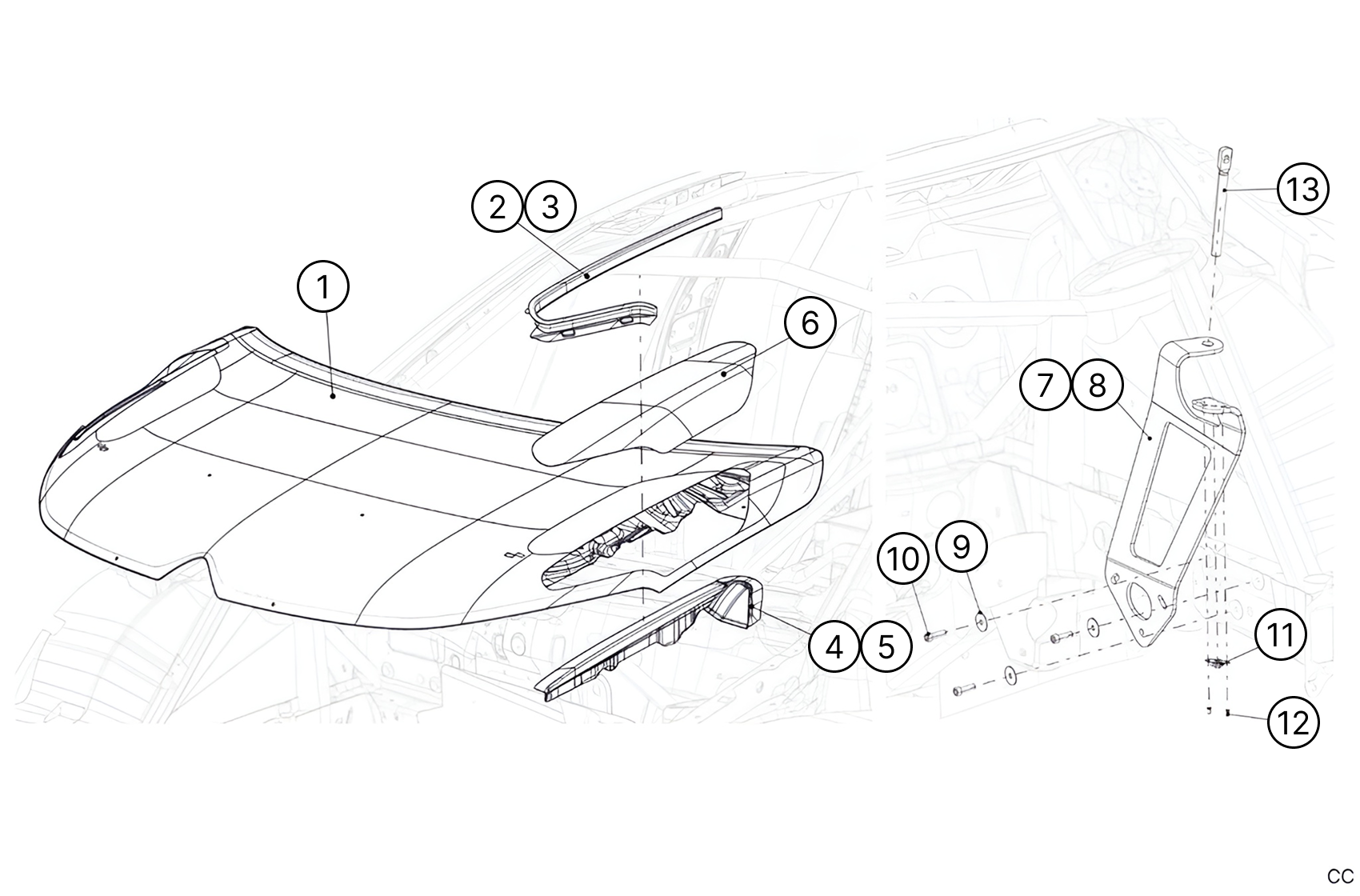

K7B - Bonnet

K7B - Bonnet

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

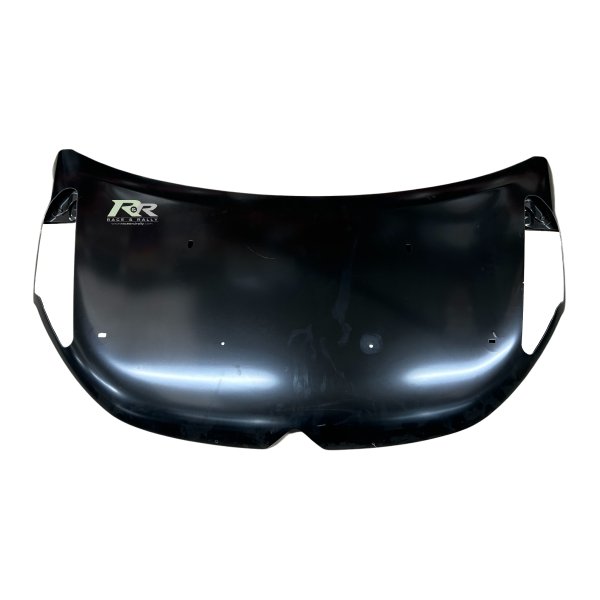

Bonnet - C3 Rally 2

904464558B

1

€682.73 €839.76
2

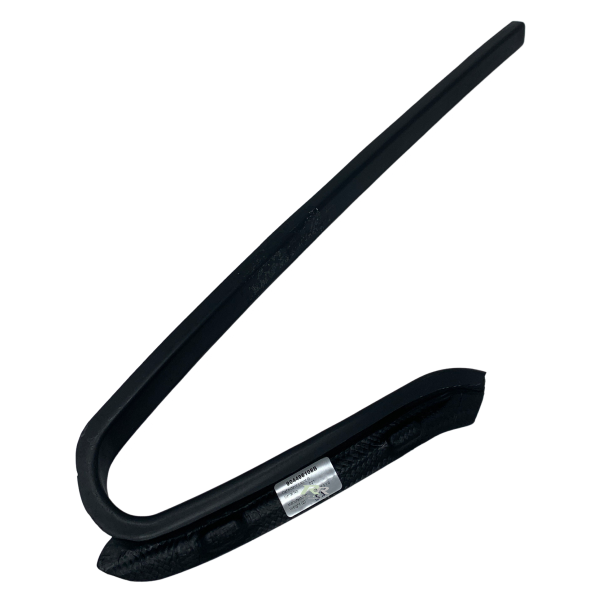

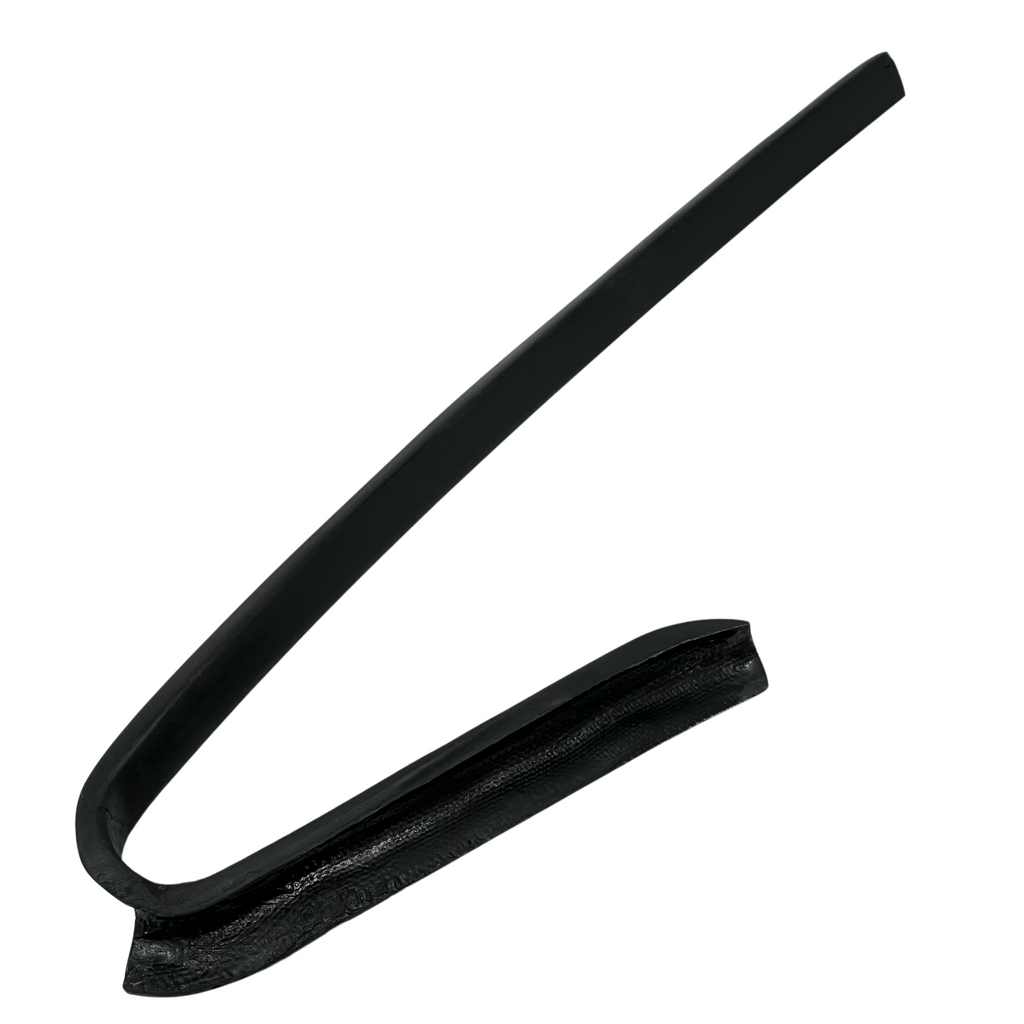

Left Bonnet Deflector - C3 Rally 2

904496108B

1

€714.11 €878.36
3

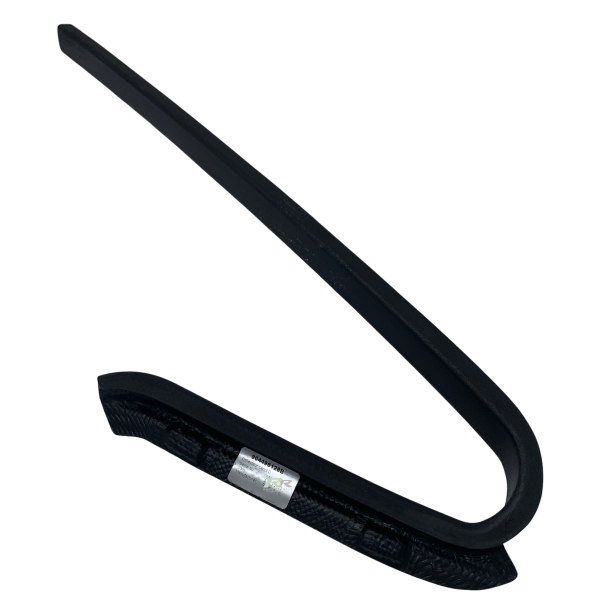

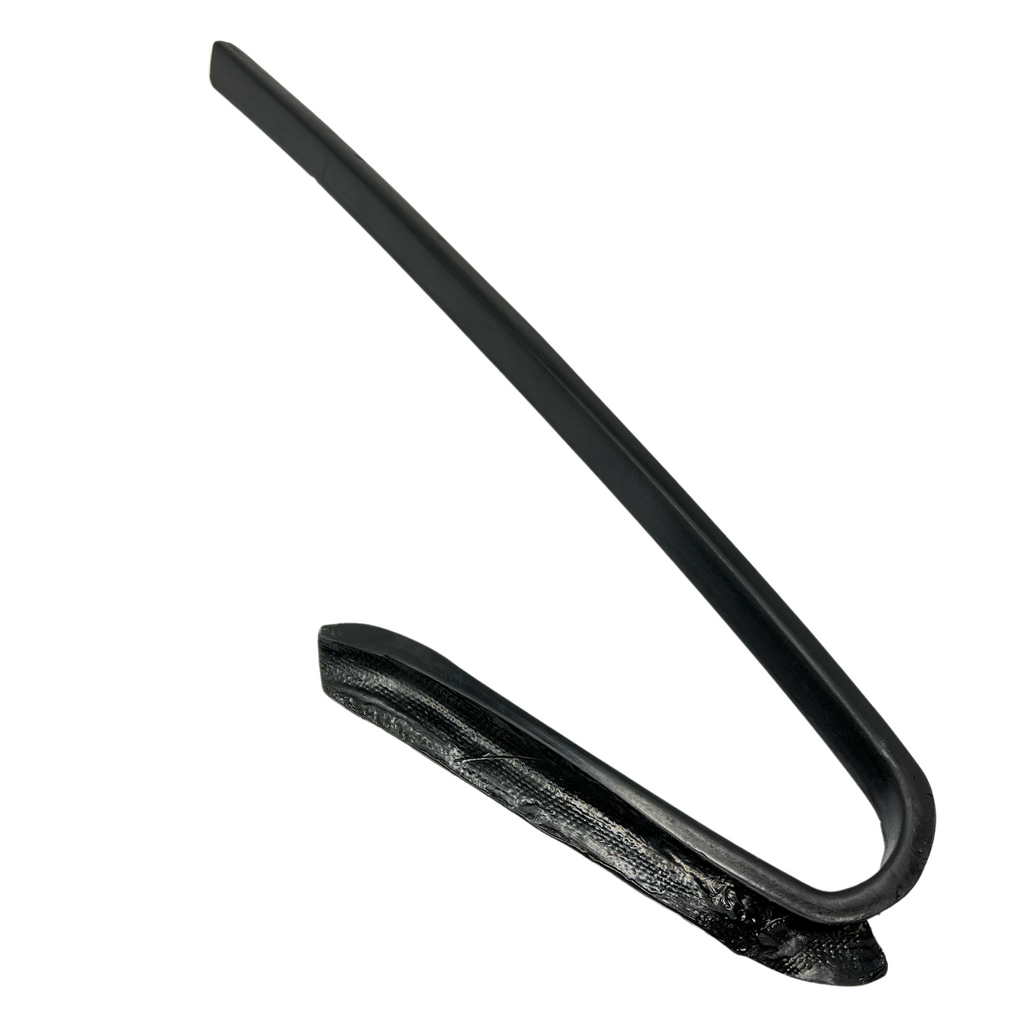

Right Bonnet Deflector - C3 Rally2

904496128B

1

€714.11 €878.36
4

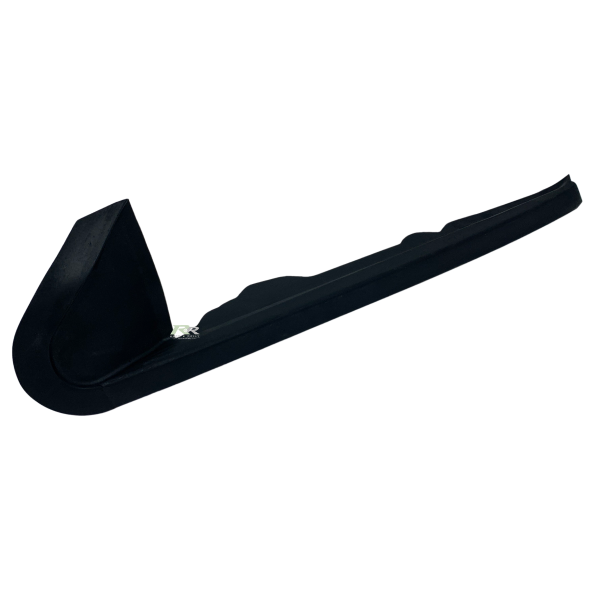

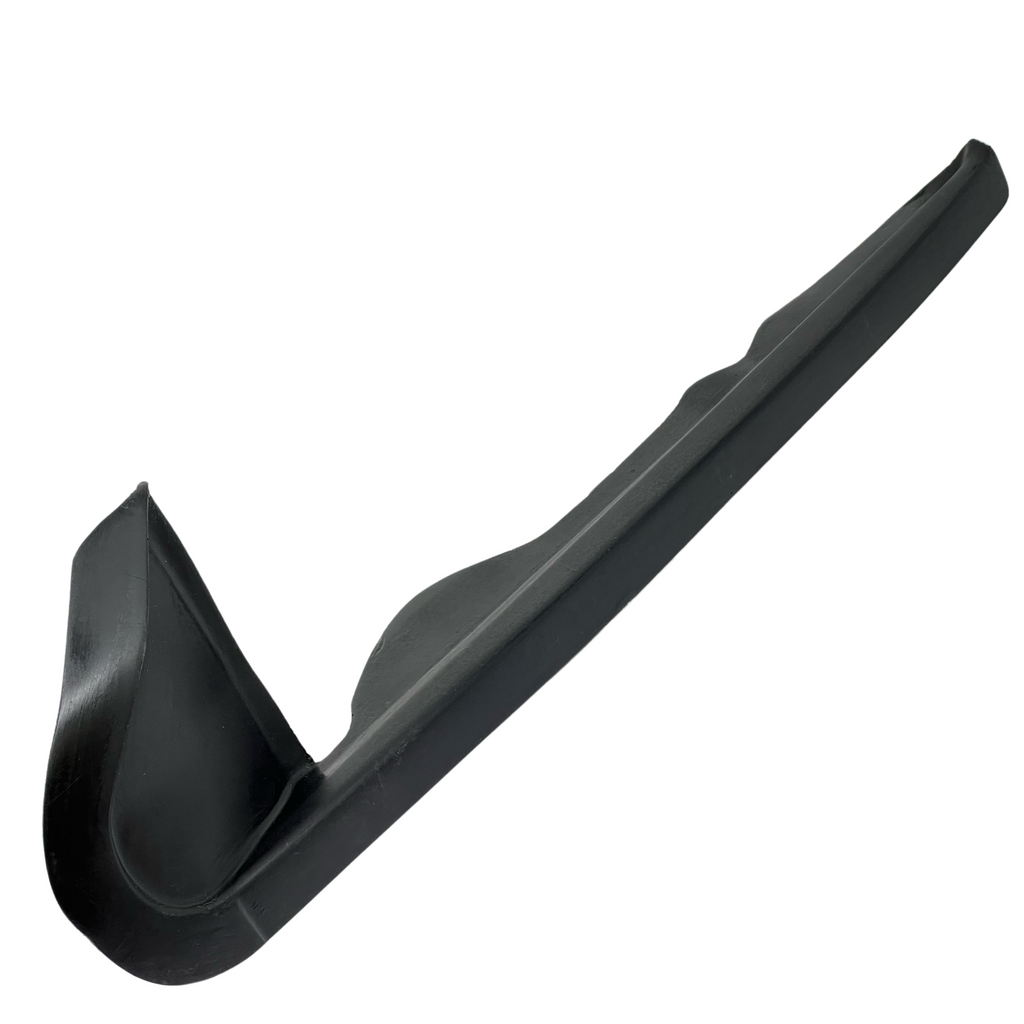

Left Bonnet Junction

904496118A

1

€370.44 €455.64
5

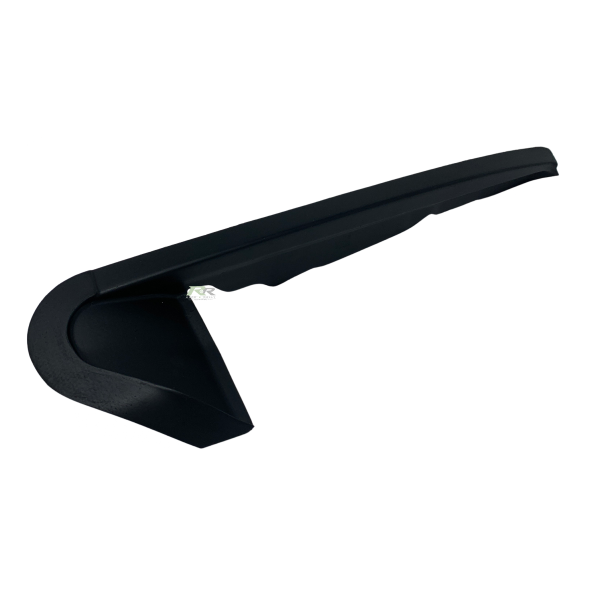

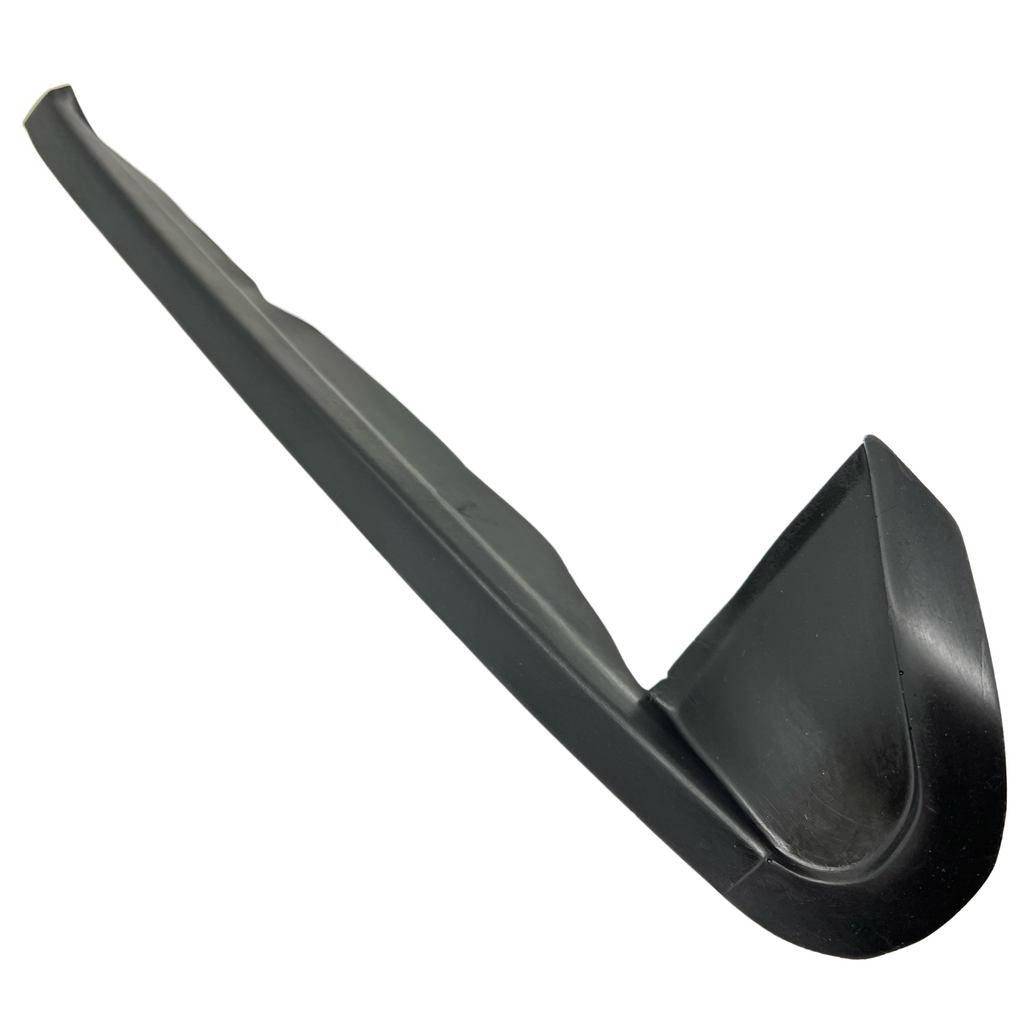

Right Bonnet Junction

904496138A

1

€370.44 €455.64
6

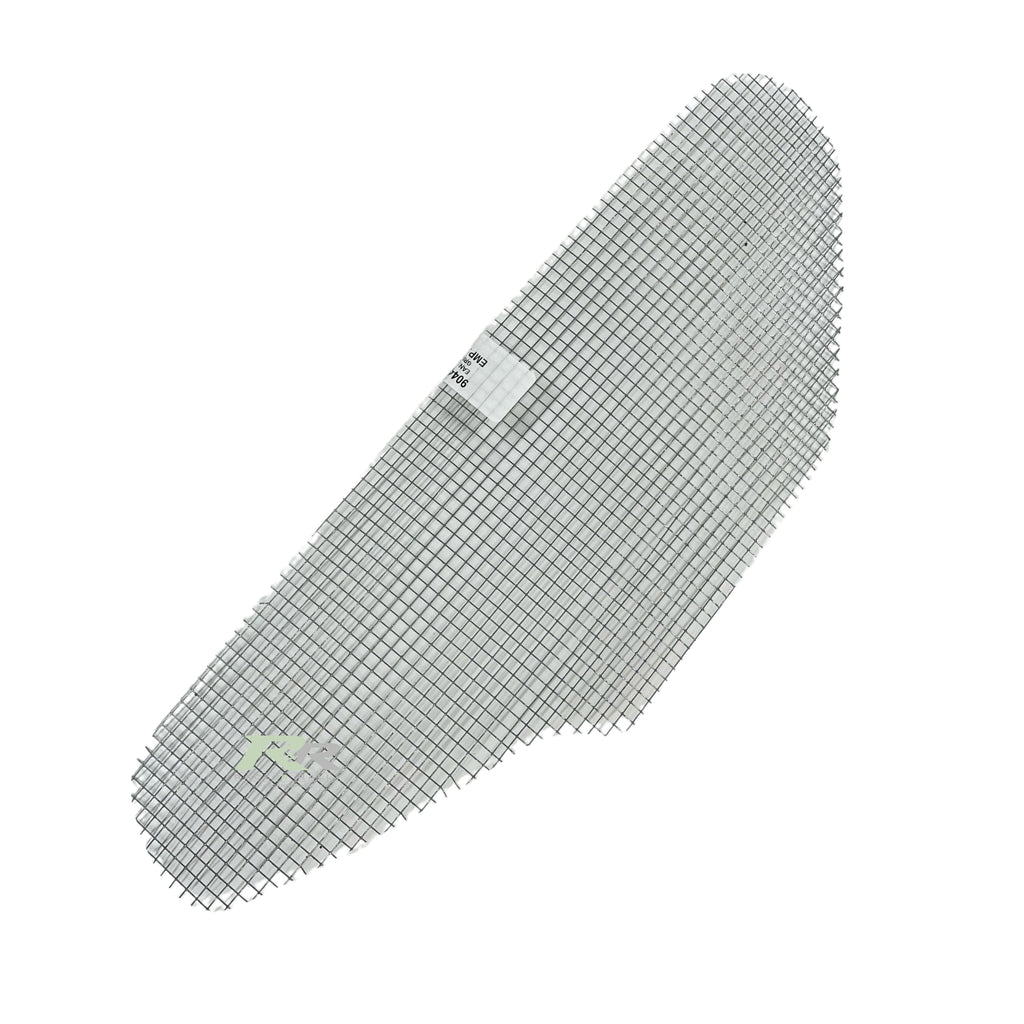

Bonnet Mesh

904496168A

2

€73.13 €89.95
7

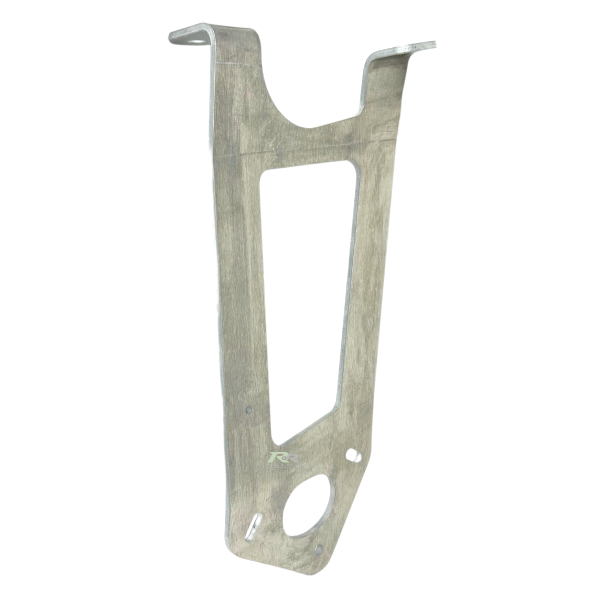

Left bonnet support bracket

904477918D

1

€104.00 €127.92
8

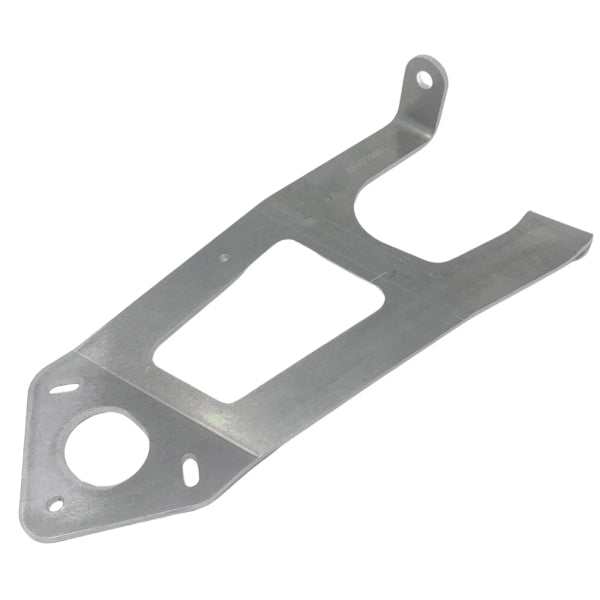

Bonnet Right Bracket

904477908C

1

€104.00 €127.92
9
Washer Ø6x22-1.5

694737

6

€0.86 €1.06
10
Screw H Rcl M6X100 L16

9674988180

10

€2.51 €3.09
11
Captive Nut M6

PS74673A10

2

€6.23 €7.66
12

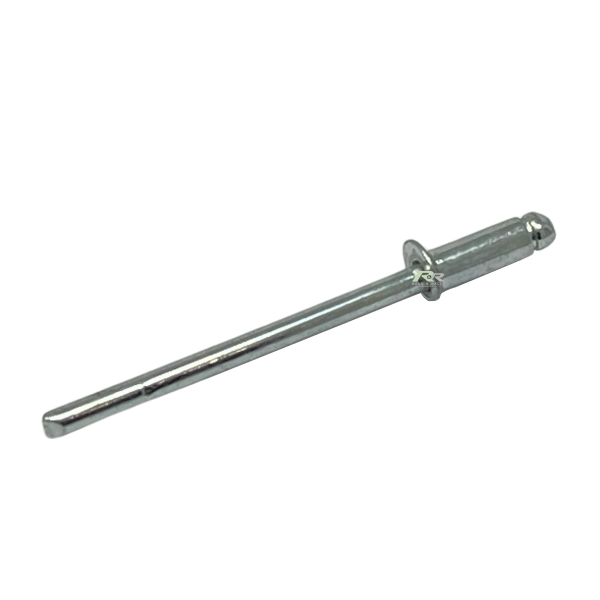

Rivet F 3.2 L8 Steel

PS92639A10

4

€0.24 €0.30
13
Quick Release Bonnet Pins - Stainless Steel

GE52

1

€13.41 €16.49
14
M4x100 FHC Screw

PS82032A10

2

€0.25 €0.31
15
Screw ULF M4x10 cl10.9

PS82628A10

4

€0.23 €0.28
16
Lock Nut HM M4X070 Steel

ST02500009

€0.05 €0.06
17

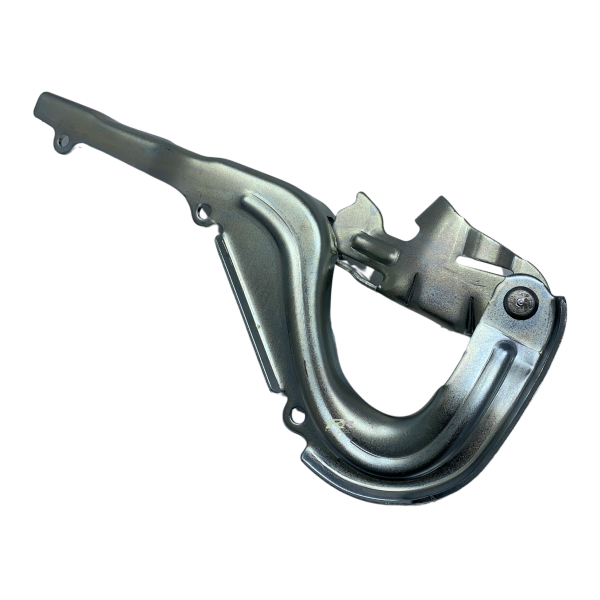

Bonnet Left Hinge

9812778580

1

€64.50 €79.34
18

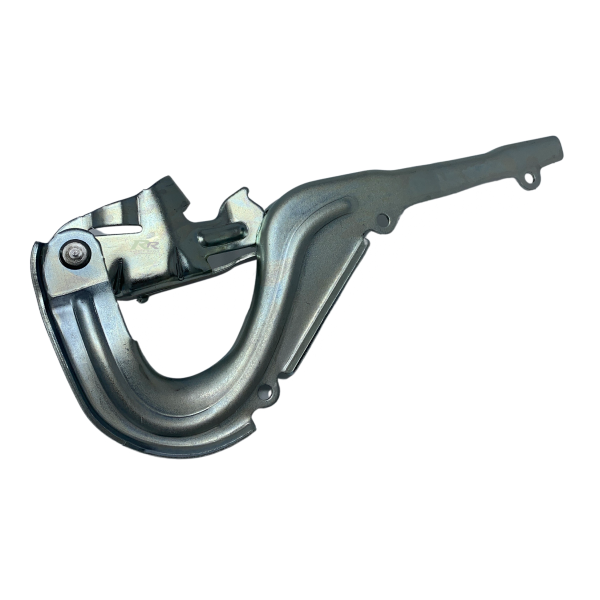

Bonnet Right Hinge

9812778480

1

€64.50 €79.34
19

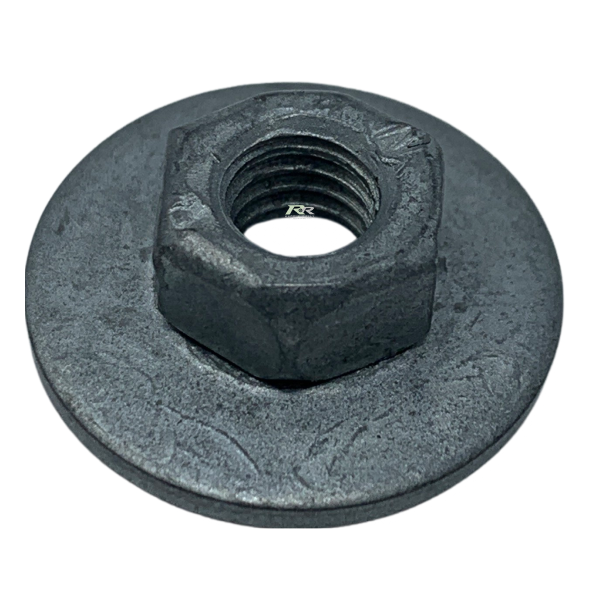

Nut With Washer M6X20

6939C0

4

€4.02 €4.94
20

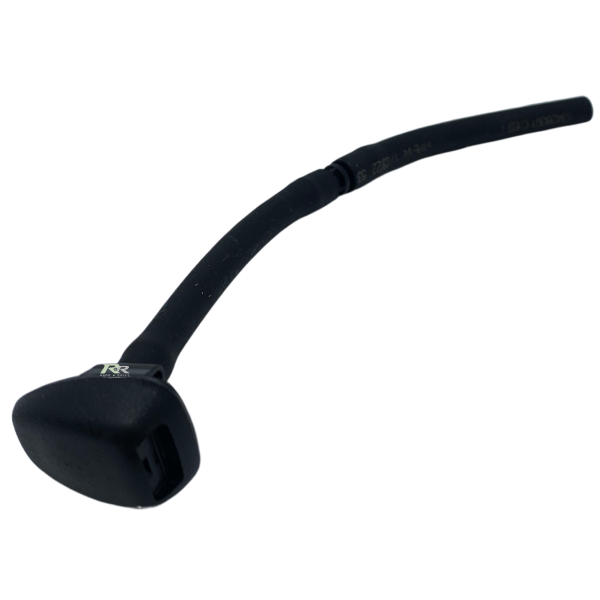

Windscreen Washer Nozzle

9808301880

2

€30.44 €37.44
21
Windscreen Washer Hose Assy

9812912180

1

€36.16 €44.48
22
Bonnet Stay - Non-Evo

904676188A

1

€188.00 €231.24
22
Bonnet Stay EVO

904931078B

1

€230.96 €284.08
23
Bonnet Control Fastener Clip

792831

1

€0.77 €0.95
24
Staple Ø10

699514

1

€0.65 €0.80
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
