Image coming soon for K7F - Front Door - OR4

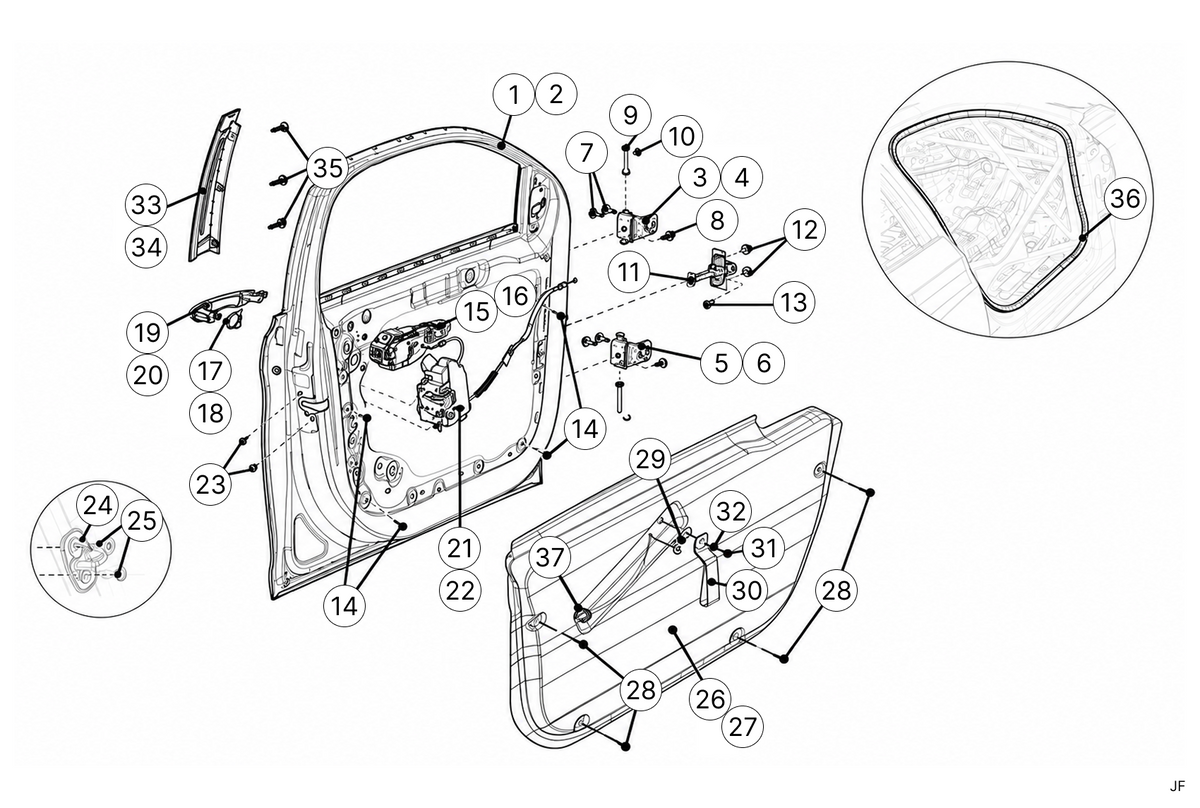

K7F - Front Door - OR4

K7F - Front Door - OR4

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Front Right Door - Corsa

9837705880

1

€583.85 €718.14
2
Front Left Door - Corsa

9837705780

1

€583.85 €718.14
3
Upper Right Door Hinge

1608322680

1

€55.82 €68.66
4
Upper Left Door Hinge

1608322780

1

€55.82 €68.66
5
Lower Right Door Hinge

1608322080

1

€57.36 €70.55
6
Lower Left Door Hinge

1608322580

1

€57.36 €70.55
7
Screw M8x125

9674550680

4

€2.86 €3.52
8
Screw RLX M8x26

6924F5

4

€1.45 €1.78
9
Hinge Axle

9677274380

4

€7.01 €8.62
10
Retaining clip

9044-44

4

€0.22 €0.27
11
FRONT DOOR STOP

9823211180

2

€49.72 €61.16
12
Collar Nut M6

1611567380

4

€1.36 €1.67
13
Hex Screw M8

9678268380

8

€2.84 €3.49
14
Blind Rivet Nut M6X100

CS240008ST

10

€0.74 €0.91
15
RIGHT DOOR HANDLE HOLDER

9802977180

1

€45.01 €55.36
16
Left door handle holder

9802977380

1

€39.84 €49.00
17
RIGHT HANDLE BASE

9802977680

1

€2.56 €3.15
18
LEFT HANDLE BASE

9802977780

1

€1.96 €2.41
19
Right Door Handle

98029782XT

1

€62.37 €76.72
20
Left Door Handle

98029783XT

1

€62.37 €76.72
21
RIGHT DOOR LATCH ASS

9844412180

1

€146.30 €179.95
22
LEFT DOOR LATCH ASS

9844412280

1

€146.30 €179.95
23
Screw M8X125

9677682180

4

€0.51 €0.63
24
Striker

916489

2

€20.93 €25.74
25
Screw Fx M8X125 L25 Ac8 Znida3L Fp

9678660980

4

€0.30 €0.37
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
