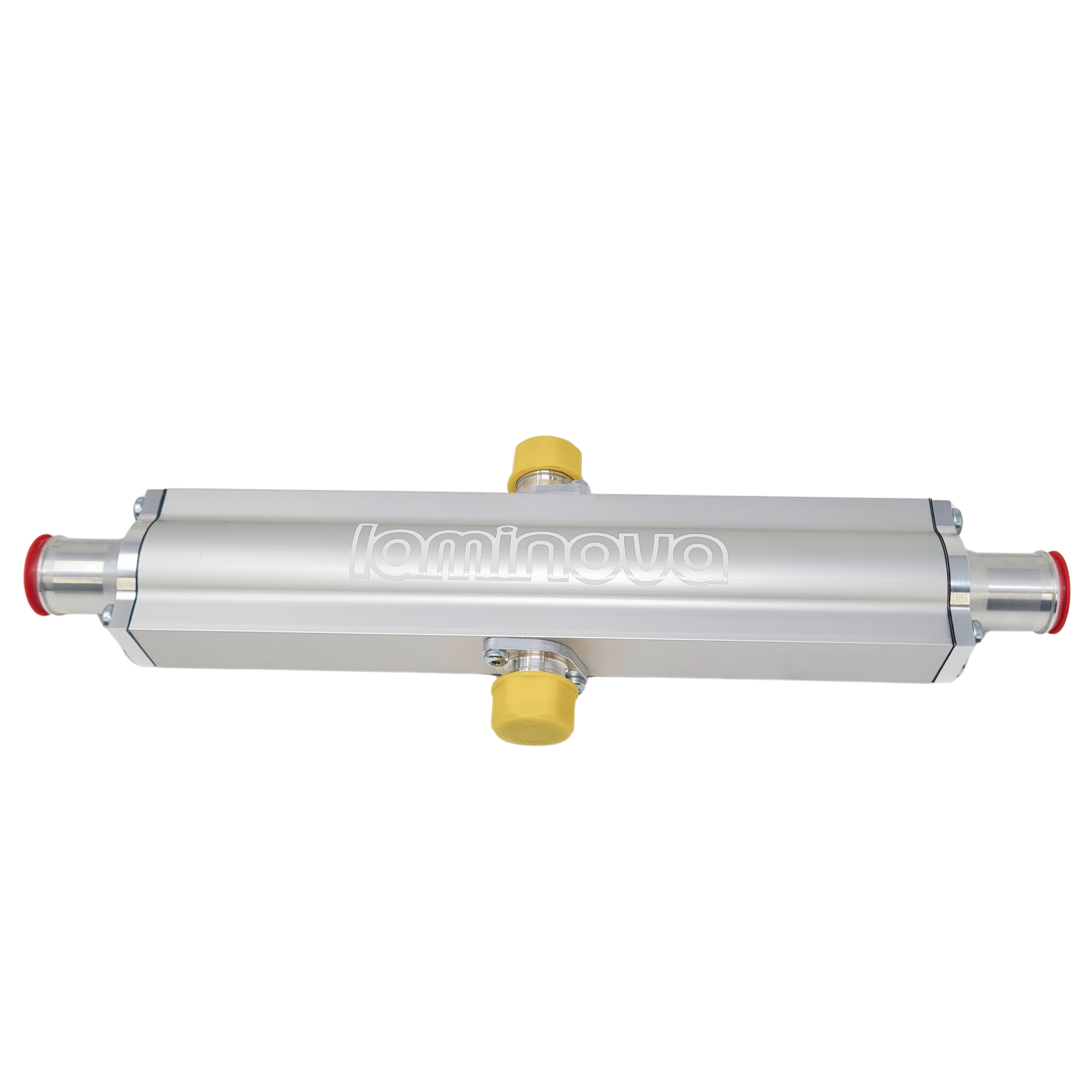

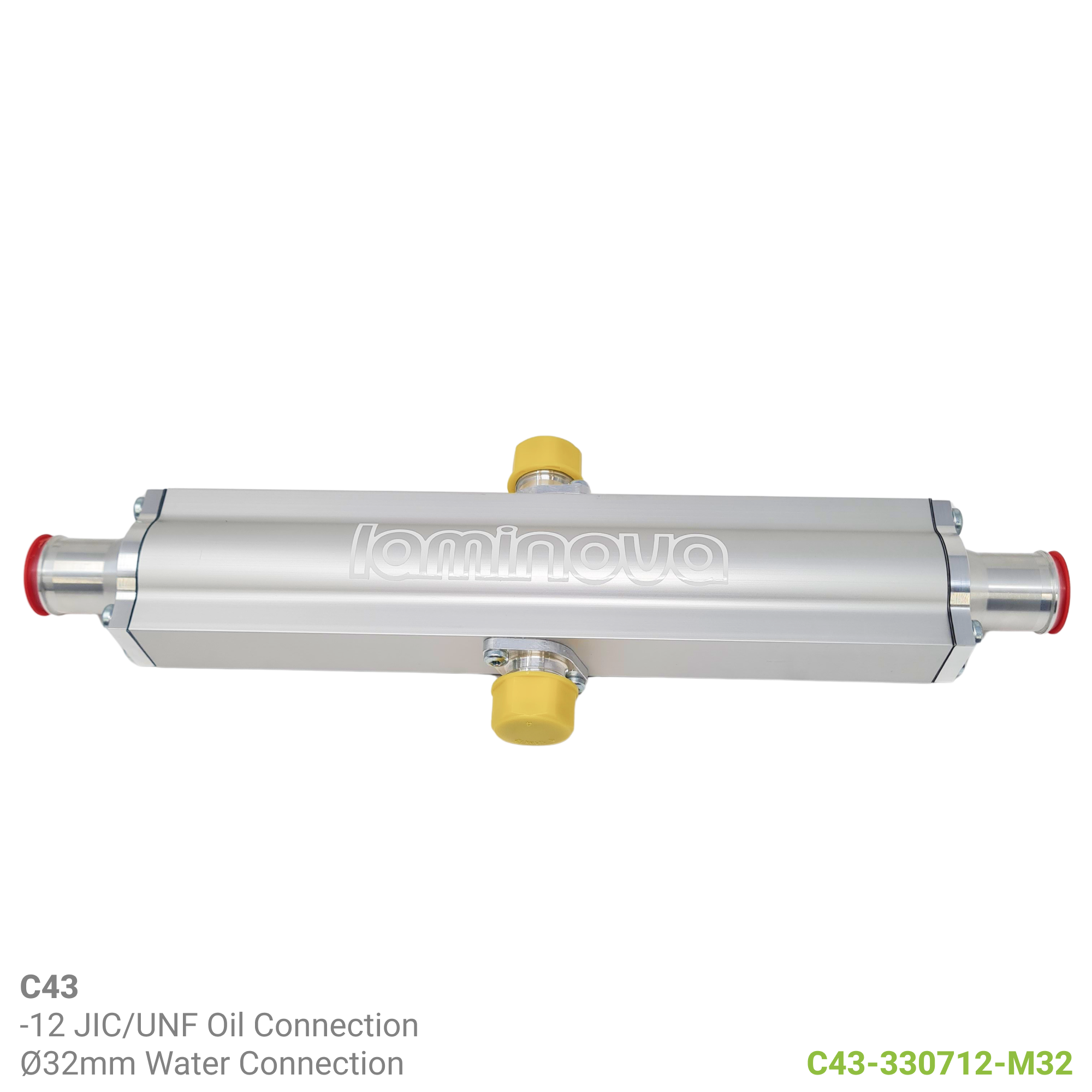

Laminova C43 Oil Cooler

Specifications

• Ø43mm Core Diameter
• Core lengths available:
  • 92mm
  • 182mm
  • 332mm

Guideline for C43 coolers:

• Coolant flowrates > 80 l/min:
  • No restrictor is normally needed.
• Coolant flowrates < 80 l/min:
  • A plug or a restrictor can be used.
• As standard, these coolers have a fully internal by-pass in the centrehole. To increase or tune the heat performance, all coolers can be equipped with a centre hole plug to force more coolant through the coolant channels.
