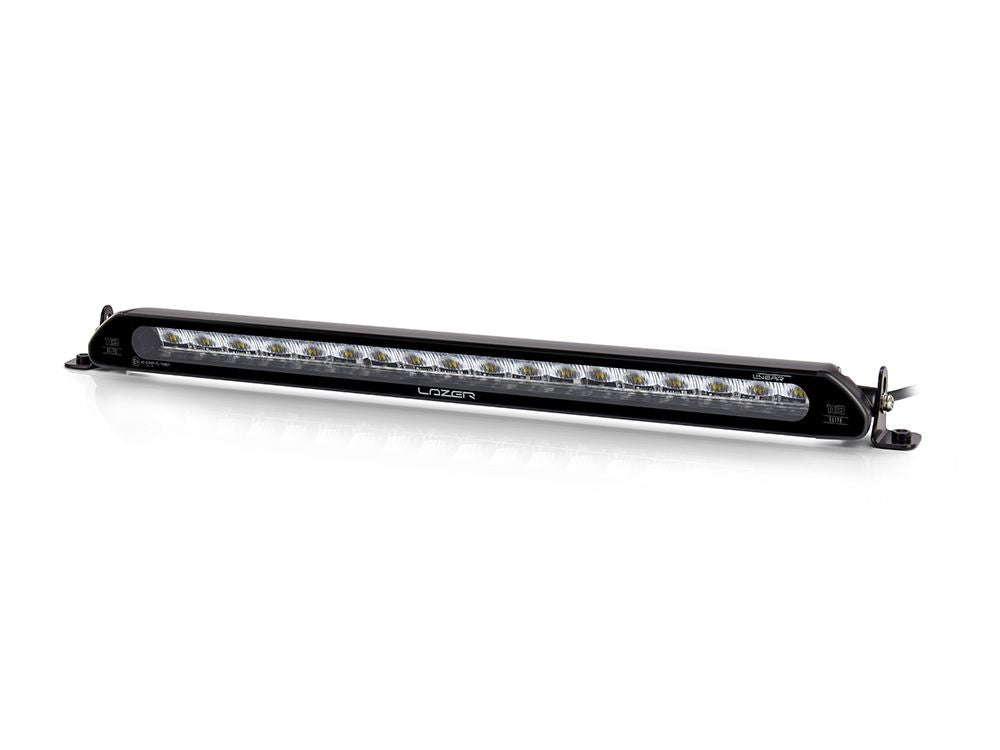

  • 0L18-PL-LNR - ISO

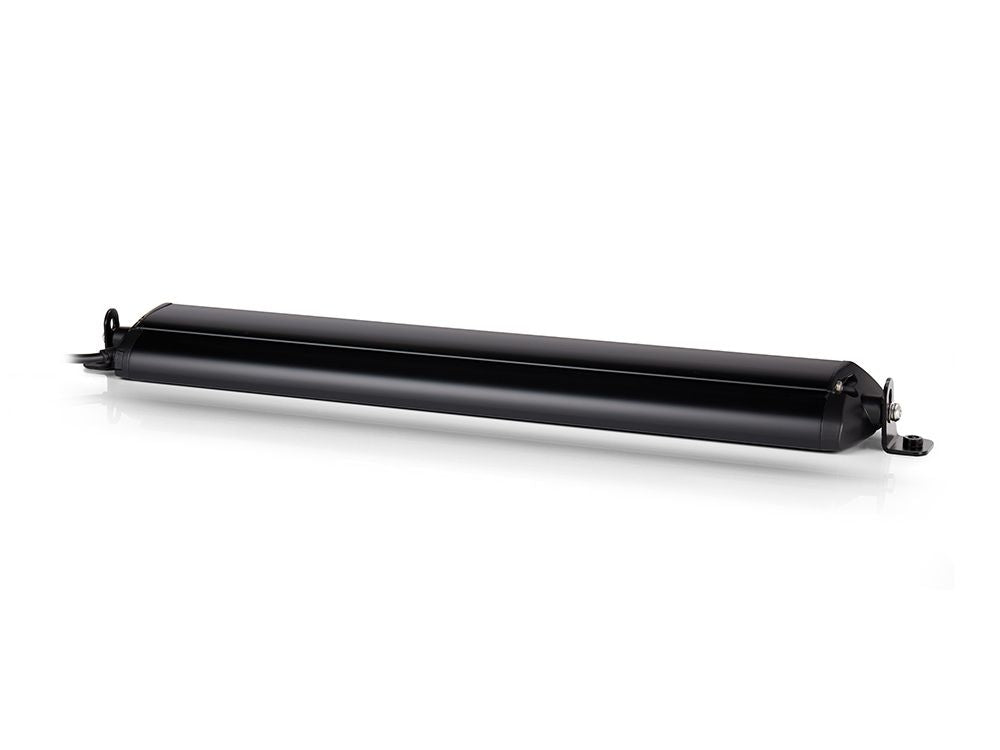

  • 0L18-PL-LNR - Rear

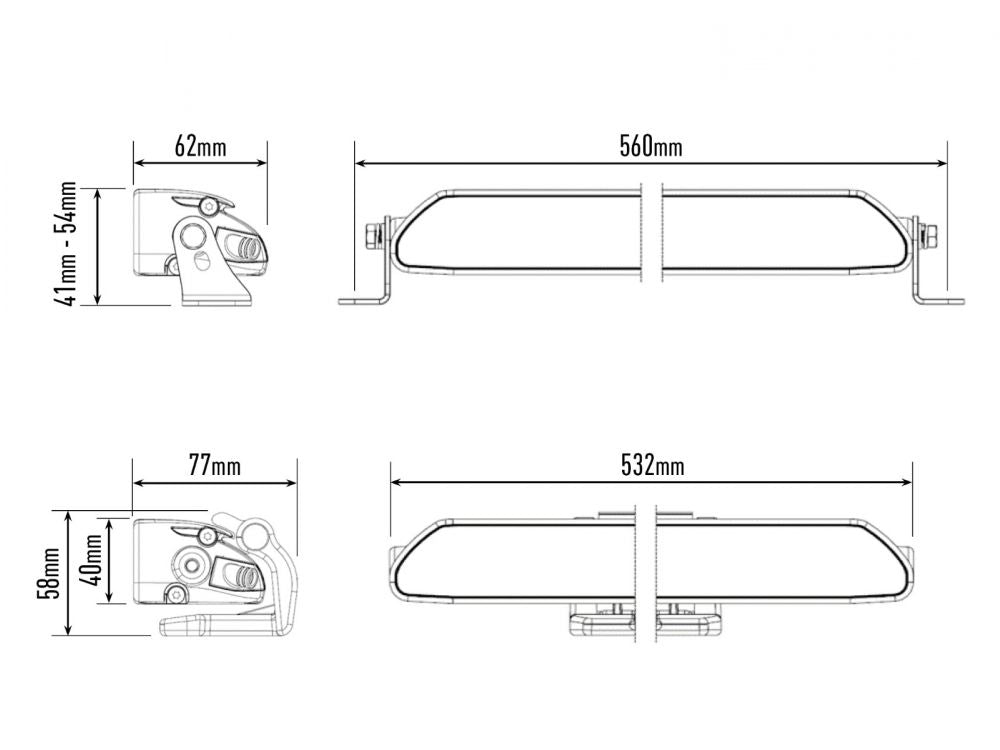

  • 0L18-PL-LNR - Drawing

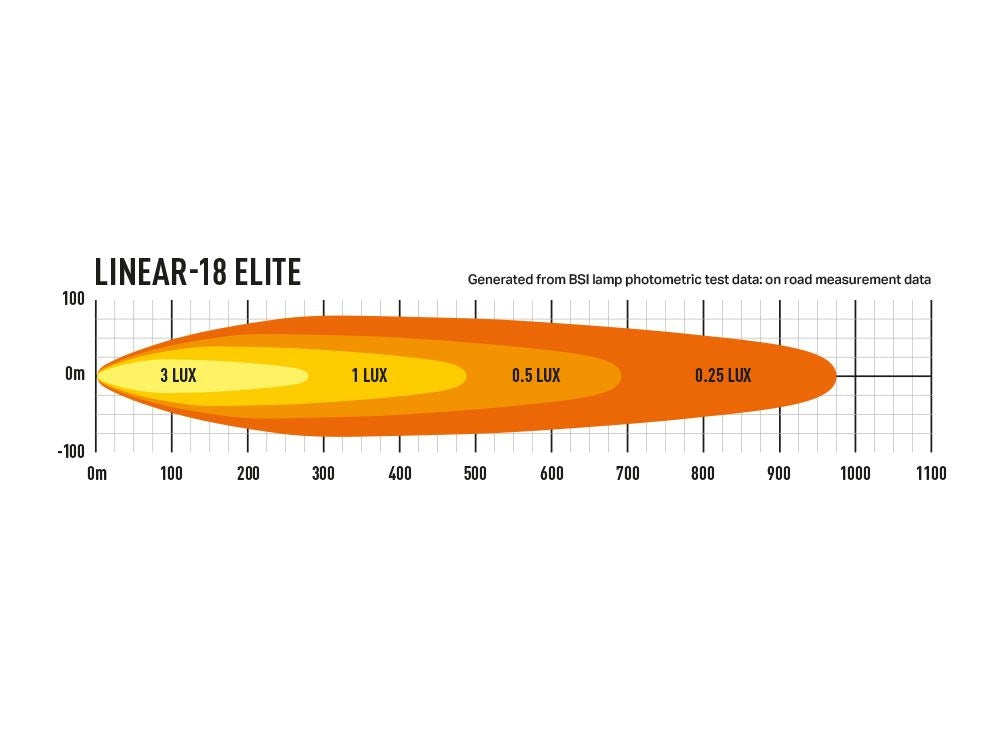

  • 0L18-PL-LNR - Phototmetric

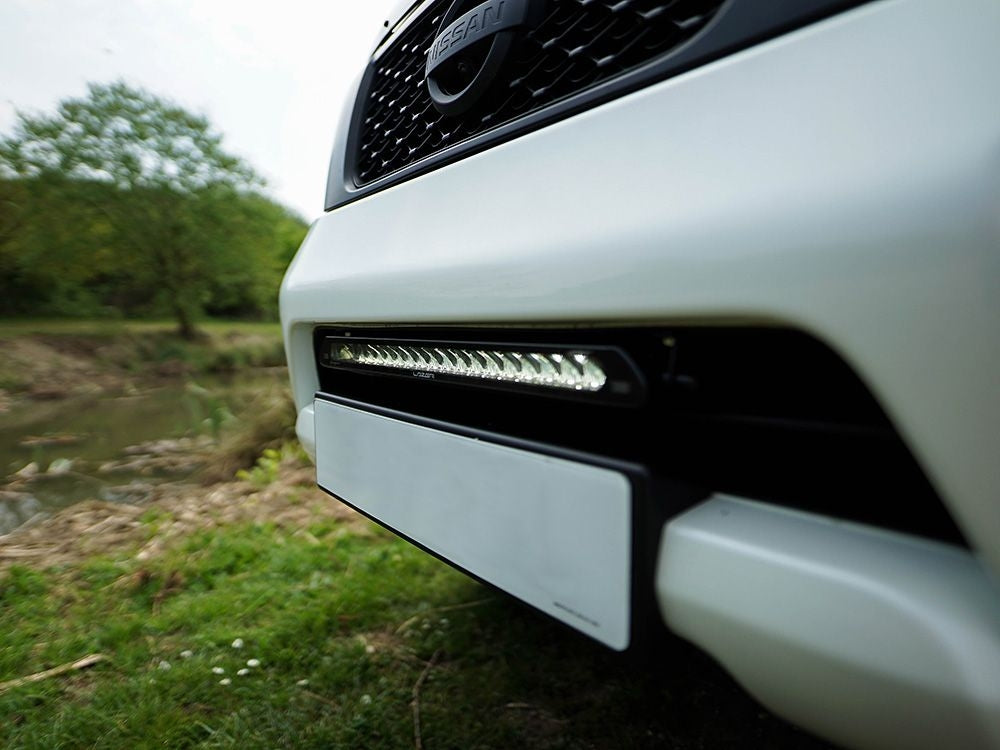

  • 0L18-PL-LNR - Nissan

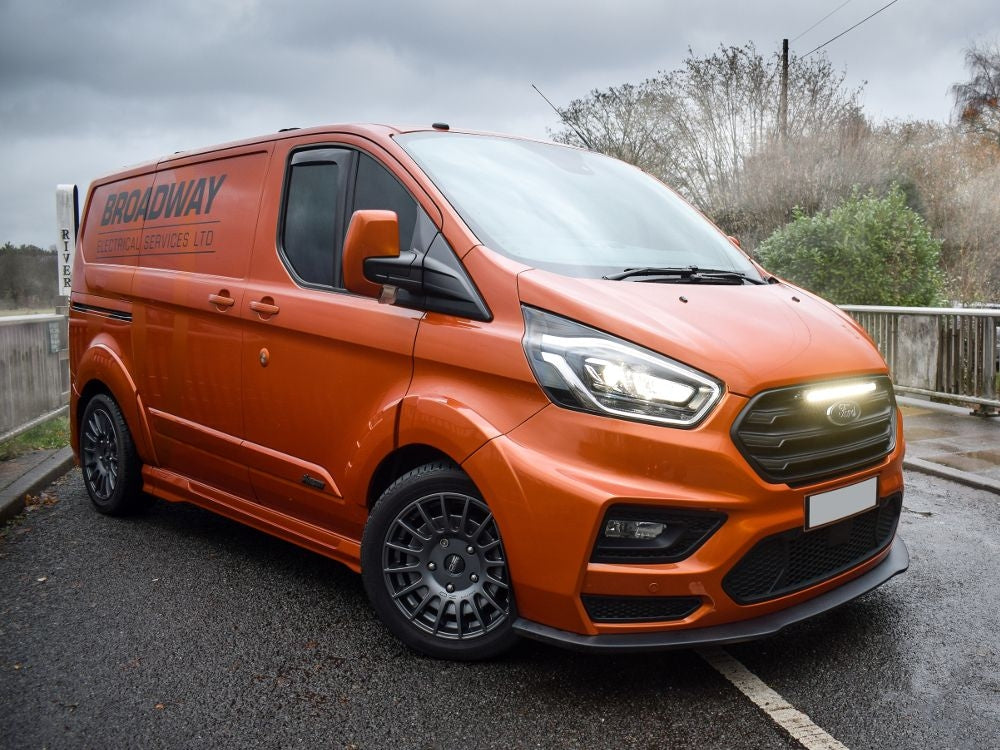

  • 0L18-PL-LNR - Transit
1 7

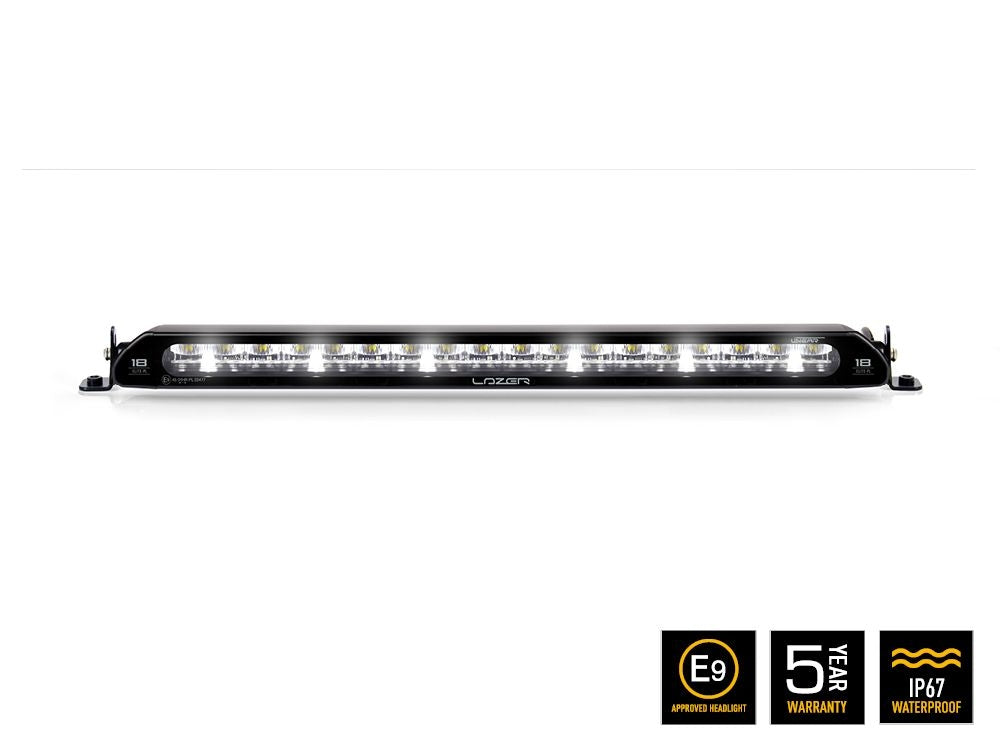

Linear-18 Elite with Position Light

Linear-18 Elite with Position Light

0L18-PL-LNR

€536.90 €660.39
Sale Sold out
  • Feature Icon LENGTH: 532MM / 21"
  • Feature Icon 12150 Lumens
  • Feature Icon Low Profile Design
  • Feature Icon Elite Grade
  • Feature Icon Position Lights

View Docs
View full details

Elite level boasts twice the light output compared to the equivalent Standard version with integrated position light function providing added safety and styling benefits.

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminum housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

WHAT'S INCLUDED:

  • x1 Linear-18 Elite (with Position Light) LED Lamp
  • x1 Anti-Theft Side Mount (1127k)
  • x1 Installation Instructions

PRODUCT FEATURES:

  • Combination of highly efficient 3W ‘premium bin’ LEDs

  • Integrated position light function

  • 5000K LED colour temperature and 80CRI maximises sharpness and definition

  • Vacuum-metallised optics deliver wide spread of light

  • Reduced up/down spread of light suits even low mounting positions, or roof mounting

  • Sleek, low profile design eases installation

  • Aero design virtually eliminates wind noise on roof installations

  • Flexible mounting options – anti-theft side mounting brackets included

  • Electronic thermal management system optimises light output to preserve longevity of the LEDs

  • Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

  • CAE optimised heatsink offers improved thermal dynamics

  • Over voltage protected

  • Reverse polarity protected

  • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer

  • UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function

  • UNECE approved Reg 7 for on-road position light function

  • UNECE approved Reg 10

  • IP67 watertight

  • 5 year warranty

  • Supplied with pre-wired male/female 2-pin Superseal connectors

  • Designed and manufactured in UK

LINEAR-18 ELITE TECHNICAL SPECIFICATIONS(WITH POSITION LIGHT) Voltage Range (DC) 10-32V LED Life 50,000 hours Weight 1090 gr HIGH BEAM FUNCTION   Total Luminous Flux 12150 Lm Total Driver 'FOV' Flux † 8651 Lm Colour Temperature 5000K Number of High Output LEDs 36 Power Consumption 126 Watts Current Draw (at 14.4V) 8.8 Amps Start-up Time * 100ms CERTIFICATION   High Beam ECE R112 ECE Reference 45 Position Light ECE R7 DIMENSIONS   Width 532 mm Depth 62 mm Height 40 mm PHOTOMETRIC DATA   Horizontal Beam Angle 42 degrees 0.25 lx Line 975 metres 0.5 lx Line 690 metres 1 lx Line 488 metres 3 lx Line 282 metres * 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

Brand:

Lazer Lamps

Manufacturer Part Number:

0L18-PL-LNR

Barcodes:

5060404992498
