C344 - Lubrication

C344 - Lubrication

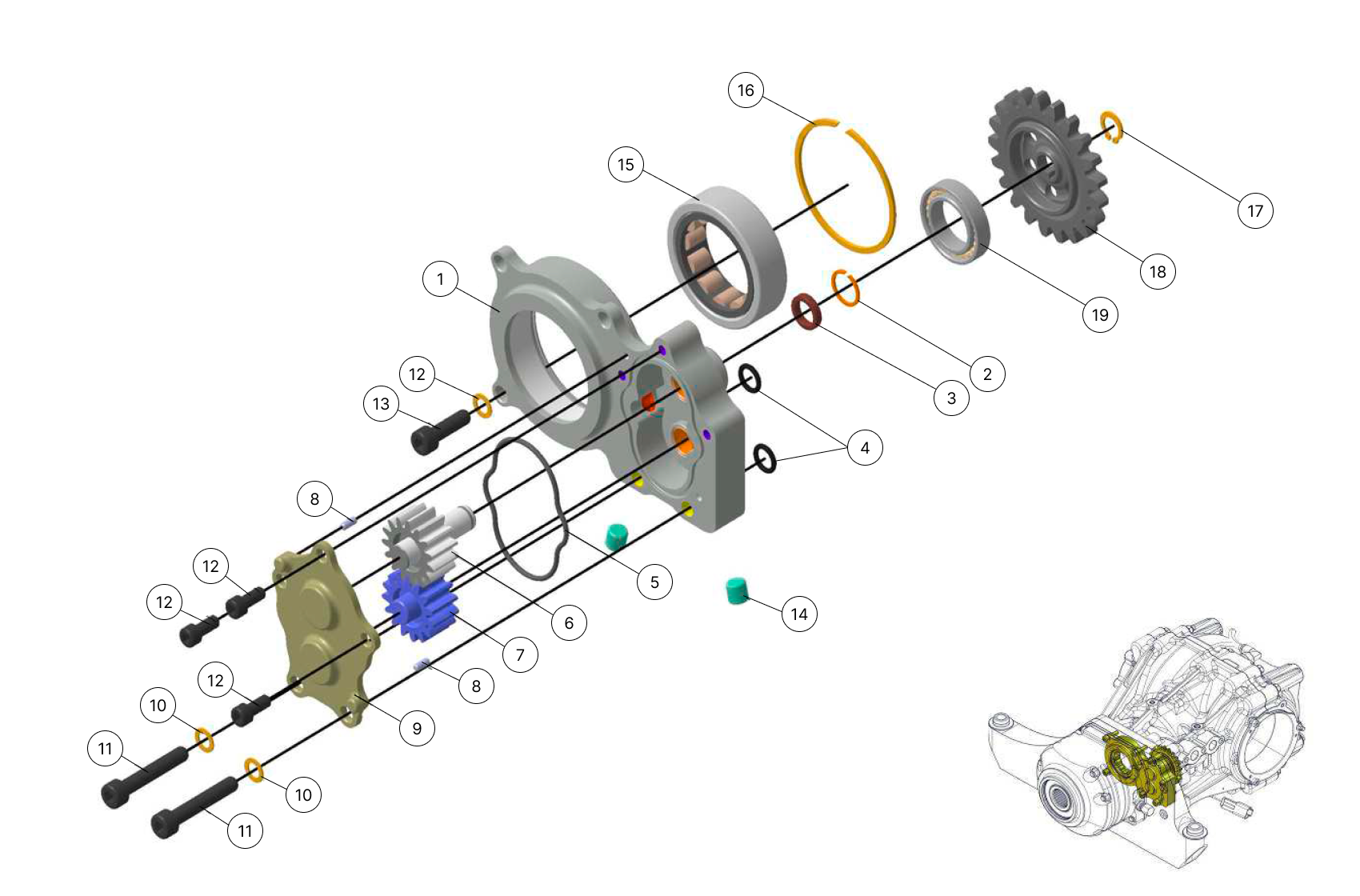

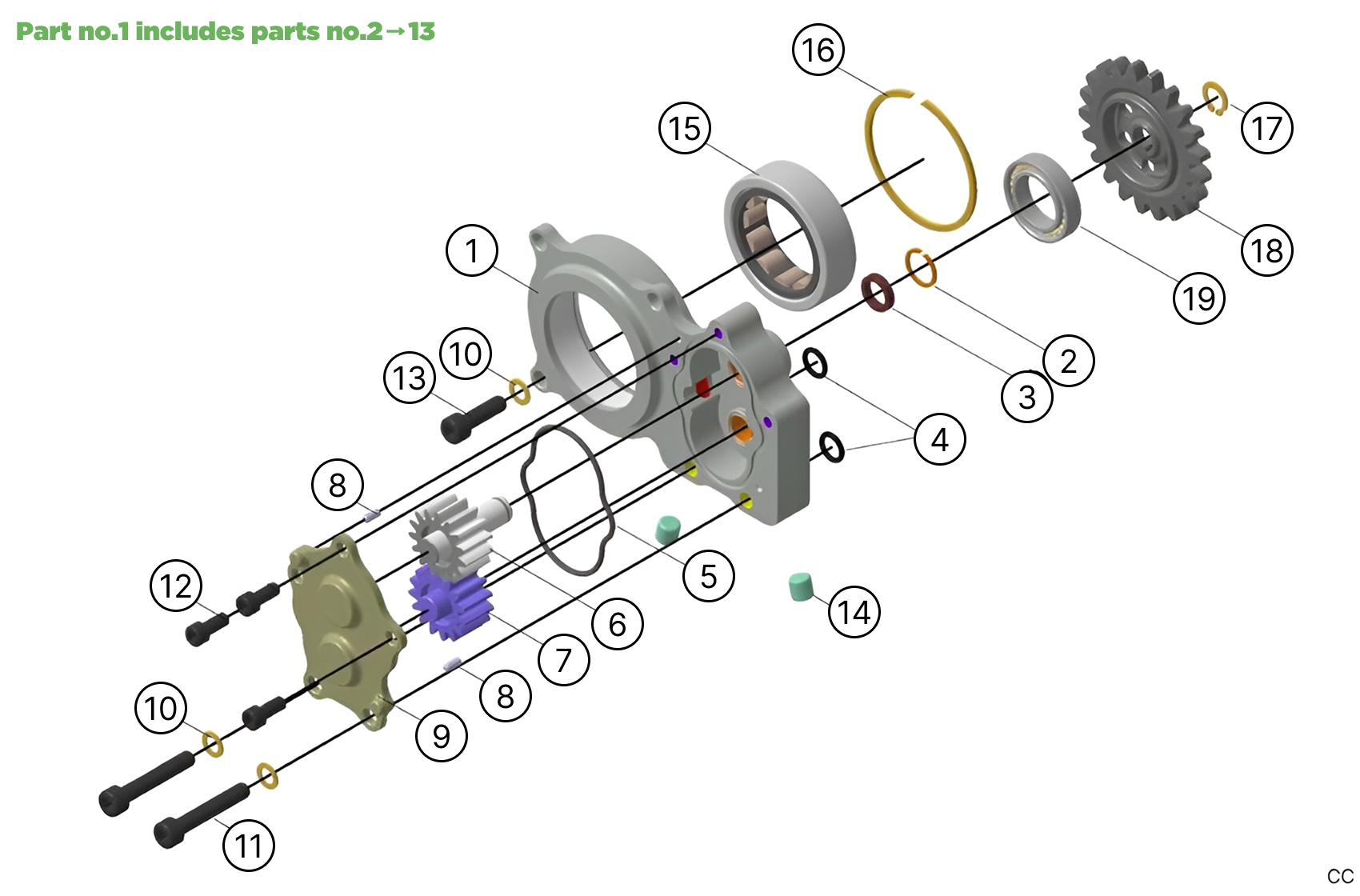

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Pump

F90400071

1

€1691.00 €2079.93
2
SB14 Clips

9907047

1

€1.58 €1.94
3
G10x14x3 Seal Bushing

0203055

1

€8.70 €10.70
4
Ø8x2 O'Ring

0201131

1

€0.46 €0.57
5
Ø2x47 O'ring

0201088

1

€1.02 €1.25
6
Main Pinion

F9040056

1

€789.48 €971.06
7
Pinion

F9037066

1

€760.43 €935.33
8
Centering Pin

F9004127

1

€12.99 €15.98
9
Pump End Cap

F9040009

1

€335.11 €412.19
10
Ø6 SPS Washer

0599006

5

€0.31 €0.38
11
M6x35 ZN cl10.9 CHC Bolt

0301237

2

€0.65 €0.80
12
Screw CHC M5x12 cl.12.9 Zn

301514

3

€0.39 €0.48
13
M6x20 ZN cl10.9 CHC Bolt

0301007

3

€0.40 €0.49
14
M8x8 STCH cl8.8 Bolt

0302042

2

€0.43 €0.53
15
NU 205 ECP Bearing

0103056

1

€34.10 €41.94
16
SB52 Bearing

9907060

1

€2.91 €3.58
17
Ø10mm Circlip

0601042

1

€0.19 €0.23
18
Driven Gear

F9040052

1

€407.31 €500.99
19
61804 Bearing

0101122

1

€14.51 €17.85
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
