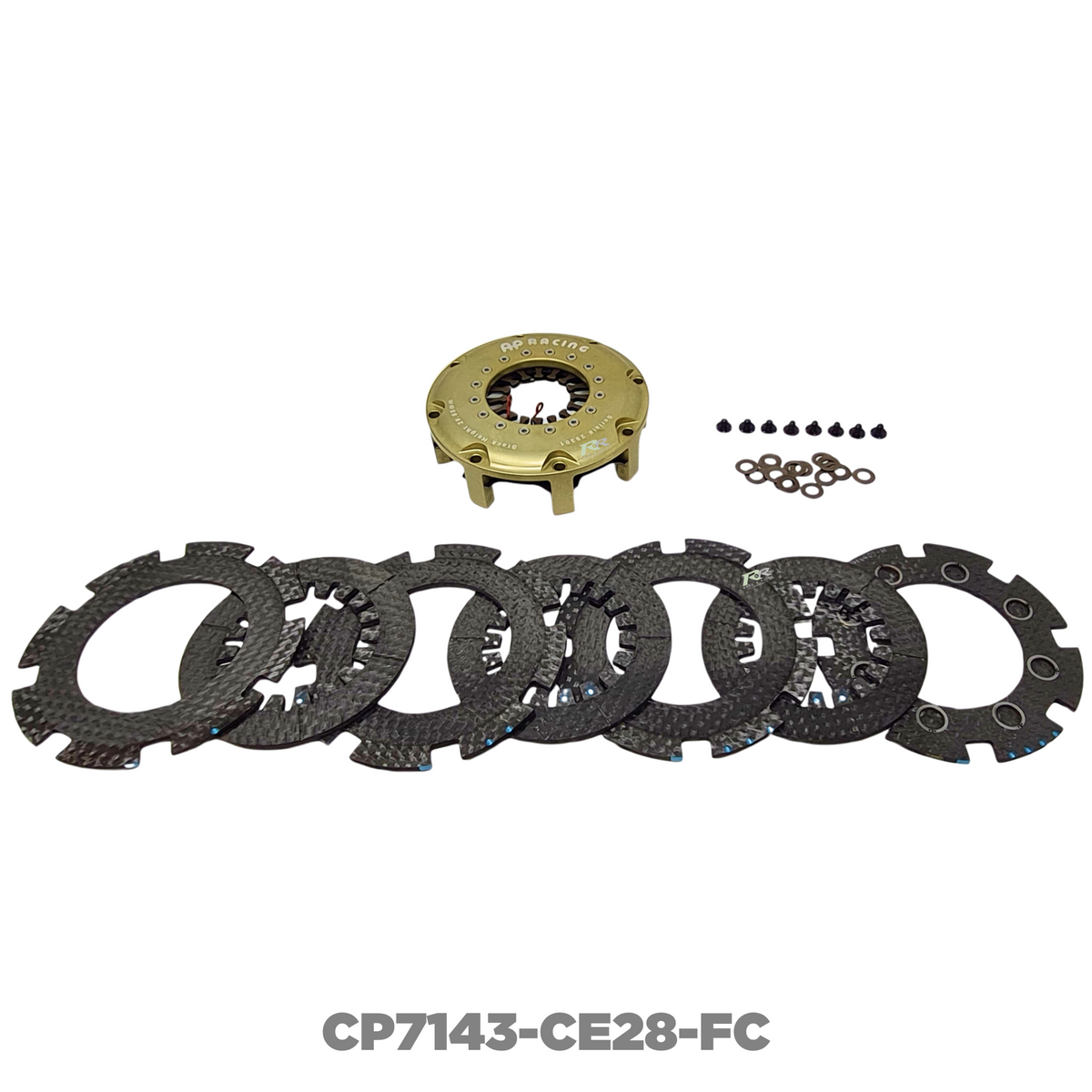

• AP Racing Ø140mm quadruple plate carbon clutch assembly with push type design, showing the clutch plates and components.

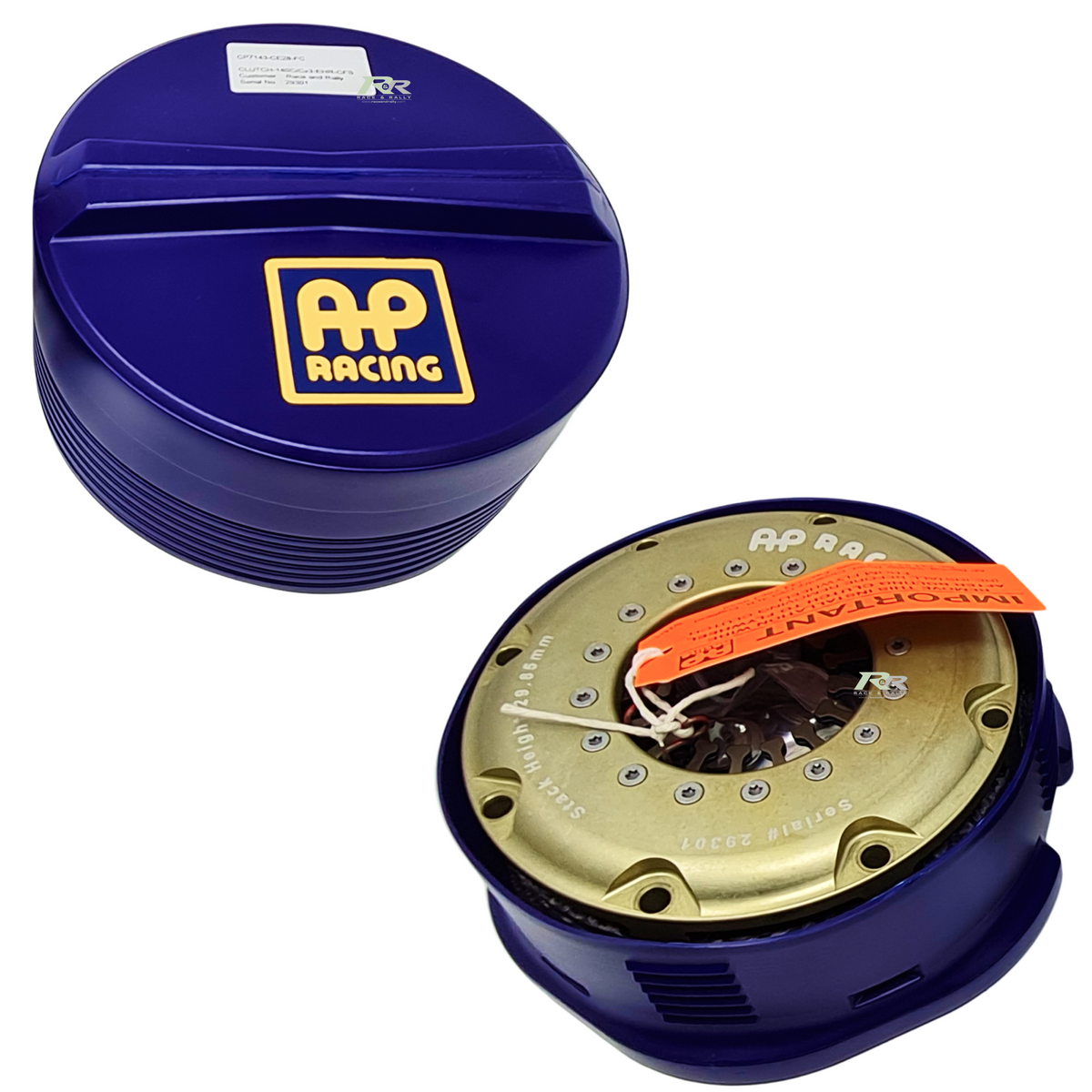

  • AP Racing Ø140mm quadruple plate carbon clutch assembly with push type design, shown in the image.

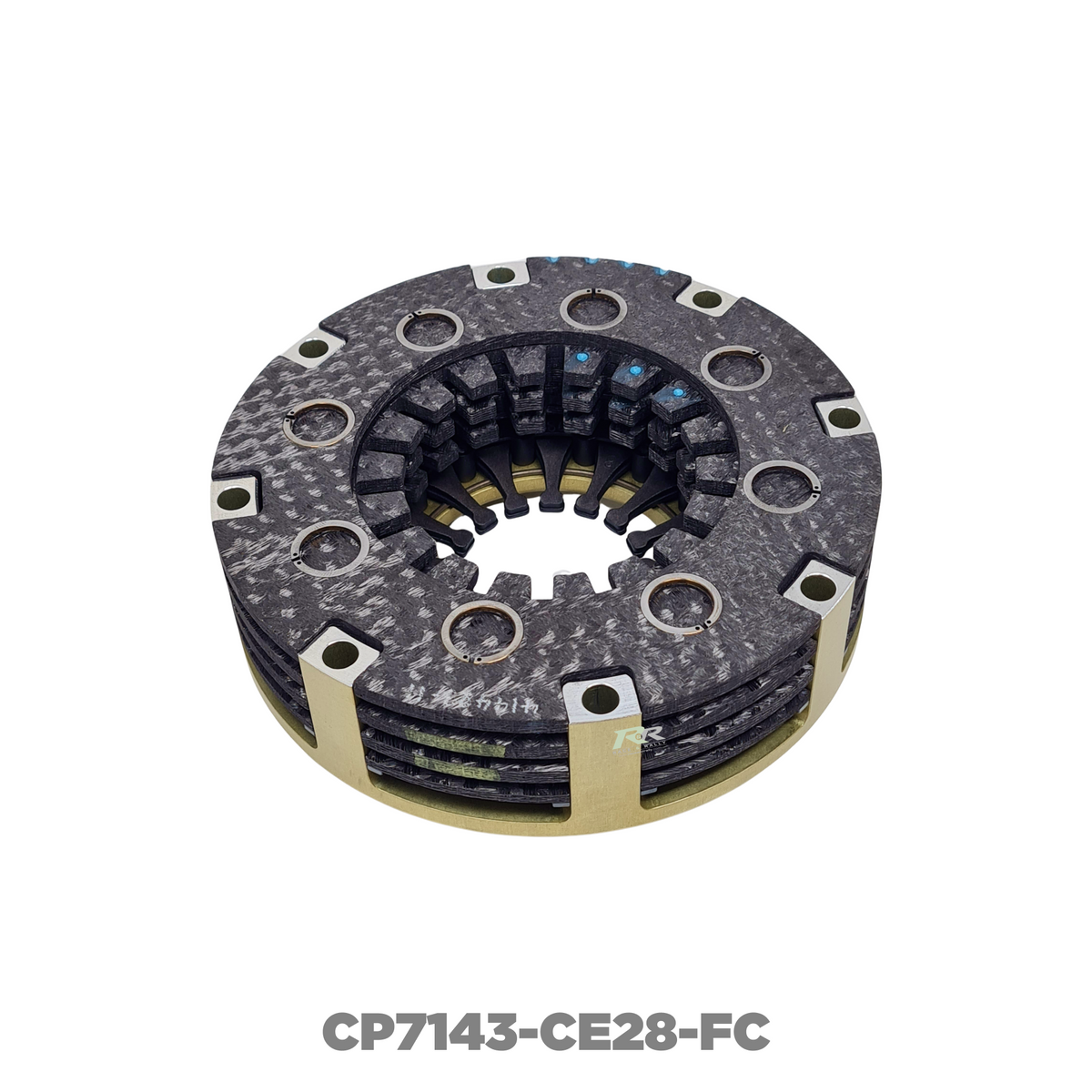

  • AP Racing Ø140mm quadruple plate carbon clutch assembly with push type mechanism, shown in detailed view.
1 3

Ø140mm Quadruple Plate Carbon Clutch - Push Type

Ø140mm Quadruple Plate Carbon Clutch - Push Type

CP7143-CE28-FC

€8411.04 €10345.58
Sale Sold out
Torque Capcity
Flywheel Fixing
Material

Out of stock, contact for leadtime

View full details

CP7143 Family - 8 Bolt Mounting

Typical Applications:

  • Touring Car

Features:

  • 8 Bolt, One piece cover and lugs
  • Stepped or Flat Flywheel fixing
  • Push type

Available Options:

  1. Two Diaphragm Spring Variants:
    1. - C (CRV)
    2. - O (ORA)
  2. Thre Ratio Variants:
    1. - E (EHR) Extra High
    2. - H (HiR) High
    3. - (MHR) Mega High
  3. Cover and pressure Plate and Carbon Material Variants:
    1. - (02) Aluminium Cover & Steel Pressure Plates & Heavy Duty Carbon Material
    2. - (28) Aluminium Cover & Steel Pressure Plates & Standard Duty Carbon Material
  4. Flywheel Options:
    1. - SN = Standard Stepped Flywheel
    2. - FN = Standard Flat Flywheel
    3. - FC = Flat with CFS (Cushion Flywheel System)
    4. - SC = Stepped with CFS (Cushion Flywheel System)

Technical Specifications:

Maximum Dynamic Torque Capacity
(Nm) 1112 884 806 639 632 473
(ft. lbs) 821 651 594 471 465 348
Release Load
Max. Peak Worn (N) 4500 4500 3750 3750 4500 3750
At Travel (N) 3000 3000 2500 2500 3000 3000

Wear In
(see note)		 0.5 0.5 0.5 0.5 1.0 1.0

Set Up Heigh (New) 41.32
39.96		 40.88
39.69		 40.72
39.38		 40.84
39.50		 40.85
39.79		 40.37
39.33
Set Up Height (Worn) 43.58 42.62 43.10 43.14 43.40 42.92
(Set Up Height is calculated from the flywheel friction face)

Release Ratio 4.48 3.44 4.48 3.44 2.64 2.64

Performance Suffix CM CE OM OE CH OH

Diaphragm Spring Rate CRV CRV ORA ORA CRV ORA
Clutch Ratio MHR EHR MHR EHR HiR HiR


Brand AP Racing
Option SKU Barcode
884 Nm (651 lbft) / Flat Cushion Flywheel / Aluminium & Steel & Standard Duty Carbon CP7143-CE28-FC


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
