CP7600D43 Brake Pad Set - (H) DS2500 Compound
CP7600D43 Brake Pad Set - (H) DS2500 Compound
SKU:CP7600D43-DS2500
Regular price
€237.23
€291.79
113.48mm
58.37mm
16.0mm
43.0mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, contact for leadtime

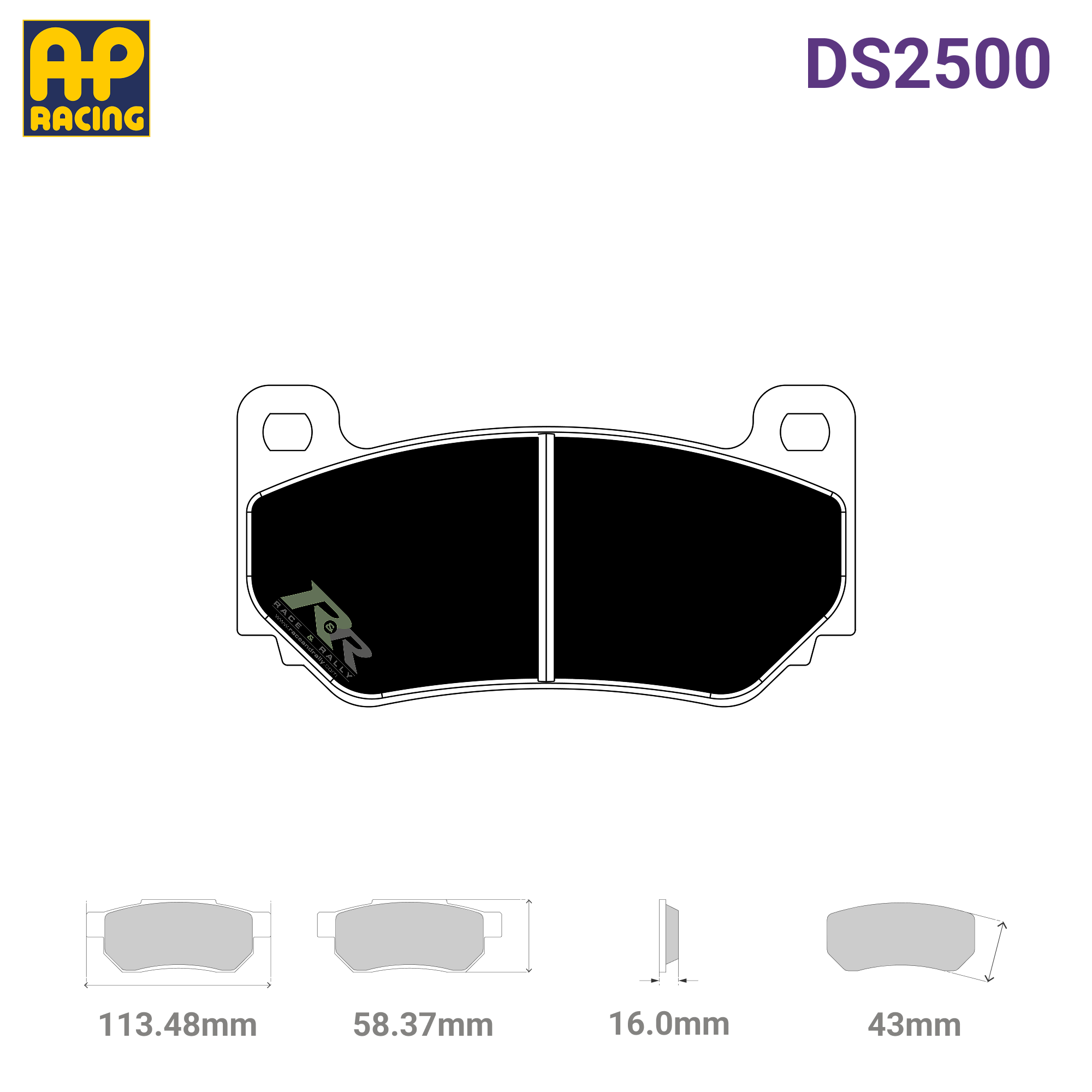

Brake Pad Dimensions:
| Manufacturer | AP Racing |
| Part Number | CP7600D43-DS2500 |
| Pad Width | 113.48mm |
| Pad Height | 58.37mm |
| Radial Depth | 43.0mm |
| Thickness | 16.0mm |
| Compound | (H) DS2500 |
| Barcode |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP7600D43 |
