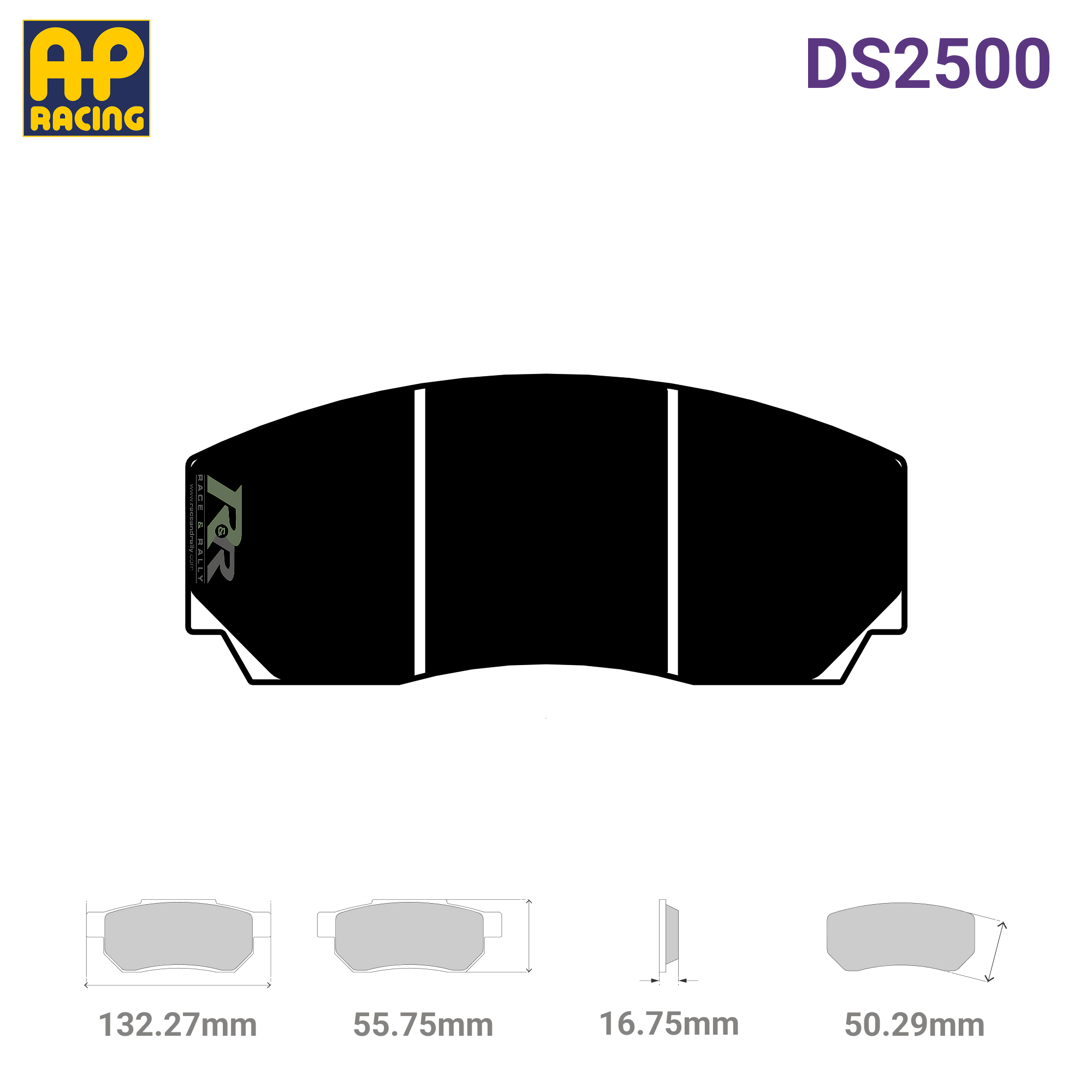

Brake Pad Dimensions:
| Manufacturer | AP Racing |
| Part Number | CP3215D50-DS2500 |
| Pad Width | 132.27mm |
| Pad Height | 55.75mm |
| Radial Depth | 50.29mm |
| Thickness | mm |
| Compound | (H) DS2500 |
| Barcode |
How to correctly measure your brake pads:
Download our measurement sheet guide (PDF)
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front (UK&IE) Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)

Optimal operating temperature

Relative performance characteristics under heavy-duty race conditions

Suggested applications

Cross References:
| AP Racing | CP3215D50 |
| Carbon Lorraine | 5004W50 |
| Endless | RCP015 |
| Ferodo Racing | FRP216 |
| Mintex | 1289 |
| Pagid | 1361 |
| Performance Friction | 7767 |
Compatible Calipers:
| AP Racing |
|---|
| CP3307 |
| CP3620 |
| CP3720 |
| CP5040 |
| CP6720 |
| CP6730 |
| CP6740 |
| CP9230 |
| CP9440 |
| CP9441 |
Applications:
| Make | Model | Year |
|---|---|---|
| Audi | S1 Sport Quattro | 1984-1985 [rally car] |
| Mitsubishi | Lancer Evo X | 2007-2016 [gravel, rally, AP Caliper] |
| Renault | Clio II | 2001-2005 [V6 race car] |
