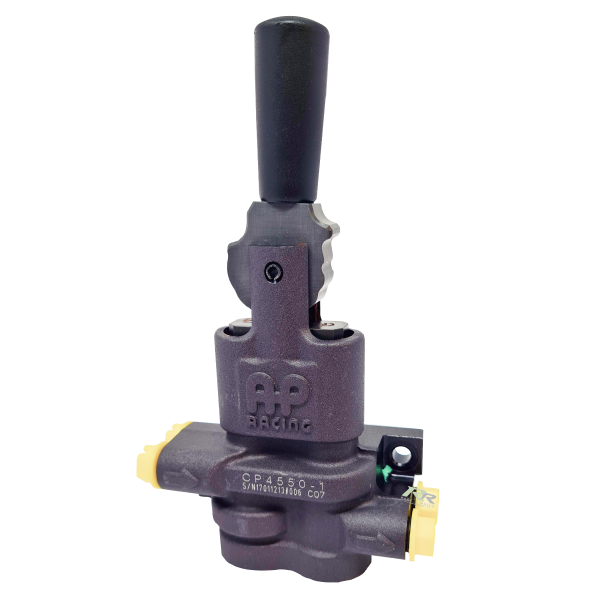

This twin-bore lever type, is a 2 in and 2 out valve. This valve enables the user to utilise original fluid pipe runs on Grp 'N' or similar applications, where a tandem master cylinder (diagonal split system) is specific. This provides the driver, with seven distinct settings from which to select the most suitable braking ratio.

INSTALLATION:

To obtain the best performance using these valves, the brake balance should be biased towards the rear so that with the valve piped into the rear line and set in position 7 where virtually no reductions occur, the balance is as much to the rear as will ever be needed. Moving the control lever to a lower setting will progressively reduce the rear line pressure giving more bias to the front, for use when more grip is available.

TECHNICAL DETAILS:

• Weight - 0.180kg
• 7 distinct settings
• M10 x 1.0 twin bore connections
• Suitable for use with any brake fluid that conforms to DOT 3, DOT 4 or DOT 5.1 standards
• Best all round performance will be achieved with AP Racing 600 brake fluid.

WARNING

Due to internal adjustments set by AP Racing, do not strip these assemblies. Do NOT attempt any modification of these valves.

Strictly for competition use only.
