RacePod - Hyperspot

RacePod - Hyperspot

SKU:00RP-HYP

Regular price €236.00 €290.28
Sale Sold out
  • Feature Icon 4520 Lumens
  • Feature Icon Length: 107mm

View full details

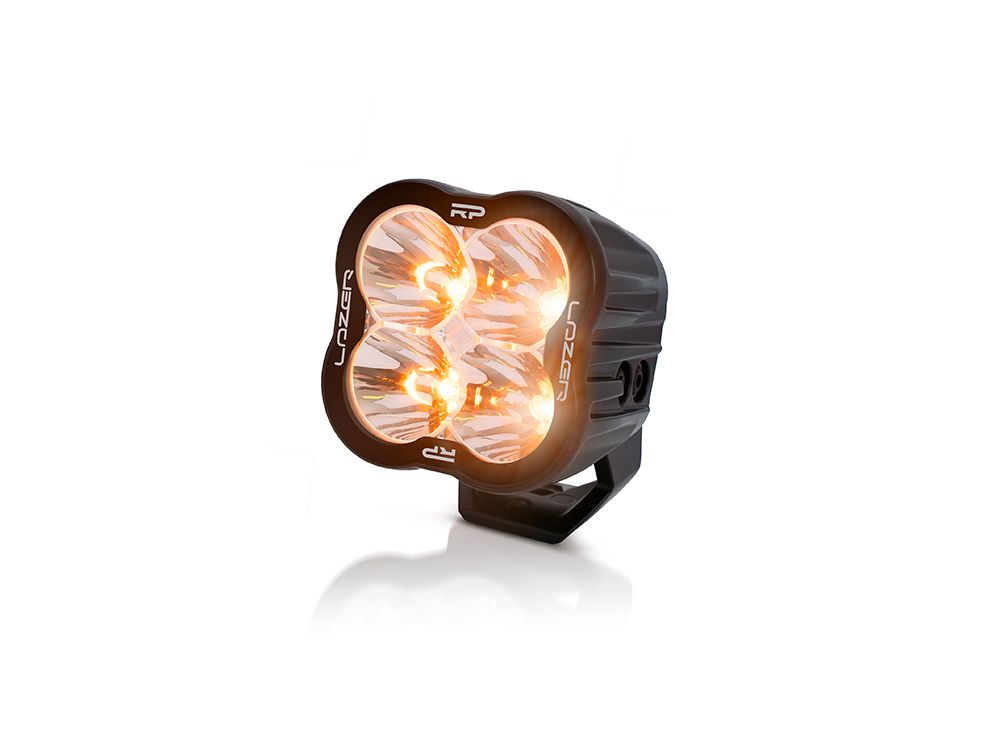

The RP Hyperspot is an ‘off-road’ LED light built for performance and durability. Comprising 4x premium-bin, high-intensity LEDs with an overall power rating of 45W, the lamp produces 4,520 raw lumens which combine with the ultra-reflective, vacuum-metallized ‘boost’ optics specially designed and engineered to deliver light over an impressive distance (1 lux @ 524m). Incorporated within the RP Hyperspot is a backlight feature, with customers having the option to select white or amber colour options.

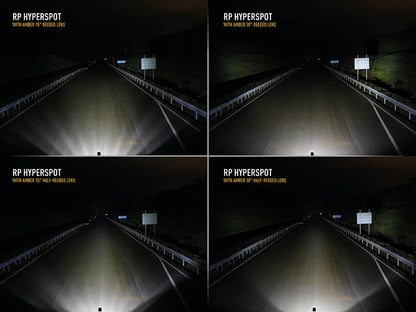

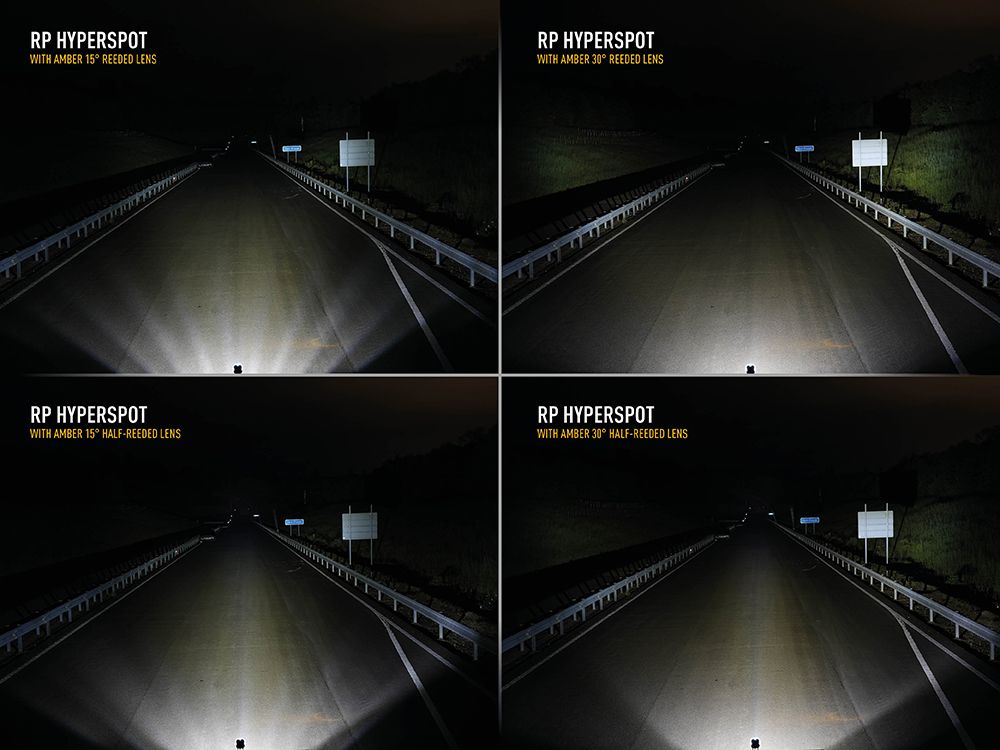

To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Lazer’ branded lens cover is included with each light.

Like all Lazer Lamps' products the RP Hyperspot has been designed, engineered, and manufactured in-house, in the UK. The product is built to withstand harsh environments backed up by our comprehensive 5year warranty. Design features including: electronic thermal management, ‘unbreakable’ polycarbonate lens with hardcoat varnish, and a CAE optimised heatsink, mean this is a product to be trusted to deliver for many years.

What's Included:

  • x1 RP Hyperspot LED Lamp
  • x1 Lamp Mounting Bracket
  • x1 Black Lens Cover
  • x1 Installation Instructions

Downloads:

Lazer Lamps - RP Series Instructions (1.10 MB

RP Hyperspot - Product Information Sheet (1.72 MB)

ECE Reg 10 - Certificate - Utility-80 HD and RP Series (674.93 KB)

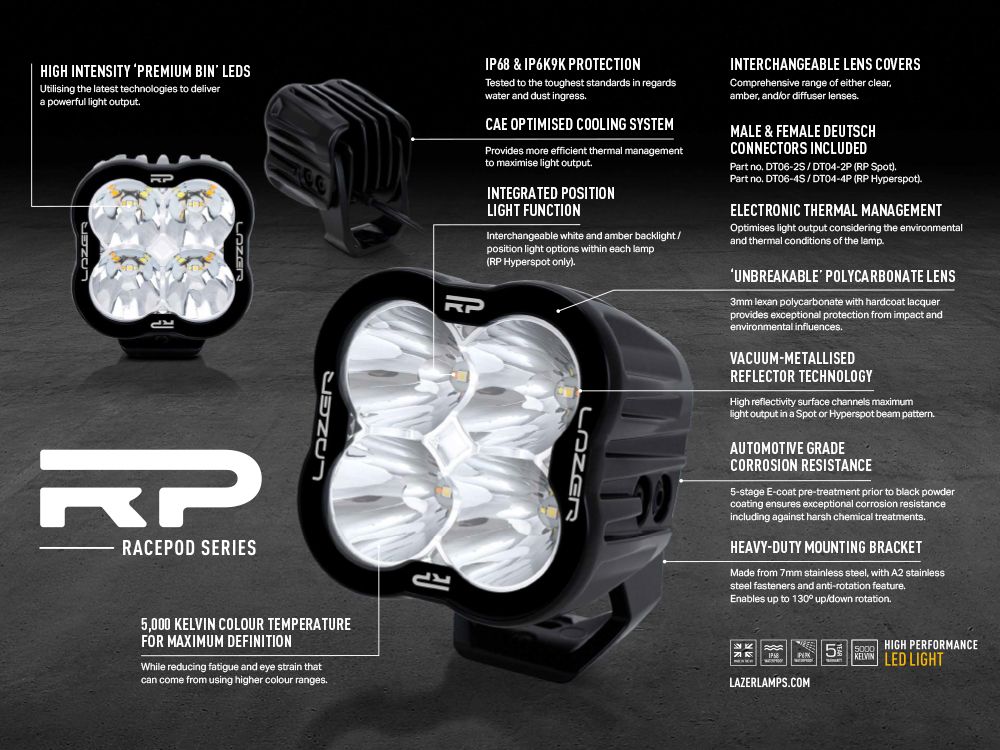

  • Utilizing 4 high-intensity LEDs
  • Vacuum-metallized ‘boost’ optics deliver Hyperspot beam pattern

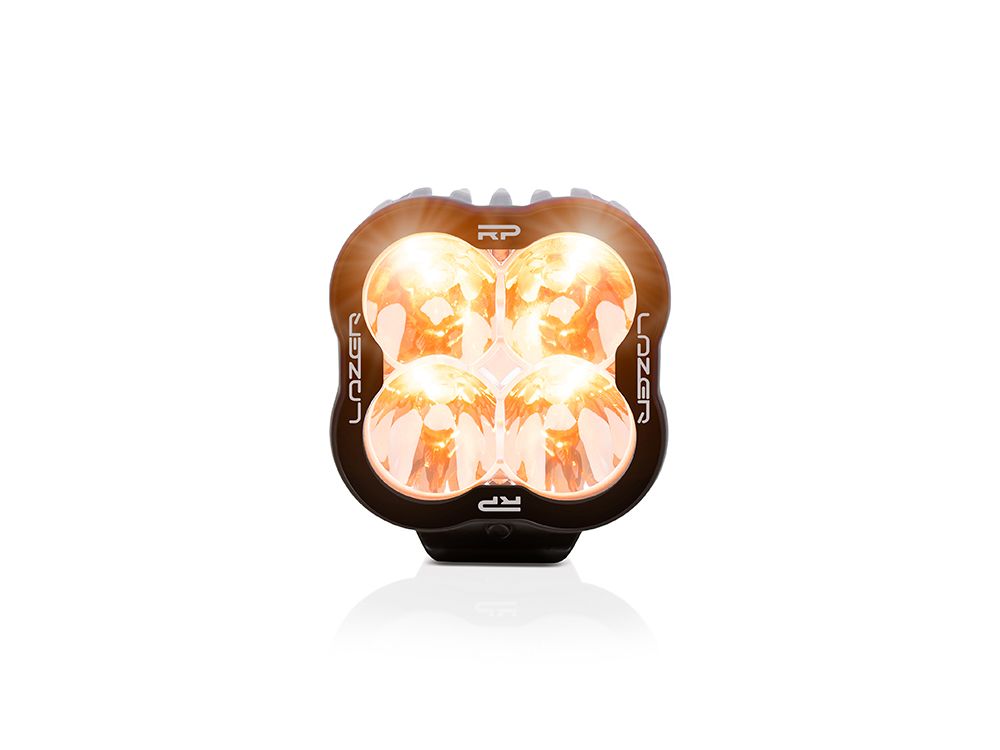

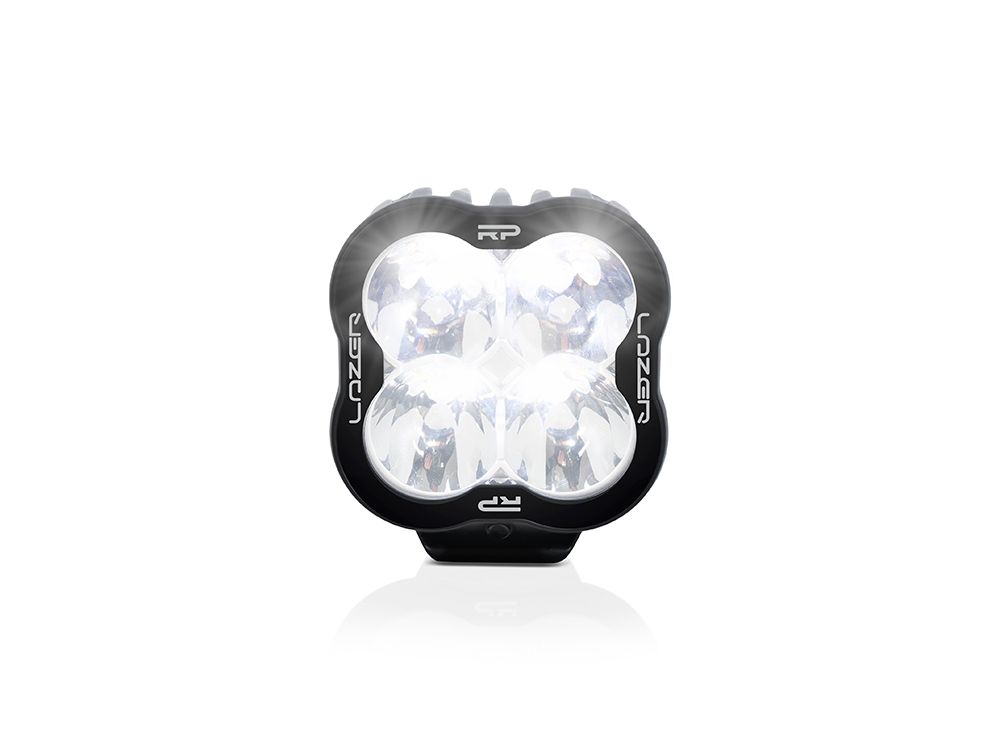

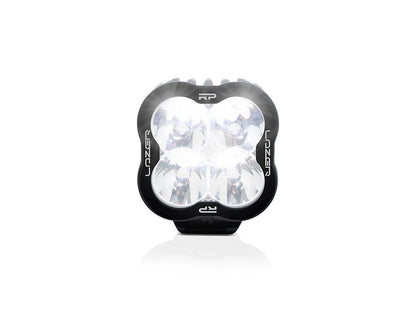

  • Integrated white/amber backlight function
  • CAE optimized cooling system with Electronic Thermal Management
  • 5000k colour temperature
  • Comprehensive range of lens covers available
  • Die-cast, heavy-duty mounting bracket
  • ‘Unbreakable’ polycarbonate lens with hardcoat
  • Marine grade corrosion resistance
  • IP68 / IP69k approved
  • Over voltage protected
  • Reverse polarity protected
  • Includes male/female (4-pin) Deutsch connectors
  • 5year warranty
  • Made in the UK

Product Specifications:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • Weight: 1.1 kg

HIGH BEAM FUNCTION

  • Total Luminous Flux: 4520 Lm
  • Total Driver 'FOV' Flux †: 3268 Lm
  • Colour Temperature: 5000K
  • Power Consumption: 41 Watts
  • Current Draw (14.4V): 2.8 Amps

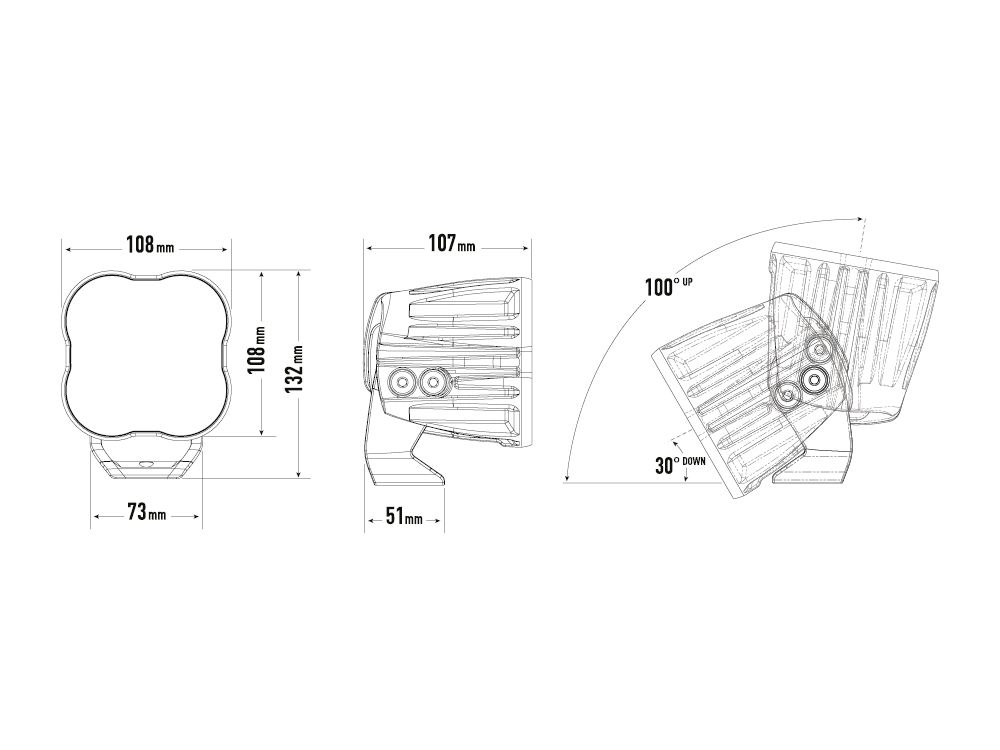

DIMENSIONS

  • Width: 107mm
  • Depth: 108mm
  • Height: 107mm

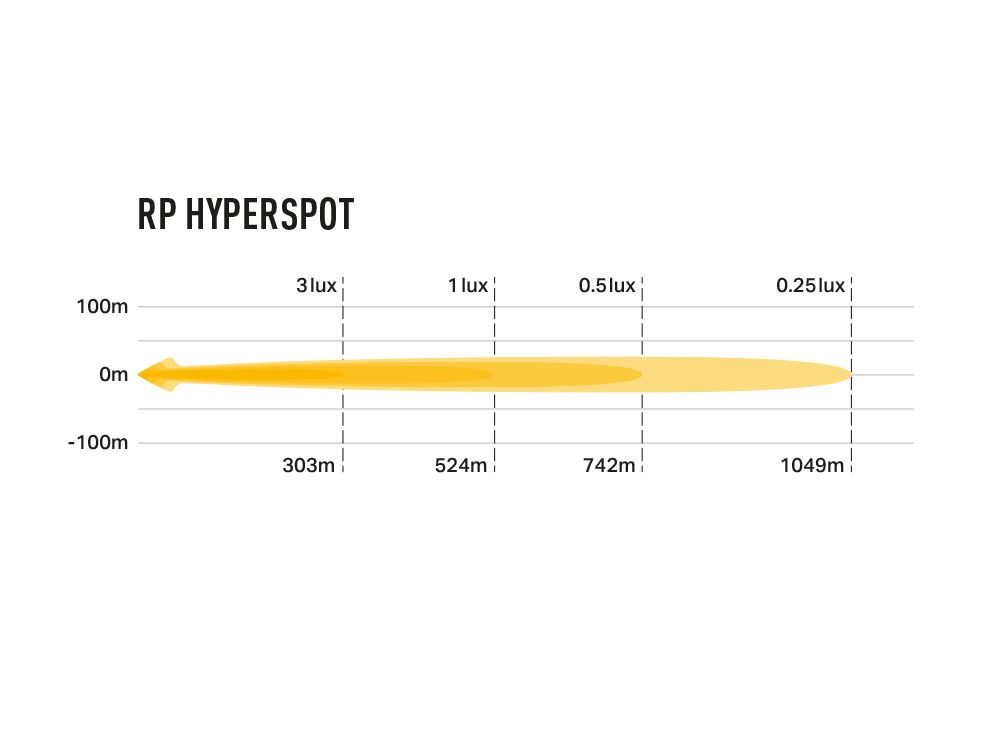

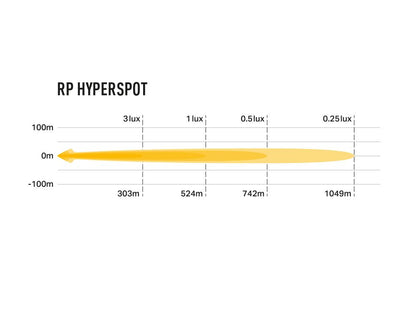

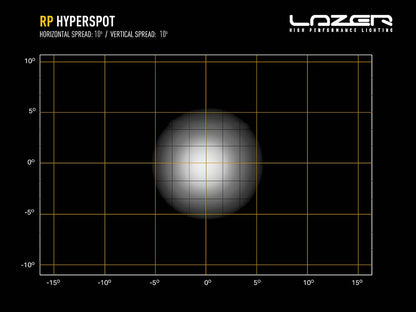

Photometric Data

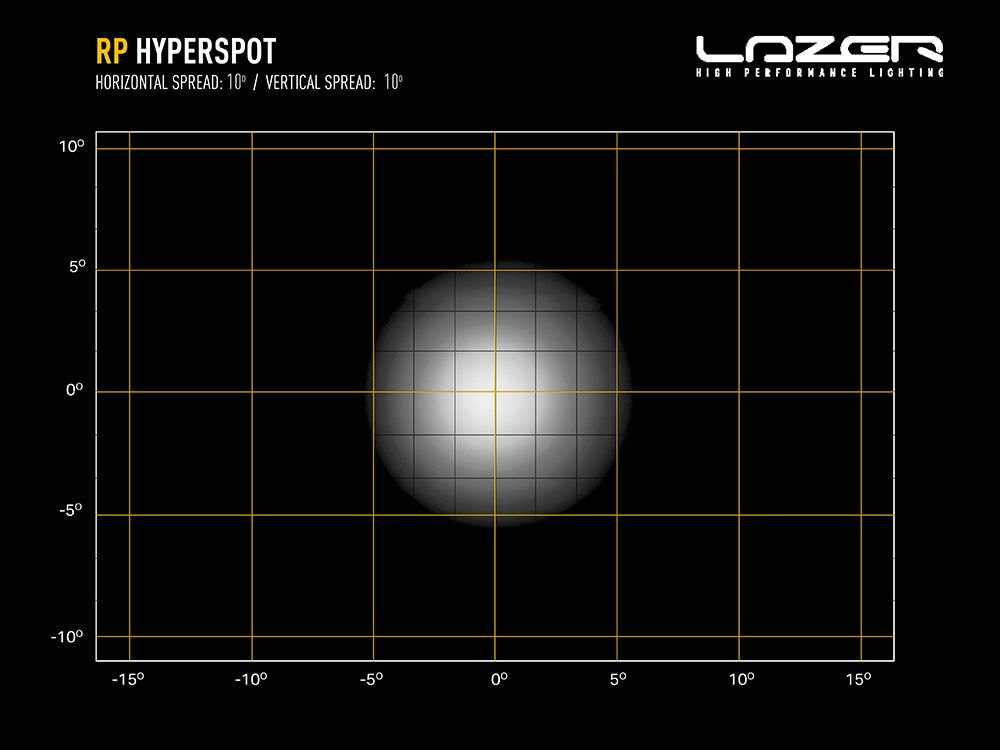

  • Horizontal Beam Angle: 10°
  • 0.25 lx Line: 1049m
  • 0.5 lx Line: 742m
  • 1 lx Line: 524m
  • 3 lx Line: 303m

Brand:

Lazer Lamps

Manufacturer Part Number:

00RP-HYP

Barcodes:

5060404997578
