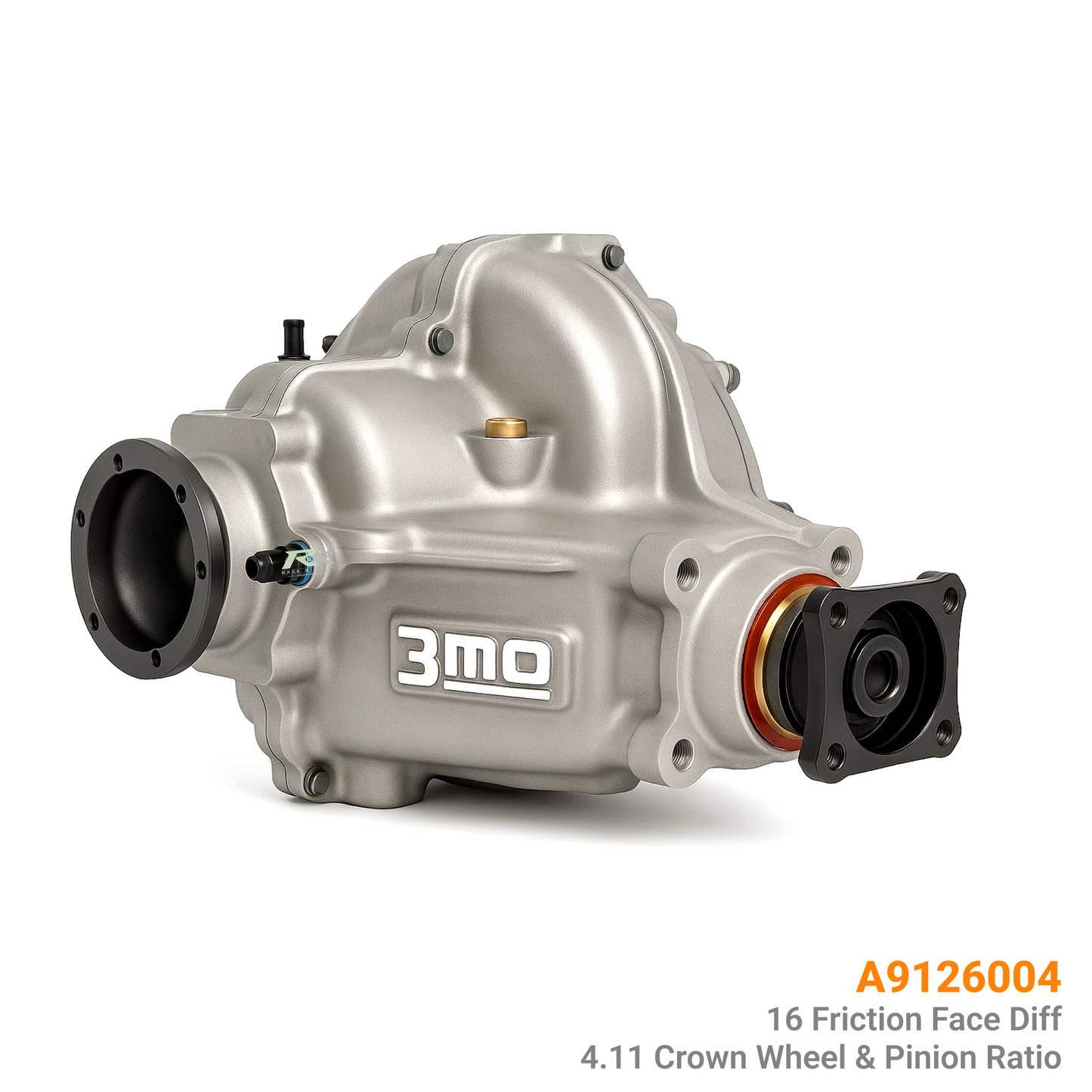

RD24 Rear Differential

The RD24 diff has been developed for Motorsport applications. The drive is taking through an input flange, a hypoid CWP connected on a limited slip differential with 16 Friction Faces (8+8) with preload adjustable externally, connected to output flanges.

Applications:

• Rallycross
• Off Road
• Tarmac Rally
• Circuit Racing
• Track Days

Specifications:

• 8.5" hypoid CWP

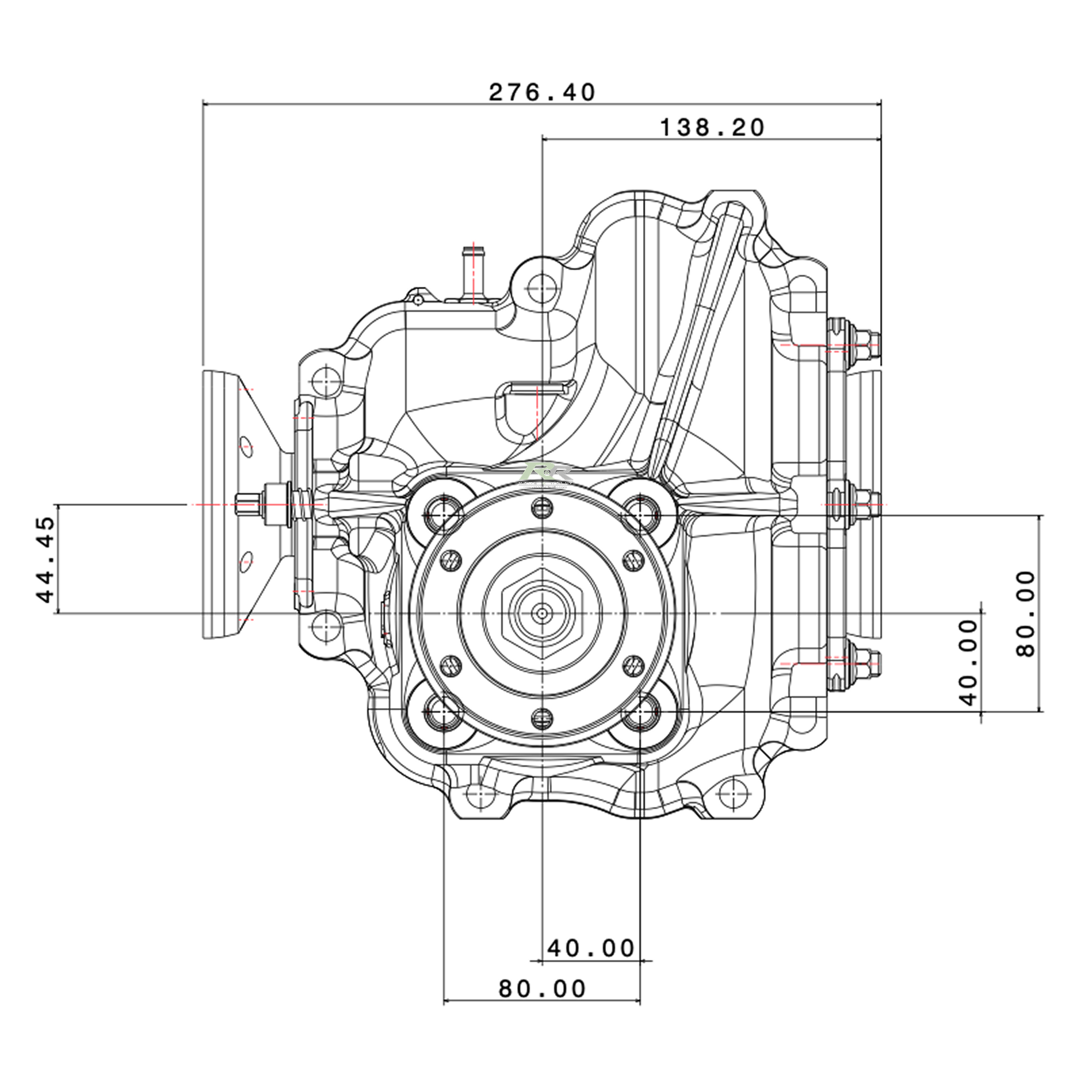

  • 44.4mm offset

• Diff preload is adjustable externally
  • One turn = 25.7Nm (approximately)
• 2300Nm MAX engine torque
• 5000 N.m. max Torque Output
• 3MO X4-V 85W140 oil is recommended
  • 1.3L capacity
•  Weight:
  • 25.6 Kg without output flanges
  • 36.0 Kg with output flanges
• Ratios Available:

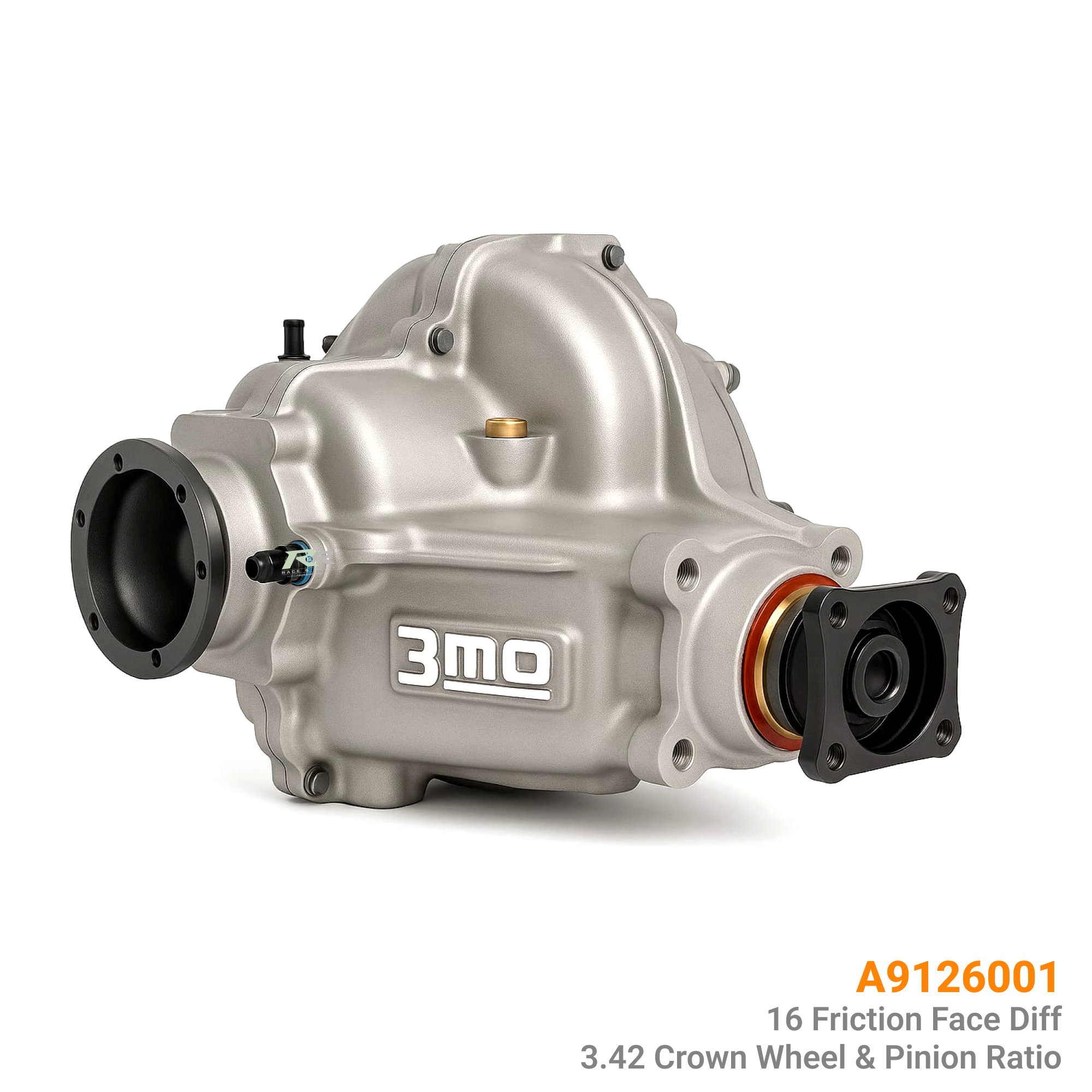

  • 3.42
  • 3.73
  • 3.90
  • 4.11
  • 4.30
• Possibility to plug in a temperature sensor
• Propshaft Flange Options (1 option included with price of Differential):
  • Ø100mm Lobro
  • Universal 1120 Joint
  • SGFlex
• Output Flange Options (sold separately - in pairs)
  • Ø108mm Lobro
  • AAR Tripod
  • JB3 Tripod
