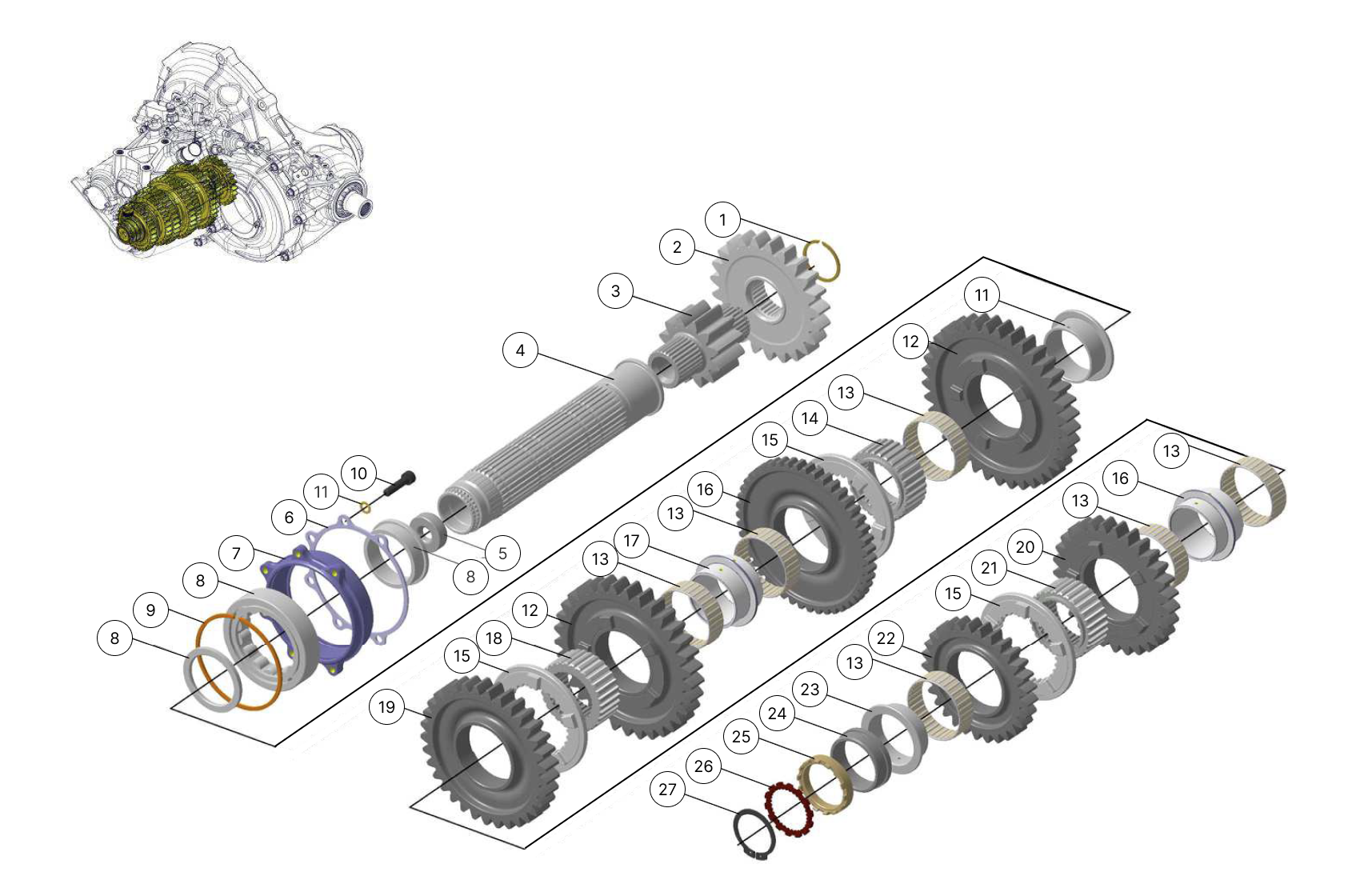

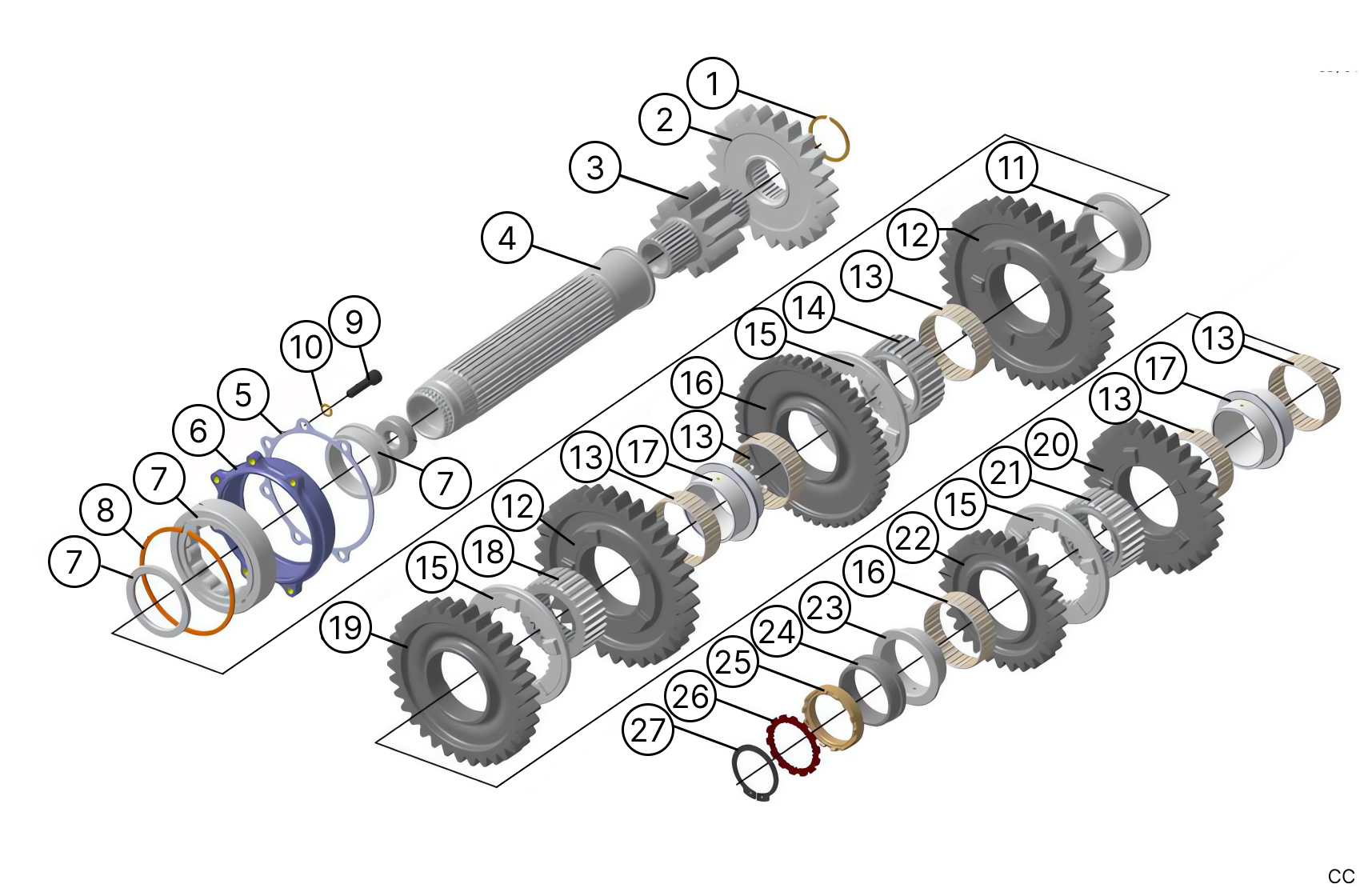

C232 - Secondary Line

C232 - Secondary Line

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Expansive ring Seeger SW32

9907052

1

€0.79 €0.97
2
23x39 Intermediary Rear Drive Gear

CPL23399053011

1

€2700.34 €3321.42
3

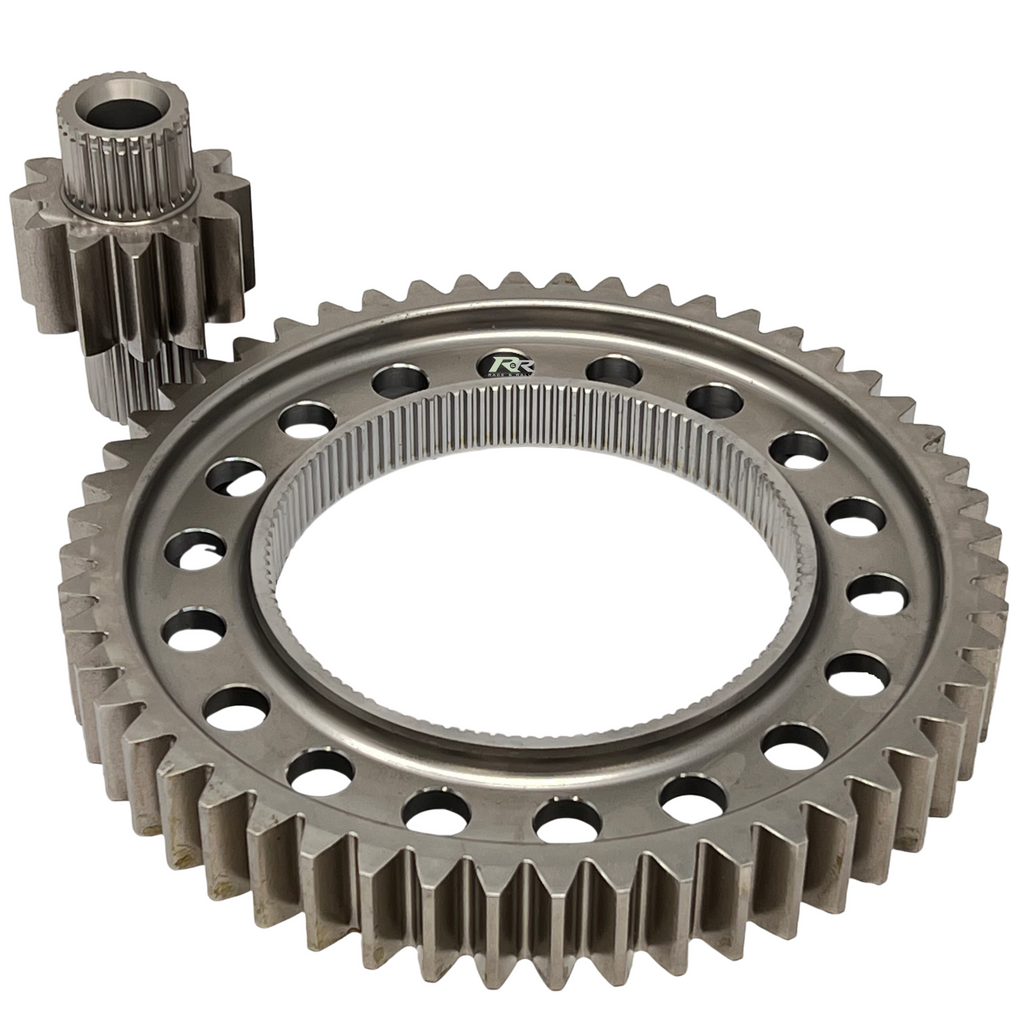

12x52 Intermediary Front Drive Gear

CPL12529053011

1

€3433.18 €4222.81
4
Secondary Shaft

F90532011

1

€2807.51 €3453.24
5

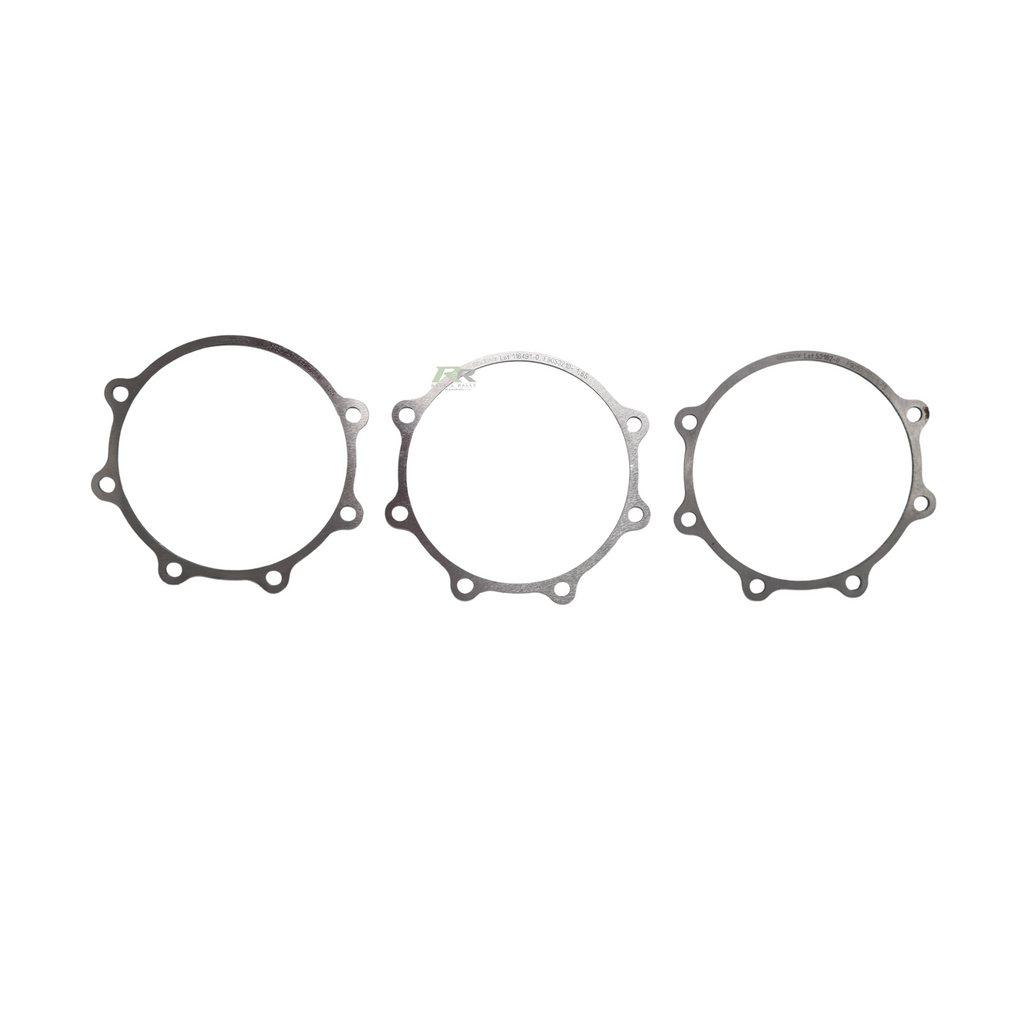

Secondary Centring Shim Set

F90532101

1

€283.79 €349.06
6
NUP208 Bearing Housing

F90532021

1

€595.05 €731.91
7

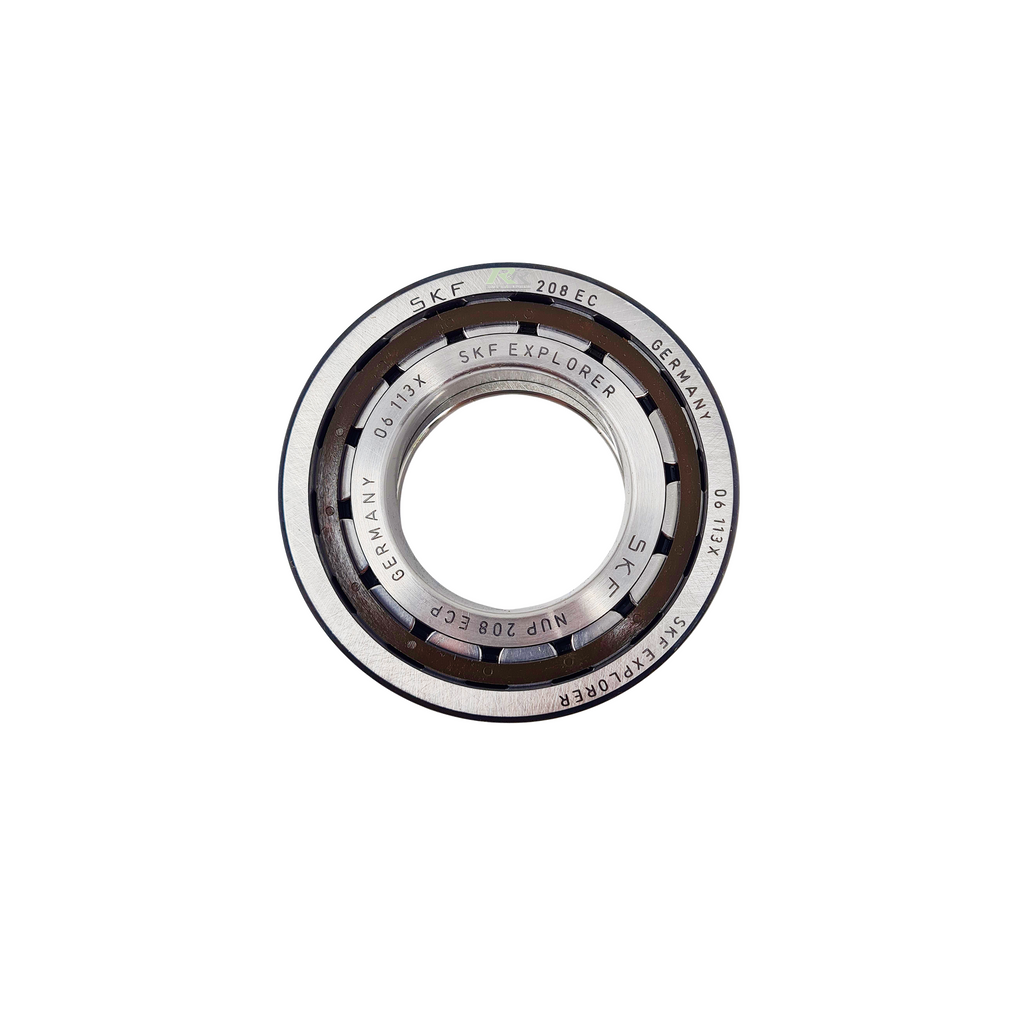

Machined NUP208 Bearing

F9053206

1

€328.04 €403.49
8
Ø80 SB Circlips

9907092

1

€3.39 €4.17
9
M6x25 cl 10.9 CHC Bolt

0301127

6

€0.62 €0.76
10
Ø6 SPS Washer

0599006

6

€0.31 €0.38
11
K47x52x17 Bearing Inner Race

F9053211

1

€264.17 €324.93
12

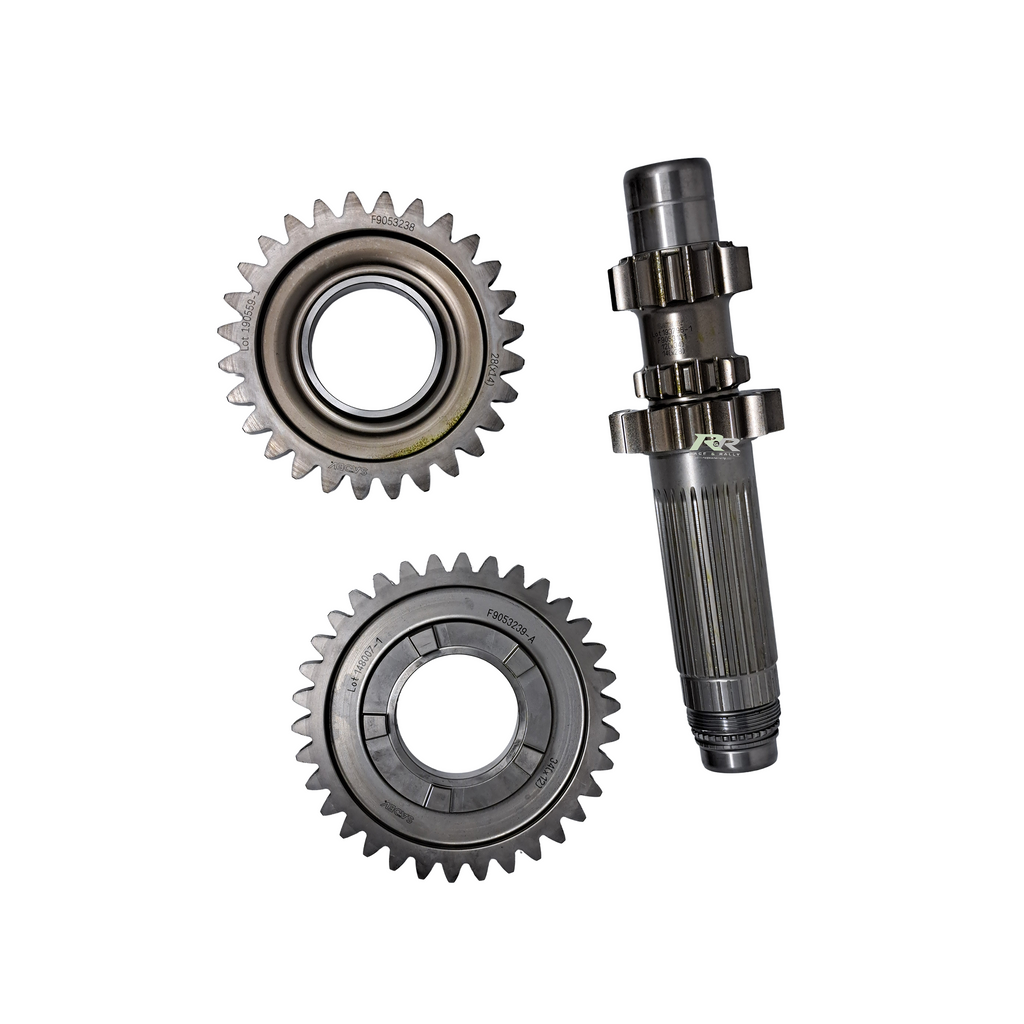

Primary Shaft 1st & 2nd Gear -12x34 & 14x28 - Long Ratio

K909053R07915F5F

1

€3010.59 €3703.03
12

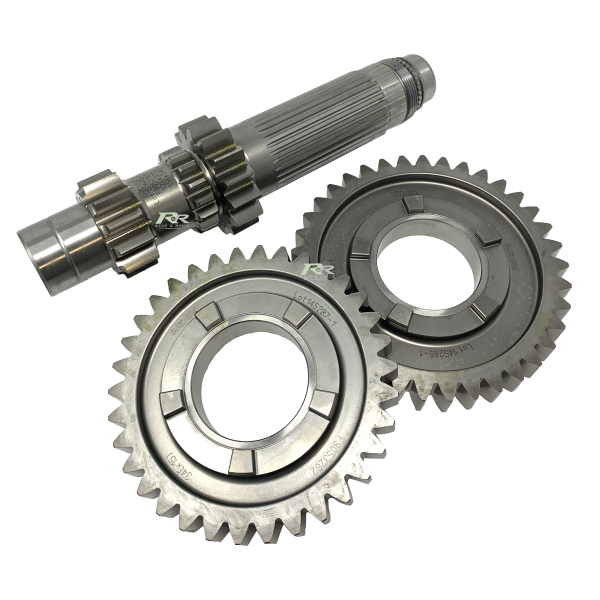

Primary Shaft 1st & 2nd Gear - 12x37 & 15x34 - Short Ratio

K909053R02915F5F

1

€3010.59 €3703.03
13
K47x52x17 Bearing

0105045

6

€34.87 €42.89
14
1/RG Hub

F9053204

1

€660.30 €812.17
15

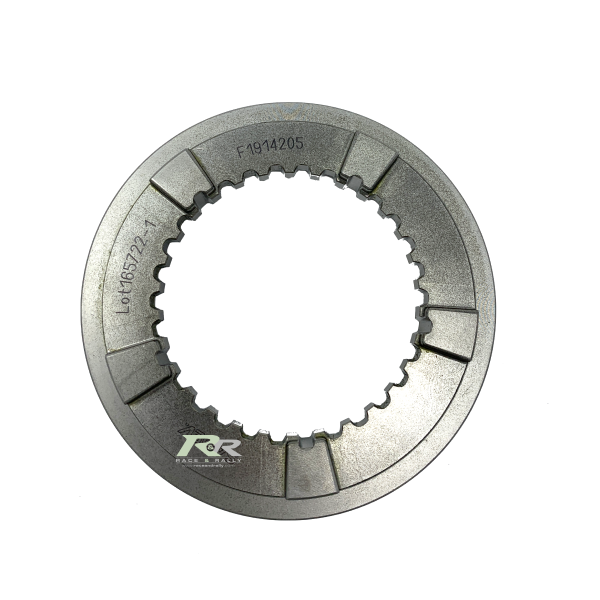

Dog Ring

F1914205

1

€347.06 €426.88
16
Reverse Gear Pinion

F9053208

1

€787.83 €969.03
17
K47x52x17 Bearing Inner Race

F9053205

2

€323.22 €397.56
18
2/3 Hub

F9052206

1

€273.89 €336.88
19

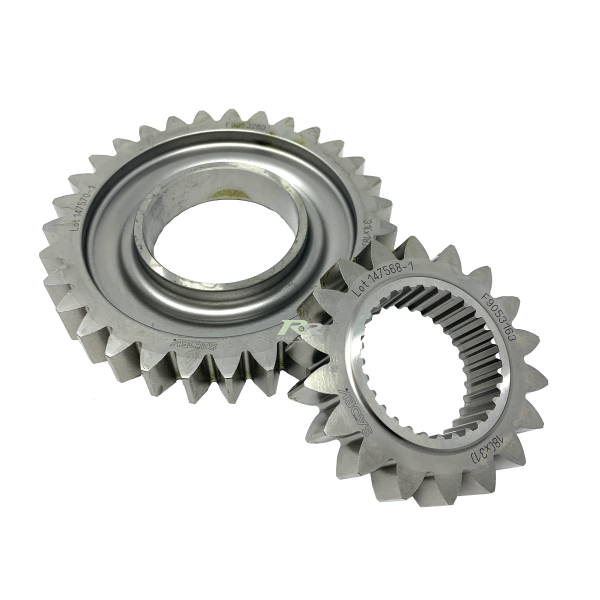

3rd Gear Ratio - 18x31 - Short Ratio

C9017R1831915F

1

€647.06 €795.88
19

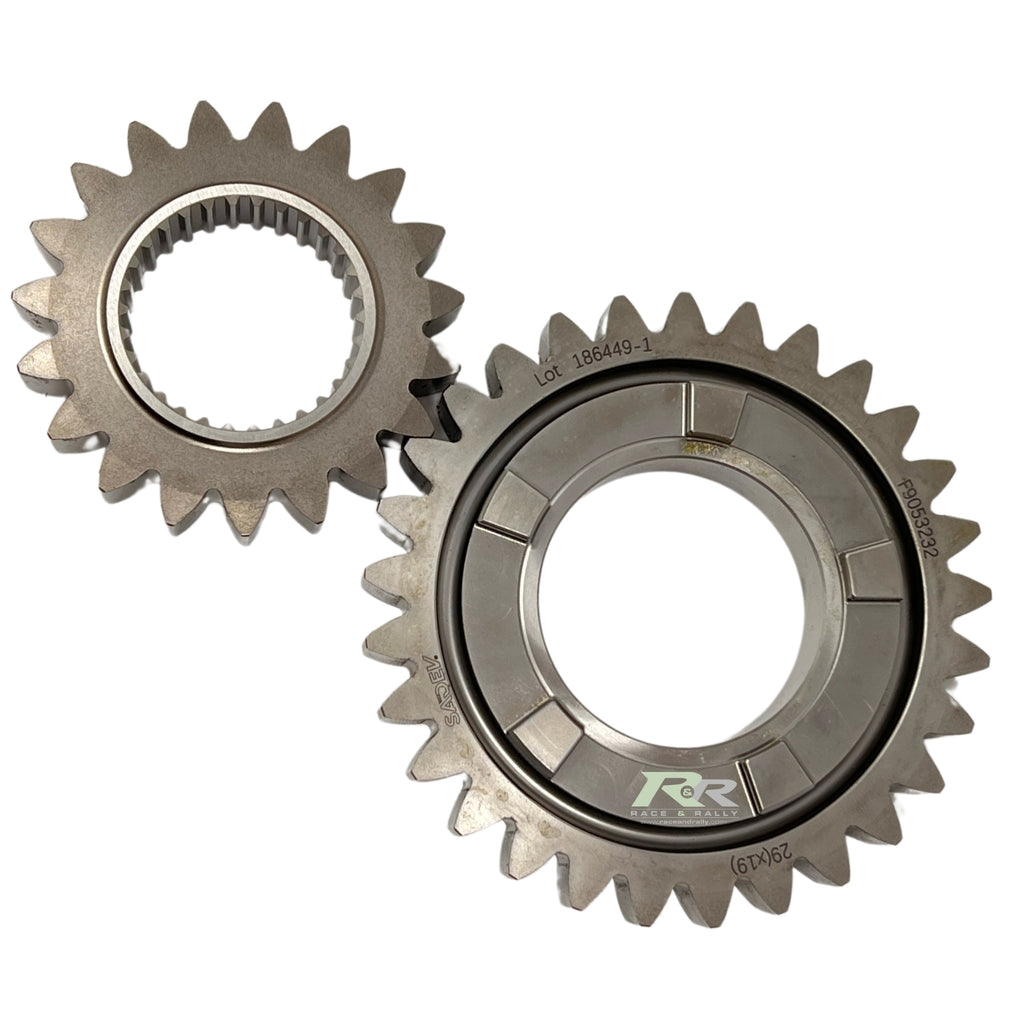

3rd Gear Ratio - 19x29 - Long Ratio

C9017R1929915F

1

€688.00 €846.24
20

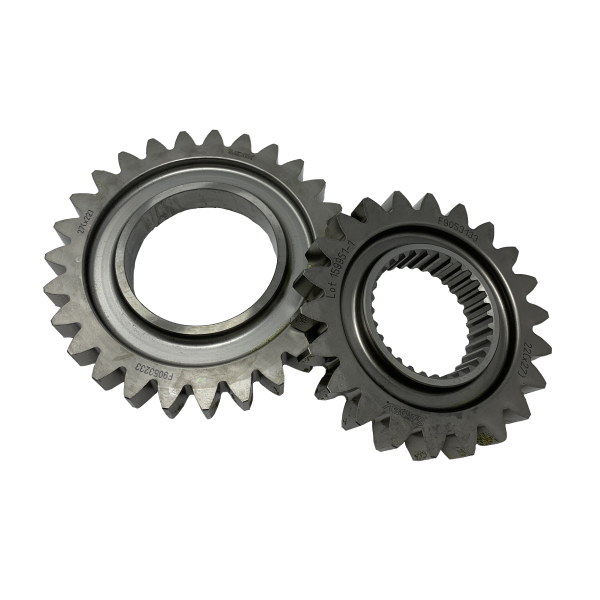

4th Gear Ratio - 27x22 - Long Ratio

C9014R2227915F

1

€647.06 €795.88
20

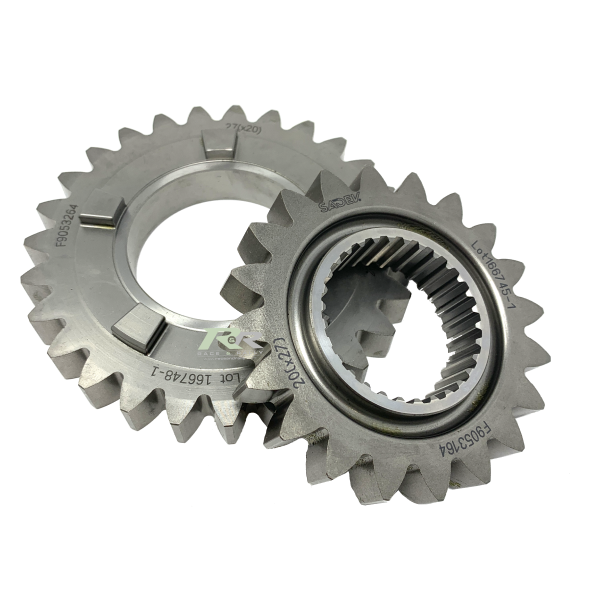

4th Gear - 20x27 - Short Ratio

C9014R2027915F

1

€647.06 €795.88
21
4/5 Hub

F9052207

1

€273.89 €336.88
22

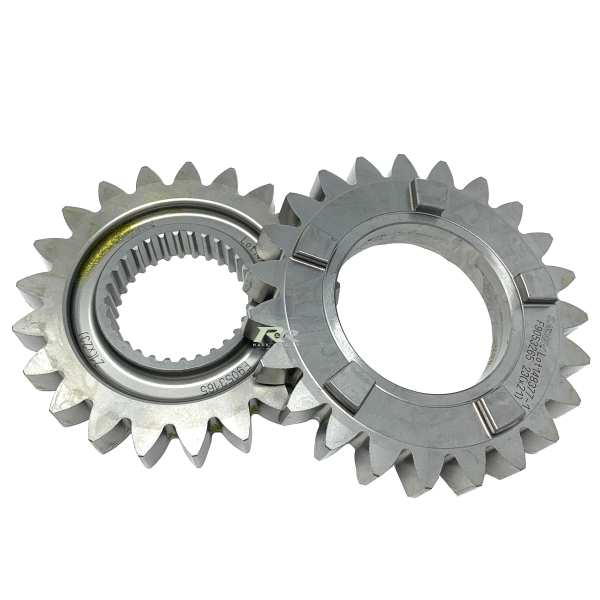

5th Gear (21x23) ST4-49- Short Ratio

C9014R2123915F

1

€647.06 €795.88
22

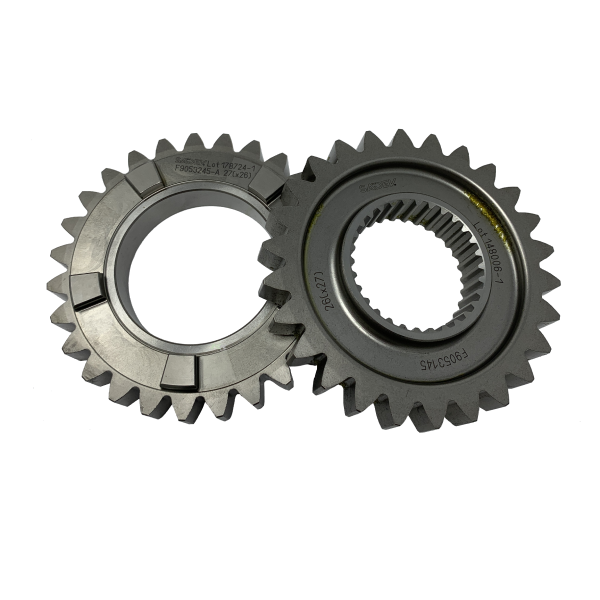

5th Gear Ratio - 27x26 - Long Ratio

C9014R2627915F

1

€647.06 €795.88
23
K47x52x17 Bearing Inner Race

F9015059

1

€385.59 €474.28
24

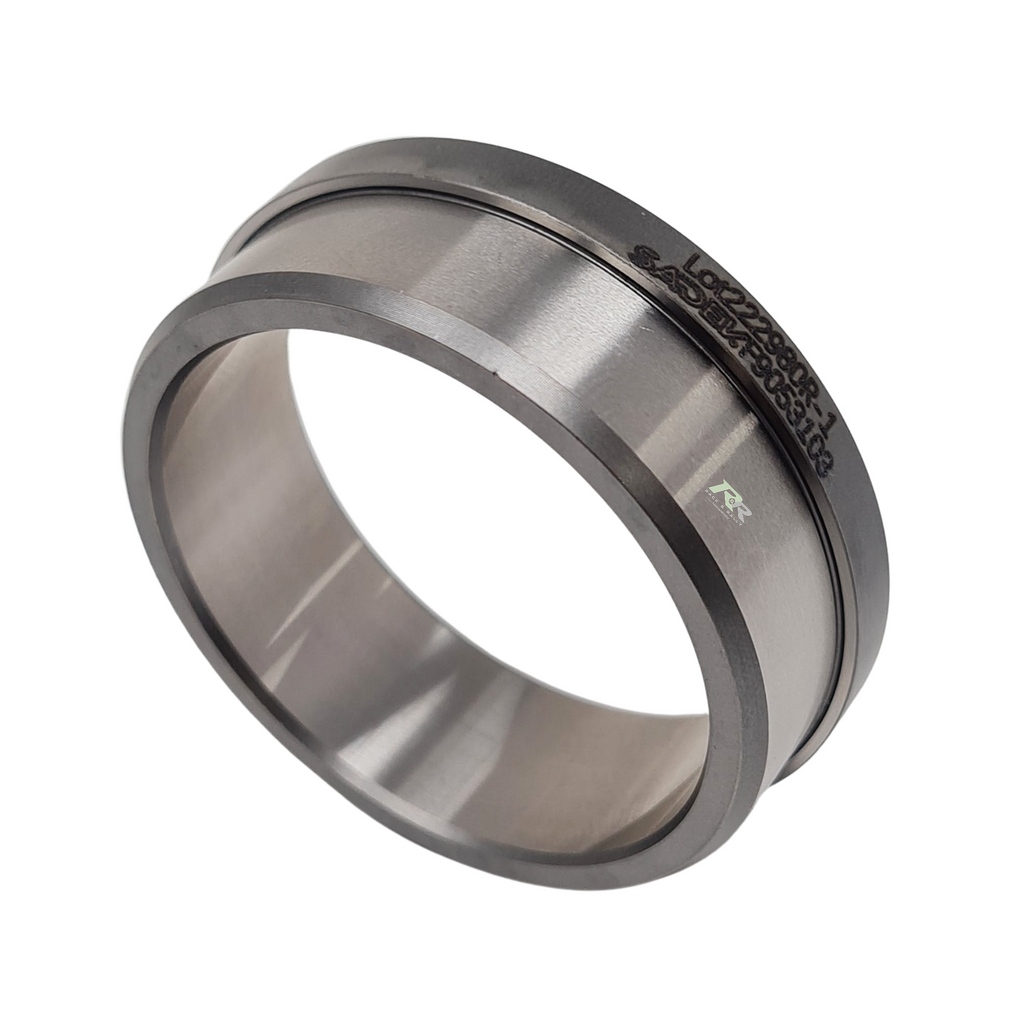

NU 1008 Bearing Inner Race

F9053103

1

€215.17 €264.66
25
M39x150 Nut

F9037203

1

€138.42 €170.26
26

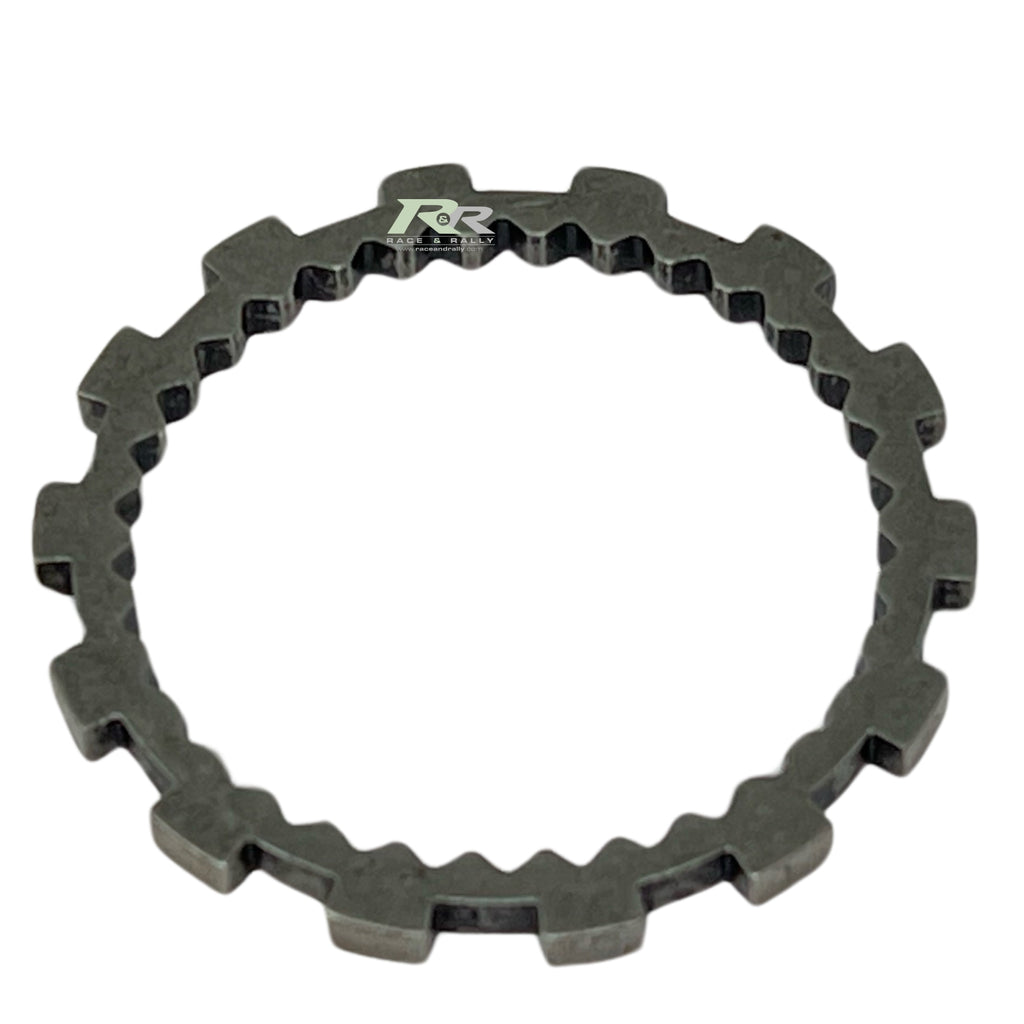

Lock Ring

F9037204

1

€124.71 €153.39
27

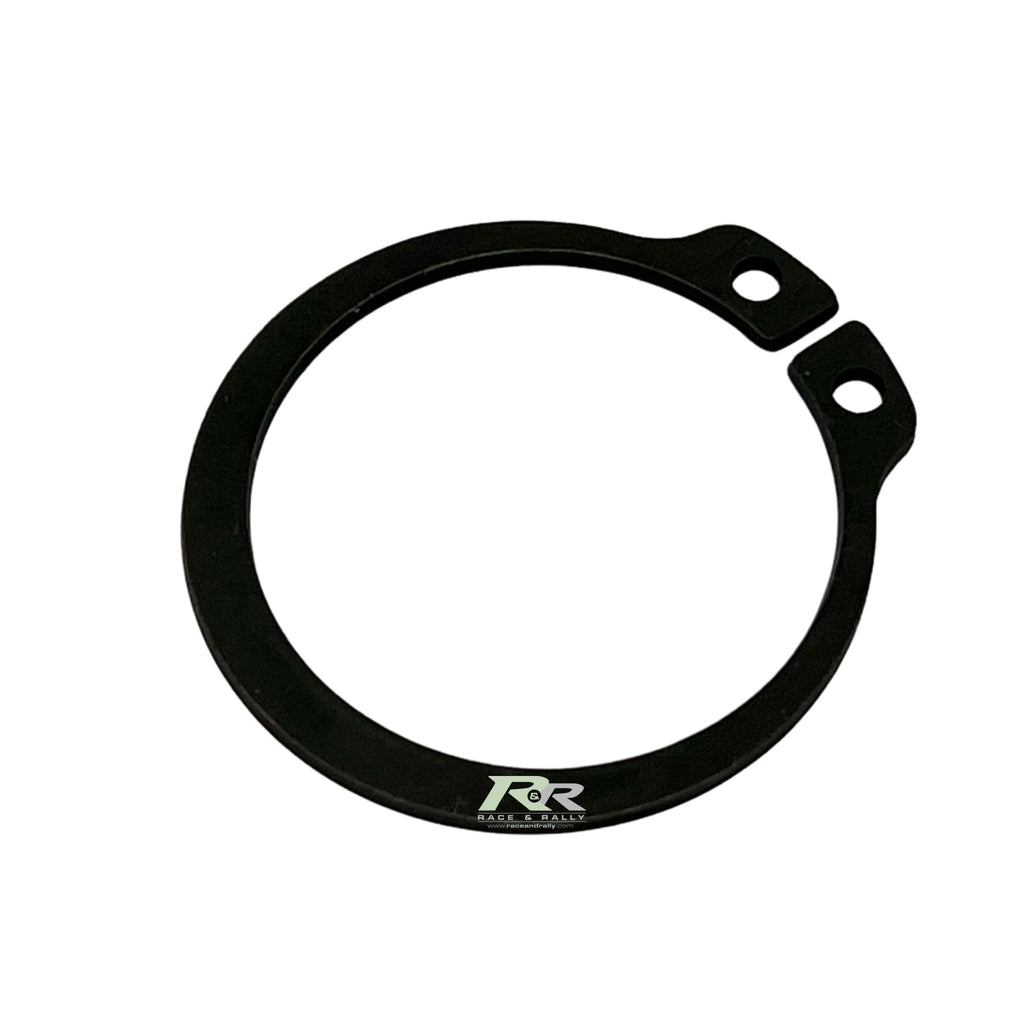

Ø35mm Circlips

0601009

1

€2.00 €2.46
