Name: Single Banjo Bolt with Bleed Nipple - UNF
Brand: Goodridge
SKU: 775-03BNC
Price: 45.47 GBP
Availability: InStock

1 1

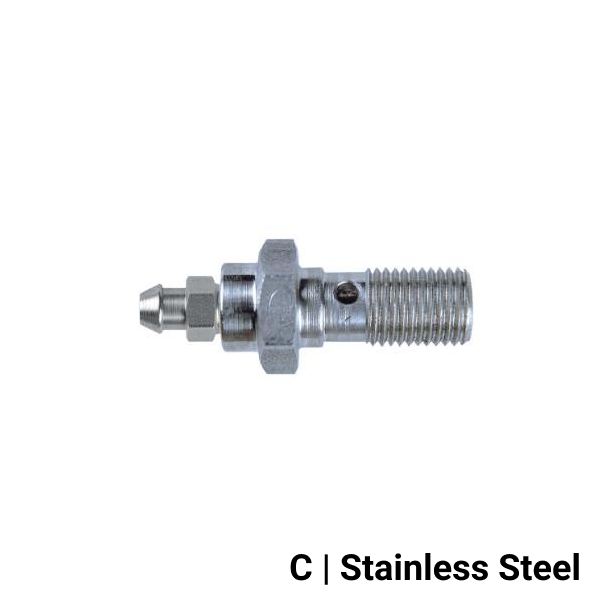

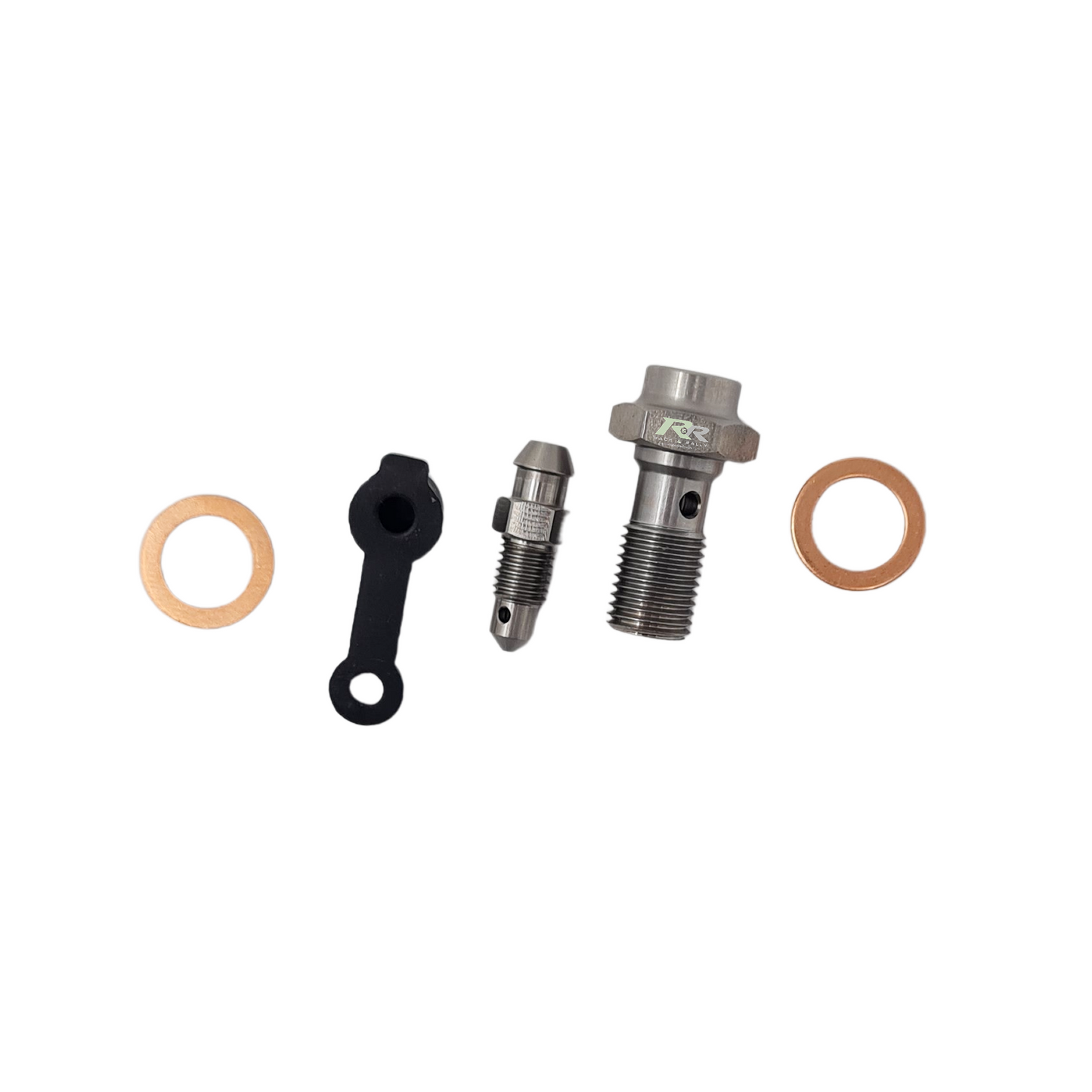

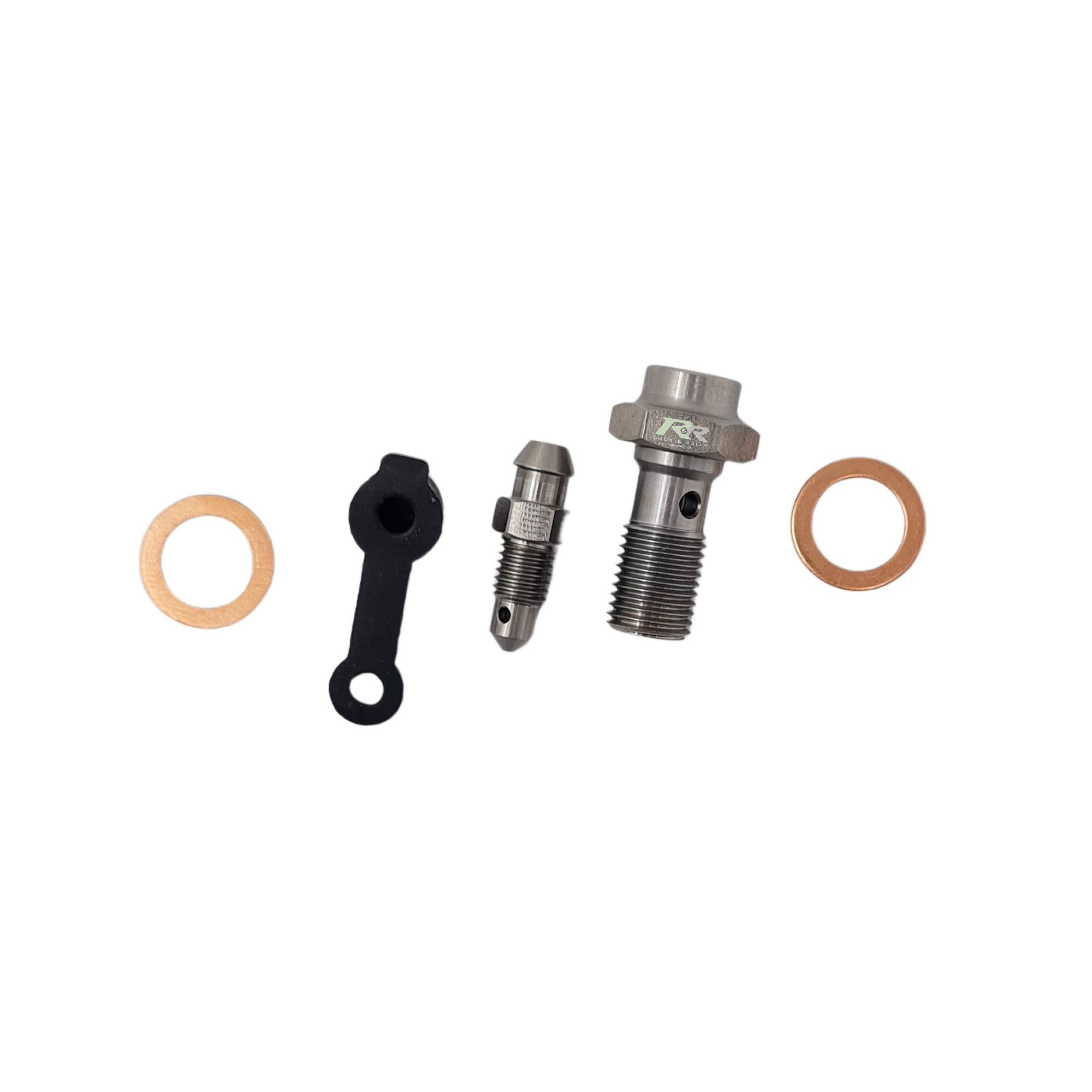

Single Banjo Bolt with Bleed Nipple - UNF

SKU:775-03BNC

€45.47 €55.93

Sale Sold out

3/8 x 24 UNF Thread
Bleed Nipped Integrated Banjo Bolt

Quantity

View full details

Goodridge developed Bleed Nipple Banjo Bolts in response to concerns about the length of time required to bleed hydraulic systems. Our design allows the installer to bleed the system at the source of the problem, at the master cylinder where the air is located. Use of our proprietary design allows the installer to burp the hydraulic system, ensuring safe and efficient bleeding.

APPLICATIONS

-03 Brake Applications
-03 Clutch Applications

COMPATIABLE WASHERS

For Single Port Banjo Bolts, two washers are requried per assembly.
For Double Port Banjo Bolts, three-four washers are required per assembly.

445C - Copper Washers
445A - Aluminium Washer

PART NUMBERS

775BN

COMPATIABLE BLEED NIPPLE CAPS

BN-CAP

GOODRIDGE MATERIAL KEY:

B: Brass
C: Stainless Steel
CBK: Black Stainless Steel
CH: Crome Plated
D: Red Anodised Aluminium
DBK: Black Anodised Aluminium
DBU: Blue Anodised Aluminum
P: Zinc Plated Carbon Steel
Z1: Silver Plated Carbon Steel

RECOMMENDED BANJO ASSEMBLE WITH BANJO BOLT:
With the suitable Banjo Bolt to Suit the desired Banjo Hole, place a copper washer either side of the Banjo to create a sealed fitment when tightened.
**Please note that the washers internal diameter must also match the Banjo Bolt size to ensure it is a sealed fitment to avoid leaks and loss of pressure.
