T4A - Fuel Tank - PR4

T4A - Fuel Tank - PR4

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1

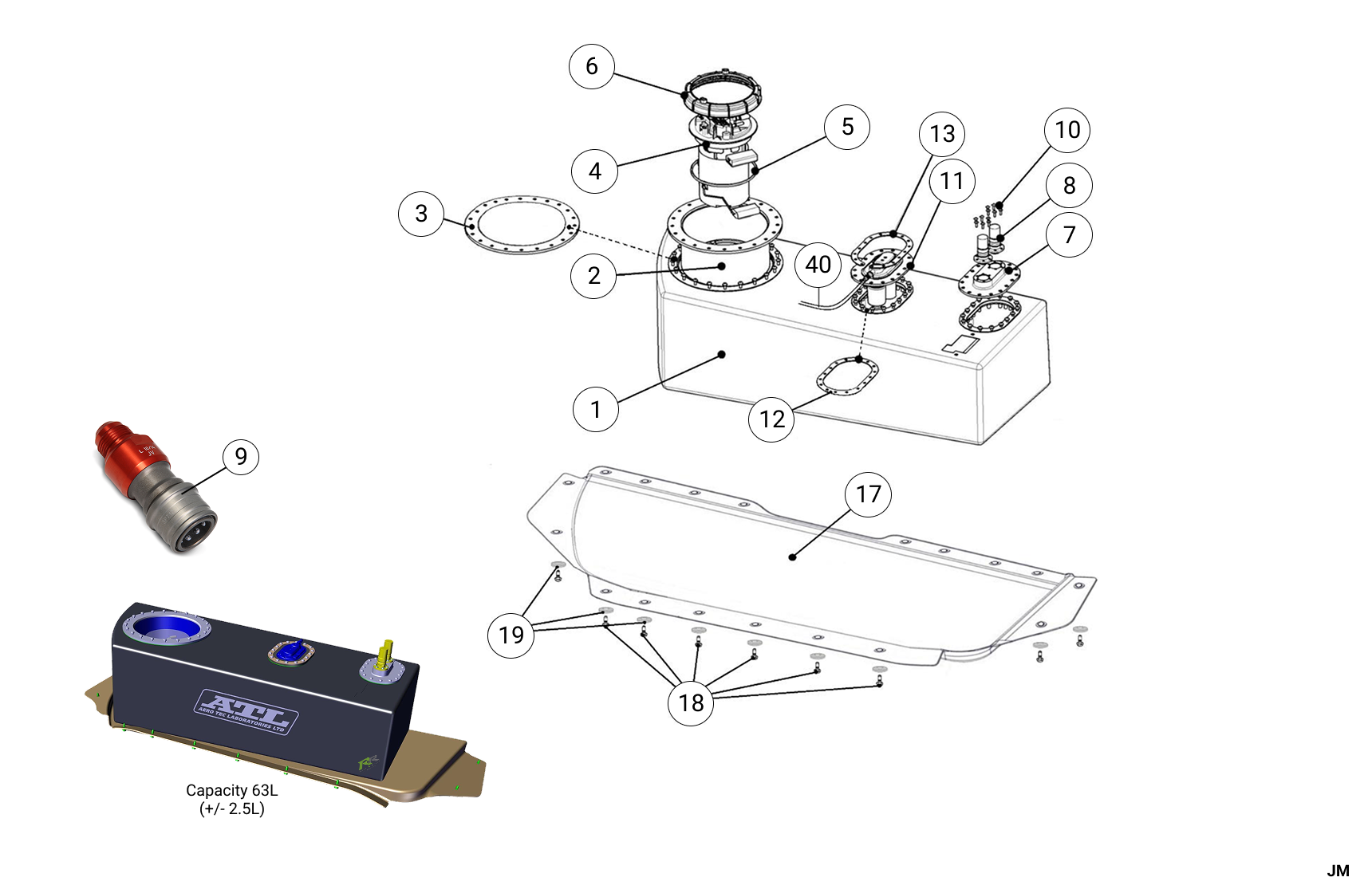

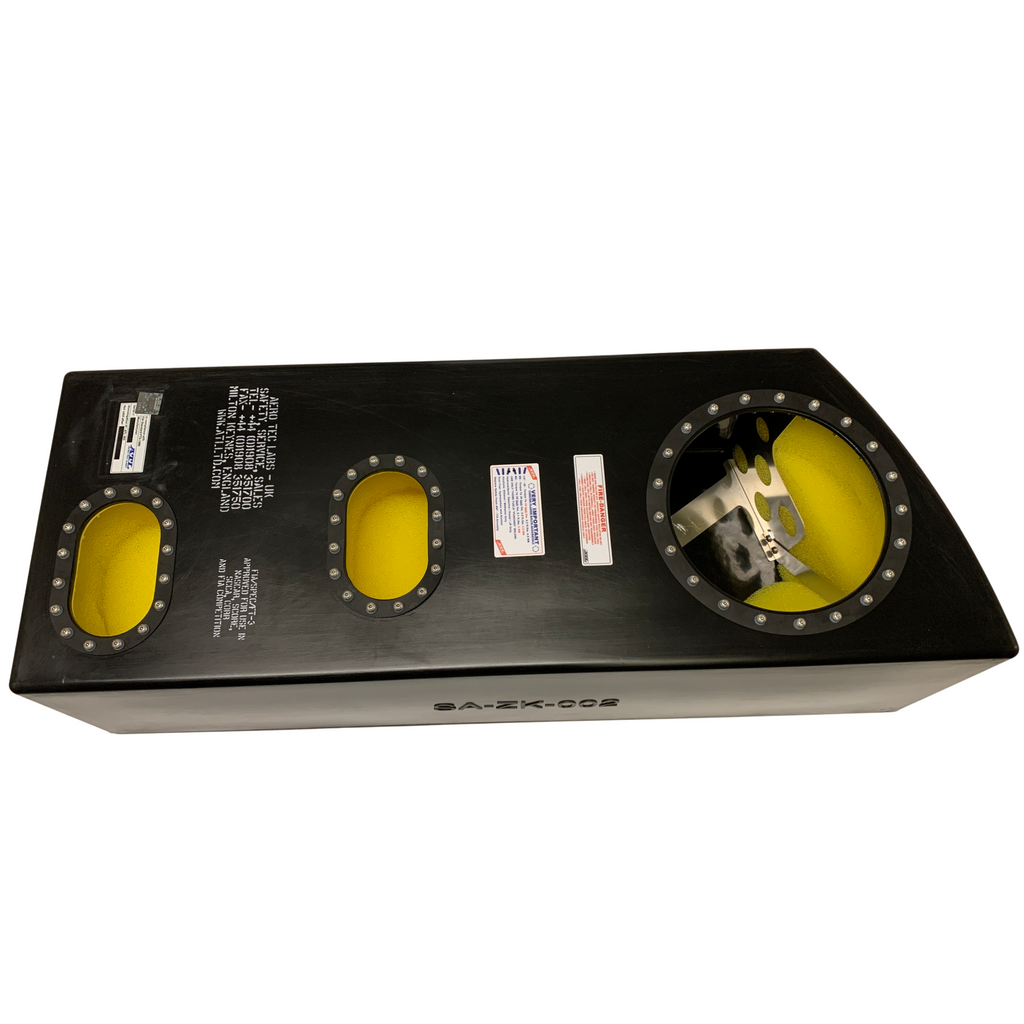

Fuel Tank - 208 Rally 4

904659228B

1

€2207.00 €2714.61
2
FUEL TANK COVER PLATE

904659788C

1

€304.95 €375.09
4
LP fuel pump with gauge

9674466980

1

€404.56 €497.61
5

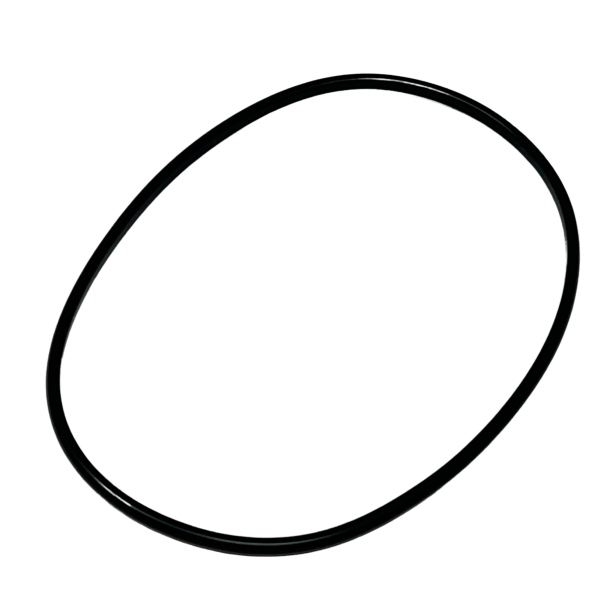

FUEL TANK SEAL

1531-41

1

€7.43 €9.14
6
Ring

153150

1

€14.67 €18.04
7
SPT12 PLATE

904659798A

1

€142.97 €175.85
8
SPT 12 Non Threaded Plug - JV Seals

N00916298

2

€172.39 €212.04
9
SPT 12 Male Thread Socket - Dash 12

SPT12-1658-L-JV

2

€353.38 €434.66
10

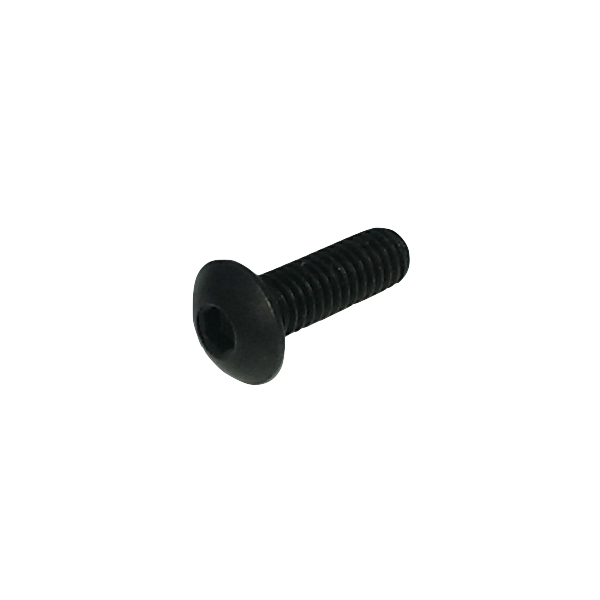

M4 Screw

PS82653A10

12

€0.40 €0.49
11
Rollover valve

3T4A23733A

1

€176.84 €217.51
13
Rollover valve support

3T4A23734B

1

€33.35 €41.02
14
FIA TRAPDOOR

904661338A

1

€15.52 €19.09
16
Nut with base M5x5x8

6936-67

2

€1.36 €1.67
17

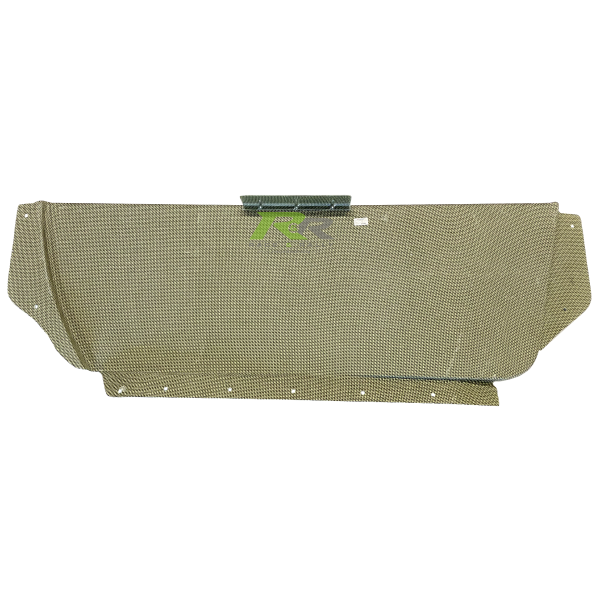

Fuel tank protection

904659888D

1

€885.78 €1089.51
18
Collar screw M6-16

6925W6

18

€2.62 €3.22
19

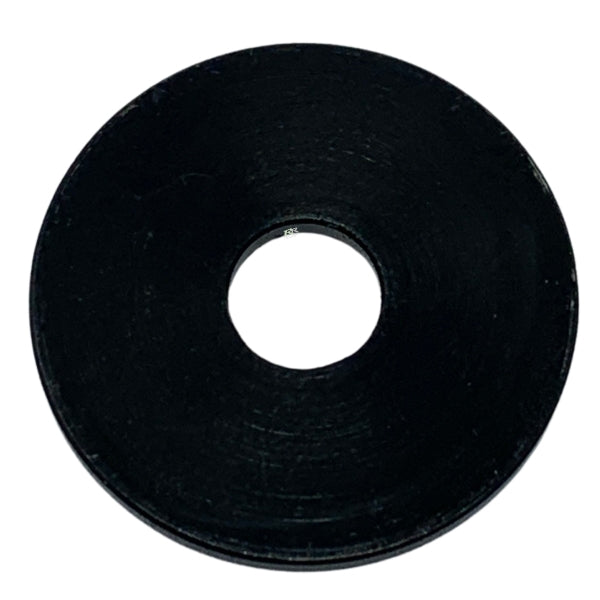

Flat Washer Ø6X22-1,5 Phosphate

PS86050A10

18

€5.74 €7.06
20
FUEL HOSE

904675928C

1

€152.92 €188.09
21
STRAIGHT FUEL ADAPTATOR

904673288B

1

€43.21 €53.15
22
O-ring Ø8x2,5 FPM 80Sh

CS360296ST

4

€0.72 €0.89
23
FUEL ADAPTATOR NUT

904673268B

2

€22.79 €28.03
24
GROMMET

698778

3

€2.58 €3.17
25
MJP PLATE

904675058A

1

€13.20 €16.24
27

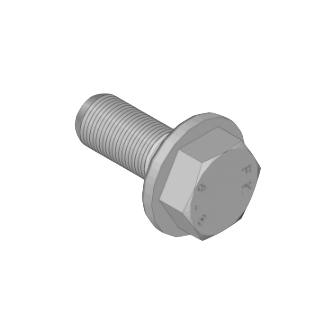

Flanged bolt

9805761480

3

€0.79 €0.97
28
Speed nut 5X80

694379

3

€3.63 €4.46
29
MJP FUEL ADAPTATOR

904675788A

1

€61.48 €75.62
30
Copper seal 14x18x1

PS81613A10

2

€1.20 €1.48
31
RACCORD ALU DASH6 / M12X150 M/M

ST04100097

1

€16.27 €20.01
32
RACCORD DASH4 / M12X150 M/M

ST04100098

1

€21.03 €25.87
33
Fuel sampling hose

904676768A

1

€101.99 €125.45
34

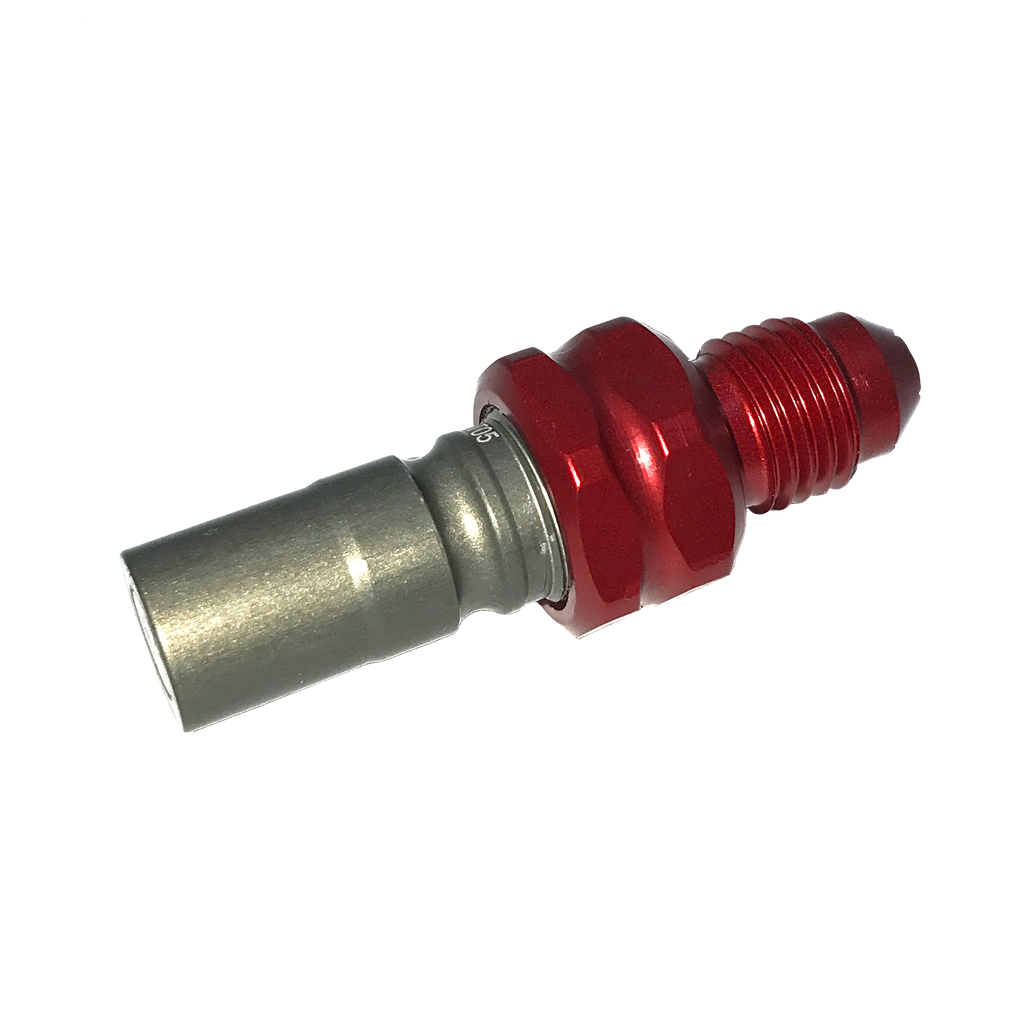

Stäubli SPT05 Coupling - JKV dash 4

PS73274A10

1

€178.57 €219.64
35
BOUCHON CAOUTCHOUC STP05

ST00900016

1

€9.69 €11.92
36
Metal Clamp17-20

PS91015A10

1

€2.20 €2.71
37
Lyre Clip D43 A20

ST00100009

1

€6.94 €8.54
38
Lyre Clip D43 A20

ST00100009

1

€6.94 €8.54
39
Lock Nut HM M4X070 Steel

ST02500009

1

€0.05 €0.06
40
Pipe L1750mm Black - ST08300024

904696118A

1

€67.48 €83.00
41
D10 Straight Coupling

PS73411A10

1

€9.00 €11.07
42
Male connector Ø10

PS73408A10

1

€9.00 €11.07
43
Grommet D29

DC7012274

1

€0.58 €0.71
44
Filter mounting hose L30MM

904680808A

1

€0.03 €0.04
45
Fuel tank disgassing filter

3T4A64747A

1

€8.08 €9.94
46

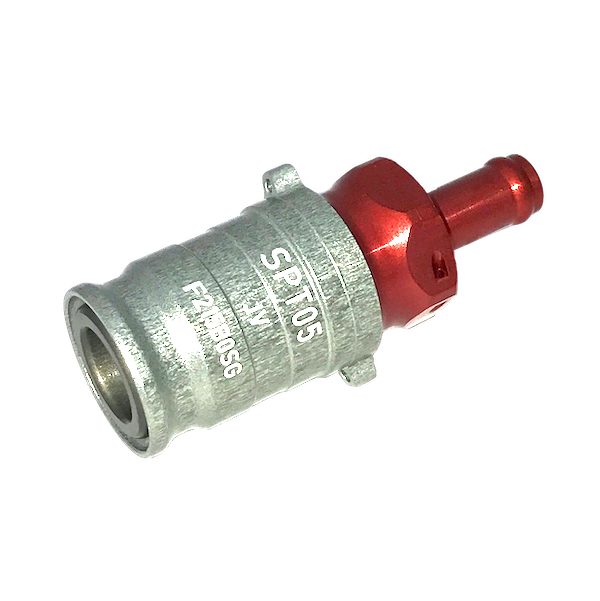

Stäubli SPT05 JV socket for hose Ø8mm

PS73195A10

1

€168.00 €206.64
47

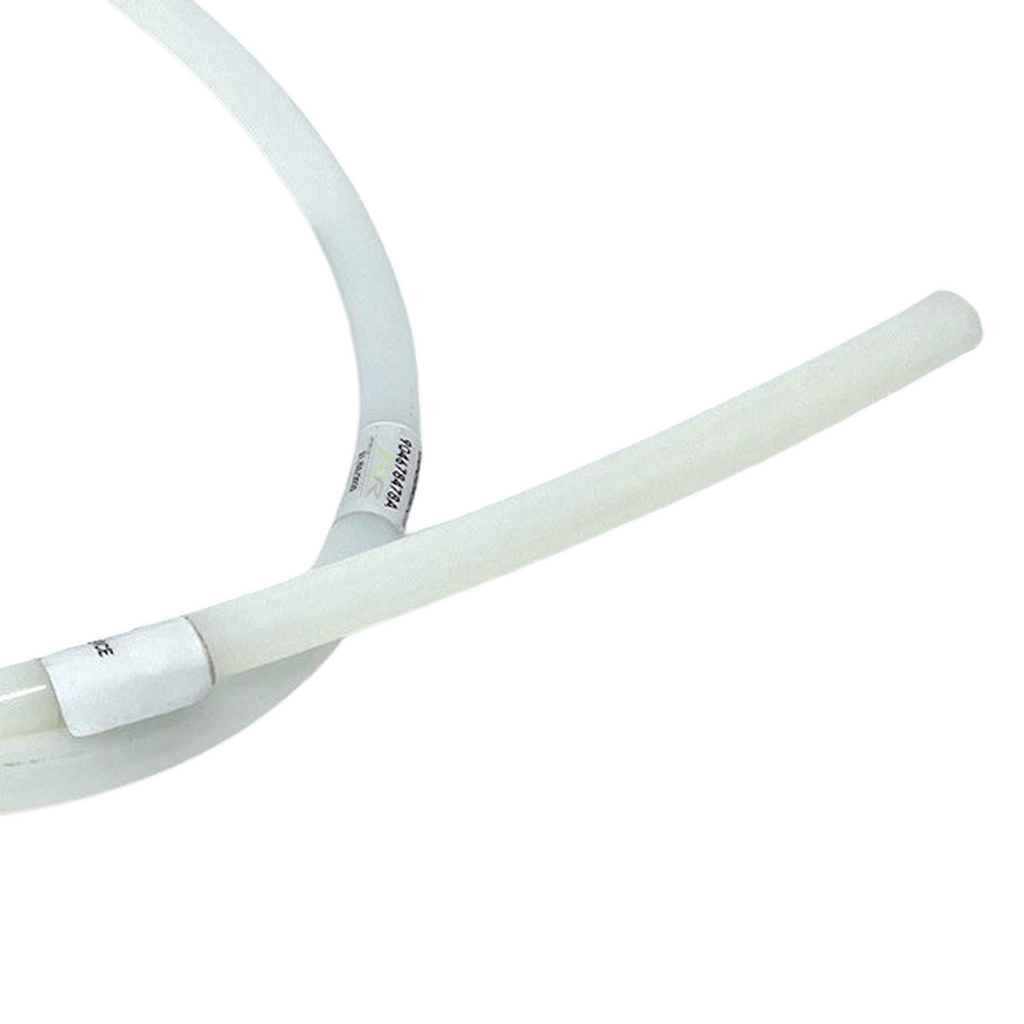

Fuel Sampling Hose

904678478A

1

€22.94 €28.22
16
FUEL GAUGE CABLED CARD

904651838A

1

€221.27 €272.16
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
