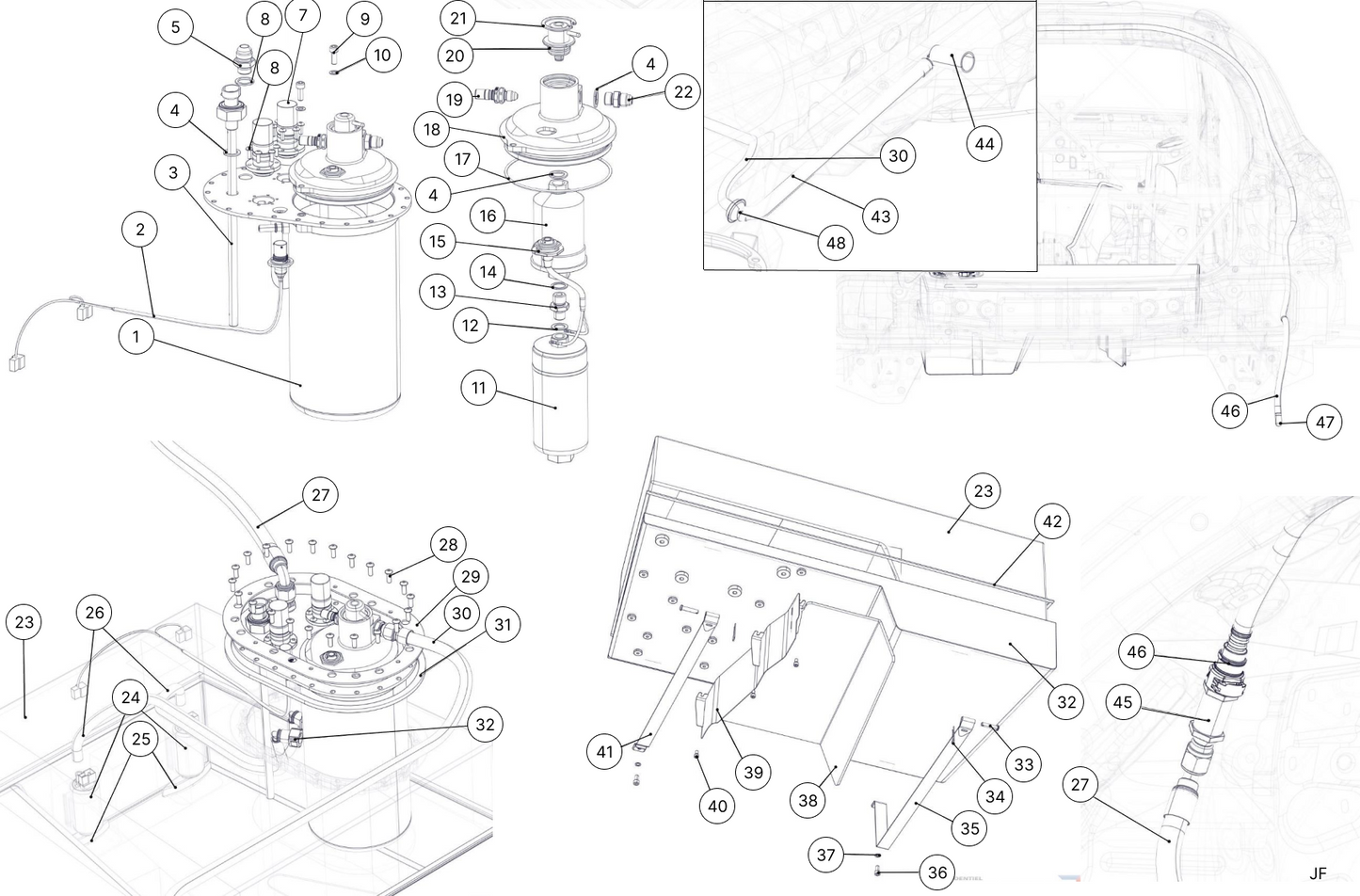

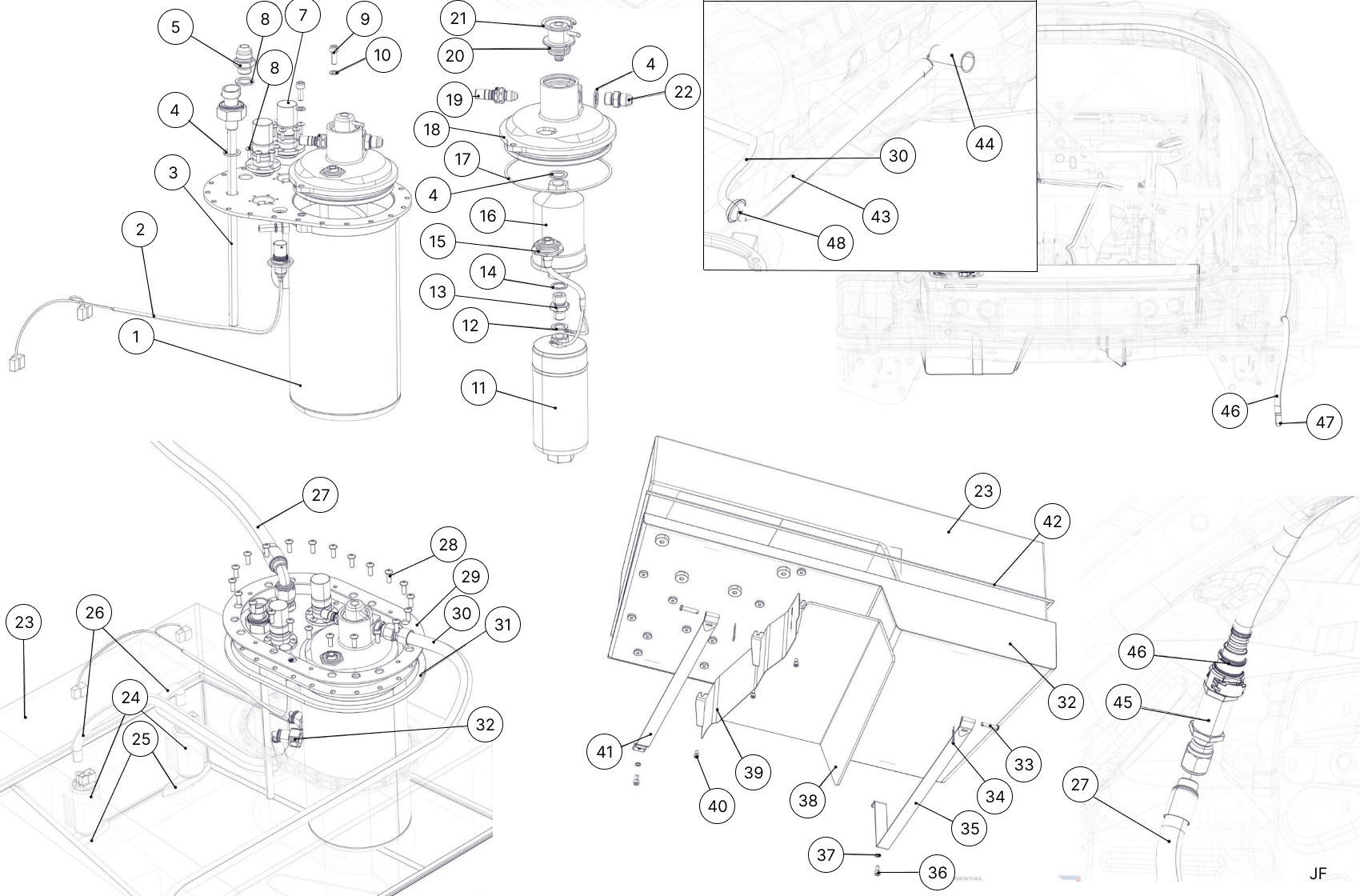

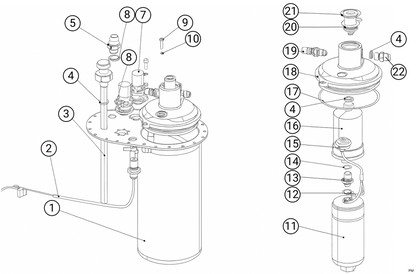

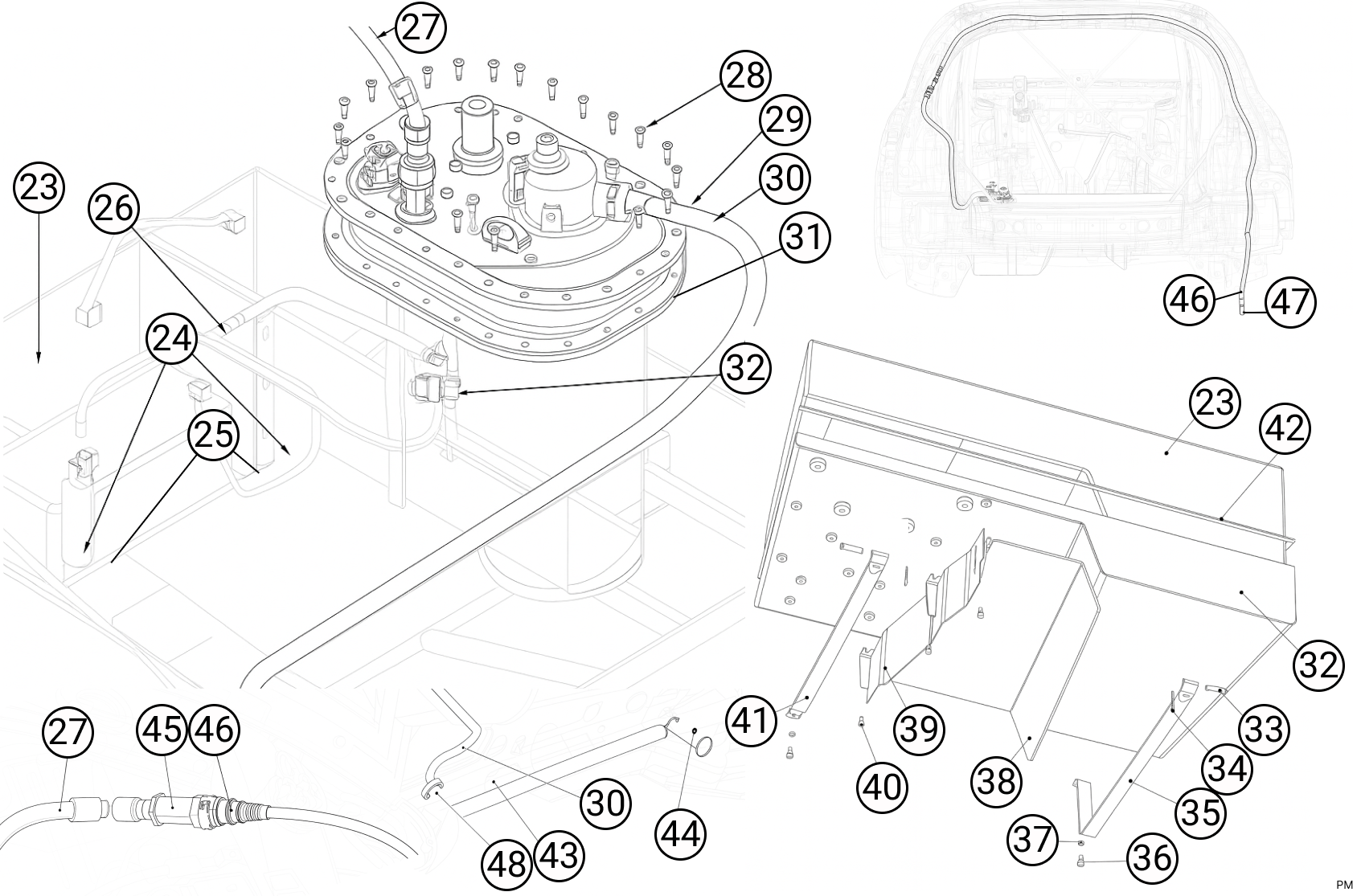

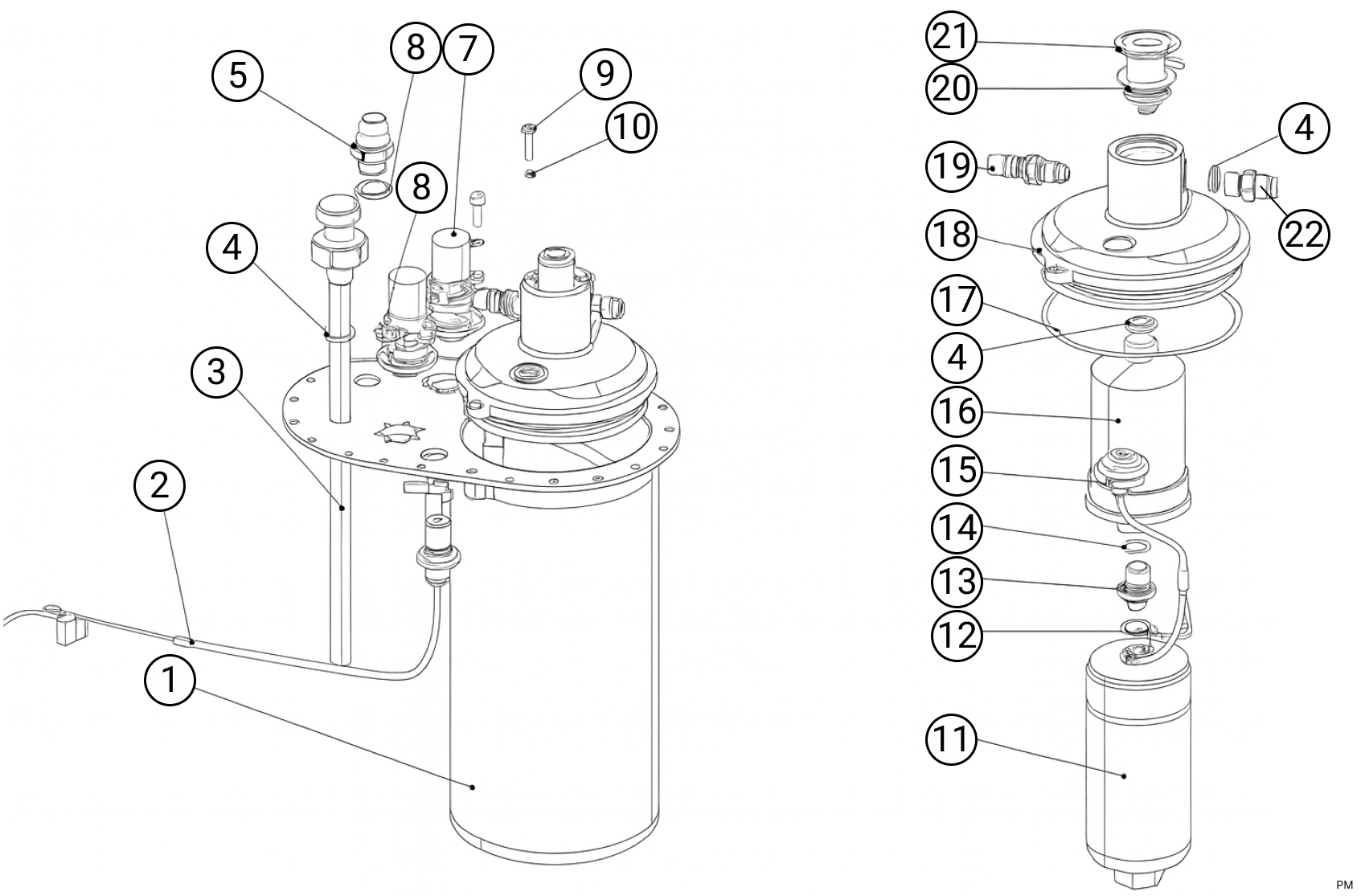

T4A - Fuel Tank

T4A - Fuel Tank

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Catch Tank

904470438C

1

€1620.00 €1992.60
2
Low Pressure Pomp Loom

904492548D

1

€478.55 €588.62
3
Fuel Gauge

904477528A

1

€563.40 €692.98
4
Copper seal 14x20x1.5

PS81052A10

2

€3.12 €3.84
5
Adaptator M/M Dash8 Alu

CS410011ST

1

€24.04 €29.57
6
Joint Ø16x22x2

0313-38

1

€1.37 €1.69
8
SPT 12 Non Threaded Plug - JV Seals

N00916298

2

€160.91 €197.92
10
M4 Screw

PS82653A10

12

€0.40 €0.49
9
Socket Screw M6-16 12.9

PS82156A10

2

€0.58 €0.71
10
Onduflex washer 6 type A

PS86004A10

2

€2.23 €2.74
11

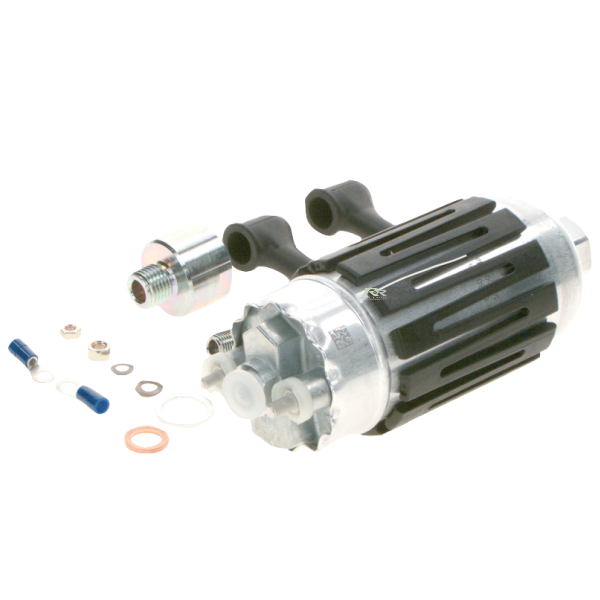

Low pressure fuel pump

PS02508A10

1

€614.40 €755.71
12
Copper Seal Ø12.2x18x1

PS81562A10

1

€0.80 €0.98
12
Copper seal Ø10.2x16x1.5

PS81032A10

1

€2.52 €3.10
13

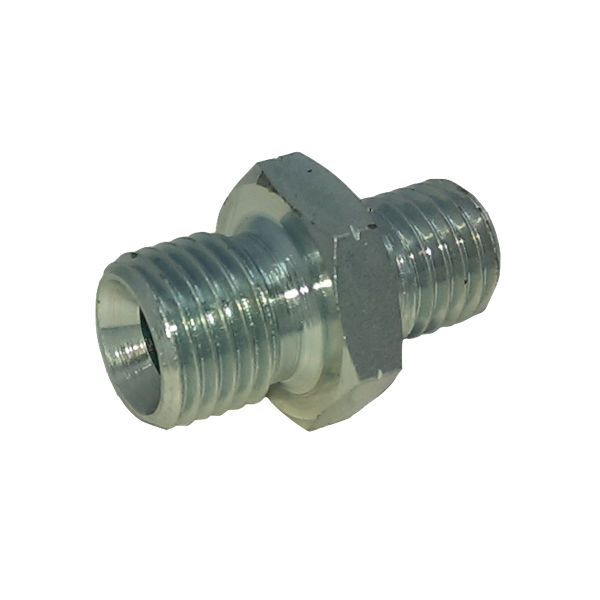

Coupling M/M M14X150/M12X150Machined D7

3T4A60884A

1

€23.68 €29.13
13

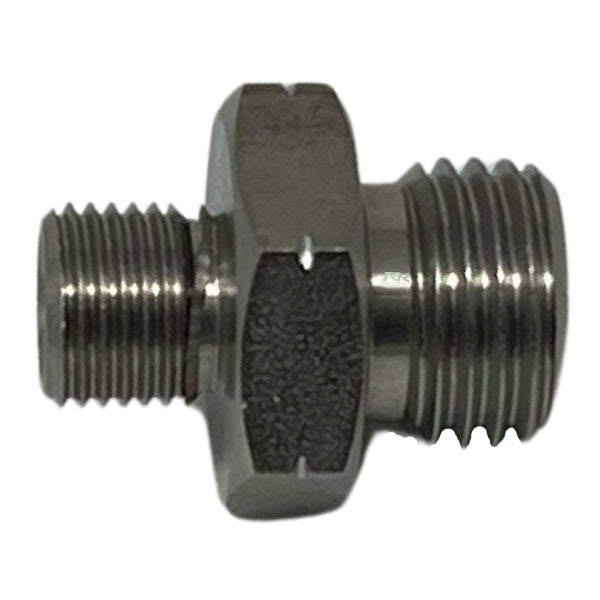

Adaptor M/M M10X100 M14X150 steel

ST04100231

1

€112.32 €138.15
14
RR Latch Assy

PS81563A10

1

€2.16 €2.66
15

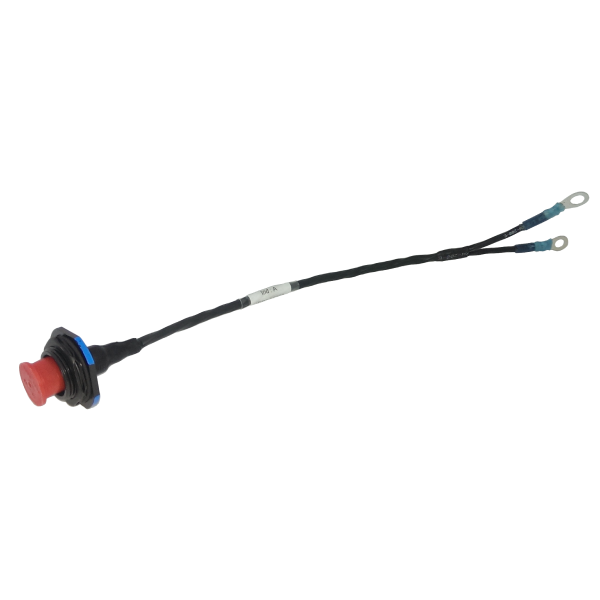

Fuel pump loom

3Z9S24806A

1

€543.75 €668.81
15

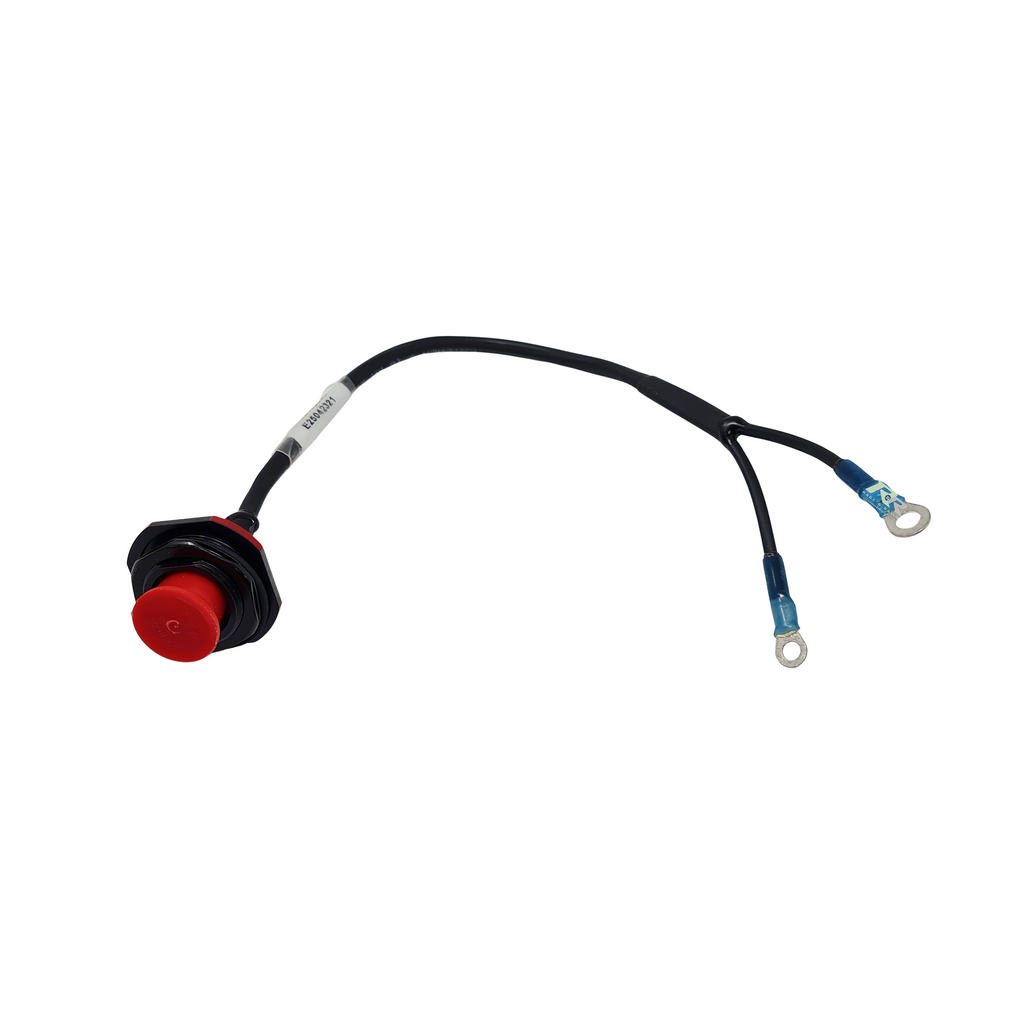

Low Pressure Pump Loom

904248068B

1

€731.25 €899.44
16

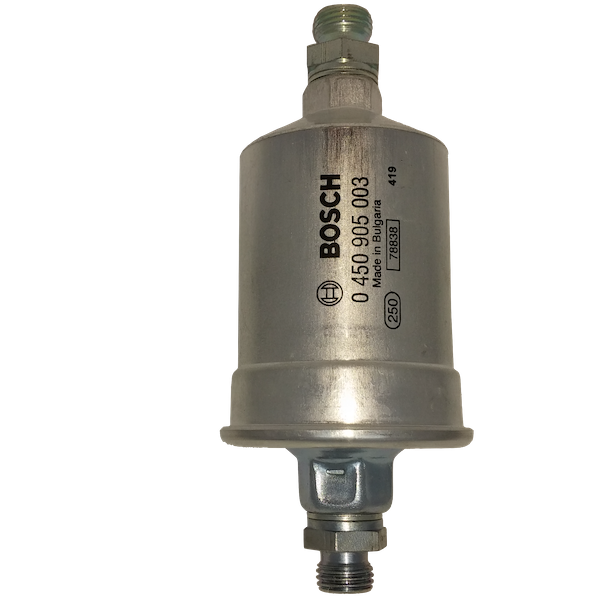

Fuel filter

3T4A27604A

1

€68.74 €84.55
17

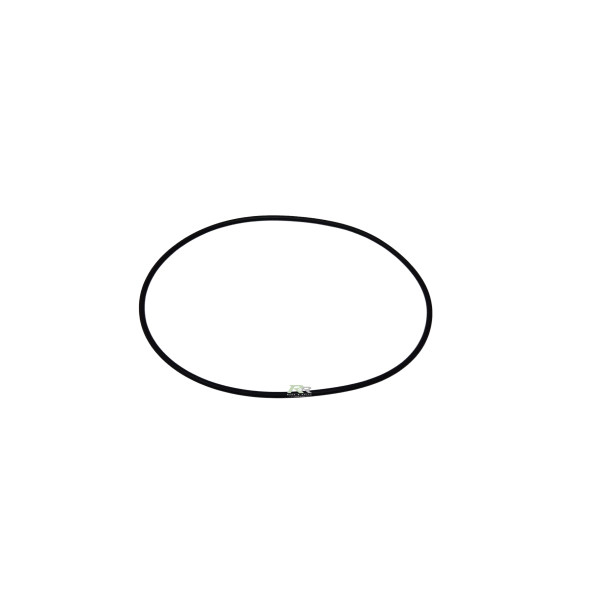

O-Ring Catch Tank

904482418A

1

€33.38 €41.06
18
Catch Tank Cover

904471538A

1

€808.00 €993.84
19
Stäubli SPT05 Coupling - JKV dash 4

PS73274A10

1

€178.57 €219.64
20

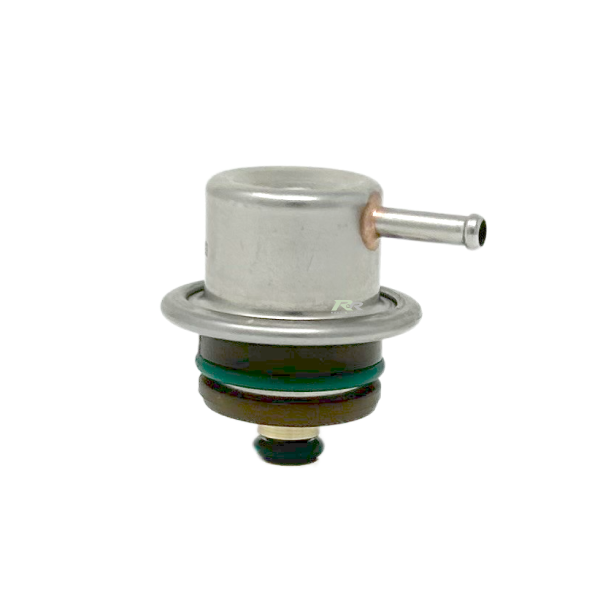

Pressure regulator

3T4A21496A

1

€551.25 €678.04
21

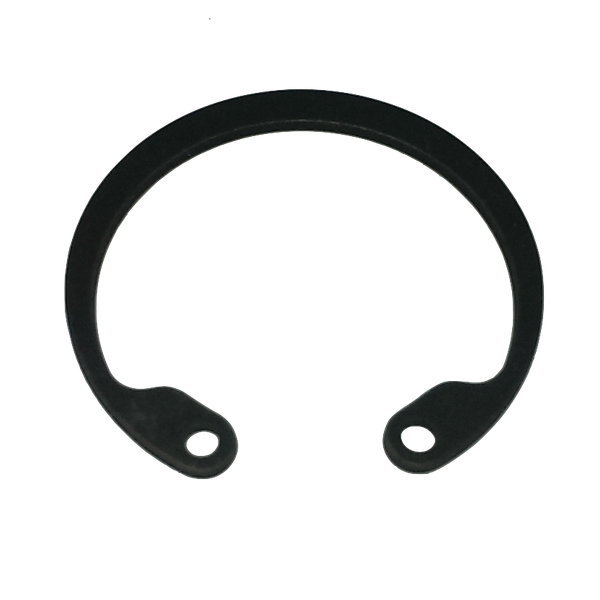

AI26 Retaining Ring

PS72582A10

1

€0.94 €1.16
22

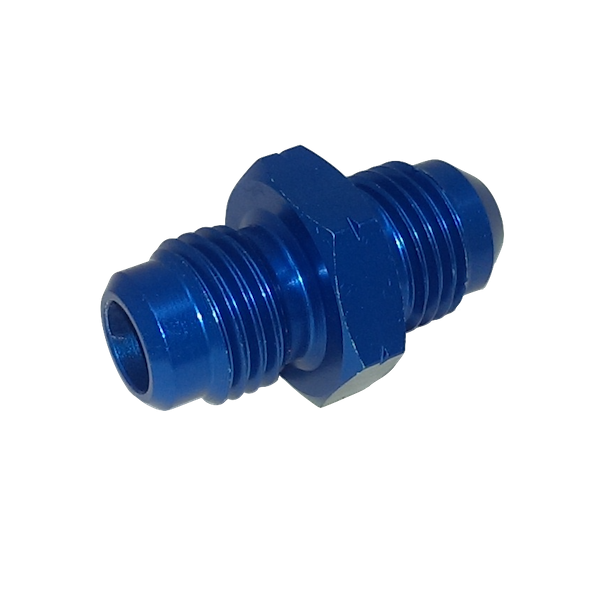

Coupling dash 6 M14x150 M/M convex

PS73554A10

1

€22.65 €27.86
23

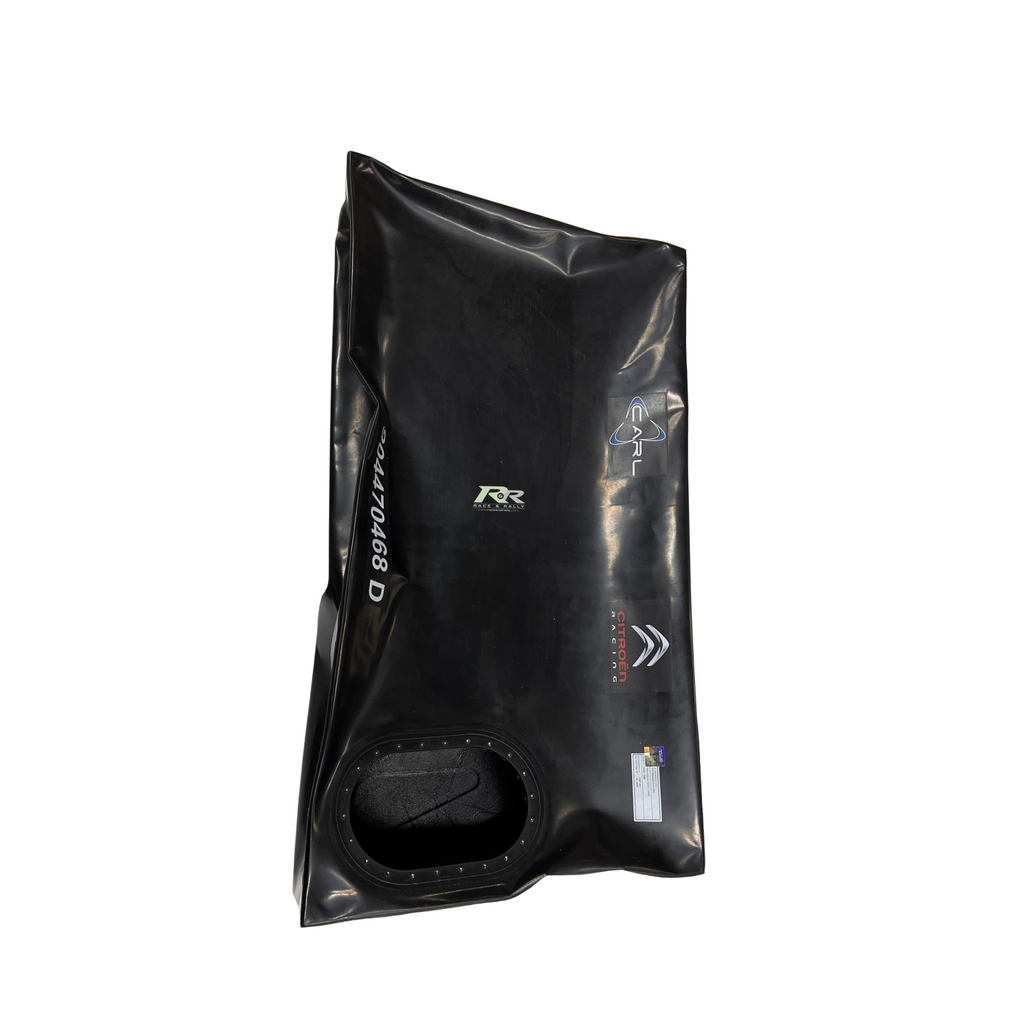

Fuel Cell

904470468D

1

€2647.06 €3255.88
24

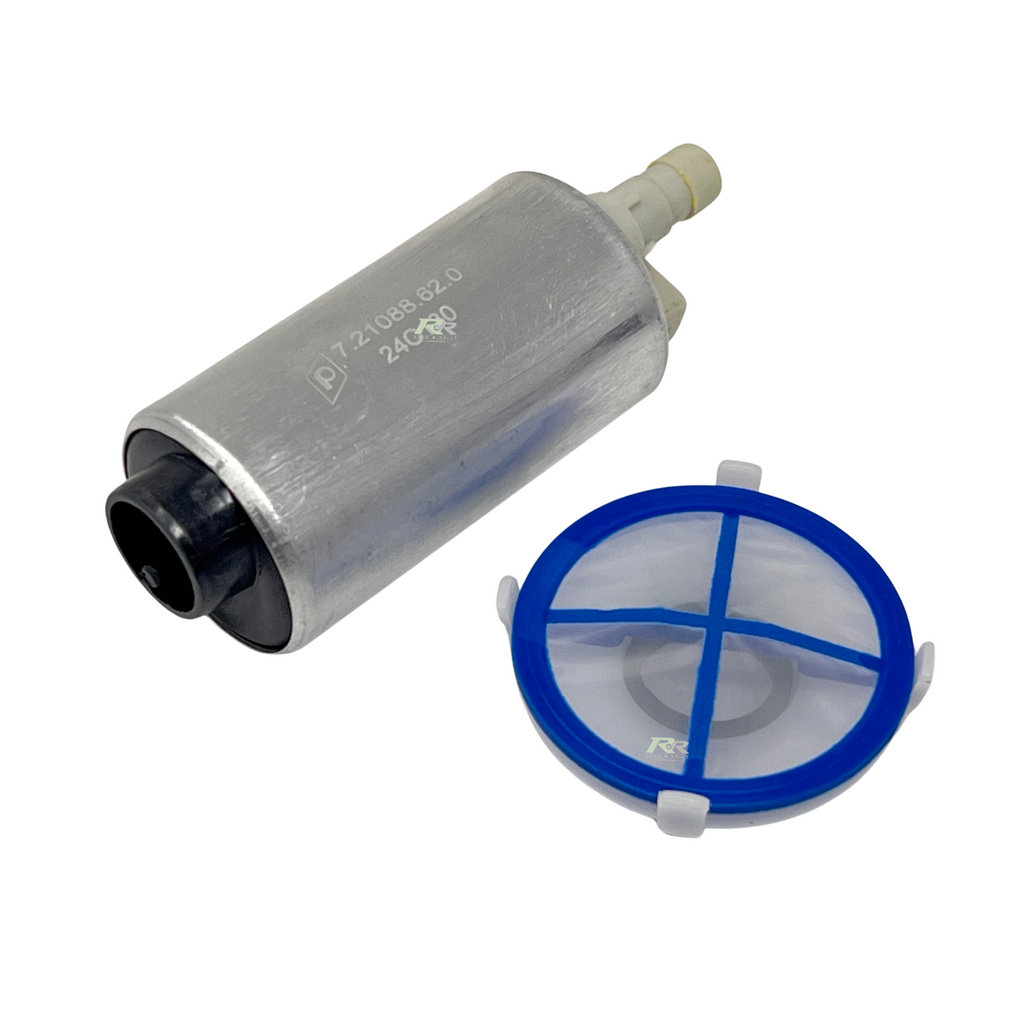

Booster pump

3T4A40572A

2

€76.80 €94.46
25

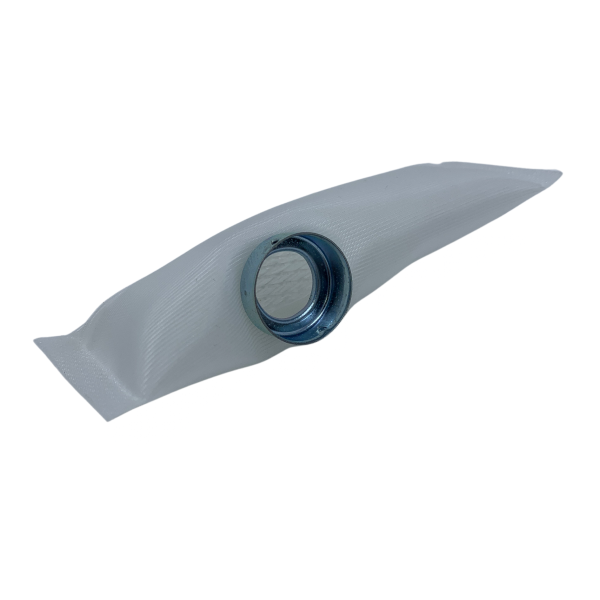

Booster pump filter

PS05502A10

2

€38.10 €46.86
26
Flexible convulte pipe 1m

PS69792A10

1

€82.28 €101.20
27
Fuel Cell To Anti Return Valve Hose

904492988C

1

€395.14 €486.02
28

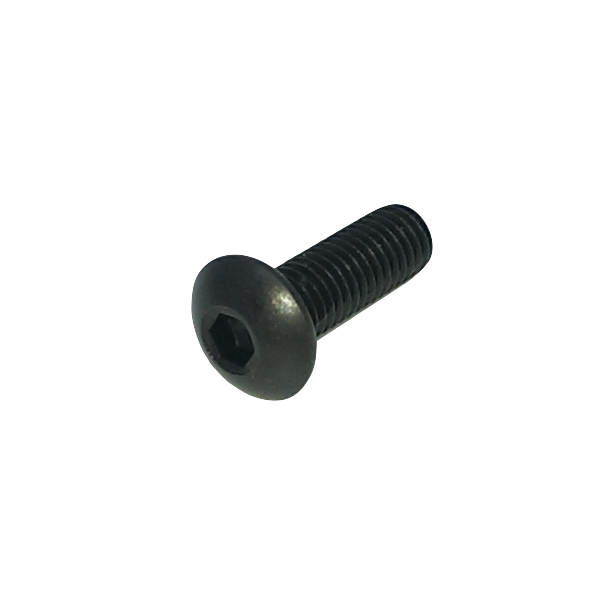

Screw ULS M5x15 cl.12.9

PS85116A10

22

€0.71 €0.87
29
Catch Tank Cover Clamp

904470458B

1

€72.00 €88.56
30

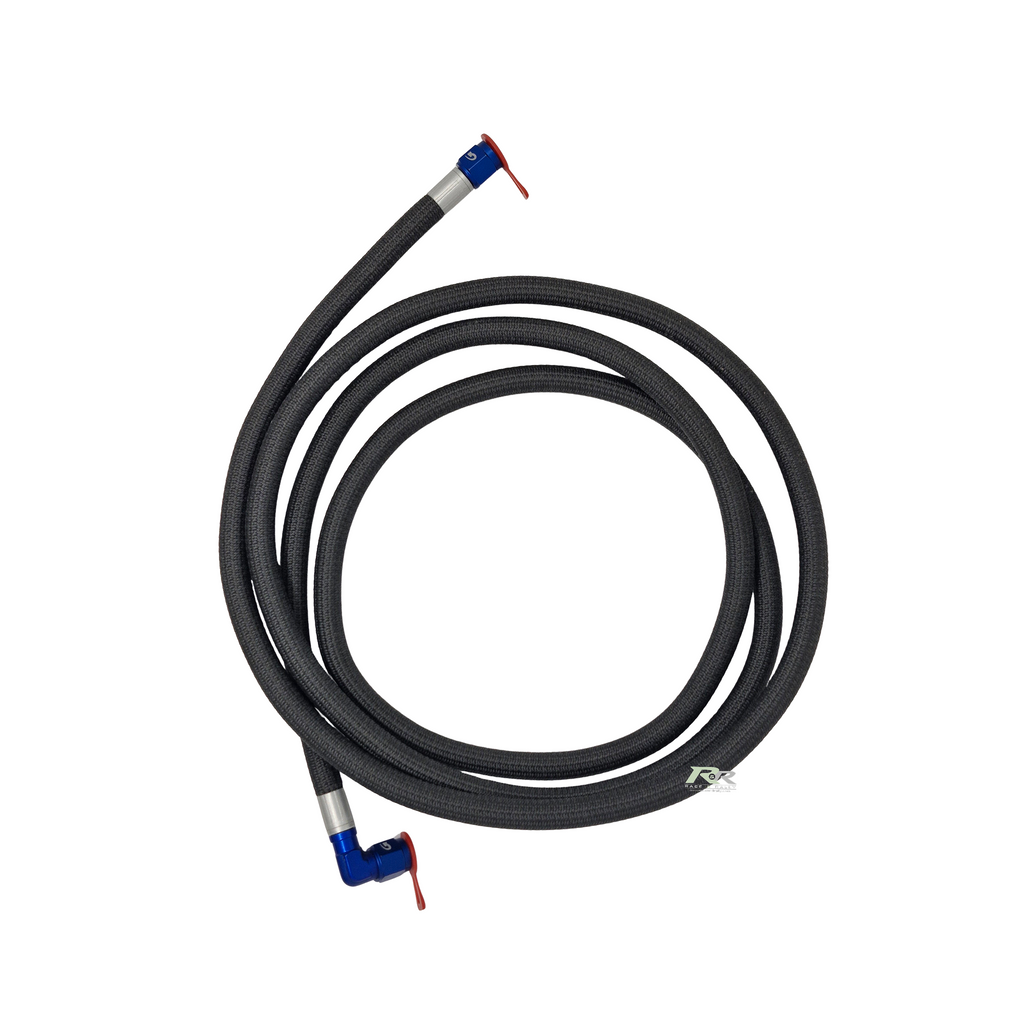

Fuel Pipe Buffer Box/Engine

3T4A24270A

1

€697.58 €858.02
31

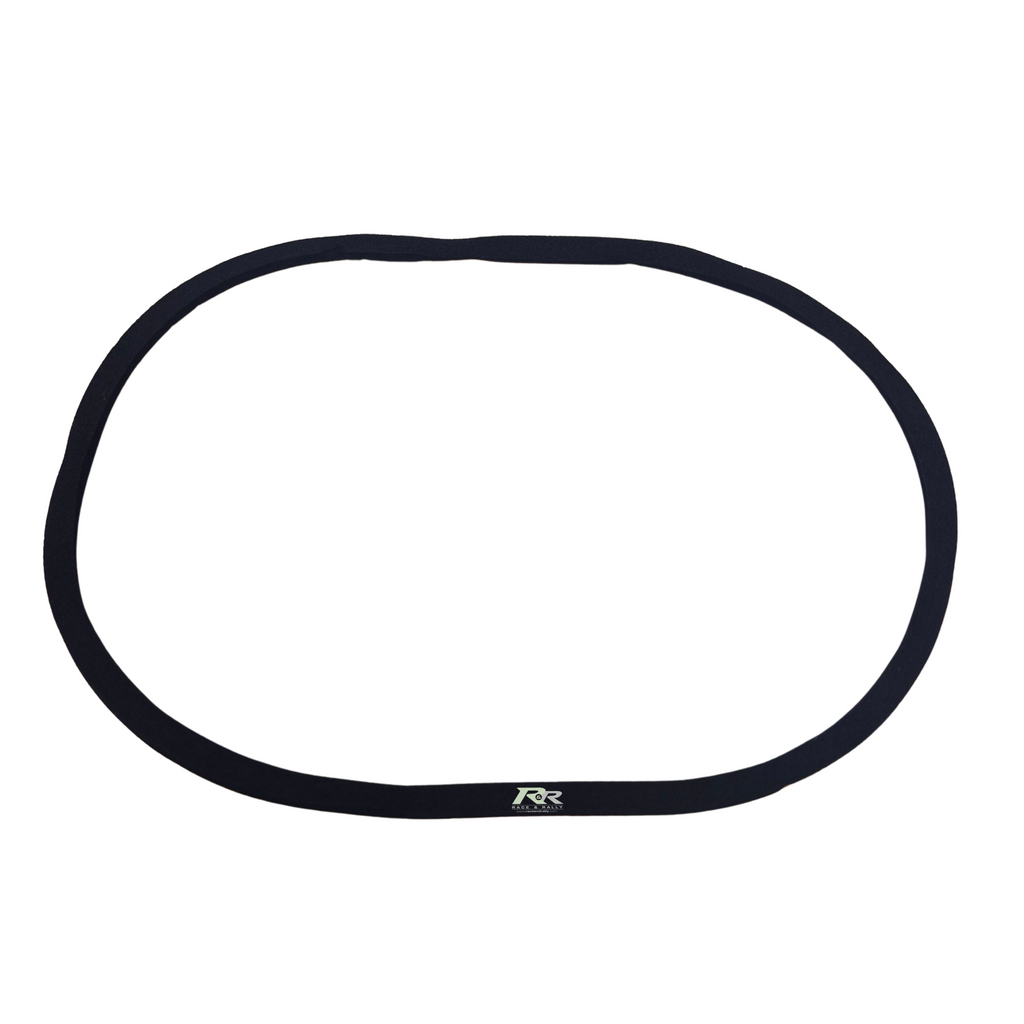

Catch Tank Cover Foam

904472628A

1

€88.28 €108.58
32
Fuel Cell Cover

904470938C

1

€2460.00 €3025.80
33
Fuel Tank Belt Axis

904481988B

2

€141.04 €173.48
34
Beta Pin D1.5

PS78025A10

2

€3.30 €4.06
35
Left Fuel Tank Belt

904478058A

1

€190.40 €234.19
36
Socket Screw M8-16 12.9

PS82130A01

2

€1.25 €1.54
37
SPS Washer Ø8x13-0,8

PS86570A10

2

€0.36 €0.44
38

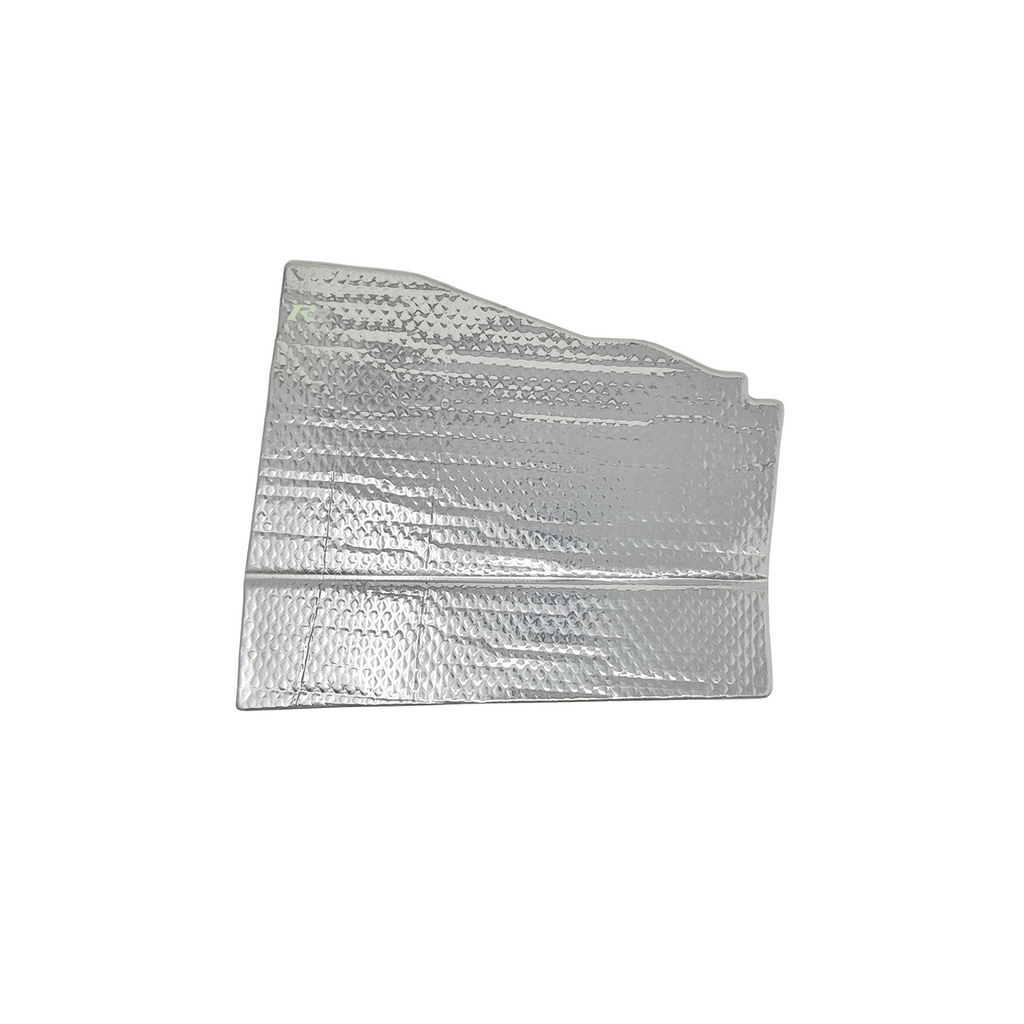

Fuel Cell Cover Thermal Protection

904478598A

1

€217.40 €267.40
39
Thermal Shield

904471298C

1

€280.00 €344.40
40
Screw M6x12

PS82119A10

3

€0.25 €0.31
41
Right Fuel Tank Belt

904481428A

1

€188.40 €231.73
42
Seal foam

1606409780

2

€38.84 €47.77
43
Fireproof Sleeve 3/8"" Silver"

ST08300008

1

€46.40 €57.07
44
Fireproof Sleeve 1" Silver

ST08300009

1

€93.56 €115.08
45
Venting valve

3T4A64744A

1

€933.60 €1148.33
46

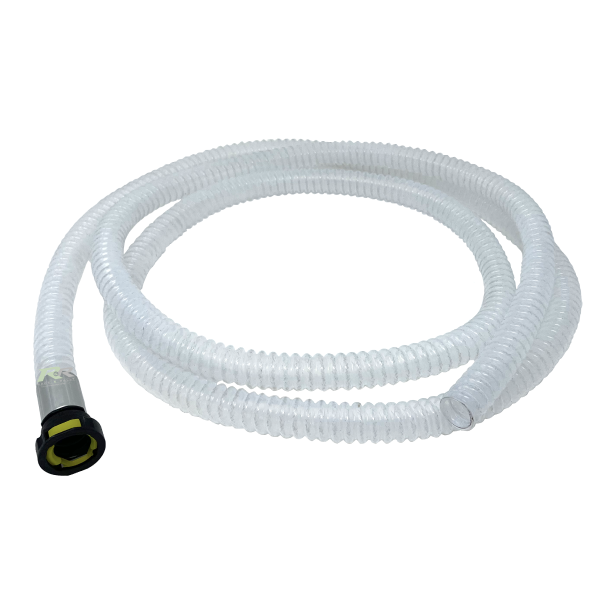

Valve To Outside Breathing Hose

904496368B

1

€212.60 €261.50
47
Fuel tank disgassing filter

3T4A64747A

1

€8.08 €9.94
48
Gromet Ø6x33.5-26

6987-78

1

€1.45 €1.78
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
