154.6mm
63.9mm
20.3mm
mm
Compound Information
Compound Information
Street+
Similarly to PAGID Racing brake pads, STREET+ by PAGID Racing employs a dual retention system, with an adhesive bond and a unique mechanical system.
The mechanical system on STREET+ by PAGID Racing consists of a crimped backplate interface to friction material, ensuring an enhanced bonding between friction material and the backplate.
Pagid Racing Steel Backing Plate Design
- Unique double retention system with know-how transfer from racing.
- Friction material is mechanically fixed to the backplate
- No delamination of friction material from steel backplate
- Motorsport high-tech and innovation for your vehcile
Main Features:
- Excellent performance behavior
- Highest safety due to innovative retention system
- Very good controllability
- Developed for street use
Application Range:
High performance brake pads for road and street. Due to excellent performance and modulation characteristics also applicable on track days. The friction compound was approved on the race track and on the Eifel streets.
Even 18 hot laps on the Bilster Berg, driven by professional race driver Benjamin Leuchter were no problem at all for these premium brake pads.
Friction VS. Temperature
Out of stock, expected in 3-7 days from order

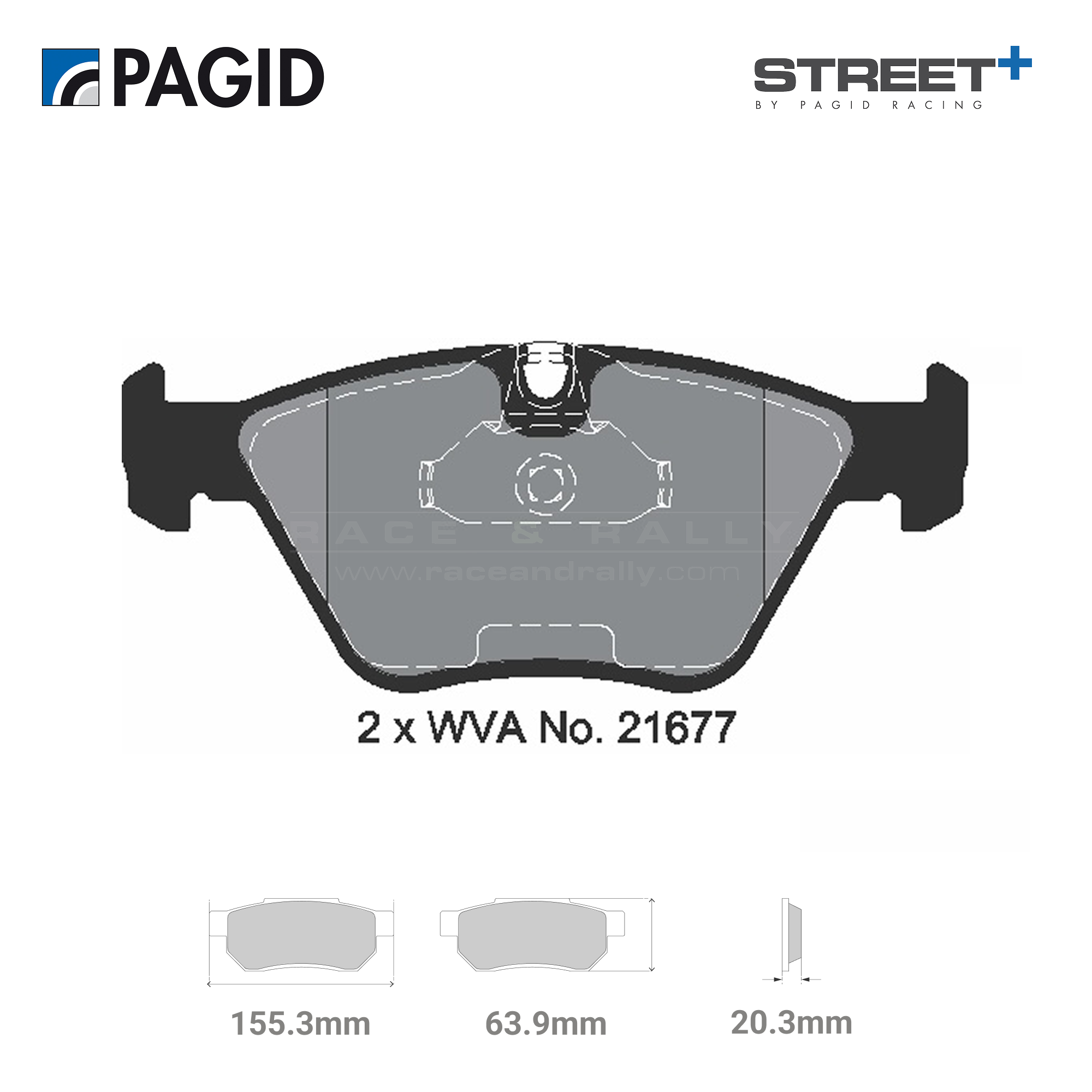

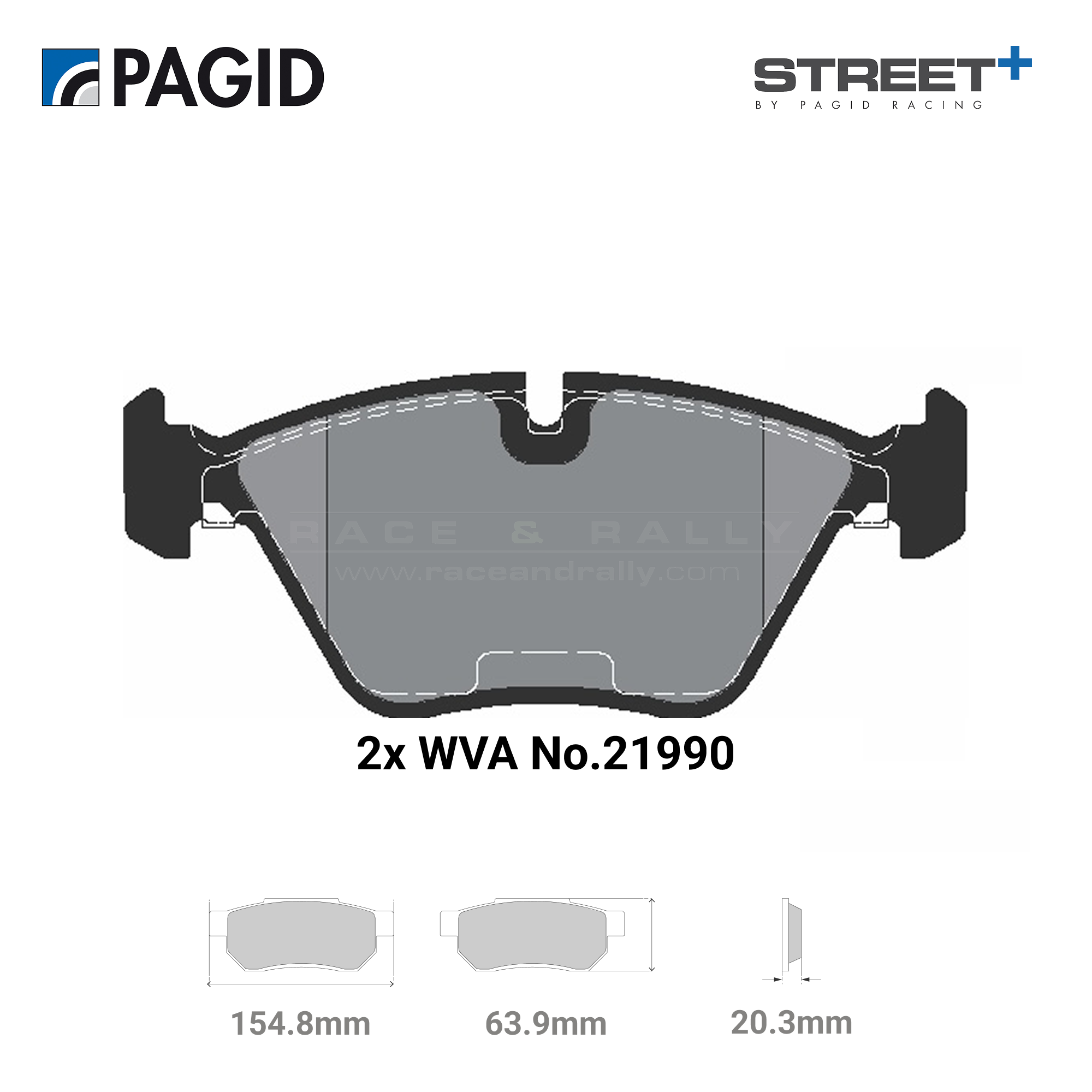

Brake Pad Dimensions:
| Manufacturer | Pagid |
| Part Number | T8296SP2001 |
| Pad Width | 154.6mm |
| Pad Height | 63.9mm |
| Radial Depth | mm |
| Thickness | 20.3mm |
| Compound | Street+ |
| Barcode | 4056029078069 |
Brake Pad Compound Information:
Street+
Similarly to PAGID Racing brake pads, STREET+ by PAGID Racing employs a dual retention system, with an adhesive bond and a unique mechanical system.
The mechanical system on STREET+ by PAGID Racing consists of a crimped backplate interface to friction material, ensuring an enhanced bonding between friction material and the backplate.
Pagid Racing Steel Backing Plate Design
- Unique double retention system with know-how transfer from racing.
- Friction material is mechanically fixed to the backplate
- No delamination of friction material from steel backplate
- Motorsport high-tech and innovation for your vehcile
Main Features:
- Excellent performance behavior
- Highest safety due to innovative retention system
- Very good controllability
- Developed for street use
Application Range:
High performance brake pads for road and street. Due to excellent performance and modulation characteristics also applicable on track days. The friction compound was approved on the race track and on the Eifel streets.
Even 18 hot laps on the Bilster Berg, driven by professional race driver Benjamin Leuchter were no problem at all for these premium brake pads.
Friction VS. Temperature
Cross References:
| Pagid | T8296SP2001 |
| Brand | Part Number |
|---|---|
| Bmw | 1164629 |
| Bmw | 2157586 |
| Bmw | 2157590 |
| Bmw | 34111164629 |
| Bmw | 34112157586 |
| Bmw | 34112157590 |
| Bmw | 34116761278 |
| Bmw | 34116761280 |
| Bmw | 6761278 |
| Bmw | 6761280 |
Applications:
| Make | Model | Year |
|---|---|---|
| Bmw | 5 (E39) | 02/00_06/03 |
| Bmw | 5 (E39) | 01/96_06/03 |
| Bmw | 5 (E39) | 09/00_06/03 |
| Bmw | 5 (E39) | 09/00_06/03 |
| Bmw | 5 (E39) | 01/96_06/03 |
| Bmw | 5 (E39) | 09/95_08/00 |
| Bmw | 5 (E39) | 02/00_06/03 |
| Bmw | 5 (E39) | 09/00_06/03 |
| Bmw | 5 (E39) | 09/00_12/02 |
| Bmw | 5 (E39) | 01/97_06/03 |
| Bmw | 5 (E39) | 01/96_06/03 |
| Bmw | 5 (E39) | 09/95_08/00 |
| Bmw | 5 (E39) | 08/98_09/00 |
| Bmw | 5 (E39) | 06/96_08/98 |
| Bmw | 5 Touring (E39) | 02/00_09/03 |
| Bmw | 5 Touring (E39) | 03/97_08/01 |
| Bmw | 5 Touring (E39) | 03/97_08/01 |
| Bmw | 5 Touring (E39) | 09/00_12/03 |
| Bmw | 5 Touring (E39) | 09/00_12/03 |
| Bmw | 5 Touring (E39) | 03/97_08/00 |
| Bmw | 5 Touring (E39) | 09/98_08/00 |
| Bmw | 5 Touring (E39) | 02/00_05/04 |
| Bmw | 5 Touring (E39) | 09/00_12/03 |
| Bmw | 5 Touring (E39) | 09/00_05/04 |
| Bmw | 5 Touring (E39) | 03/97_05/04 |
| Bmw | 5 Touring (E39) | 11/96_08/00 |
| Bmw | 5 Touring (E39) | 08/98_09/00 |
