Toyota Yaris GR Linear 18 Grille Kit

Toyota Yaris GR Linear 18 Grille Kit

GK-YARIS-ELITE

€605.73 €745.05
Sale Sold out
  • Feature Icon 1X Linear-18 Elite
  • Feature Icon 1X Single LAMP WIRING HARNESS

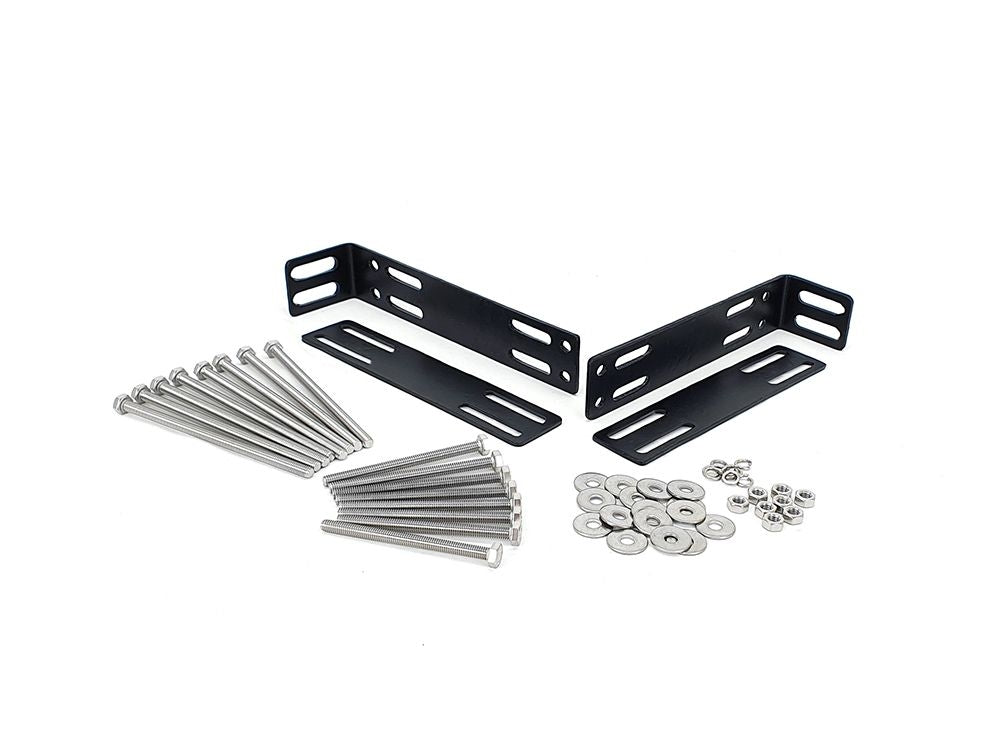

  • Feature Icon 1X bumper beam MOUNTING BRACKET
  • Feature Icon **Different variations of Linear-18 lights available
  • Feature Icon Package Savings!!
View full details

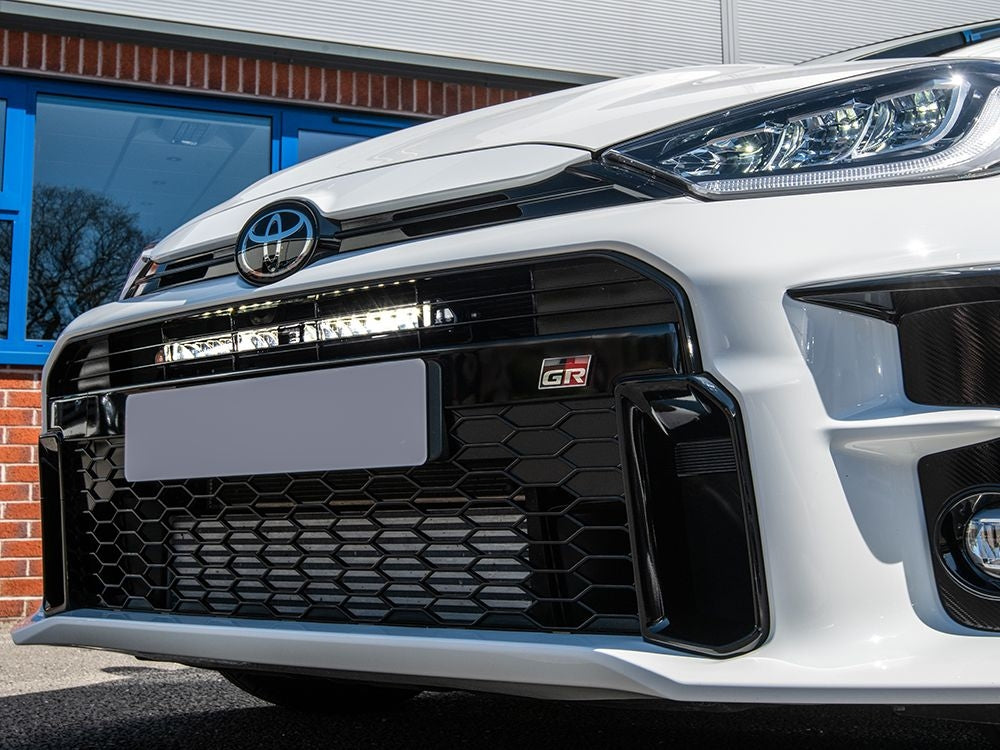

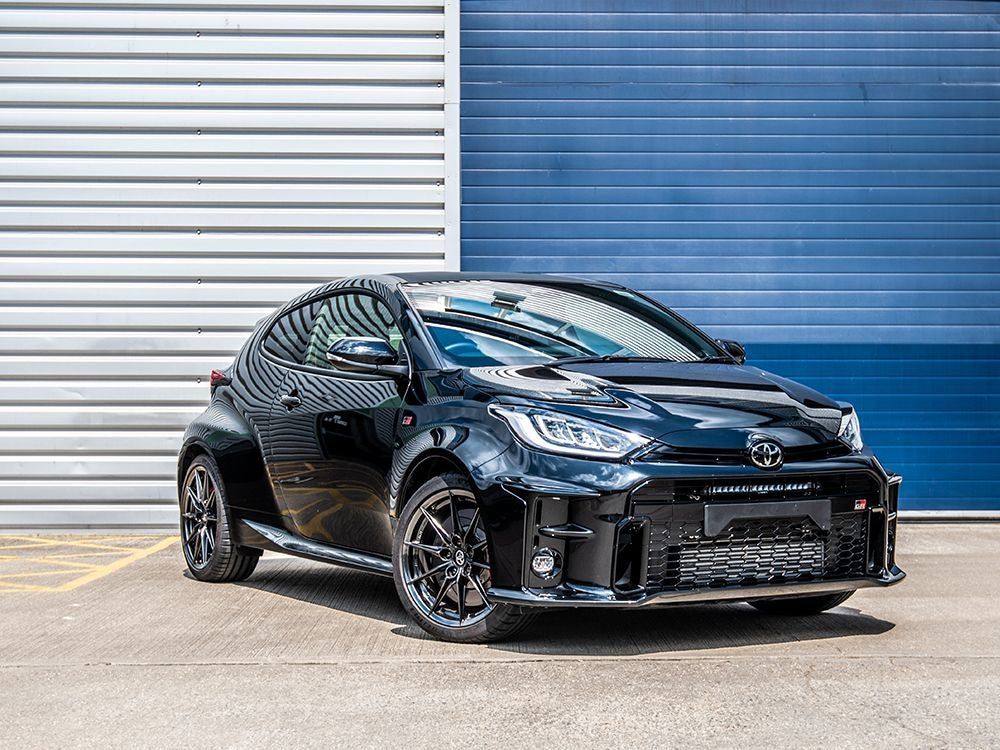

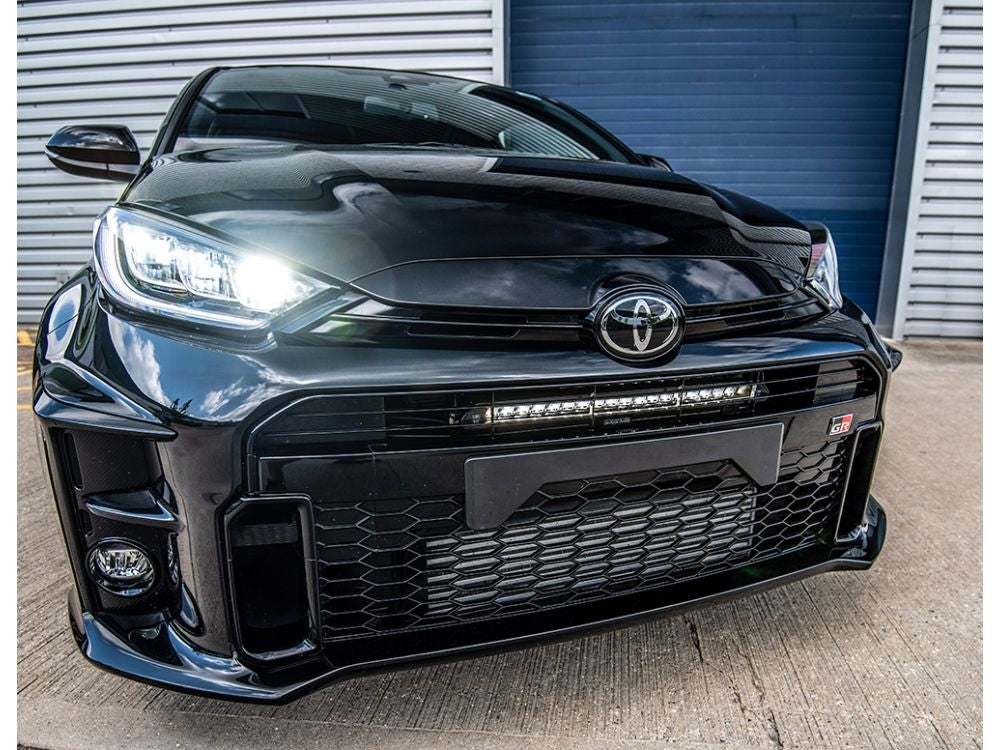

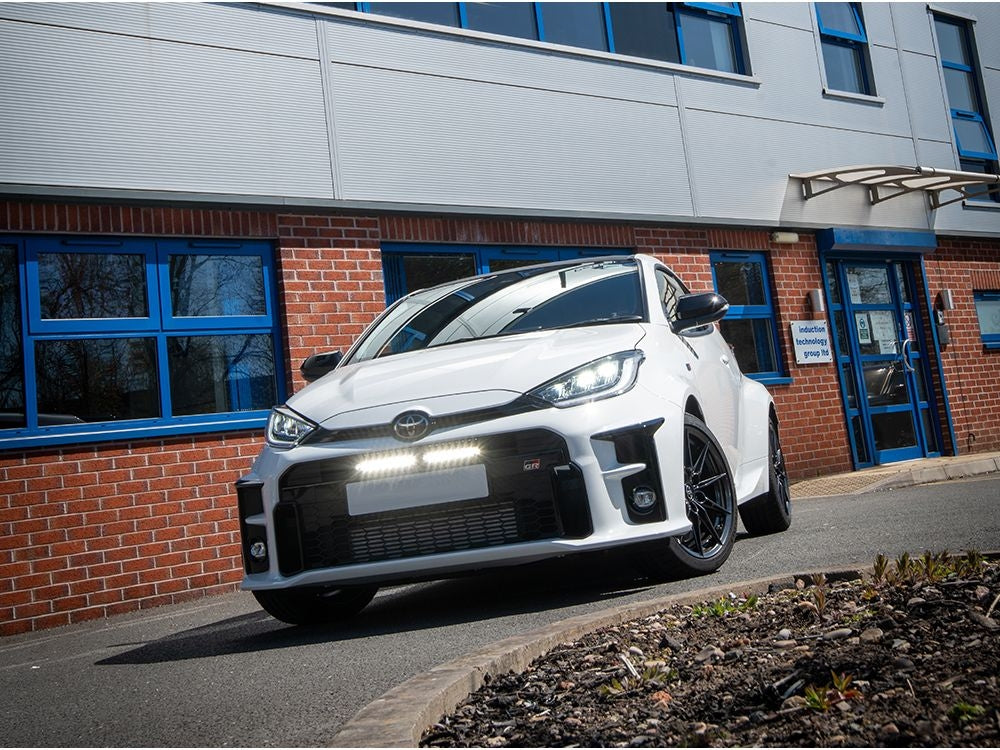

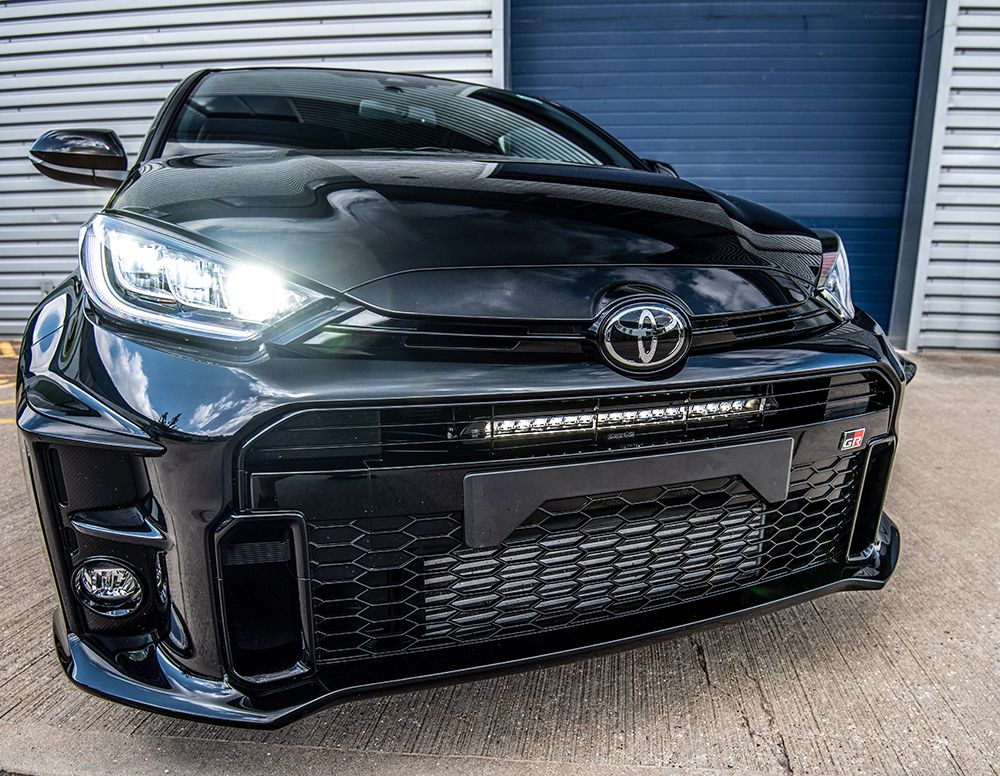

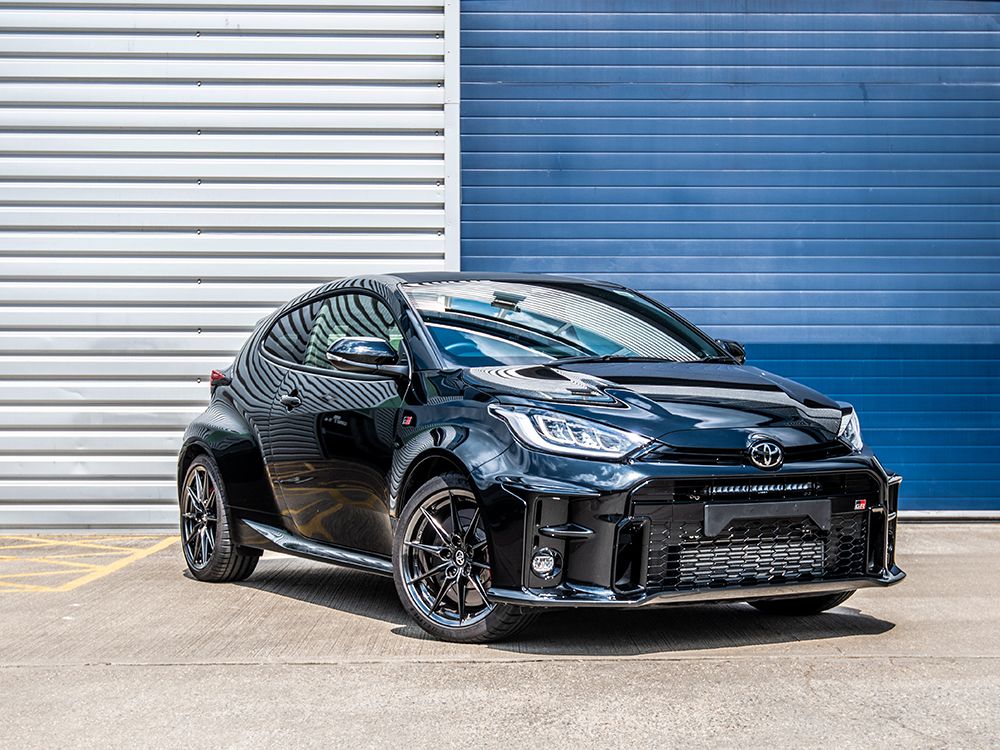

Utilising satin black mounting ‘clamp’ brackets concealed behind the front grille, the Lazer Lamps vehicle integration kit for the Toyota Yaris GR, allows for mounting our class-leading Linear-18 Elite high performance LED spotlight, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear products ensure the light(s) blend seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.

ECE compliance allows for connecting into the vehicle's electrical system so that the light activates with the vehicle's standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures.

**Where the vehicle utilises LED driving lights as standard, a CanM8 high beam interface is available as an optional part to complete a unified electrical install.

Product Features

  • Auxiliary spotlight installation for Toyota Yaris GR
  • Optimised mounting for a Linear-18

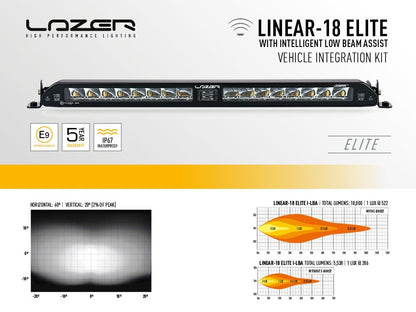

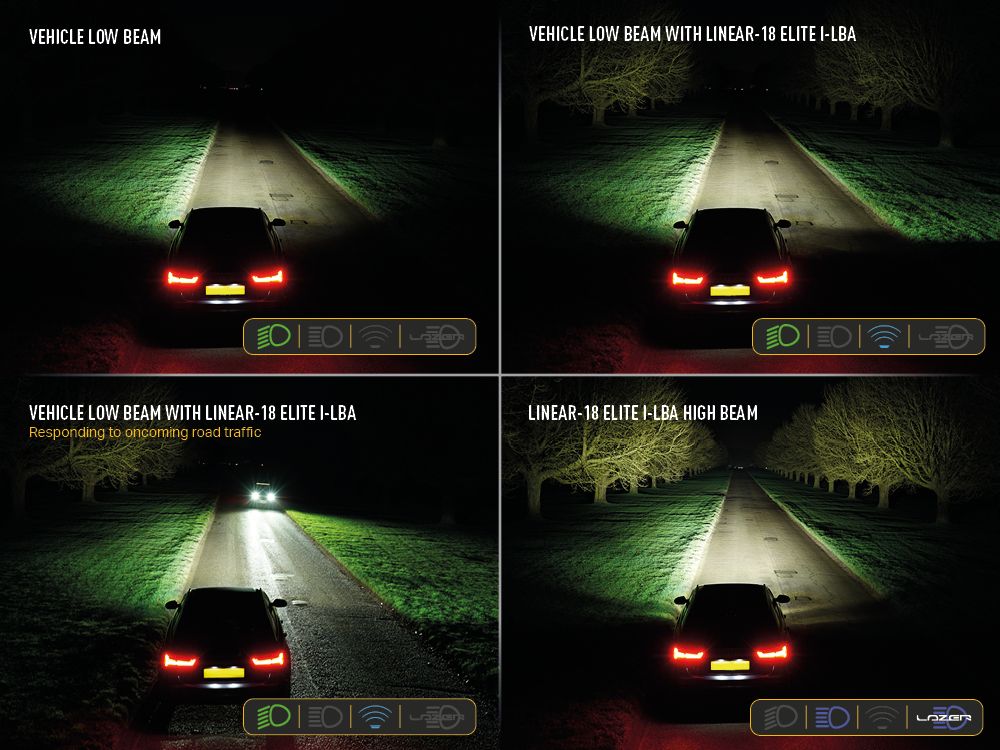

  • Available as Elite, Elite with position lights or Elite with i-LBA grade
  • Secured to vehicle’s bumper beam bar
  • Fully robust and secure, with extra protection against theft
  • Vehicle wiring kit available
  • Road legal - ECE approved to Regulation 112
  • 5-year warranty
  • Made in Britain

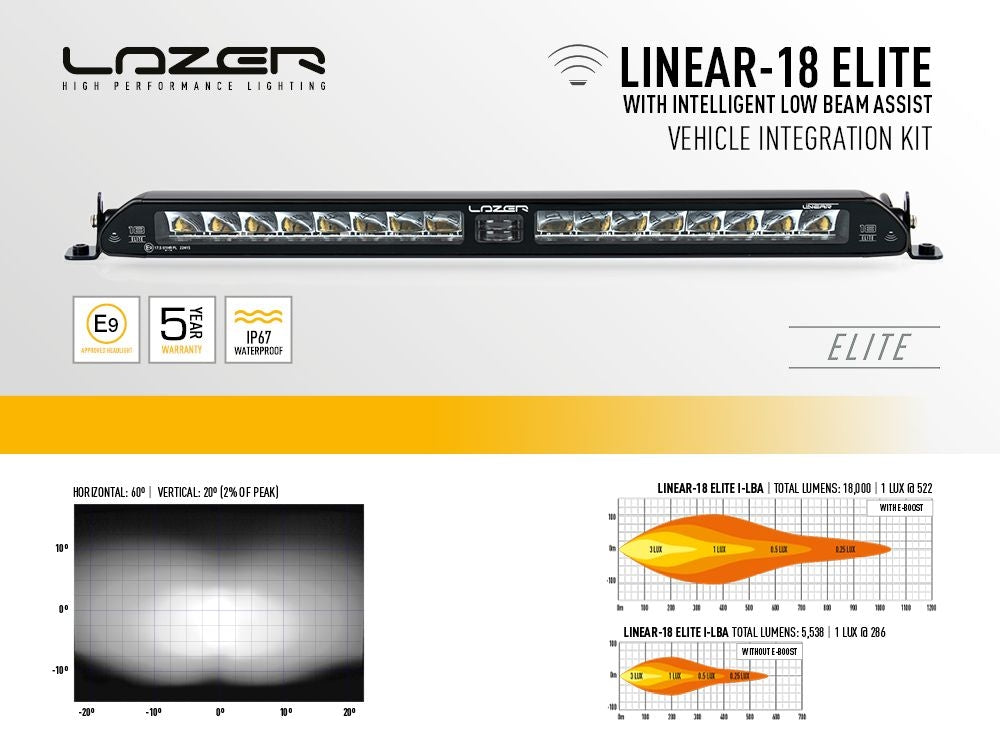

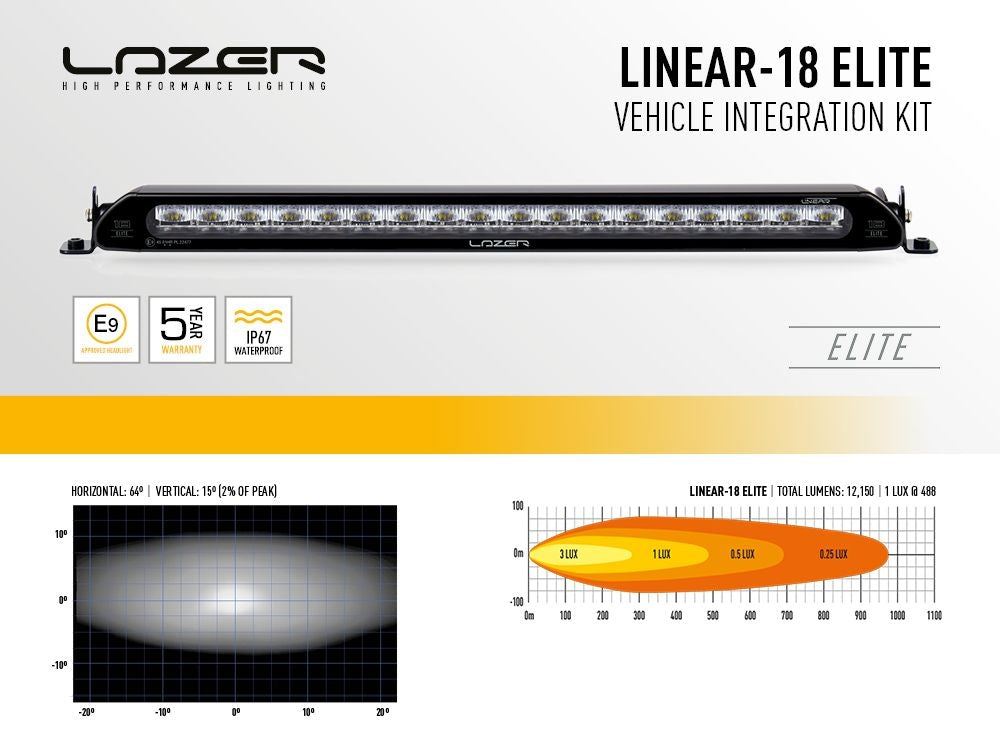

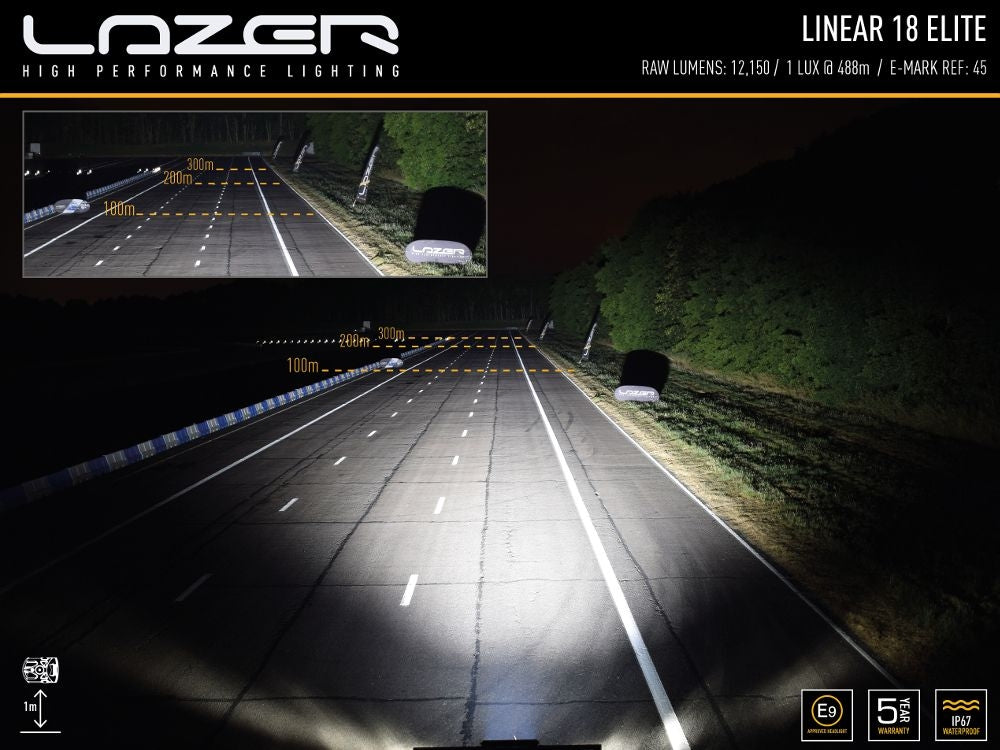

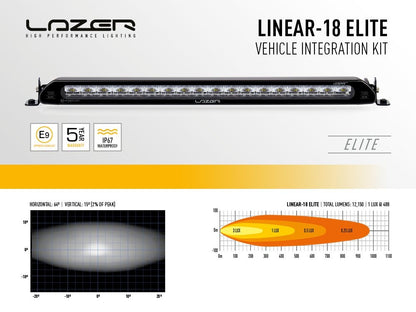

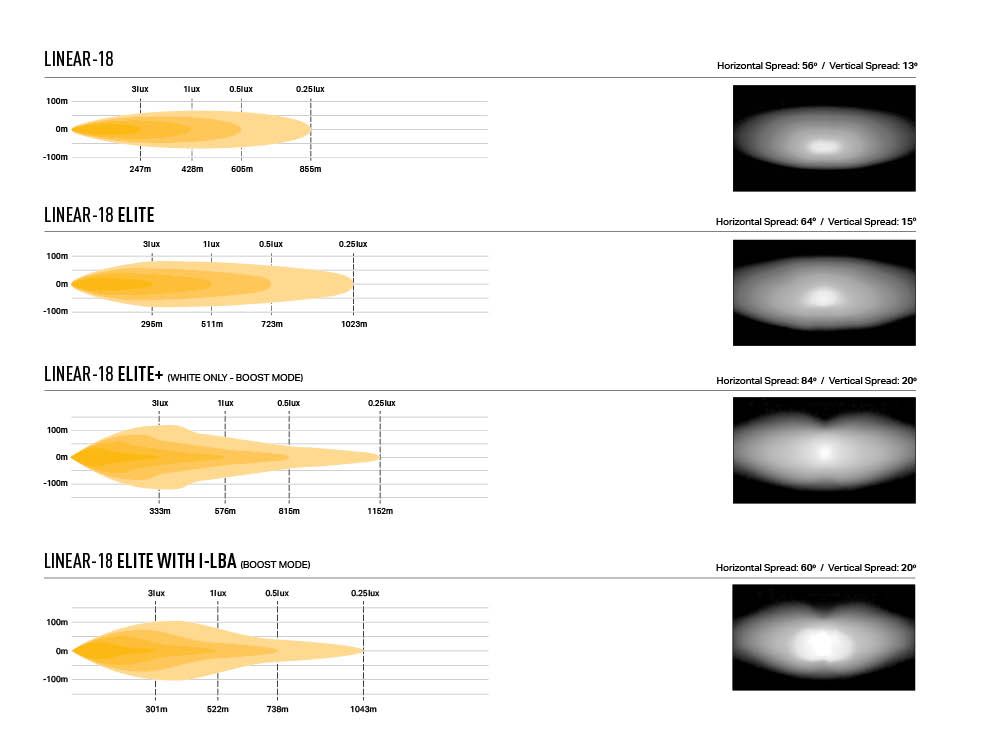

LINEAR-18 ELITE TECHNICAL SPECIFICATIONS Linear-18 Elite Elite with Position Light Elite with i-LBA Sensor E-Boost E-Mark Mode Voltage Range (DC) 10-32V LED Life 50,000 hours Weight 1090 gr 1100 gr HIGH BEAM FUNCTION   Total Luminous Flux 12150 Lm 18000 Lm 5538 Lm Total Driver 'FOV' Flux † 8651 Lm 12816 Lm 3943 Lm Colour Temperature 5000K Number of High Output LEDs 36 48 Power Consumption 126 Watts 135 Watts 43 Watts Current Draw (at 14.4V) 8.8 Amps 10.4 Amps 3.2 Amps Start-up Time * 100ms - CERTIFICATION   High Beam ECE R112 N/A  ECE R112 ECE Reference 45 N/A 17.5 Position Light ECE R7 DIMENSIONS   Width 532 mm Depth 62 mm Height 40 mm PHOTOMETRIC DATA   Horizontal Beam Angle 42 degrees 64 Deg 0.25 lx Line 975 metres 1043m 871m 0.5 lx Line 690 metres 738m 404m 1 lx Line 488 metres 522m 286m 3 lx Line 282 metres 301m 165m * 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

Brand:

Lazer Lamps

Manufacturer Part Number:

GK-YARIS-ELITE
