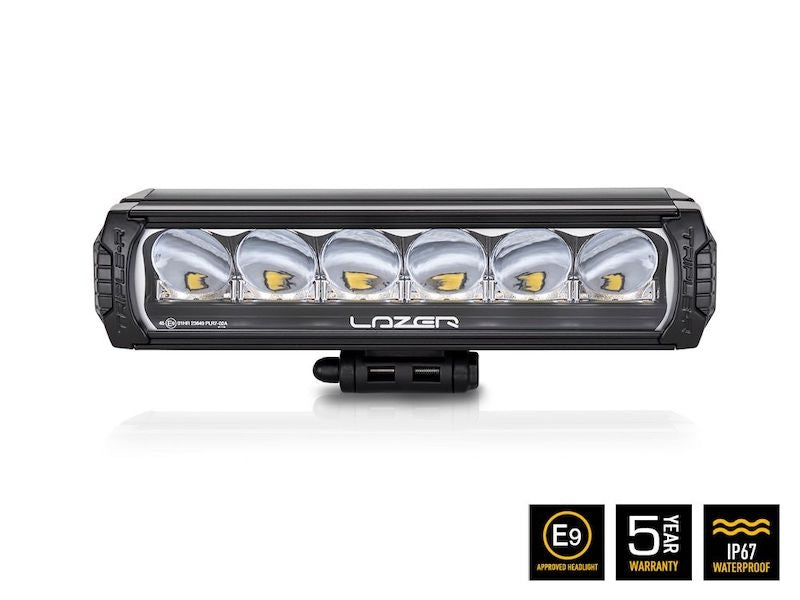

Triple-R 850 - with Position Light

Triple-R 850 - with Position Light

SKU:00R6-G2-B

Regular price €318.60 €391.88
Sale Sold out

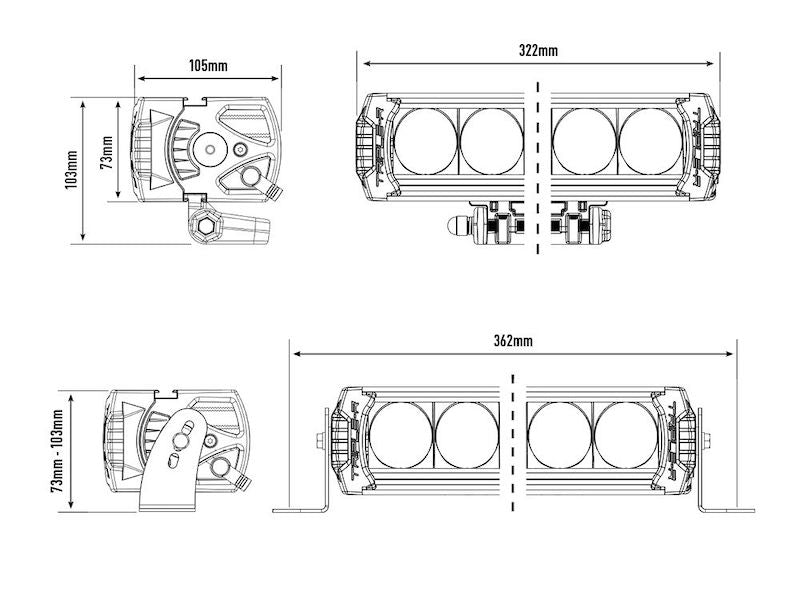

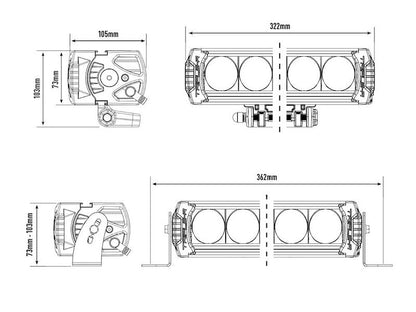

  • Feature Icon LENGTH: 332MM / 12.7"
  • Feature Icon 6930 LUMENS

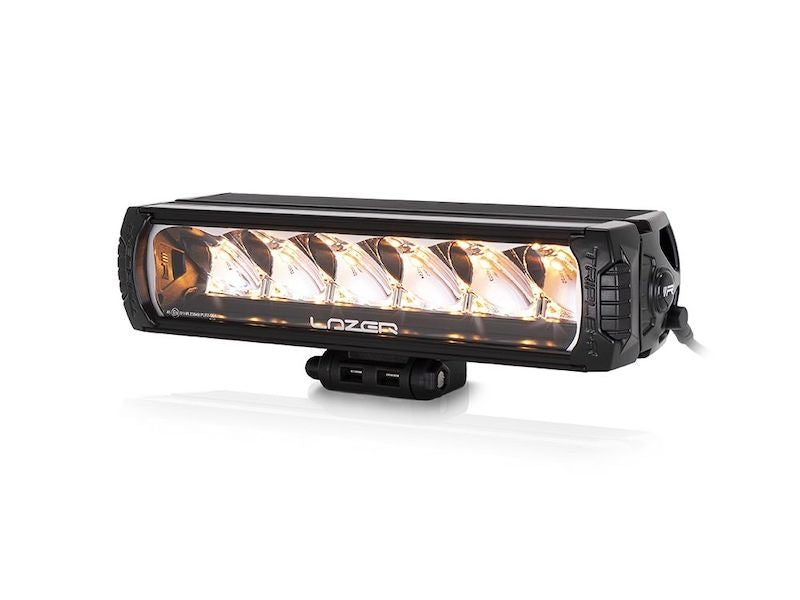

  • Feature Icon Position Light Function

View full details

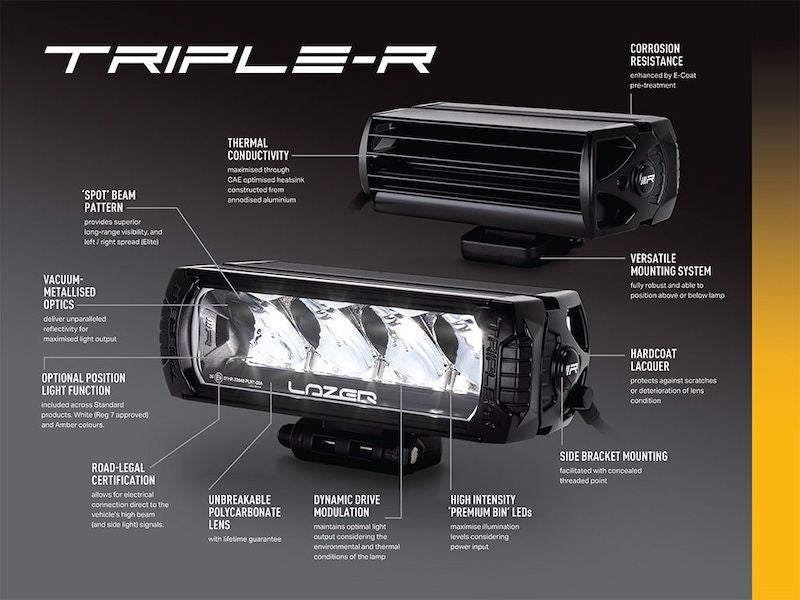

The iconic Triple-R range, upgraded in 2020/21, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.

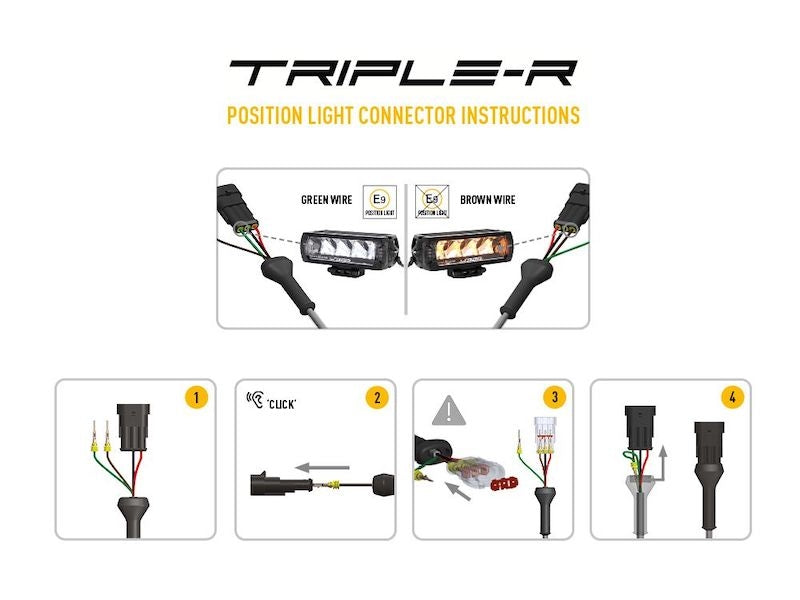

Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250, benefit for approval to UNECE Regulation 112 as a high beam driving light. In many cases certification is only achieved using dual-output E-Boost technology, allowing the lamp to be used in both E-Boost or E-Mark Compliant mode depending on country-specific regulations and whether the light(s) are being used on or off-road.

What's included:

  • x1 Triple-R 850 LED Lamp
  • x1 Centre Mount (1114k)
  • x1 Installation Instructions

Triple-R 850 Technical Specifications:

Voltage Range (DC)
10-32V
LED Life
50,000 hours
Weight
1.34 kg

HIGH BEAM FUNCTION


Total Luminous Flux
6930 Lm
Total Driver 'FOV' Flux †
4179 Lm
Colour Temperature
5000k
Number of High Output LEDs
6
Power Consumption
66 Watts
Current Draw (at 14.4V)
4.6 Amps
Start-Up Time *
100ms

CERTIFICATION


High Beam
ECE R112
E-Mark Ref
45
Position Light (White)
ECE R7

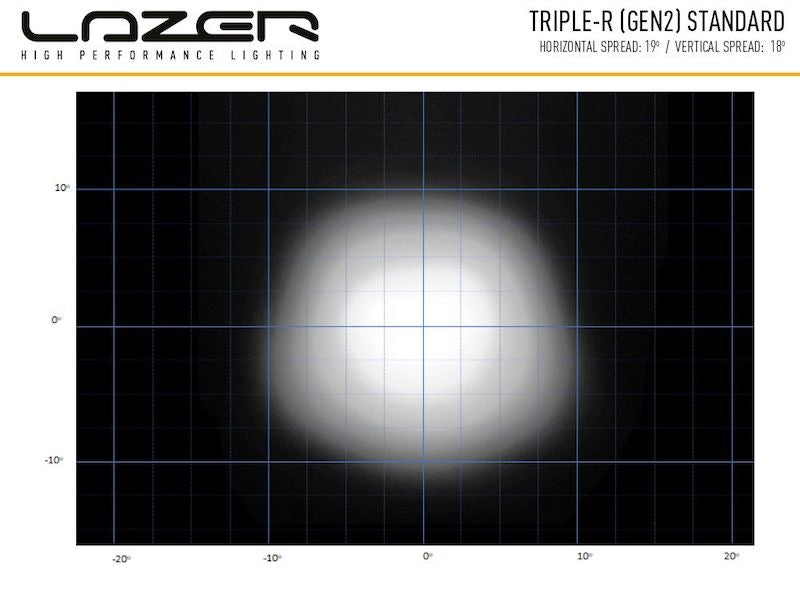

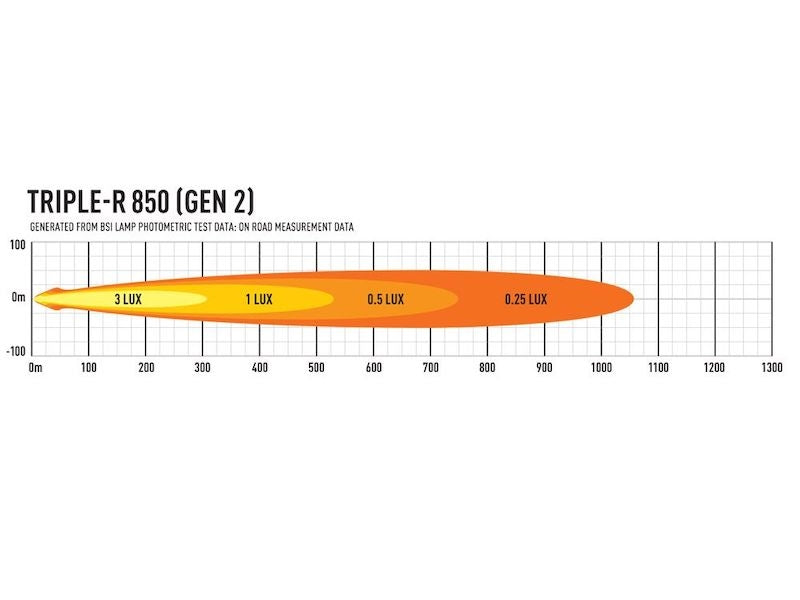

PHOTOMETRIC DATA


Horiz Beam Angle
19 Deg
0.25 lx Line
1061 metres
0.5 lx Line
750 metres
1 lx Line
530 metres
3 lx Line
306 metres

*'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

Brand:

Lazer Lamps

Manufacturer Part Number:

00R6-G2-B

Barcodes:

5060404993891
