Motorsport battery isolator as used by Factory WRC Teams.

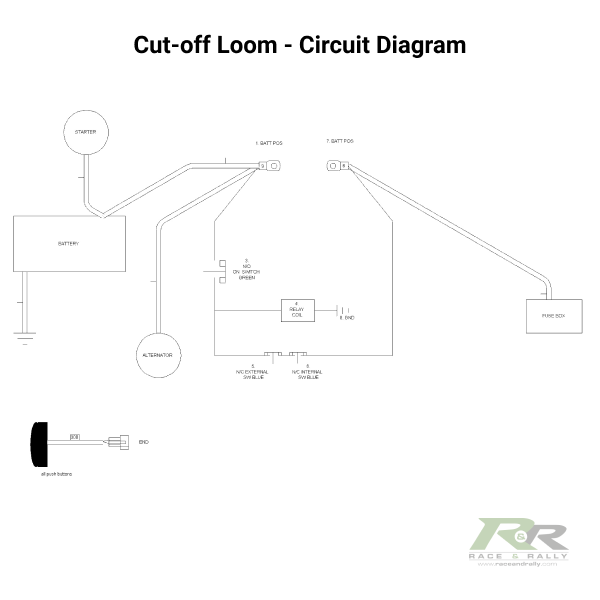

** Wiring Diagram available to download in documents tab.

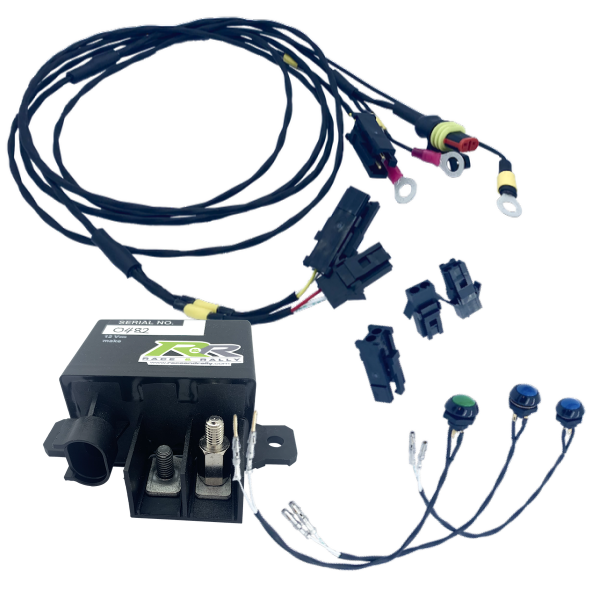

Included in Kit

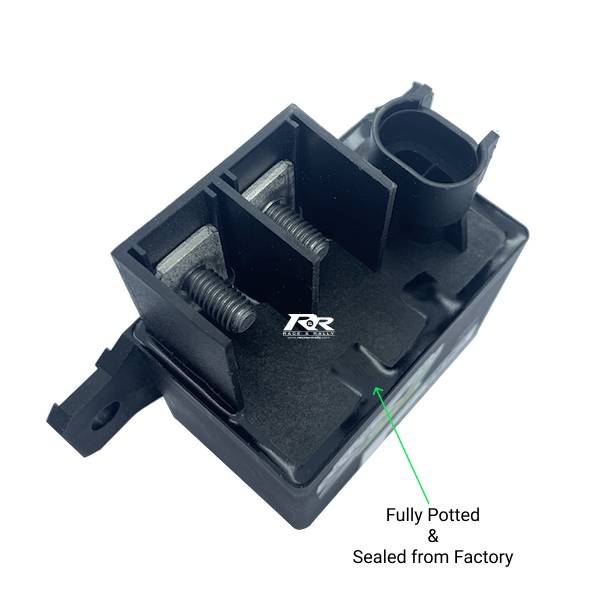

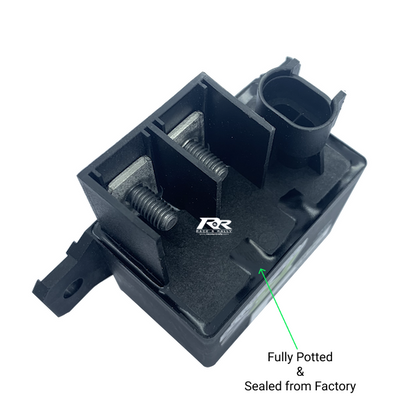

• 1x Tyco 200A Cut-off relay - *** Fully potted and sealed from the factory ***
• 1x Cut-off loom
• Including switches
• 2x M6 Post Extensions

TECHNICAL SPECIFICATIONS

• 12 V
• M6 Terminals
• 84mm Mounting Centres
• Heat, moisture & vibration resistant
• Minimal contact resistance
• Dustproof & sealed
• IP67 Protection rating

ADDITIONAL COMPONENTS:

• Additional Switches
• Electrical Connector Kit
