CP3219 - 4 Paddle Riveted Cerametallic Clutch Disc (Ø184mm x 7.11mm)

CP3219 - 4 Paddle Riveted Cerametallic Clutch Disc (Ø184mm x 7.11mm)

CP3219-42

€245.77 €302.30
Sale Sold out
  • Feature Icon 4-Paddle Riveted
  • Feature Icon Ø184mm
  • Feature Icon 7.11mm Thickness
  • Feature Icon Standard Hub Profile - 14.20mm

Out of stock, contact for leadtime

View full details

CP3219 - 4 Paddle Riveted Cerametallic Clutch Disc (Ø184mm x 7.11mm)

These 7.25" cerametallic drive plates have been designed primarily for Rally, Off-Road and Hillclimb applications, with a ceramic and metallic compound friction material. The friction material has been riveted to the steel drive plate and has a thick friction material depth to provide better heat management. The cerametallic material also gives a smoother engagement over the sintered material, where more clutch slip is required in order to modulate the drive.

Technical Details

  • 4 Paddle
  • Ø184mm // 7.25"
  • 7.11mm Thickness New
  • 6.68mm Thickness Worn
  • Riveted Cerametallic
  • Range of spline sizes available
  • Standard hub Profile - 14.20mm
  • Bonded versions available - CP8400

Applications:

  • Rally
  • Hillclimb
  • Off-Road
  • Engine over 2 Litres

Part Numbers:

Spline

Ø184mm x 7.11mm

No. of Teeth

Outside Diameter

CP3219

4 Paddle Riveted

CP8400

4 Paddle Bonded

Hub Profile
10 0.875" CP3219-42 CP8400-A001 14.20mm
10 1.0" CP3219-41 CP8400-A002 14.20mm
10 1.125" CP3219-22 CP8400-A004 14.20mm
10 1.25" CP3219-15 CP8400-F005 14.20mm

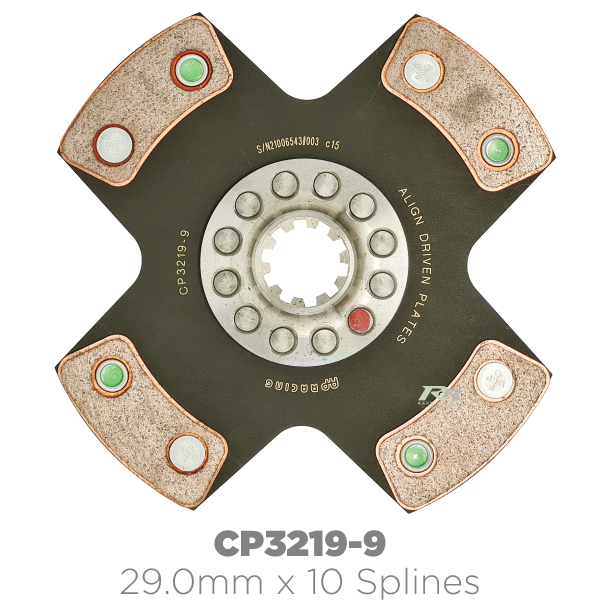

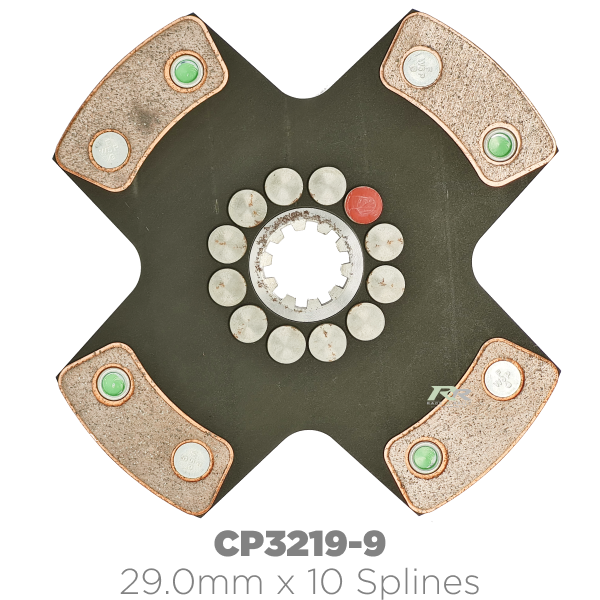

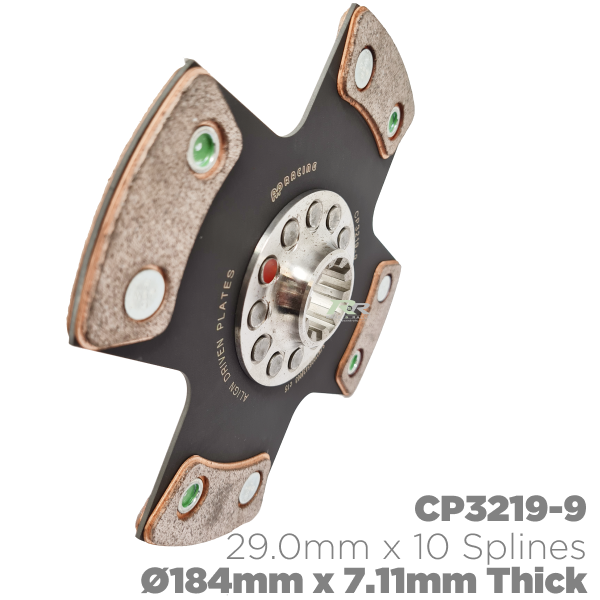

10 29.0 CP3219-9 CP8400-A008 14.20mm
10 29.0 CP3219-20 CP8400-A008H 14.20mm
14 18.7 CP3219-40 CP8400-A015 14.20mm
14 25.0 CP3219-43 CP8400-A016 14.20mm
17 20.0 CP3219-34 CP8400-A017 14.20mm
18 21.1 CP3219-5 CP8400-A019 14.20mm
18 21.1 CP3219-38 CP8400-A019H 14.20mm
20 0.875" CP3219-3 CP8400-A026H 14.20mm
21 24.0 CP3219-35 CP8400-A030 14.20mm
22 1.0" CP3219-21 N/A 14.20mm

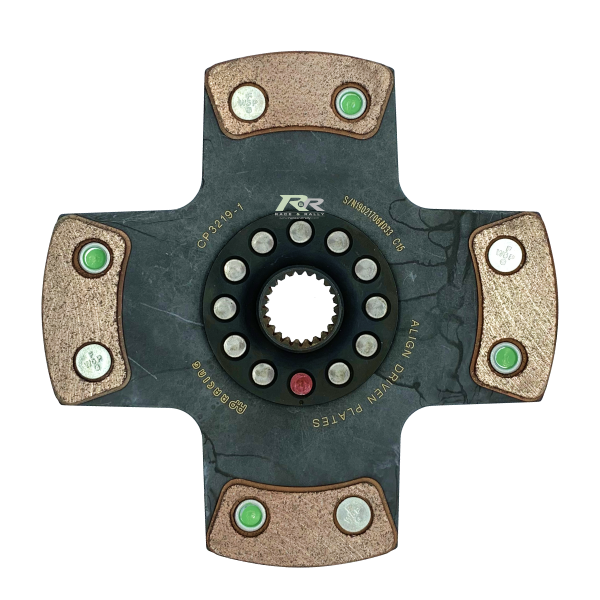

23 1.0" CP3219-1 CP8400-A036H 14.20mm
24 0.8" CP3219-32 CP8400-A037 14.20mm
24 1.0" CP3219-6 CP8400-A038H 14.20mm
26 1.16" CP3219-30 CP8400-A040 14.20mm
20 18.0 CP3219-36 CP8400-A135 14.20mm
24 25.2 CP3219-37 CP8400-A162 14.20mm
24 25.5 CP3219-31 CP8400-A163H 14.20mm



Brand AP Racing
Options SKU Barcode
0.875" x 10 / (A) Standard Hub (14.20mm) CP3219-42
1.12" x 10 / (A) Standard Hub (14.20mm) CP3219-22
29.00mm x 10 / (A) Standard Hub (14.20mm) CP3219-9
21.10mm x 18 / (A) Standard Hub (14.20mm) CP3219-5
0.875" x 20 / (A) Standard Hub (14.20mm) CP3219-3
24.00mm x 21 / (A) Standard Hub (14.20mm) CP3219-35
1.00" x 22 / (A) Standard Hub (14.20mm) CP3219-21
1.00" x 23 / (A) Standard Hub (14.20mm) CP3219-1
1.16" x 26 / (A) Standard Hub (14.20mm) CP3219-30
