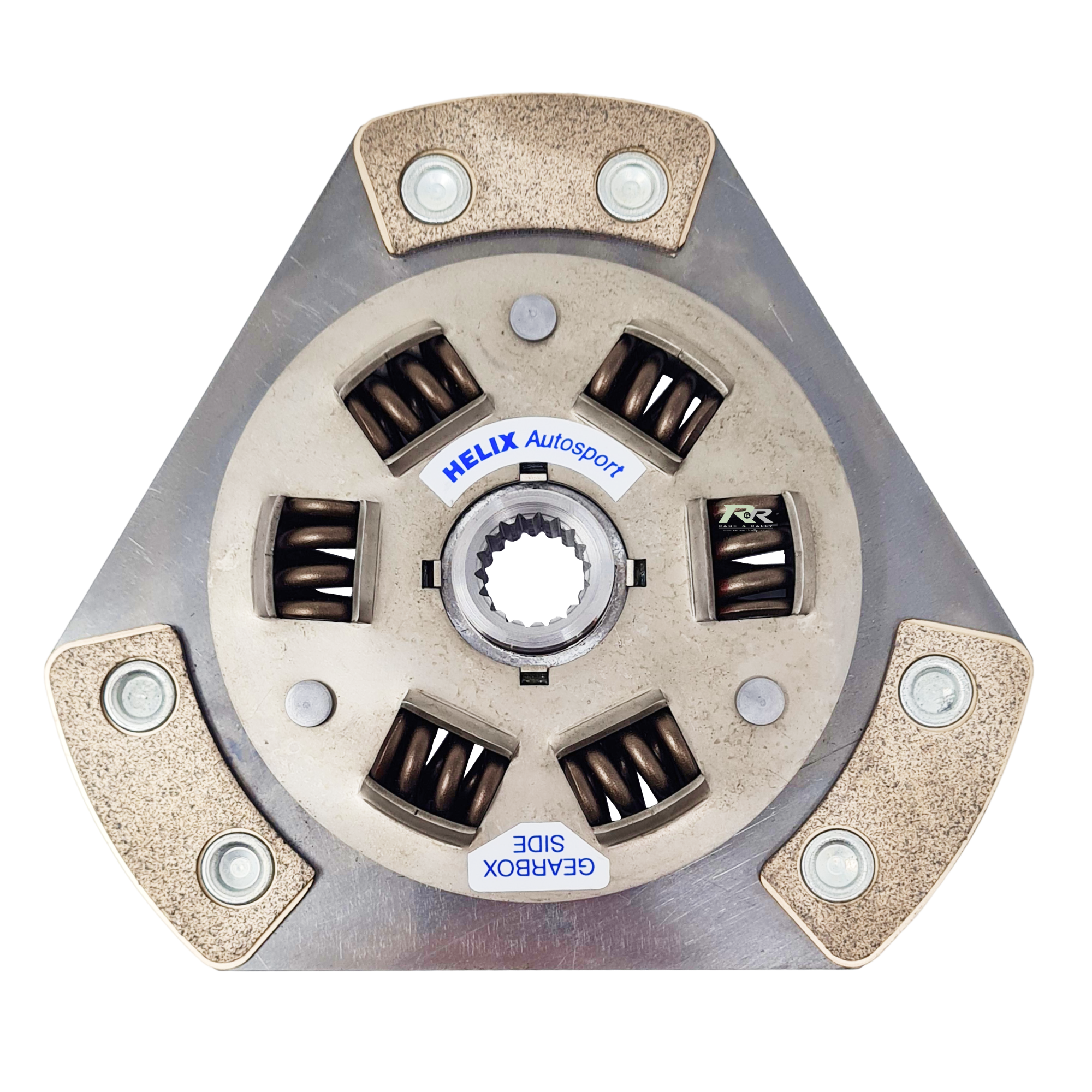

• Helix Autosport 3 paddle riveted sprung centre Cerametallic clutch disc with 184mm diameter and 7.2mm thickness, detailed view.

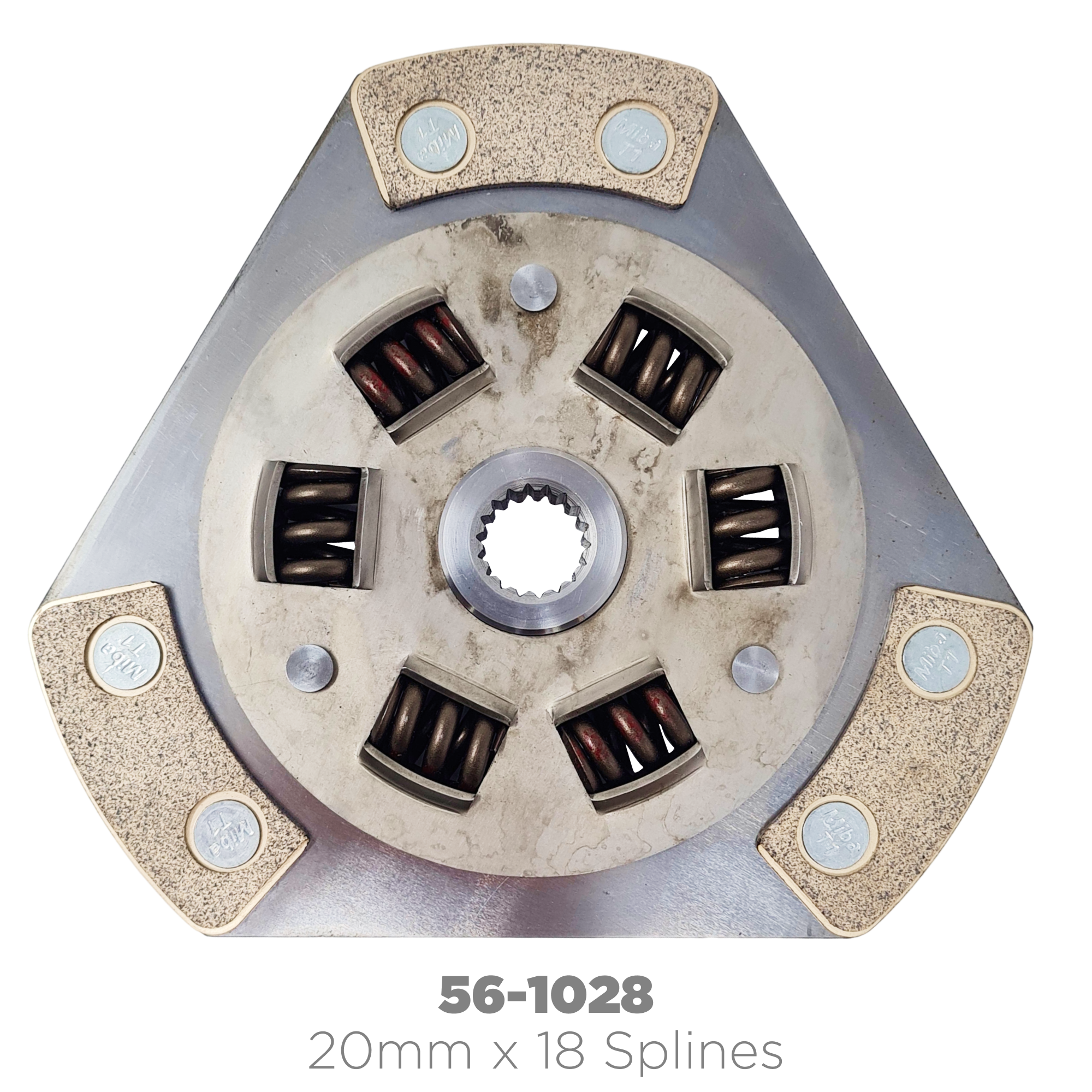

  • Helix Autosport 56-1000 clutch disc with 3 paddle riveted sprung centre, ceramic metallic friction surface, 184mm diameter.

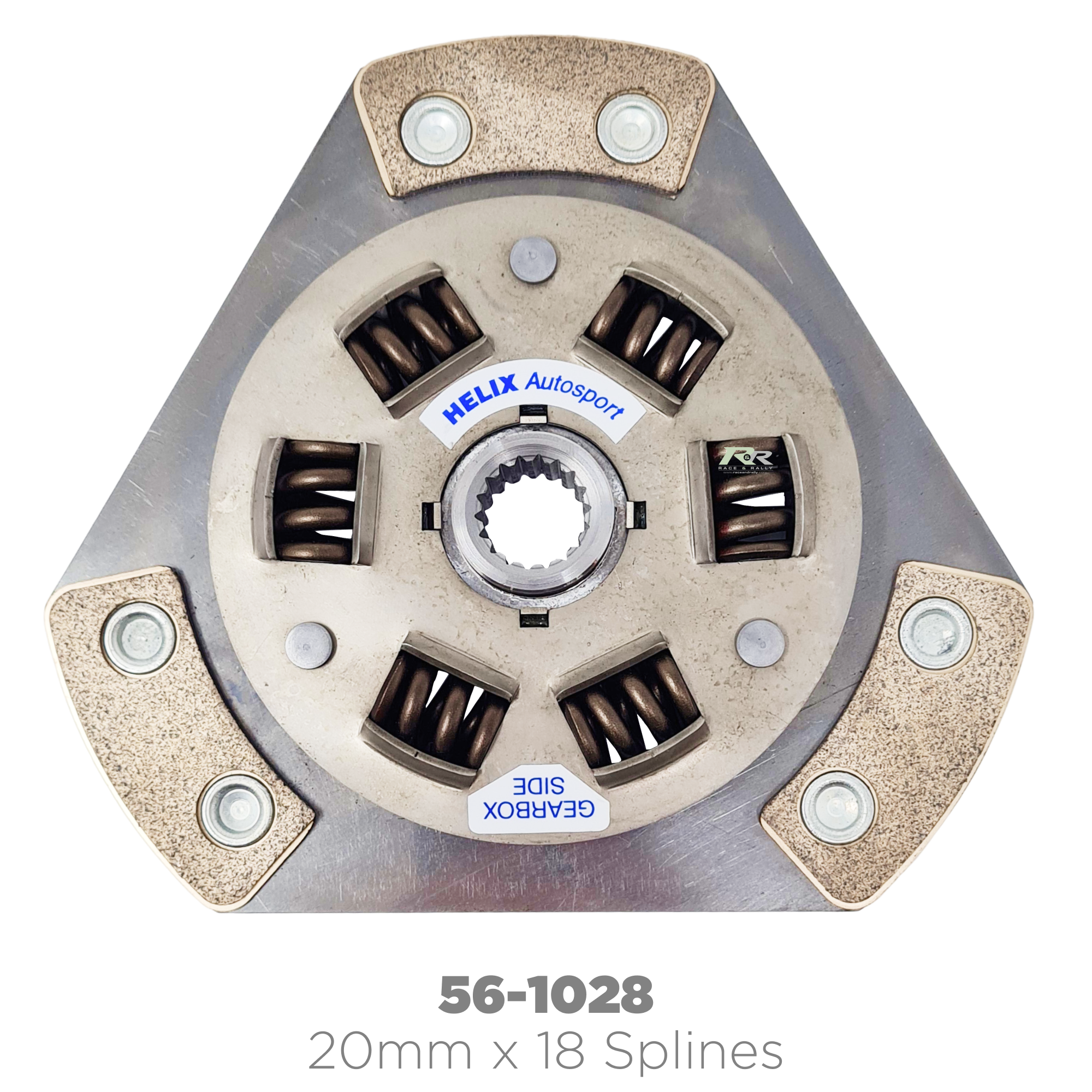

  • Helix Autosport 3-paddle riveted sprung centre Cerametallic clutch disc with 184mm diameter and 7.2mm thickness, showing detailed construction.
1 3

56-1000 - 3 Paddle Riveted Sprung Centre Cerametallic Clutch (Ø184mm x 7.20mm)

56-1000 - 3 Paddle Riveted Sprung Centre Cerametallic Clutch (Ø184mm x 7.20mm)

56-1028

€230.12 €283.05
Sale Sold out
  • Feature Icon Ø184mm
  • Feature Icon 3 Paddle Riveted
  • Feature Icon Sprung Centre

Out of stock
View full details

Helix Autosport 56-1000 Series
3-Paddle Sprung Centre Cerametallic Drive Plate

Sprung centre cerametallic drive plates has the same properties as the rigid cerametallic drive plate, but with the addition of damper springs to cushion the impact of clutch engagement on the driveline components.

**Only available for use on single plate clutch applications

4-paddle optiosn also available - 56-2000 series

Technical Details:

  • 3 Paddle
  • Ø184mm // 7.25"
  • 7.20mm Thickness New
  • 6.30mm Thickness Worn (mininium)
  • Riveted Cerametallic
  • Sprung Centre
  • Range of spline sizes available

Part Numbers:

Spline

Ø184mm x 7.20mm

No. of Teeth

Outside Diameter

Helix Autosport

Vehicle Make

Vehicle Model

Vehicle Year
18 20.00mm 56-1028


Applications:


Make Model Year
Nissan Micra
Brand Helix Autosport
SKU Barcode
56-1028

Brand Part Number
AP Racing CP8300-A135
