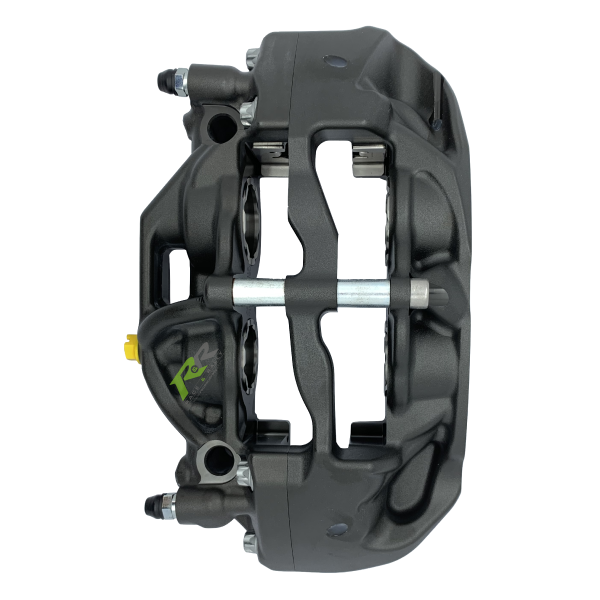

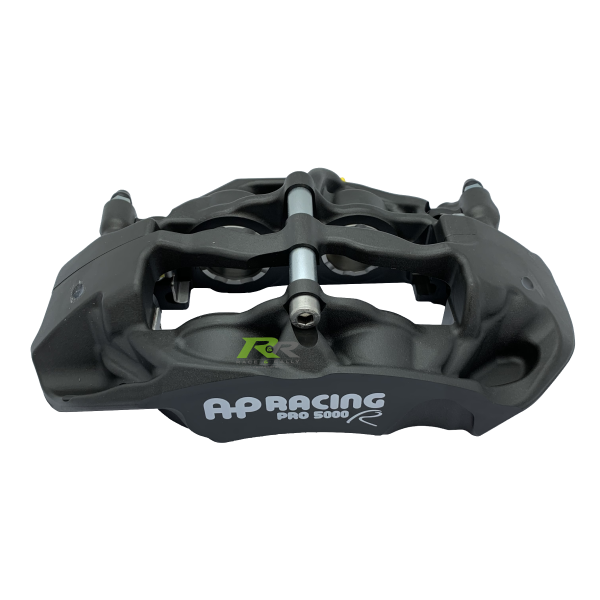

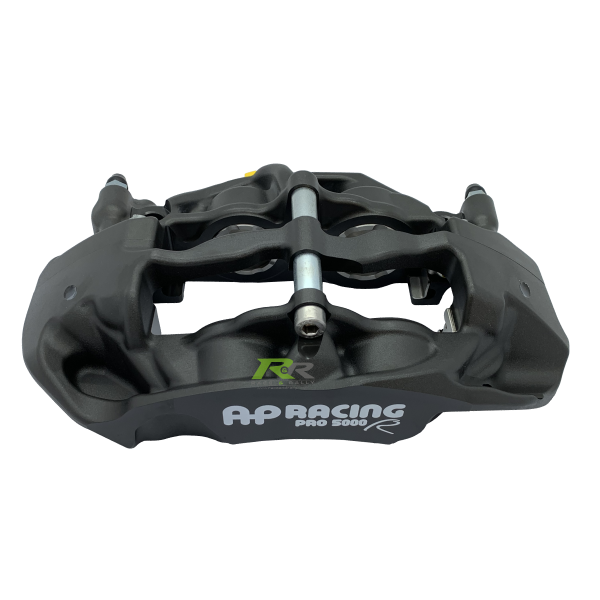

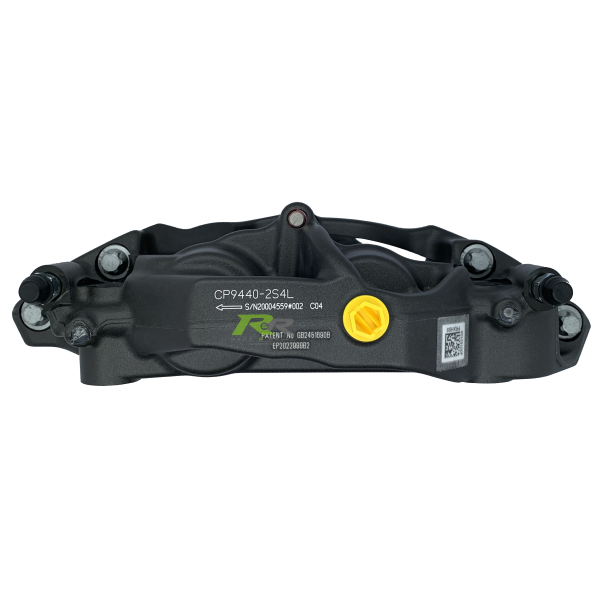

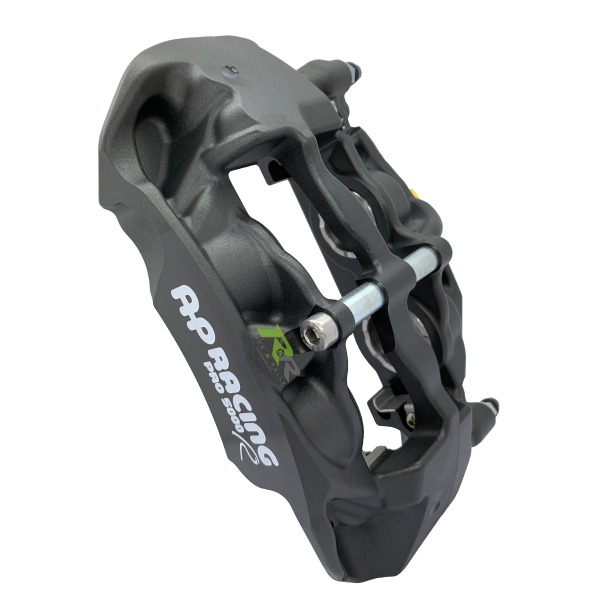

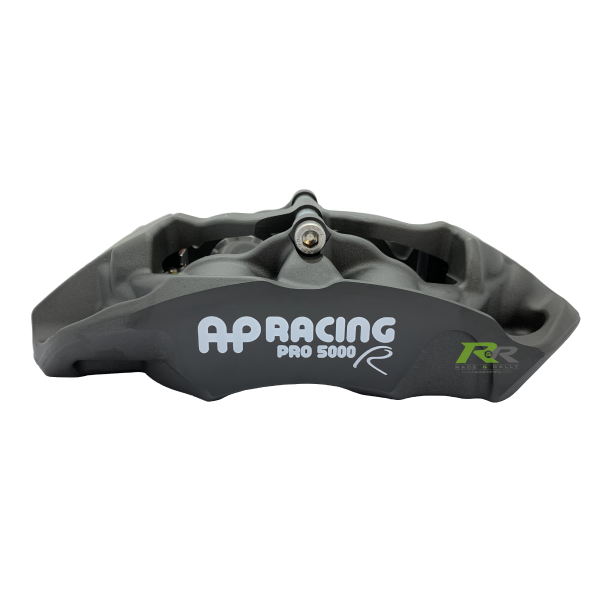

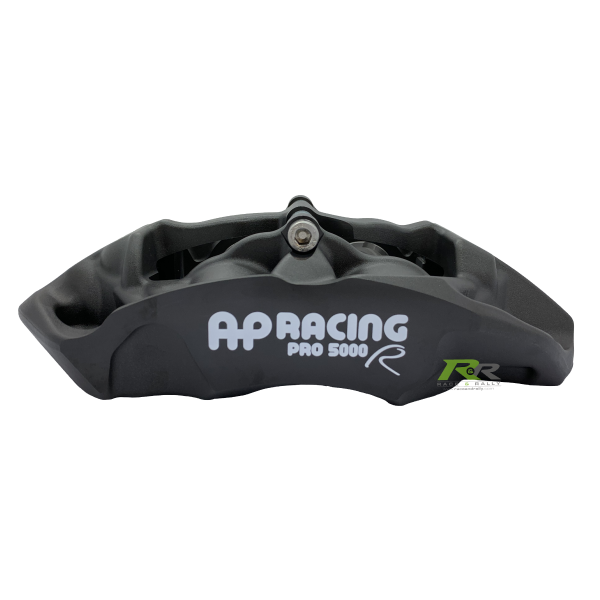

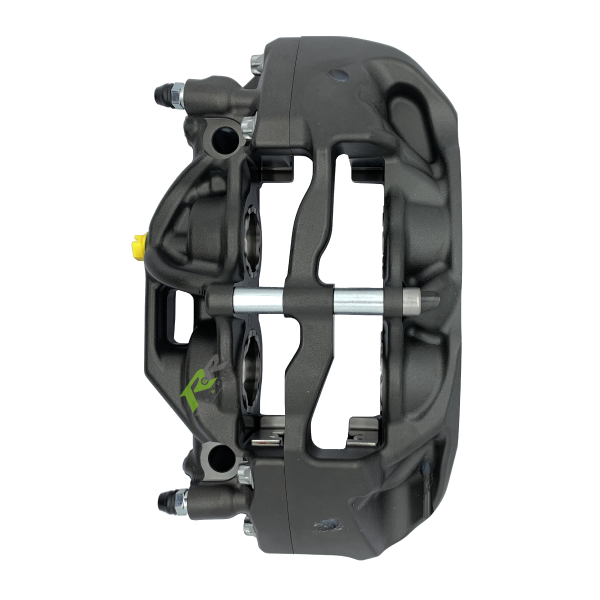

CP9440 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper

CP9440 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper

CP9440-2S4L

€718.69 €883.99
Sale Sold out
  • Feature Icon 4-Piston
  • Feature Icon Pro 5000 R
  • Feature Icon Internally Ported
  • Feature Icon Stainless Steel Pistons
Piston Size
Caliper Hand
View Docs

In stock
View full details

4 Piston - CP9440-2 / -3S4L - Front - 47.12cm² Piston Area

Applications:

  • Budget, general competition use.
  • Single make race series.

Features:

  • Benefits from a radical asymmetric design concept.
  • Superior dynamic performance.
  • Increased stiffness.
  • Forged, two piece aluminium alloy body.
  • Radial mount, 152.0mm x 44.0mm centres.
  • Suits Ø330.0mm or 315.0mm x 28mm thick disc.

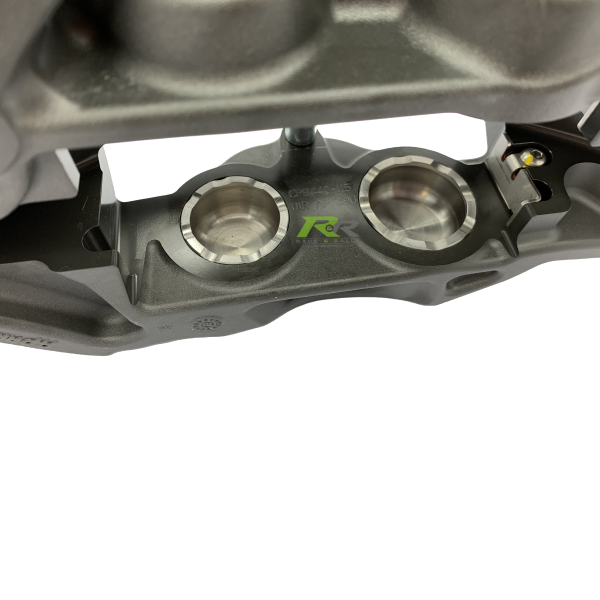

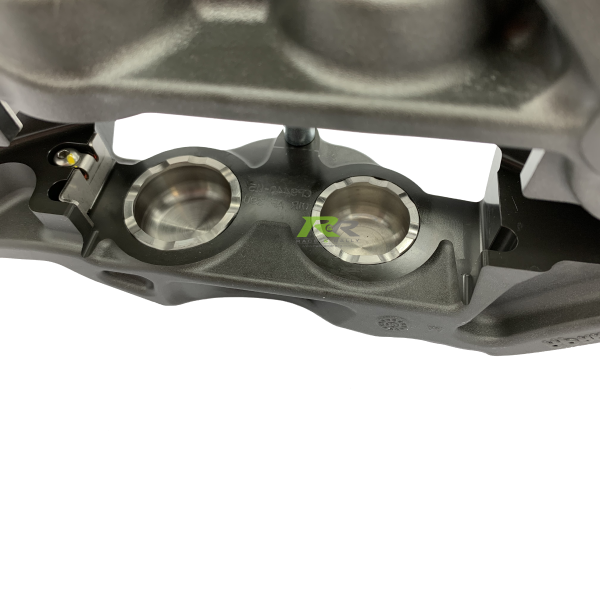

  • Stainless Steel Pistons.
  • High temperature seals.
  • 4lb Anti-knockback springs fitted.
  • Stainless Steel wear plates.
  • Smaller bore version for rear applications available - CP9441 family.

Part Numbers:

Front or Rear caliper / Bore Sizes, Ø36.0mm x 2 - Ø41.3mm x 2.

  • Right-hand = CP9440-2S4L

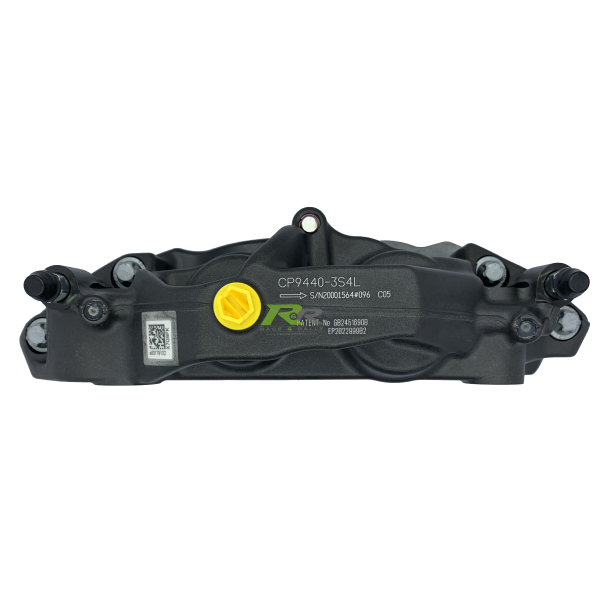

  • Left-hand = CP9440-3S4L

Technical Specifications:

 Piston Sizes Ø36.0mm x 2
Ø41.3mm x 2
Piston Area 47.12 cm²
Disc Diameter

Max = 330.0mm
Min = 315.0mm
Disc Thickness

28.00mm
Weight (no pads) 2.16 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 152.00mm
Mounting Offset 44.00mm
Mounting Hole Ø 12.27 - 21.17mm
'PL' Dimension 57.80mm
Bleed Screw Tightening Torque 17Nm



Spare Parts

Pistons

Ø36.0 = CP9440-107
Ø41.3 = CP9440-106
Seal Repair Kit CP8518-HK
Pad Retainer Tub - CP9440-110
Pad Retainer Bolt CP6720-110 x2
Wear Plates RH = CP9440-108
LH = CP9440-109
Bleed Screw CP3880-1



Brake Pads

Pad Shape CP3215D50
CP3215D50 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 57.4cm²
Pad Depth 50.3mm
Thickness 16.8mm



Brand AP Racing
Option SKU Barcode
Ø36.0mm x2 & Ø41.3mm x2 / Right Hand CP9440-2S4L
Ø36.0mm x2 & Ø41.3mm x2 / Left Hand CP9440-3S4L

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
