CP2361 - 4 Piston Closed Backed "Forest Spec" Caliper - Machined

Name: CP2361 - 4 Piston Closed Backed "Forest Spec" Caliper - Machined
Brand: AP Racing
SKU: CP2361-96S4QR-FORD
Price: 1001.32 GBP
Availability: InStock

SKU:CP2361-96S4QR-FORD

€1001.32 €1231.62

Sale Sold out

4-Piston
Historic Closed Back Caliper
[Pad Shape: CP2340D43]
[Pad Shape: CP2340D51]

Piston Diameter Ø38.1mm x4

Machining Specifcations to Suit Ford Strut to Suit Sunbeam Strut

Caliper Hand Right Hand Left Hand

Quantity

Out of stock, contact for leadtime

View full details

CP2361 - 4 Piston Closed Back "Forest Spec" Caliper
- Machined for Sunbeam or Ford Struts

Applications:

Front Caliper suitable for 13" wheels
Rally
Sports GT
Used in Race and Rally Brake Kits

Features:

Blank Lug mount
Closed back Aluminium alloy body
Hard anodised surface treatment
Suits Ø267.0 to Ø248.0 x 20.7mm disc
Aluminium alloy Pistons
High temperature seals
Blank Options available here

Part Numbers:

Machined for Ford Strut

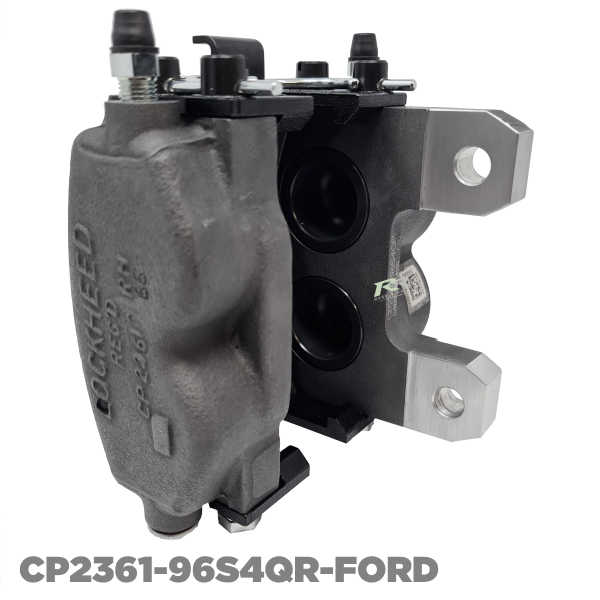

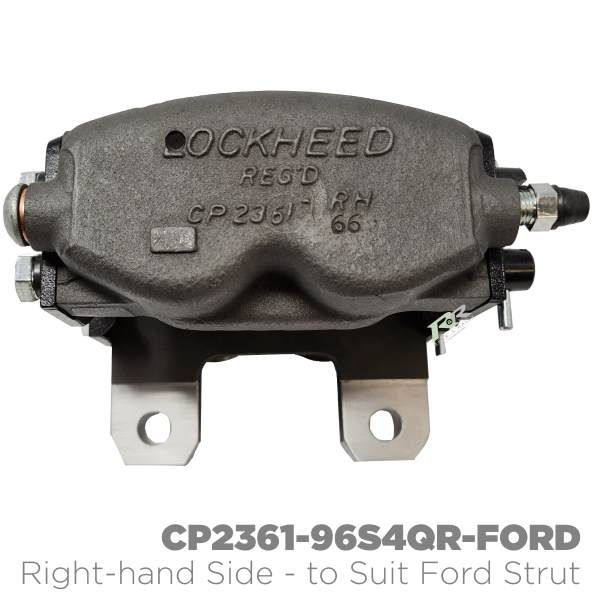

- Right Hand - CP2361-96S4QR-FORD

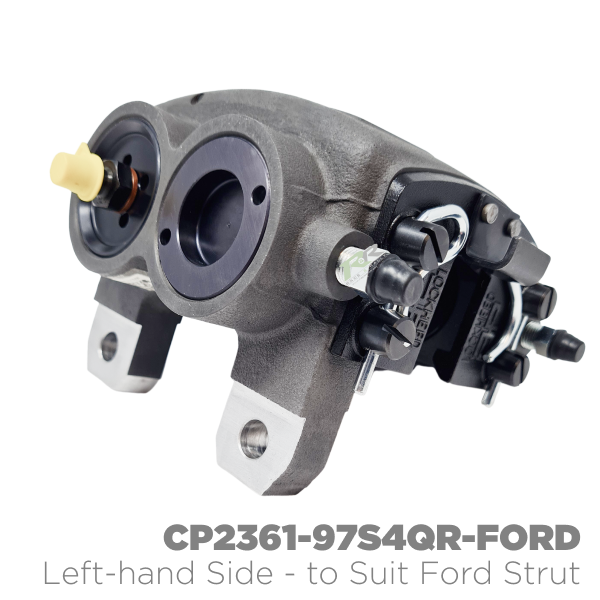

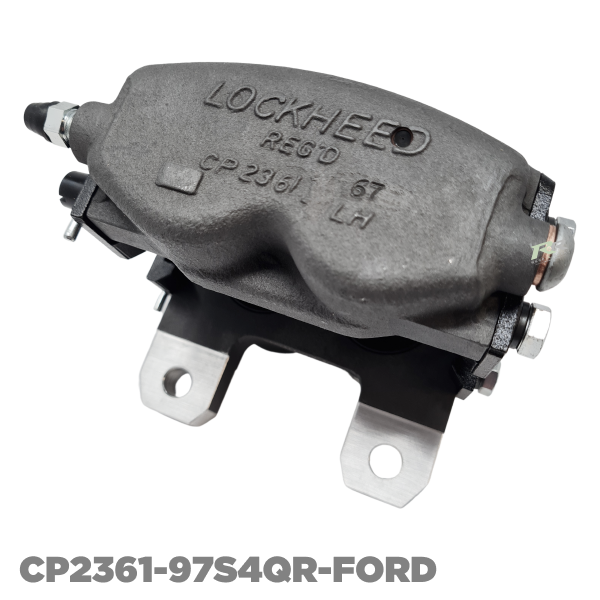

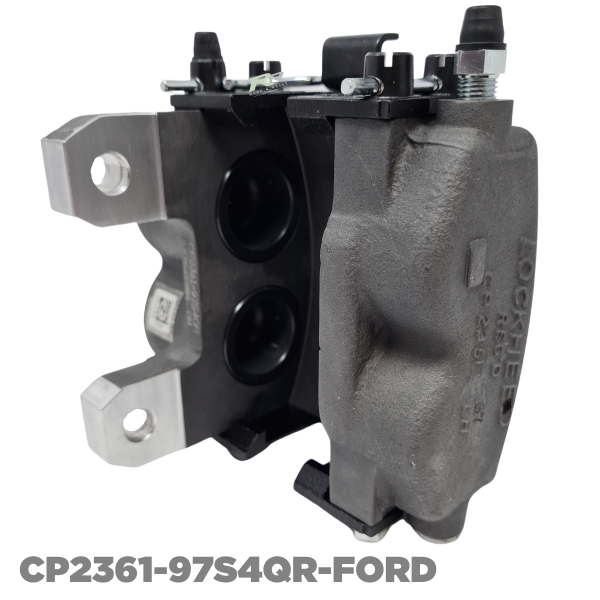

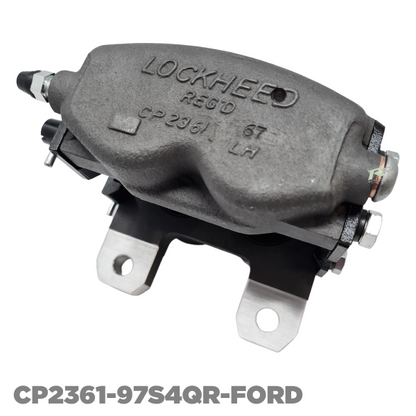

- Left Hand - CP2361-97S4QR-FORD
Machined for Sunbeam Strut

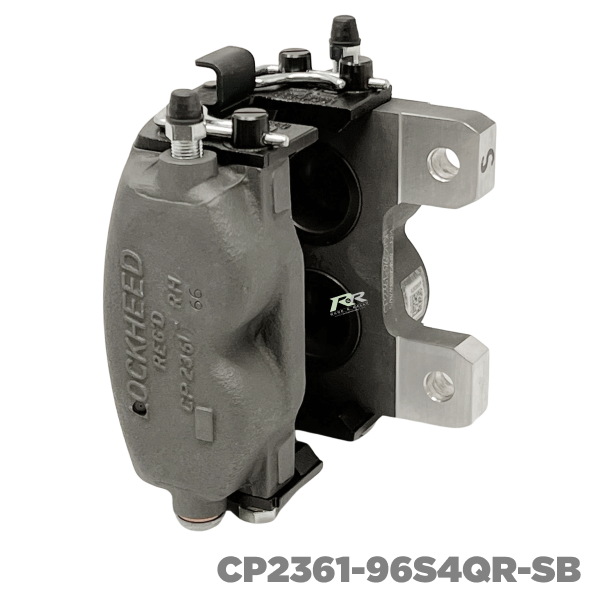

- Right Hand - CP2361-96S4QR-SB

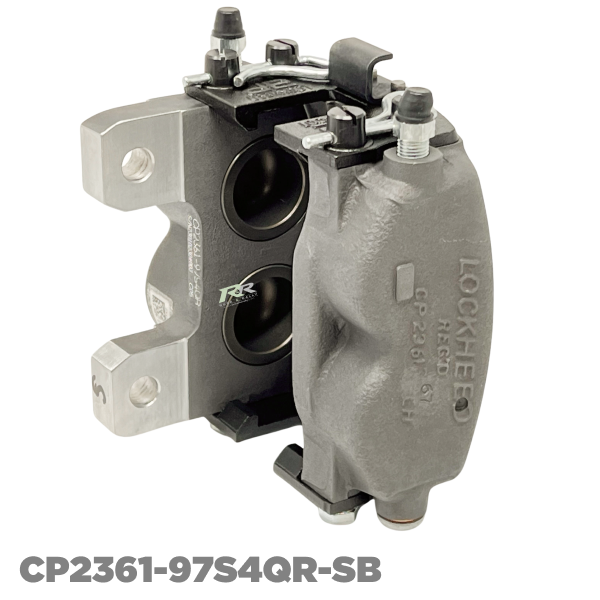

- Left Hand - CP2361-97S4QR-SB

Technical Specifications:

Piston Sizes	Ø38.1mm x 4
Piston Area	45.6 cm²
Disc Diameter	Max - Ø267mm Min - Ø248mm
Disc Thickness	20.70mm
Weight (no pads)	2.0 Kg
Hydraulic Threads	3/8" x 24UNF
Mounting Type	Blank Lug
Mounting Centres	Ford - Sunbeam -
Mounting Offset	Ford - Sunbeam -
'PL' Dimension	55.1mm / 81.2mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP2260-66
Seal Repair Kit	CP4518-JJ
Anti-knockback Springs	CP6518-4LBLL
Quick Release End Plate
Quick Release End Plate R-Clip	CP2361-9
Bleed Screw	CP3720-182
Bleed Screw Cap	CP2494-177
Brake Caliper Bracket - Grp4 Bilstein Upright	RWR2361

Brake Pads

Pad Shape	CP2340D43
Pad Area	40.4cm²
Pad Depth	43.1mm
Thickness	15.9mm

Pad Shape	CP2340D51
Pad Area	43.4cm²
Pad Depth	50.8mm
Thickness	15.9mm

CP2361 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø38.1mm x4 / to Suit Ford Strut / Right Hand	CP2361-96S4QR-FORD
Ø38.1mm x4 / to Suit Ford Strut / Left Hand	CP2361-97S4QR-FORD
Ø38.1mm x4 / to Suit Sunbeam Strut / Left Hand	CP2361-97S4QR-SB
Ø38.1mm x4 / to Suit Sunbeam Strut / Right Hand	CP2361-96S4QR-SB
