CP2271 - 4 Piston Closed Backed "Monte Carlo" Caliper - Machined

Name: CP2271 - 4 Piston Closed Backed "Monte Carlo" Caliper - Machined
Brand: AP Racing
SKU: CP2271-183S4QR-FORD
Price: 1124.06 GBP
Availability: InStock

SKU:CP2271-183S4QR-FORD

€1124.06 €1382.59

Sale Sold out

Front Caliper Suitable For 13" to 16" Wheels
Closed Back 'Monte Carlos'
Machined to Suit Ford Strut with Extra Wheel Clearance
[Pad Shape: CP2270D50]

Piston Size Ø38.1mm x4

Machining Specifcations to Suit Ford Strut with Extra Wheel Clearance

Caliper Hand Left Hand Right Hand

Quantity

In stock

View full details

CP2271 - 4 Piston Closed Backed "Monte Carlo" Caliper
- Machined for Ford Escort

Applications:

Front Caliper suitable for 13" to 16" wheels
Rally
Sports GT
Saloons

Features:

Machined Lug mount
- Ford Escort Fitment

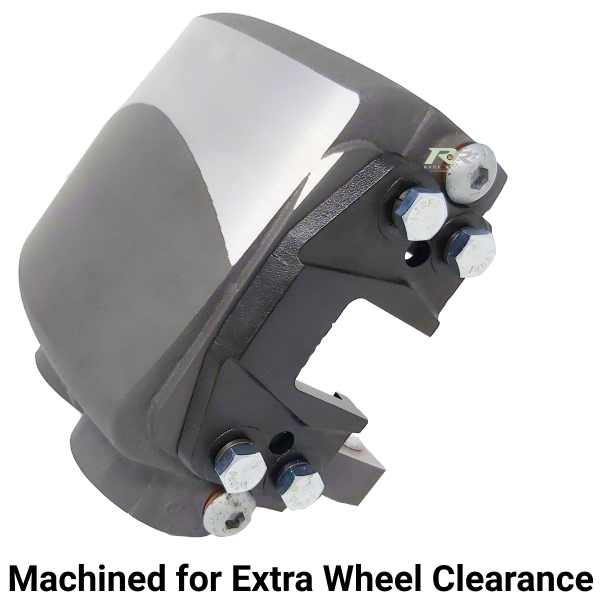

Machined for extra wheel clearance
Closed back Aluminium alloy body
Hard anodised surface treatment
Suits Ø302.0 to 260.0 x 28.0mm disc
Aluminium alloy Pistons
High temperature seals

Part Numbers:

Machined for Ford Escort Strut

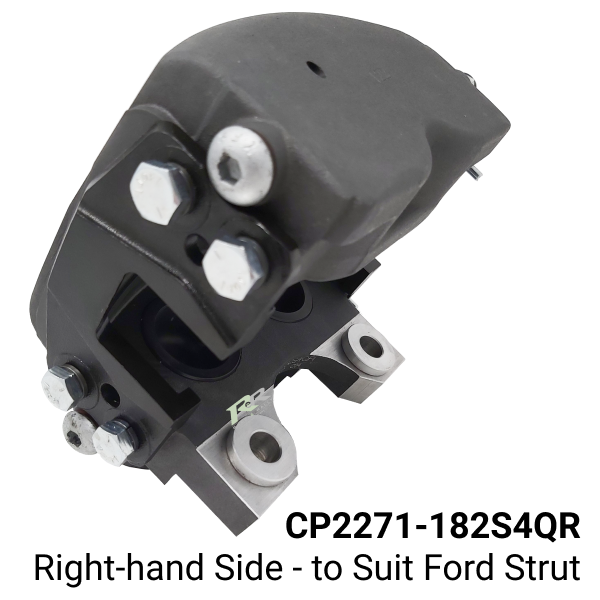

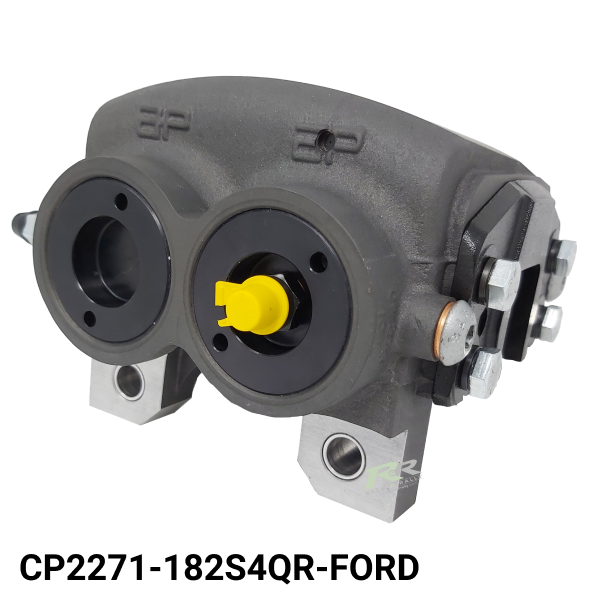

- Right Hand - CP2271-182S4QR-FORD

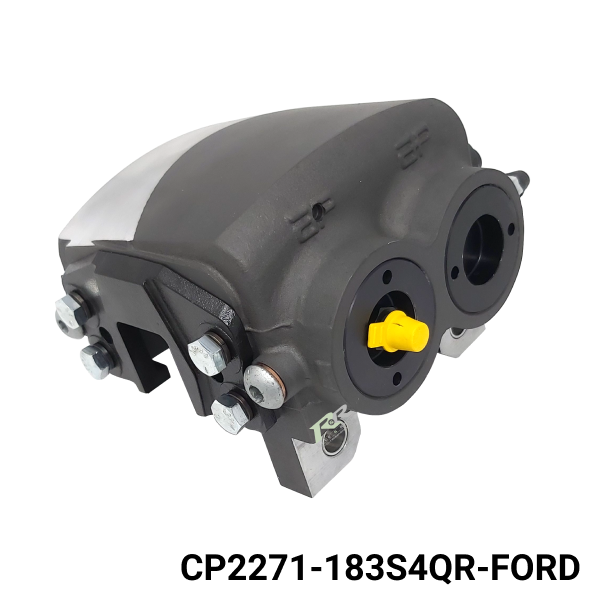

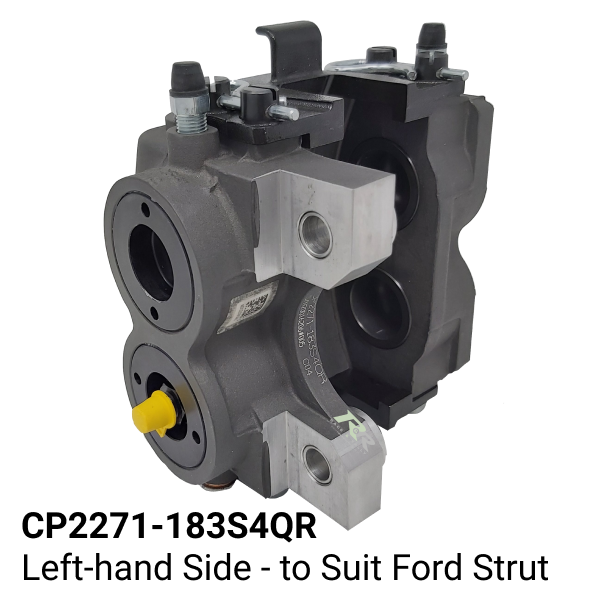

- Left Hand - CP2271-183S4QR-FORD

Technical Specifications:

Piston Sizes	Ø38.1mm x4
Piston Area	45.6 cm²
Disc Diameter	Max - Ø 302.0mm Min - Ø260.0mm
Disc Thickness	28mm
Weight (no pads)	2.7 Kg
Hydraulic Threads	3/8" x 24UNF
Mounting Type	Machined Lug
Mounting Centres
Mounting Offset	33.3mm / 42.4mm
'PL' Dimension	66.3mm / 85.6mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP2260-66
Seal Repair Kit	CP4518-JJ
Anti-knockback Springs	CP6518-4LBLL
Quick Release End Plate
Quick Release End Plate R-Clip	CP2361-9
Bleed Screw	CP3720-182
Bleed Screw Cap	CP2494-177

Brake Pads

Pad Shape	CP2270D50
Pad Area	56.3cm²
Pad Depth	50.3mm
Thickness	16.6mm

CP2271 - Customer Drawing.pdf

Applications:

Make	Model	Year
Ford	Escort MK1
Ford	Escort MK2

Option	SKU	Barcode
Brand	AP Racing
Ø38.1mm x4 / to Suit Ford Strut with Extra Wheel Clearance / Left Hand	CP2271-183S4QR-FORD
Ø38.1mm x4 / to Suit Ford Strut with Extra Wheel Clearance / Right Hand	CP2271-182S4QR-FORD
