CP2361 - 4 Piston Closed Back "Forest Spec" Caliper

SKU:CP2361-97S4QR

€989.99 €1217.69

Sale Sold out

Piston Diameter Ø38.1mm x4

Caliper Hand Left Hand Right Hand

Quantity

In stock

View full details

CP2361 - Closed Backed Caliper

Applications:

Front Caliper suitable for 13" wheels.
Rally.
Sports GT.

Features:

Blank Lug mount.
Closed back Aluminium alloy body.
Hard anodised surface treatment.
Suits Ø267.0 to Ø248.0 x 20.7mm disc.
Aluminium alloy Pistons.
High temperature seals.

Part Numbers:

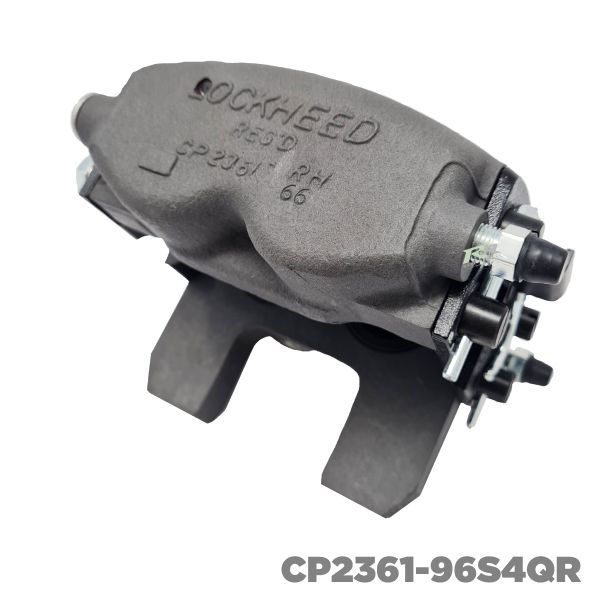

Right Hand = CP2361-96S4QR

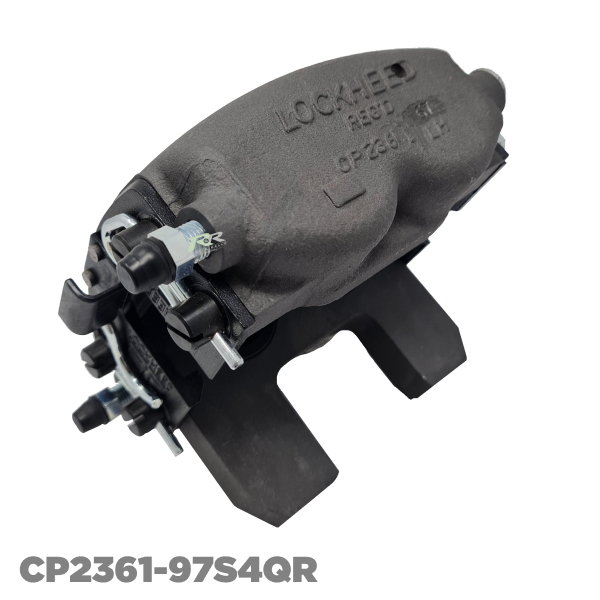

Left Hand = CP2361-97S4QR

Technical Specifications:

Piston Sizes	Ø38.1mm x 4
Piston Area	45.6 cm²
Disc Diameter	Max - Ø267mm Min - Ø248mm
Disc Thickness	20.70mm
Weight (no pads)	2.0 Kg
Hydraulic Threads	3/8"x24UNF
Mounting Type	Blank Lug
Mounting Centres	76.2mm / 94.0mm
Mounting Offset	28.7mm / 31.2mm
'PL' Dimension	55.1mm / 81.2mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP2260-66
Seal Repair Kit	CP4518-JJ
Anti-knockback Springs	CP6518-4LBLL
Bleed Screw	CP3720-182

Brake Pads

Pad Shape	CP2340D43
Pad Area	40.4cm²
Pad Depth	43.1mm
Thickness	15.9mm

Pad Shape	CP2340D51
Pad Area	43.4cm²
Pad Depth	50.8mm
Thickness	15.9mm

CP2361 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø38.1mm x4 / Left Hand	CP2361-97S4QR
Ø38.1mm x4 / Right Hand	CP2361-96S4QR

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
