• CP2494
1 1

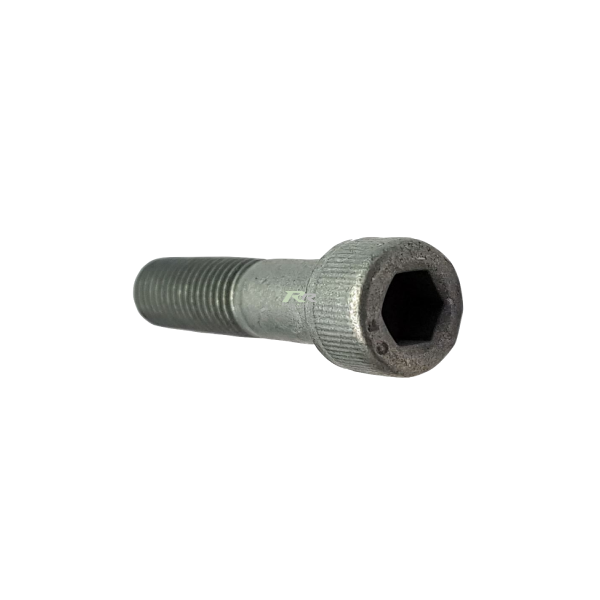

1/4" UNF Performance Road Mounting Bolt - Cap Head

1/4" UNF Performance Road Mounting Bolt - Cap Head

CP2494-116

€1.79 €2.20
Sale Sold out
  • Feature Icon 1/4" UNF Cap Head Bolt
  • Feature Icon Suited for Performance Road Applications
  • Feature Icon Different Lengths Available
Stud Length
QTY of Fixing Bolts

View full details

For Performance Road applications a bolted mounting is generally used for strength and simplicity.

Standard AP Racing disc mounting hole size is 6.40 / 6.45mm in diameter. Disc to mounting bell Tightening Torque 14.0Nm (10.5 lbs ft).

Sizes Available:

  • CP2494-116 0.25" UNF x 0.875"
    (22.22mm long, plain section 11mm, full thread 9mm).
  • CP2494-331 0.25" UNF x 1.062"
    (27.0mm long, plain section 9mm, full thread 16mm).
  • CP2494-718 0.25" UNF x 1.00"
    (25.4mm long, plain section 14mm, full thread 9mm).
  • CP2494-117 0.25" UNF Nut, 7.3mm height.
    CP2494-1305 0.25" Stainless Steel Washer, 0.9mm thick.

Note: Disc mounting tightening torque - 14Nm (10.5lb/ft)

Brand AP Racing
Option SKU Barcode
22.23mm / 1 (Single Pack) CP2494-116
22.23mm / 100 (Box) CP2494-116K100
25.40mm / 1 (Single Pack) CP2494-718
25.40mm / 100 (Box) CP2494-718K100

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
