• CP3845-Drawing
  • CP3845-100
1 2

1/4" UNF E8 - 6 Lobe Headed Bolts

1/4" UNF E8 - 6 Lobe Headed Bolts

CP3845-100

€0.98 €1.21
Sale Sold out
  • Feature Icon 1/4" UNF Thread
  • Feature Icon E8- 6 Lobe Headed bolts
  • Feature Icon Lightweight
Stud Length
QTY

View full details

AP Racing have changed the cap headed bolts historically used for mounting discs to bells, to an E8 – 6 Lobe bolt with an improved low friction coating, see table below.

**Note: AP Racing standard disc mounting hole size is 6.40 / 6.45mm diameter. AP Racing recommend a bolt/nut tightening torque for a disc and bell of 14Nm (10.5Lb/ft)

Advantages over Cap Head Bolts:

  • More positive drive
  • More consistent clamping loads
  • Lighter
  • Better corrosion resistance
  • Less prone to damage
  • Improved airflow

Part Numbering

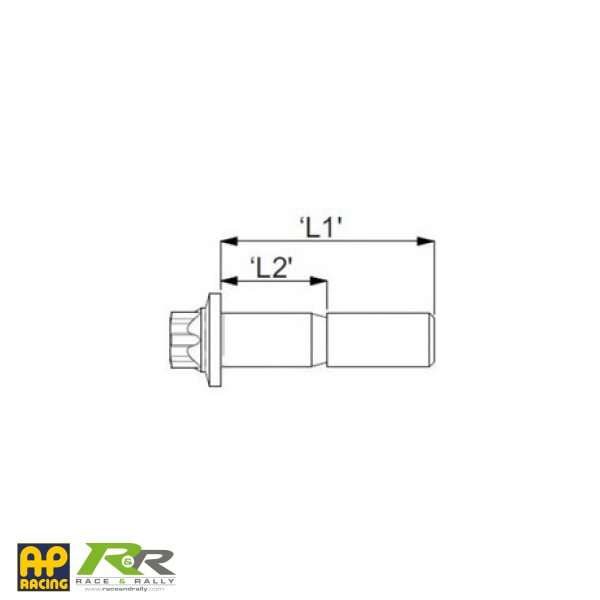

CP3845-Drawing

CP3845-100

Installation

Mounting Installations - CP3845

Brand AP Racing
Option SKU Barcode
22.20mm / 1 (Single Pack) CP3845-100
22.20mm / 100 (Box) CP3845-100K100
25.40mm / 1 (Single Pack) CP3845-101
25.40mm / 100 (Box) CP3845-101K100
27.00mm / 1 (Single Pack) CP3845-102
27.00mm / 100 (Box) CP3845-102K100

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
