• 1/4" UNF Performance Road Mounting Bolt Kit - Race and Rally
1 1

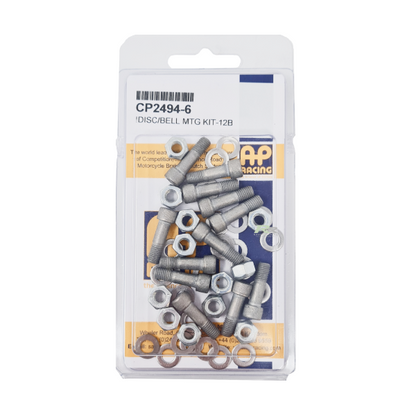

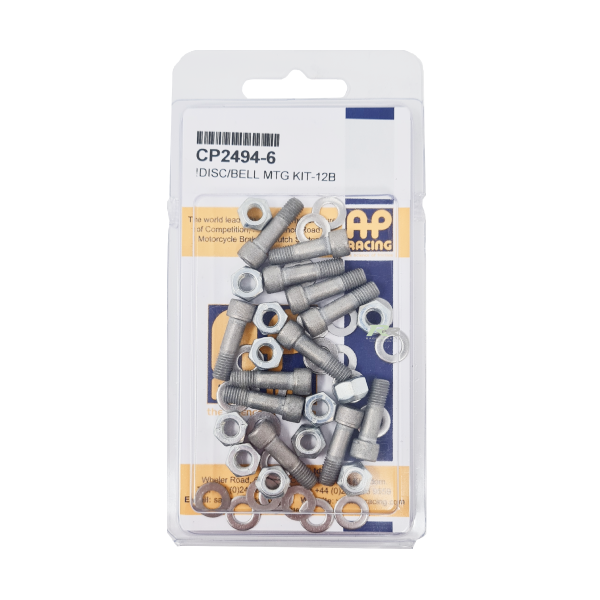

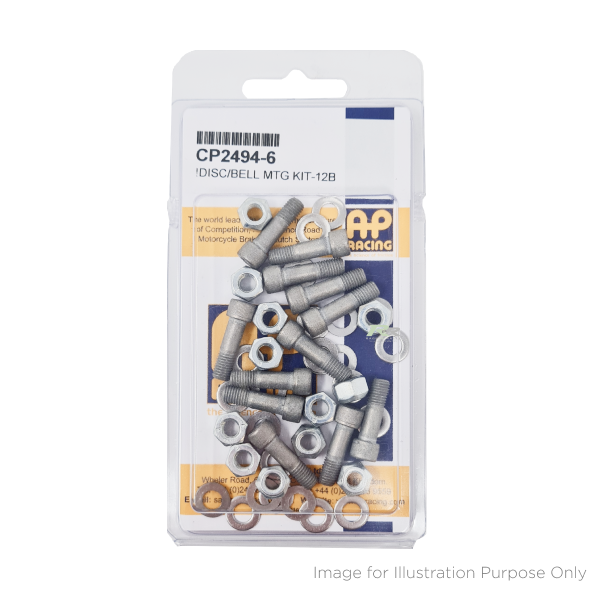

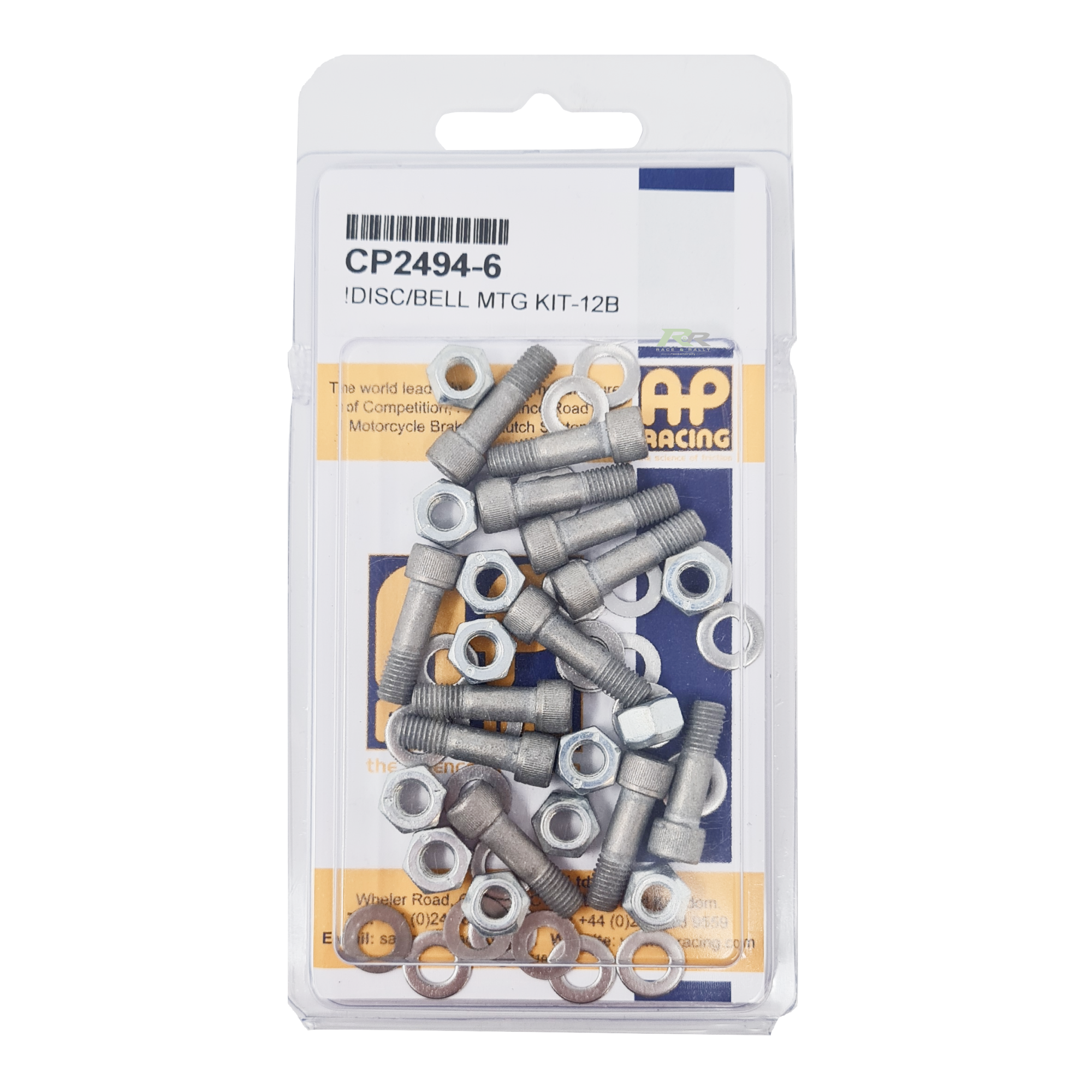

1/4" UNF Performance Road Mounting Bolt Kit

1/4" UNF Performance Road Mounting Bolt Kit

CP2494-6

€23.94 €29.45
Sale Sold out
  • Feature Icon 1/4" UNF Cap Head Bolt
  • Feature Icon Suited for Performance Road Applications
  • Feature Icon Different Lengths Available
  • Feature Icon Kit Includes Bolts - Nuts - Washers
QTY of Fixing Bolts
Stud Length
View full details

For Performance Road applications a bolted mounting is generally used for strength and simplicity.

Standard AP Racing disc mounting hole size is 6.40 / 6.45mm in diameter.

Kit Contents:

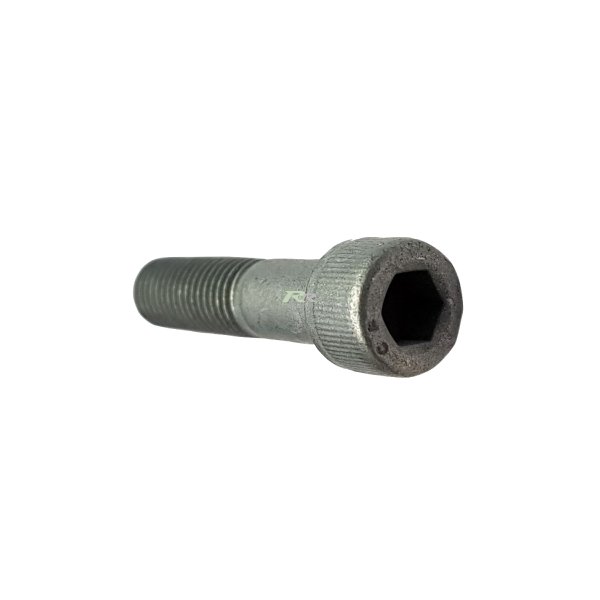

  • 1/4" UNF Bolts
  • 1/4" UNF Lock Nuts
  • 1/4" Flat washers

Sizes Available:

  • CP2494-6
    • 0.25" x 0.875"
    • 22.22mm Long, plain section 11mm, full thread 9mm
    • 12 bolt kit

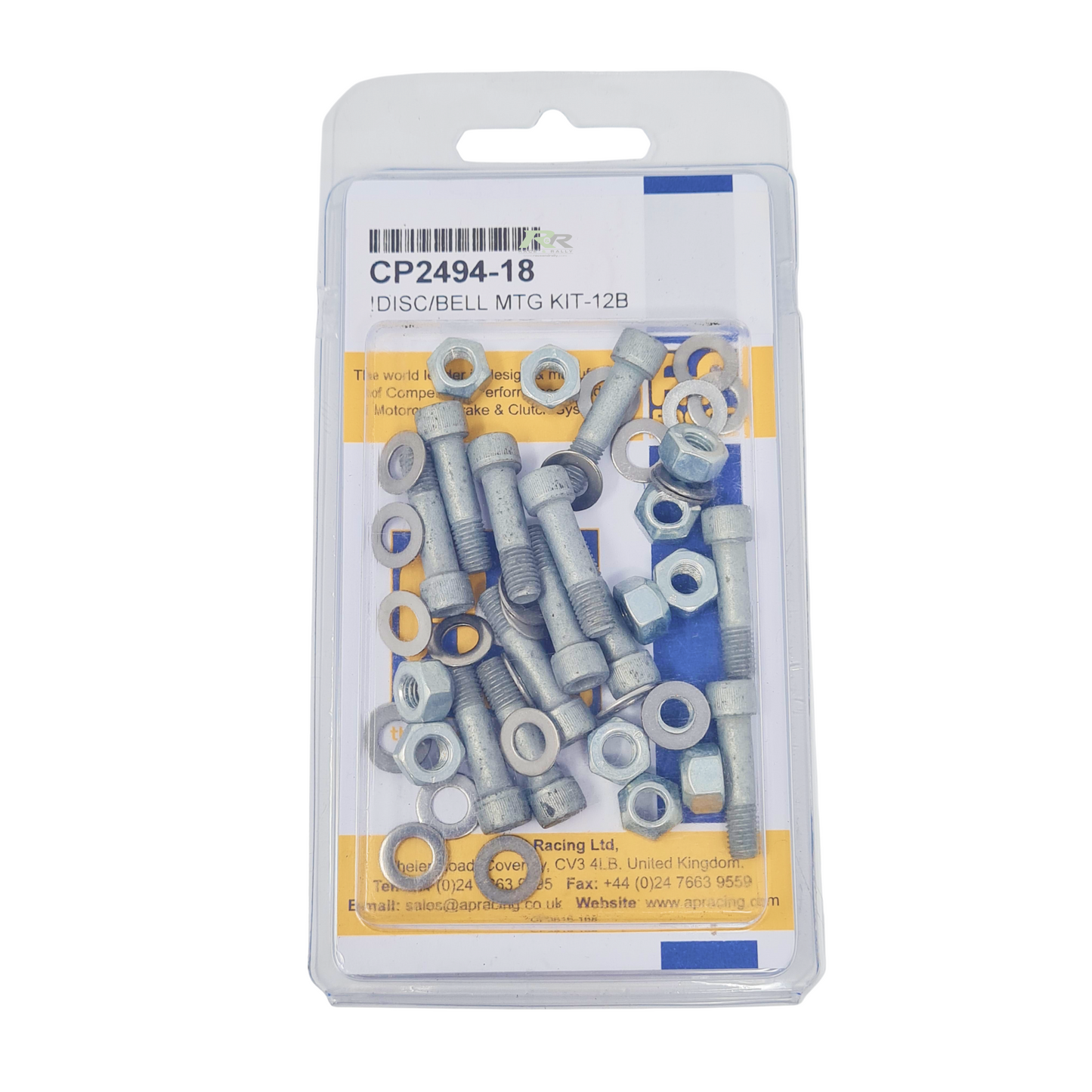

  • CP2494-18
    • 0.25" x 1.00"
    • 25.4mm Long, plain section 14mm, full thread 9mm
    • 12 bolt kit

Note: Disc mounting tightening torque - 14Nm (10.5lb/ft)

Brand AP Racing
Option SKU Barcode
12 / 22.23mm CP2494-6
12 / 25.40mm CP2494-18

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
