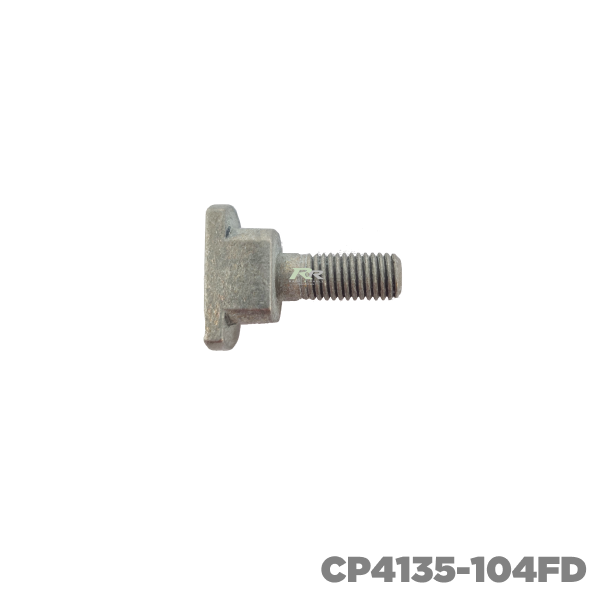

CP4135 - 1/4" Forged one piece bobbin & stud

CP4135 - 1/4" Forged one piece bobbin & stud

CP4135-102FC

€8.82 €10.85
Sale Sold out
  • Feature Icon 1/4" UNF
  • Feature Icon Heavy duty wide bobbin
  • Feature Icon Unrestricted airflow
  • Feature Icon One piece bobbin & Stud
  • Feature Icon ** Sold individually**
  • Feature Icon Refer to drawing to refine
Dimension 'A'
Dimension 'L'

View full details

A forged one-piece bobbin & stud providing improved and unrestricted airflow

Refer to the drawings below for bobbin options:

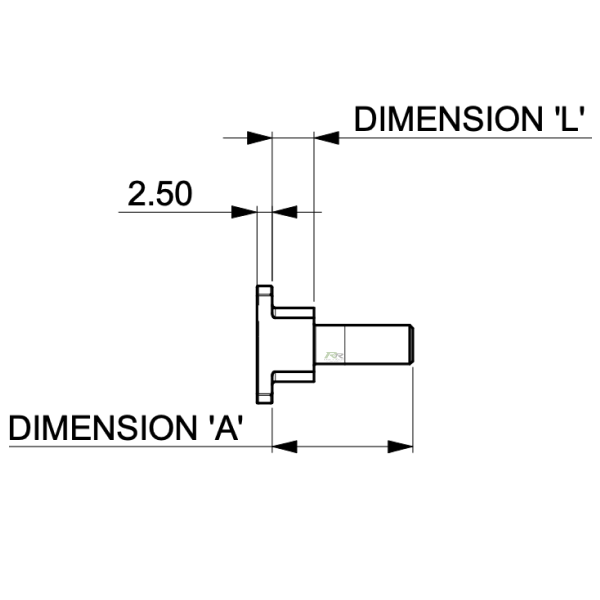

CP4135 - Drawing

CP4135 - Table

Note: Special tool is available, CP4015-137 to change bobbin orientation whilst assembling both CP4135 and C7016 bobbins.

**Replaces CP4015 bobbins

Brand AP Racing
Option SKU Barcode
21.8 / 21.2mm / 5.5 / 5.4mm CP4135-102FC
22.0 / 21.4mm / 5.7 / 5.6mm CP4135-103FE
22.2 / 21.6mm / 5.9 / 5.8mm CP4135-104FD
22.9 / 22.3mm / 6.6 / 6.5mm CP4135-105FM
23.1 / 22.5mm / 6.8 / 6.7mm CP4135-106FP
23.6 / 23.0mm / 7.3 / 7.2mm CP4135-107FR
24.3 / 23.7mm / 8.0 / 7.9mm CP4135-108FS
23.45 / 22.85mm / 7.15 / 7.05mm CP4135-109FQ

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
