Ø248mm x 7.1mm Solid Brake Disc with Integral Bell - 4 x 95.25mm PCD
Ø248mm x 7.1mm Solid Brake Disc with Integral Bell - 4 x 95.25mm PCD
SKU:CP2222-9P
Regular price
€242.93

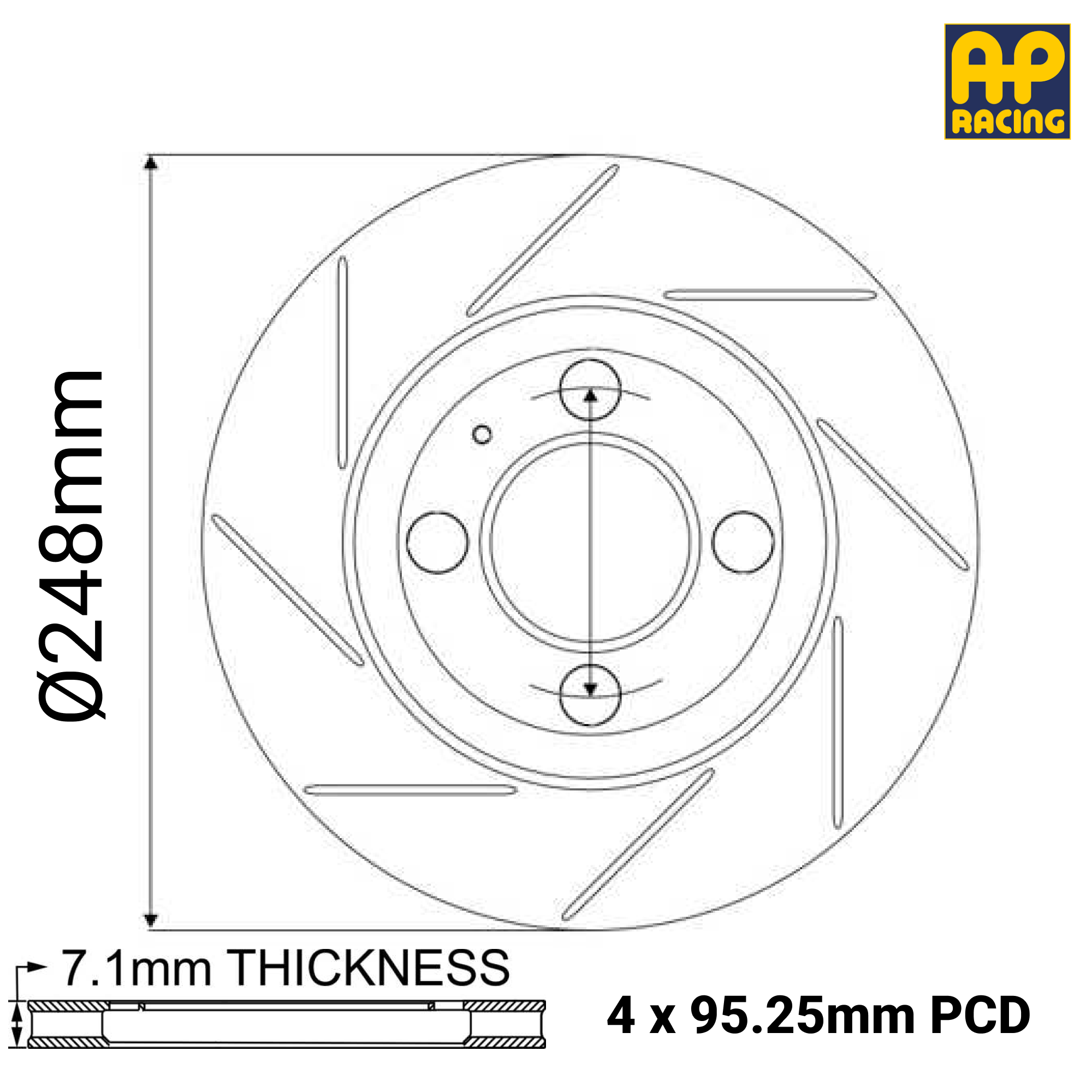

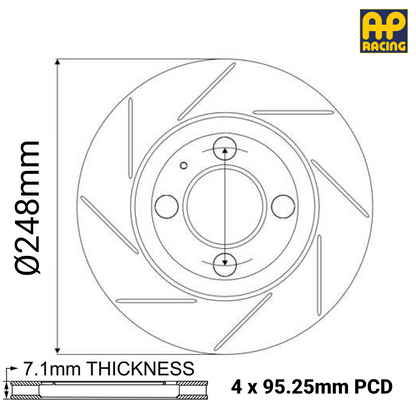

Brake Disc Dimensions
Brake Disc Dimensions
Outside Diameter - 248mm
Thickness - 7.1mm
Mounting P.C.D. - 95.25mm
Mounting Type - 9.5mm Stud Hole
Spigot Diameter - 76.2mm
Eye Diameter: - mm
Inside Flange Diameter - 128.0mm
Mounting Flange Thickness - 5.1mm
Mounting Offset - 32.5mm
Max Pad Depth - D46.0
No. of Vanes -
Air Gap - mm
Weight - 2.4Kg
248mm x 7.1mm Brake Disc Dimensions
Outside Diameter | 248mm |
Thickness | 7.1mm |
Mounting P.C.D. | 95.25mm |
Mounting Type | 9.5mm Stud Hole |
Eye Diameter | mm |
Spigot Diameter | 76.2mm |
Inside Flange Diameter | 128.0mm |
Mounting Flange Thickness | 5.1mm |
Mounting Offset | 32.5mm |
Max Pad Depth | D46.0 |
No. of Vanes | |
Air Gap | |
Weight | 2.4Kg |
Face Types Available |
P - Plain Face
|
Disc Handing |
Universal
|
Notes |
Brand:
AP Racing
Manufacturer Part Number:
CP2222-9P
