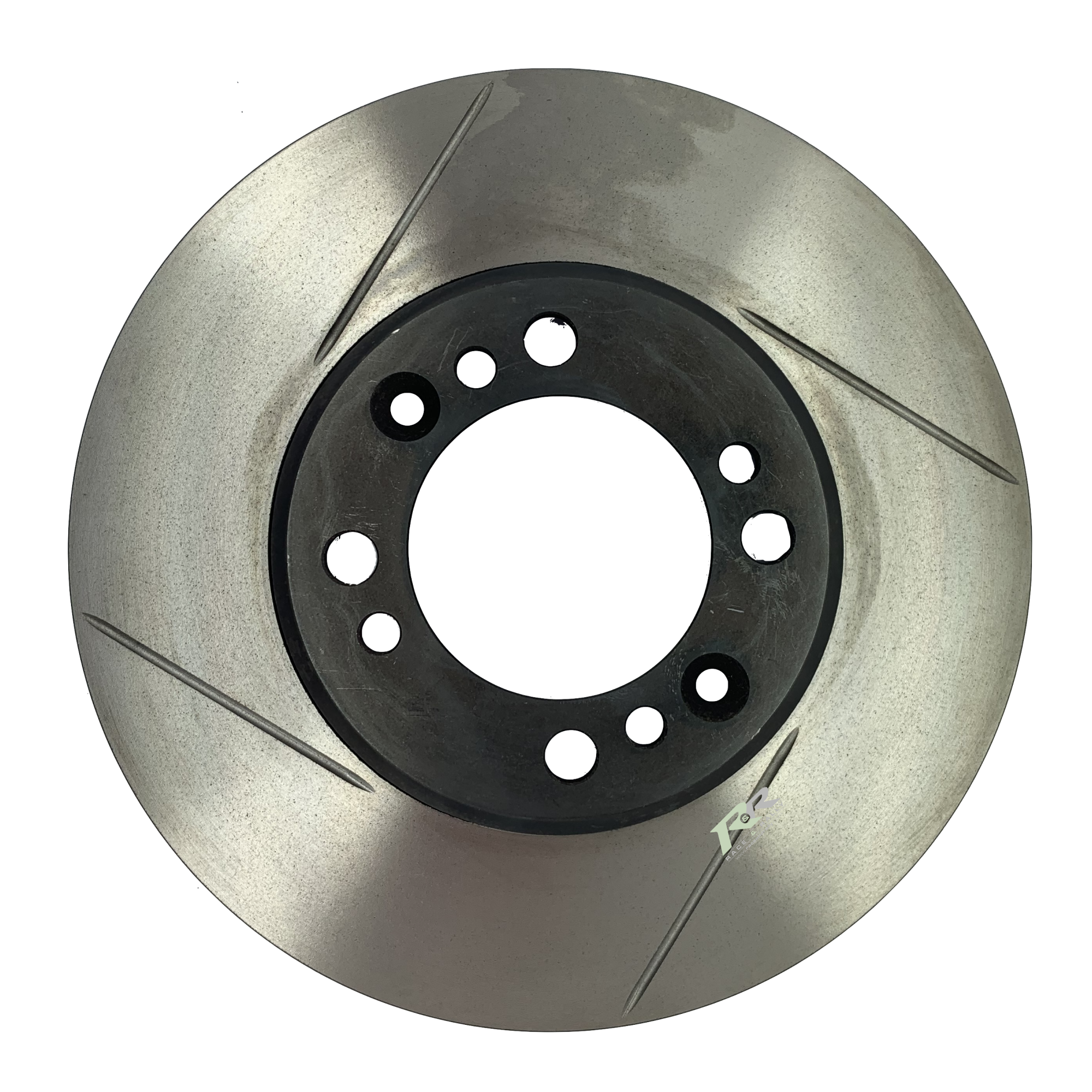

Ø254mm x 9.7mm Solid Brake Disc with Integral Bell - 4 x 100mm PCD

Ø254mm x 9.7mm Solid Brake Disc with Integral Bell - 4 x 100mm PCD

CP2222-273G4

€223.55 €274.97
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 254mm
Thickness 9.7mm
Mounting P.C.D 100.0mm
Mounting Type 12.5mm Stud Hole
Spigot Diameter 72.6mm
Inside Flange Diameter 127.7mm
Mounting Flange Thickness 5.1mm
Mounting Offset 31.5mm
Max Pad Depth 43.0mm
Weight 2.8kg
View full details

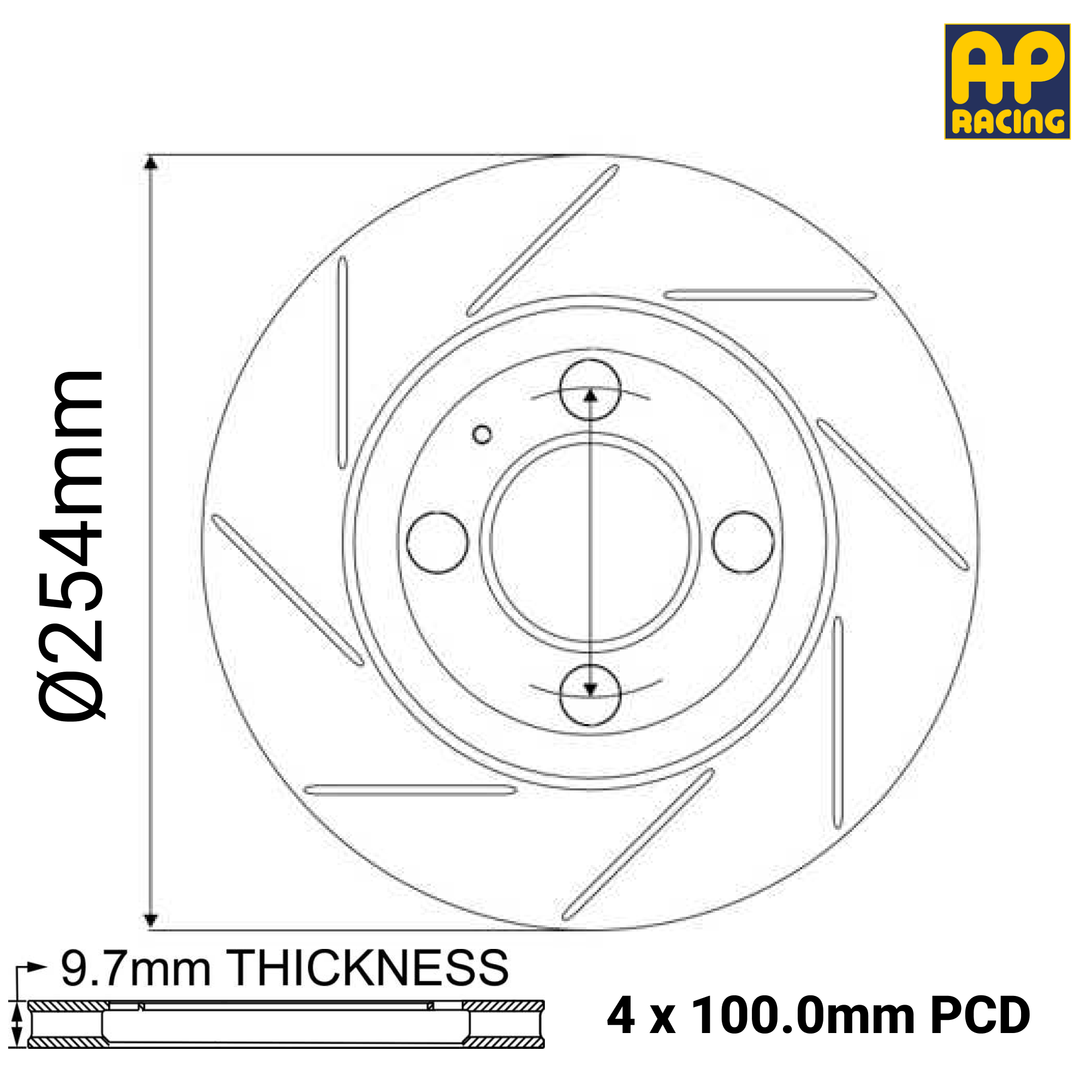

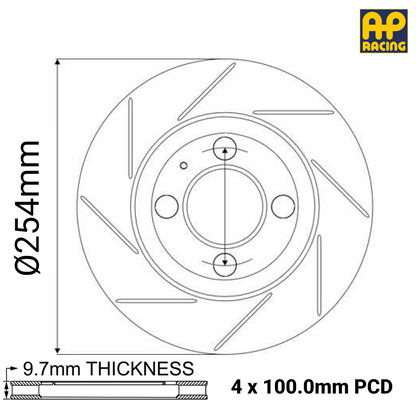

254mm x 9.7mm Brake Disc Dimensions

Outside Diameter 254mm
Thickness 9.7mm
Mounting P.C.D 100.0mm
Mounting Type 12.5mm Stud Hole
Spigot Diameter 72.6mm
Inside Flange Diameter 127.7mm
Mounting Flange Thickness 5.1mm
Mounting Offset 31.5mm
Max Pad Depth 43.0mm
Weight 2.8kg
Face Types Available G4 - Grooved (Straight Forward)
Disc Handing Universal

Brand AP Racing
Option SKU Barcode
G4 - Grooved (Straight Forward) / Universal CP2222-273G4

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
