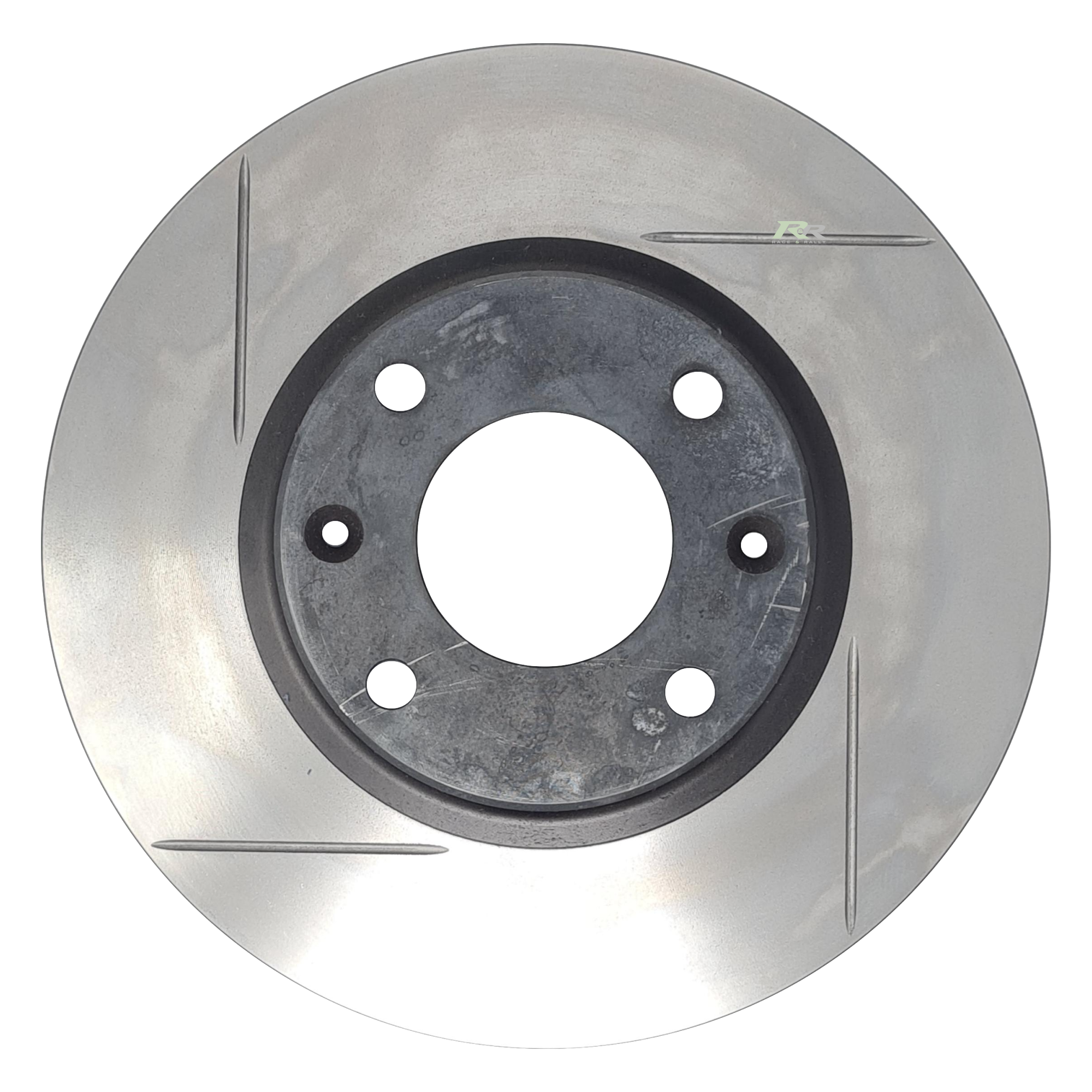

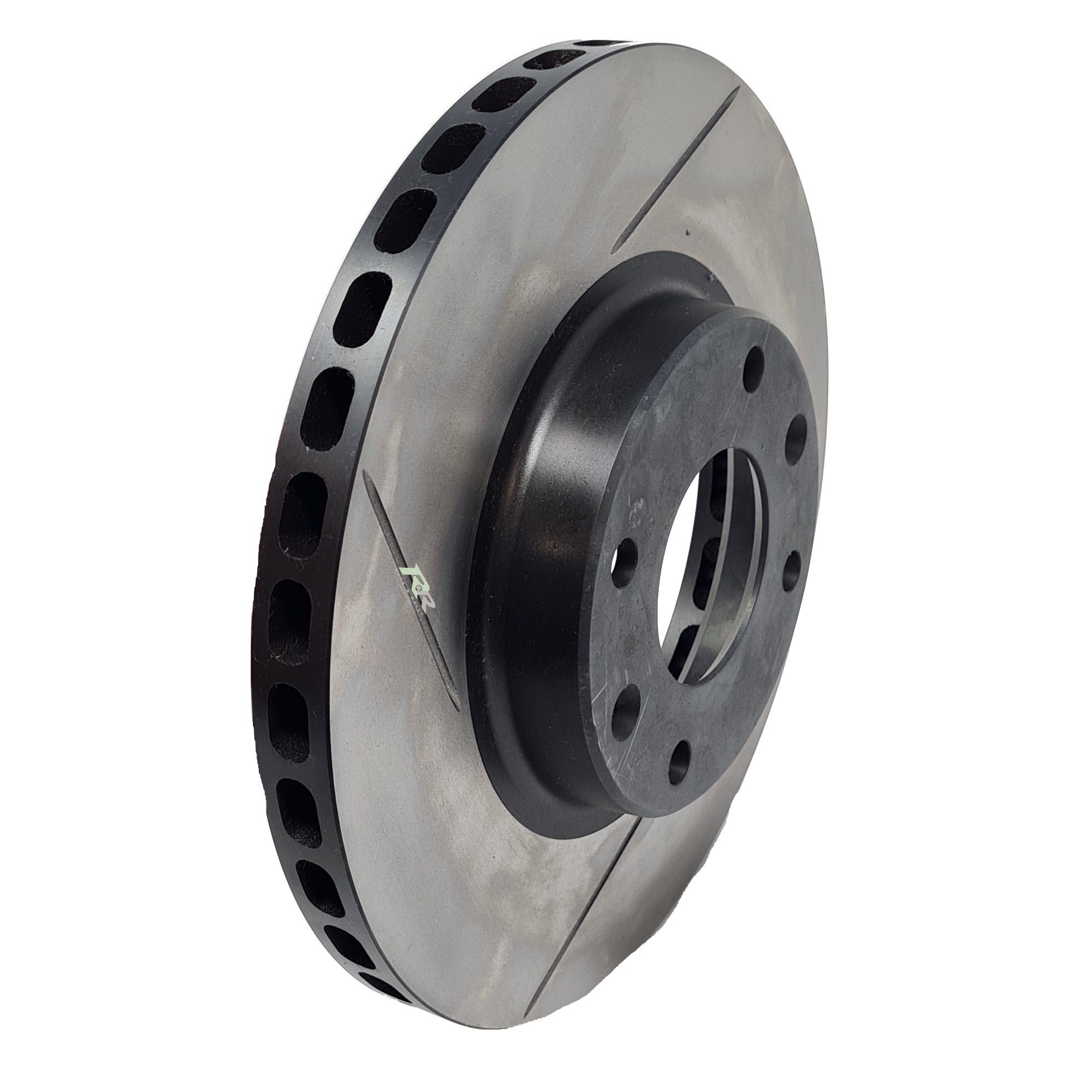

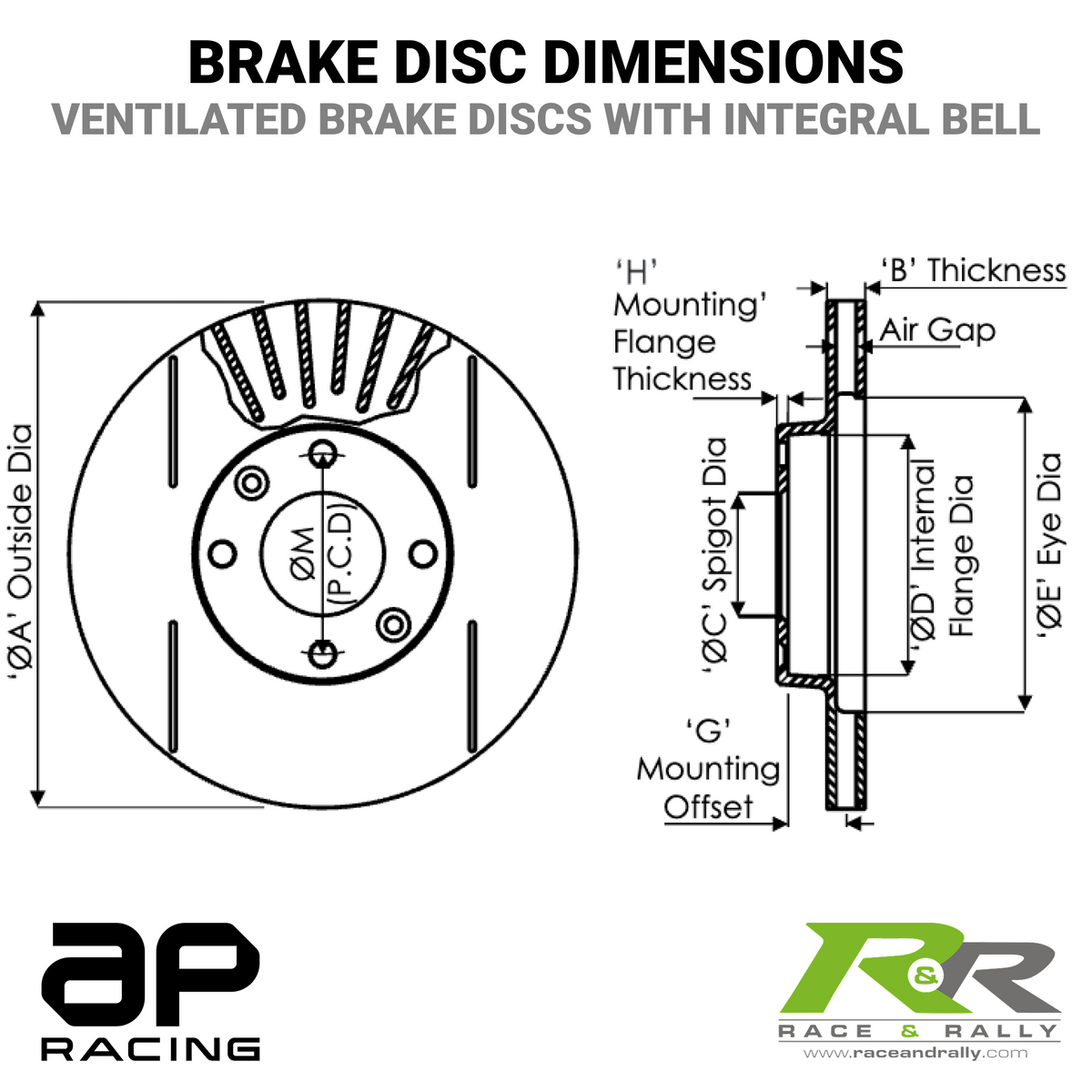

270mm x 22.0mm Brake Disc Dimensions

Outside Diameter	270mm
Thickness	22.0mm
Mounting P.C.D.	108.0mm
Mounting Type	12.4mm Stud Hole
Eye Diameter	165.0mm
Spigot Diameter	65.26mm
Inside Flange Diameter	129.1mm
Mounting Flange Thickness	6.0mm
Mounting Offset	30.7mm
Max Pad Depth	D52.0
No. of Vanes
Air Gap	11.0
Weight	4.8Kg
Face Types Available	G4 - Grooved (Straight Forward) G8 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
