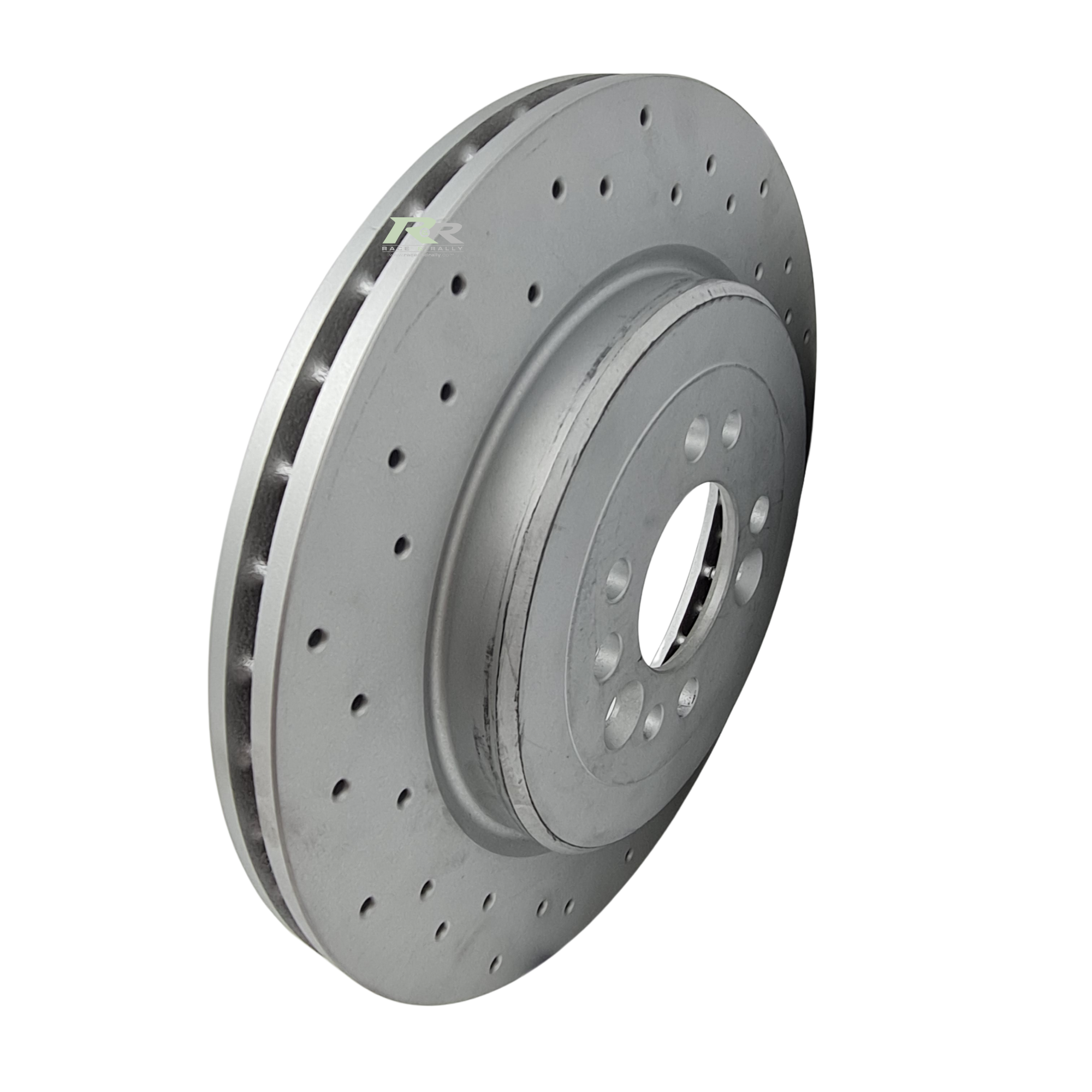

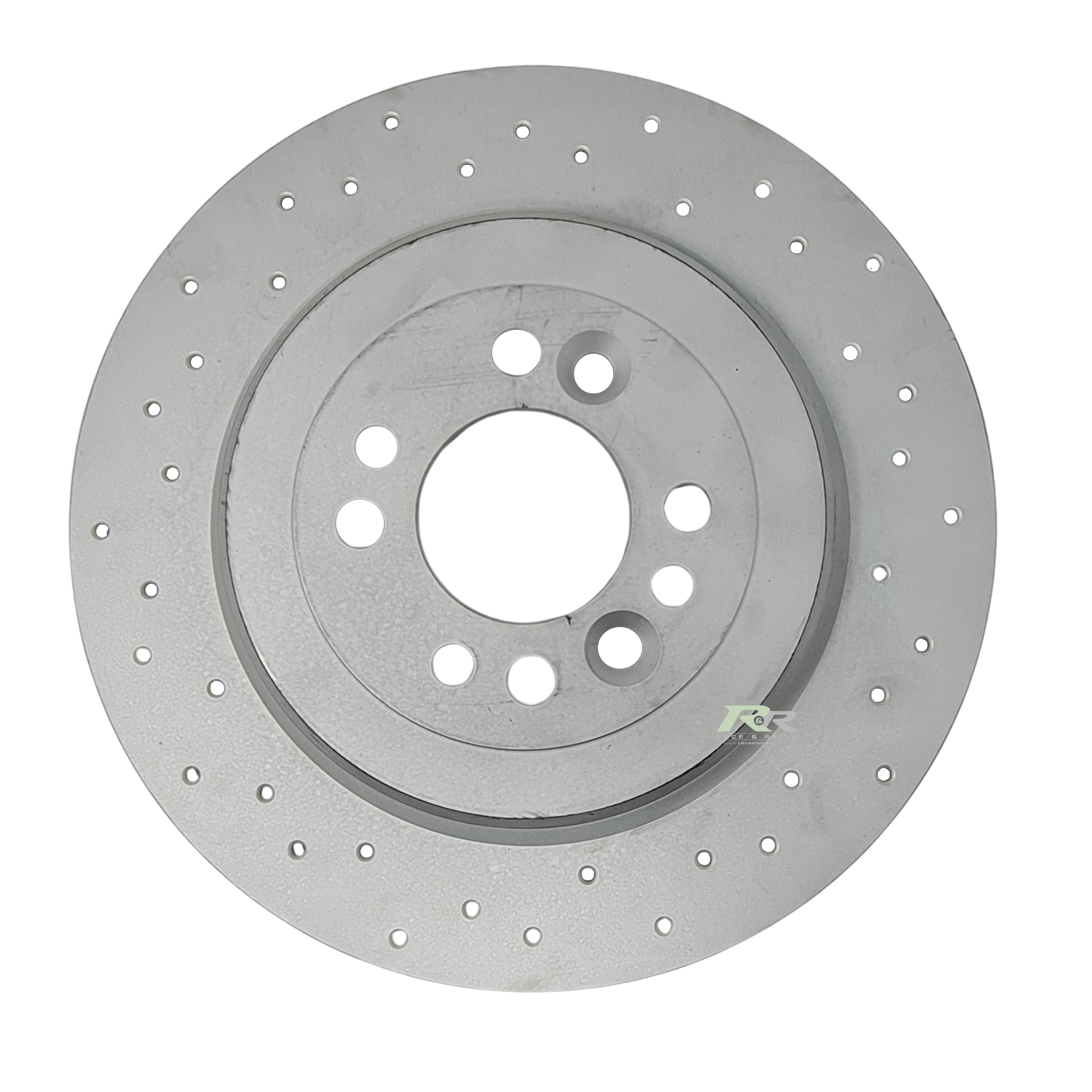

304mm x 24.0mm Brake Disc Dimensions

Outside Diameter	304mm
Thickness	24.0mm
Mounting P.C.D.	100.0mm
Mounting Type	12.2mm Stud Hole
Eye Diameter	200.0mm
Spigot Diameter	64.2mm
Inside Flange Diameter	180.0mm
Mounting Flange Thickness	7.5mm
Mounting Offset	26.0mm
Max Pad Depth	D46.0
No. of Vanes
Air Gap	9.0
Weight	6.7Kg
Face Types Available	SD - Cross Drilled CG8 - Curved Grooves (Backward Forward)
Disc Handing	Universal
Notes
