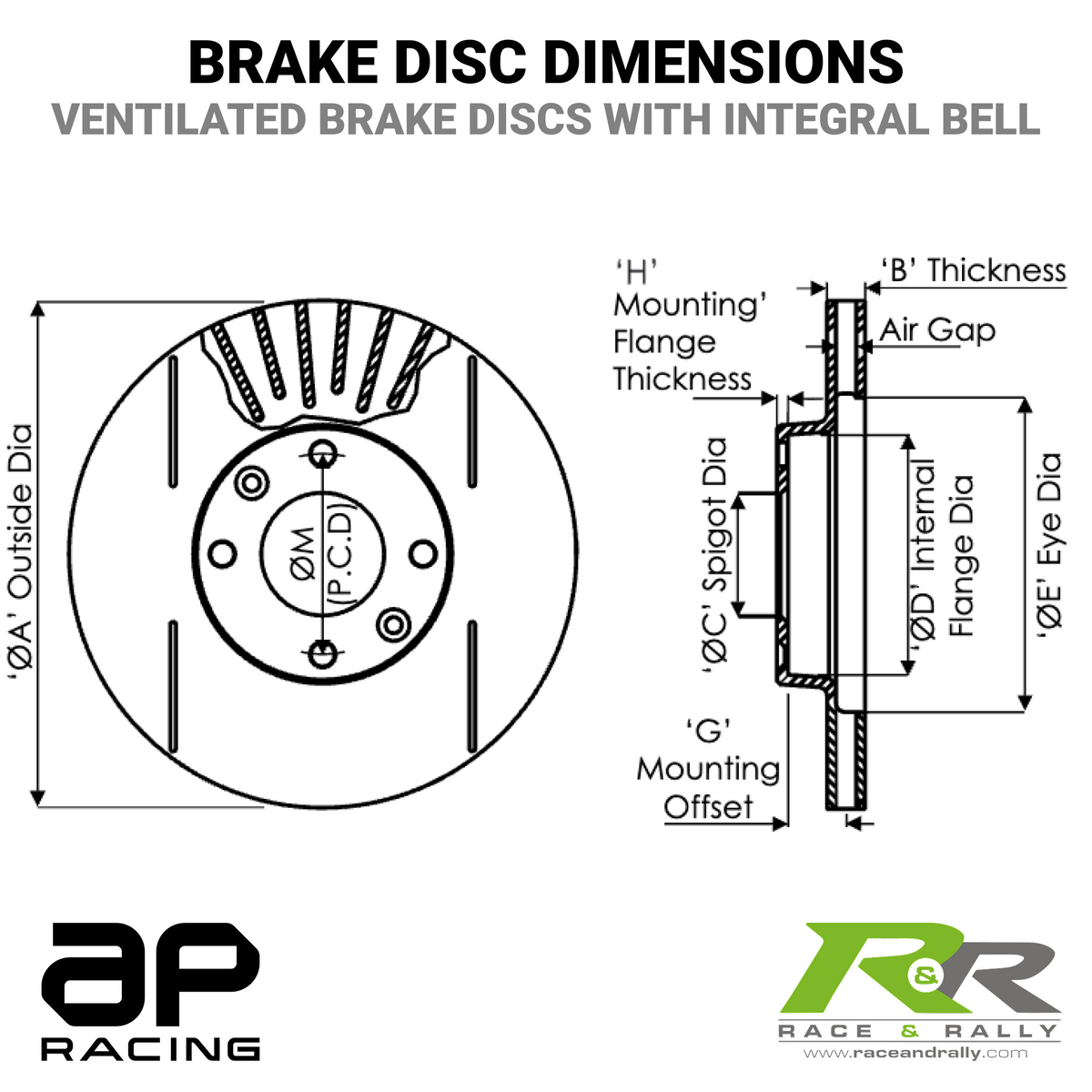

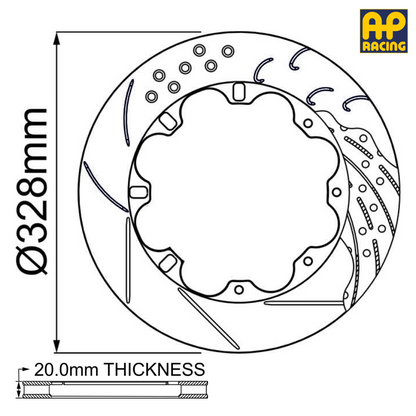

328mm x 20.0mm Brake Disc Dimensions

Outside Diameter	328mm
Thickness	20.0mm
Mounting P.C.D.	120.0mm
Mounting Type	14.6mm Stud Hole
Eye Diameter	234.0mm
Spigot Diameter	75.0mm
Inside Flange Diameter	185.08mm
Mounting Flange Thickness	7.17mm
Mounting Offset	44.05mm
Max Pad Depth	D48.0
No. of Vanes
Air Gap	8.0
Weight	7.6Kg
Face Types Available	G8 - Grooved (Straight Forward)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
