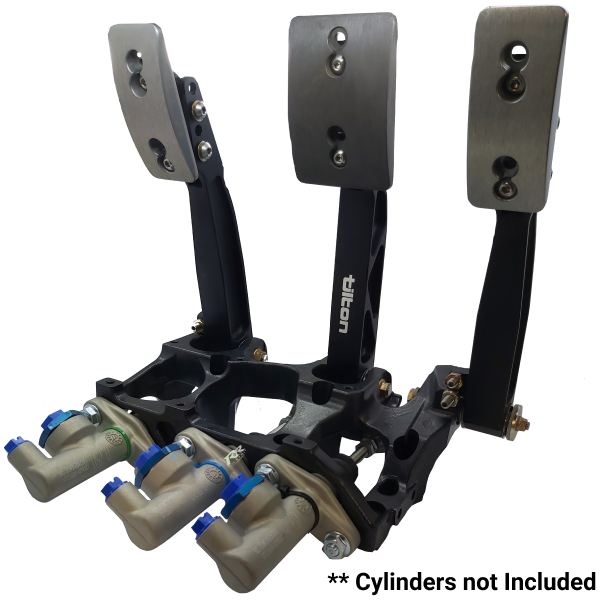

Tilton’s new 600-Series 3-pedal underfoot assembly is perfect for racers who need additional space in the cockpit. Unlike traditional floor-mount pedal assemblies with forward-facing master cylinders, the underfoot pedal assembly features a rear-facing master cylinder arrangement. This enables the pedals to be mounted further forward, which allows a greater range of driver seating positions. This, along with over a hundred pedal pad configurations and an adjustable pedal ratio, makes the new underfoot pedal assembly compatible with just about any racer in any application.

Forged aluminum pedals and an aluminum frame give the 600-Series underfoot pedal assembly rigid and lightweight support for even the most grueling applications. Included with the assembly is a large 7/16”-20 balance bar (P/N 72-260), which minimizes flex and provides a solid pedal feel. Action on the pedals is kept smooth and consistent with low friction oil-impregnated bushings on the pedal pivots. For additional customization, the 600-Series 3-pedal underfoot assembly is also compatible with customer-supplied false floors and heel rests.

Technical Specifications:

• Forged aluminum pedals
• Engineered for high rigidity and low weight
• Lightweight and rigid aluminum frame
• Designed to accept customer-supplied false floor/heal rest
• Large 7/16”-20 balance bar
• Minimizes flex and provides a solid pedal feel/response
• Aluminum foot pads
• Can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Adjustable pedal ratio (5.4:1-6.9:1)
• Enables fine tuning of braking system
• Low friction oil-impregnated bushing on pedal pivots
• Accepts AP Racing Master Cylinders
• CP2623
• CP5623

COMPATIBLE ACCESORIES

• Master Cylinder
• CP2623 Master Cylinders - UNF Ports
• CP5623 Master Cylinders - Metric Ports

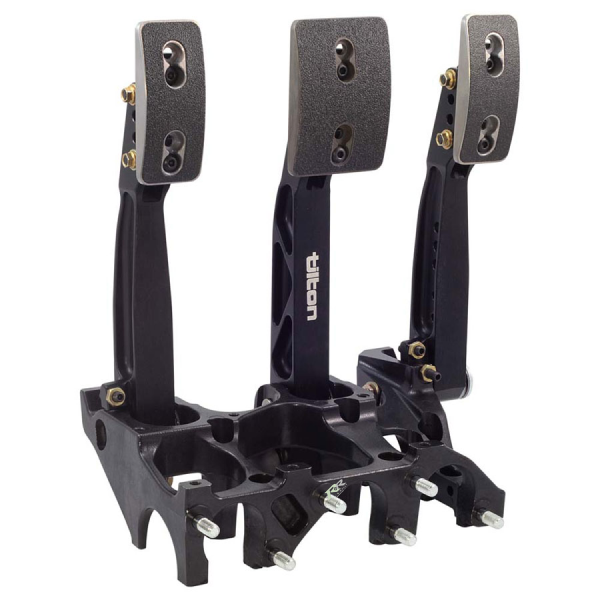

• 72-616 Throttle Linkage
• Race & Rally Designed
• Bias Cable
• Aluminum alloy base plate
