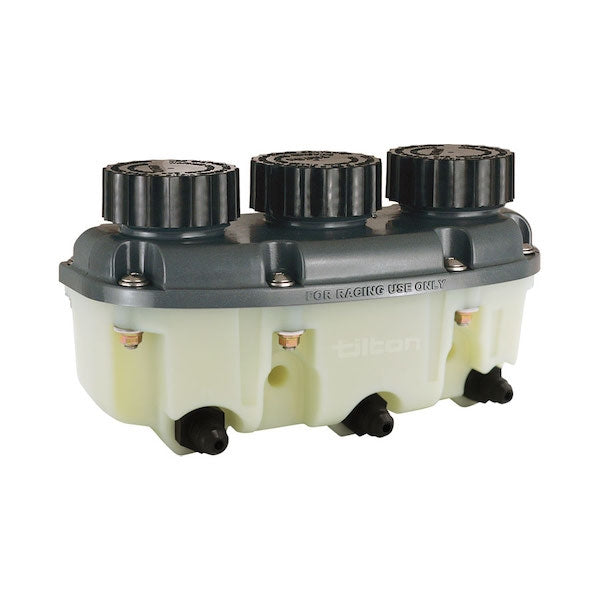

A shorter version of Tilton’s popular plastic reservoir, the 3-chamber low profile plastic reservoir is designed to fit in applications where space and/or height are limited.
There is no longer a reason to use three separate plastic reservoirs, as this reservoir combines the three into one convenient package.

Technical Specifications:

• 3-Chamber Plastic Reservoir Features
• Fiberglass reinforced nylon material.
• Three separate internal reservoirs allow for complete evacuation of one without affecting the remaining two.
• Gasket-sealed removable lid allows for easy cleaning.
• Reservoir lid incorporates screens to prevent foreign objects (nuts, bolts, etc.) from falling into reservoir.
• Leak-proof baffle design ensures that fluid remains in reservoir.
• Convenient fluid level indicator windows.
• 2-hole mount provides simple installation onto firewall/bulkhead.
• AN-4 fittings for use with AN-4 Braided lines
• Part number: TLT72-578
