AP 13" AE86 Front Brake Kit - CP4567 Caliper - Ø277x25mm Discs - G4 Face Design

AP 13" AE86 Front Brake Kit - CP4567 Caliper - Ø277x25mm Discs - G4 Face Design

AP4567-277-25-G4-AE86

€2047.89 €2518.90
Sale Sold out
  • Feature Icon 13" BRAKE KIT
  • Feature Icon CP4567 CALIPERS
  • Feature Icon Ø277MM - G4 | 4 FORWARD FACING GROOVES BRAKE DISCS
  • Feature Icon Toyota AE86 Original Fitment
  • Feature Icon COMPLETE KIT
View full details

Toyota AE86 modern spec 13" brake kit. The kit is complete with AP CP4567 4-pot Calipers, Ø277 x 25mm brake discs and all required hardware for mounting to the original Toyota setup.

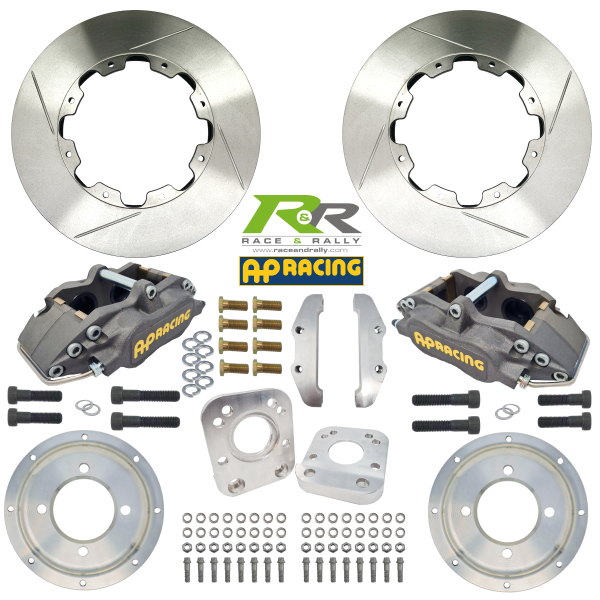

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

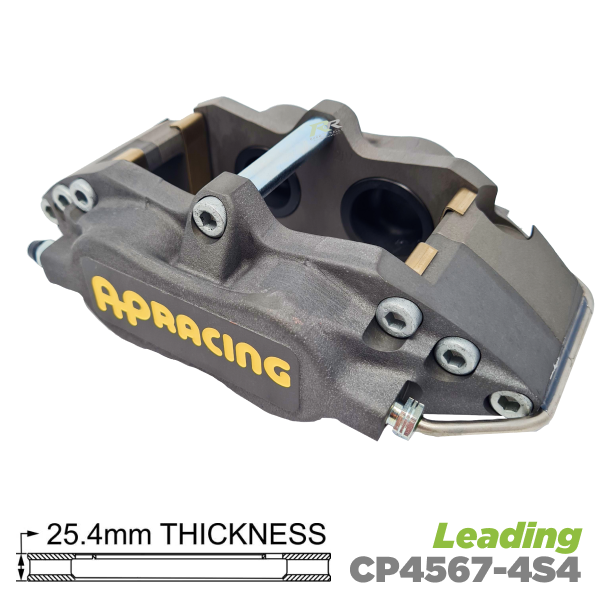

    • CP4567-4S4 - Right hand Leading

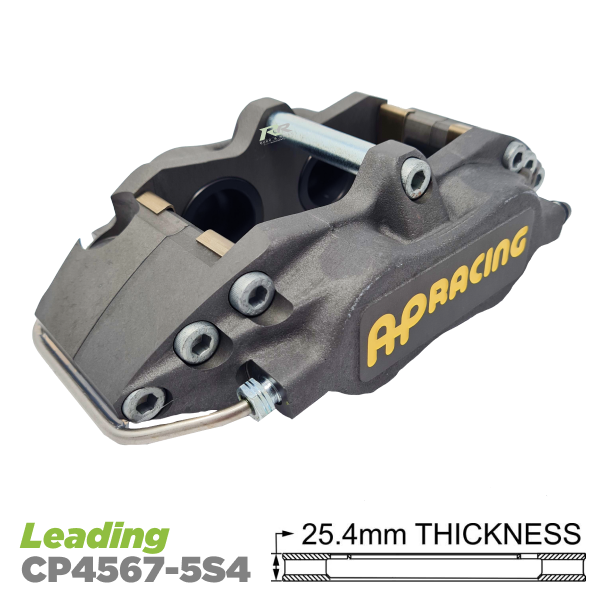

    • CP4567-5S4 - Left hand Leading

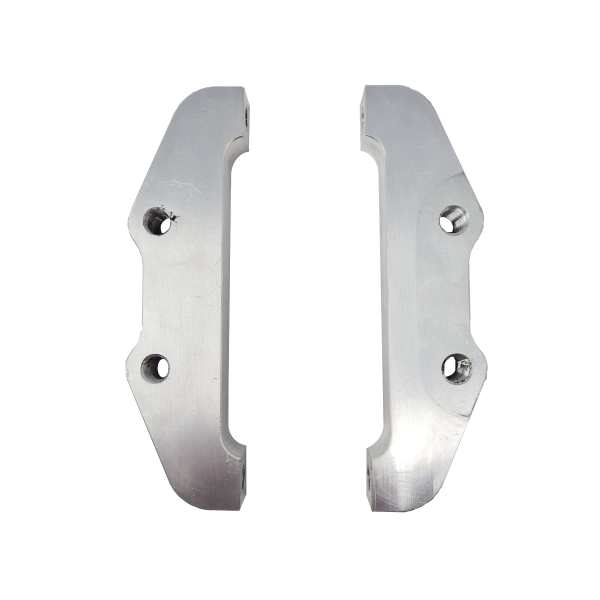

  • 1x Pair of caliper mounting brackets machined from Aluminium
    • RCR456727725-AE86

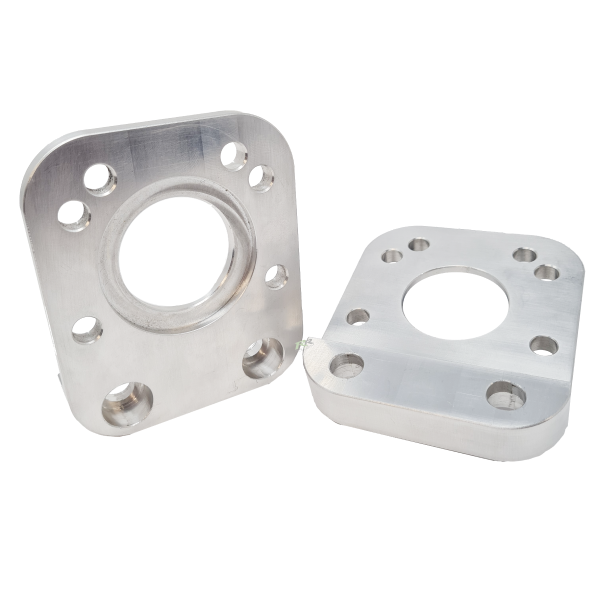

  • 2x Caliper bracket hub mounting frames machined from Aluminium
    • RHR456727725-AE86
  • 12x Caliper & hub mounting bolts & washers
  • 2x AP Racing brake discs - Ø277x25.4mm

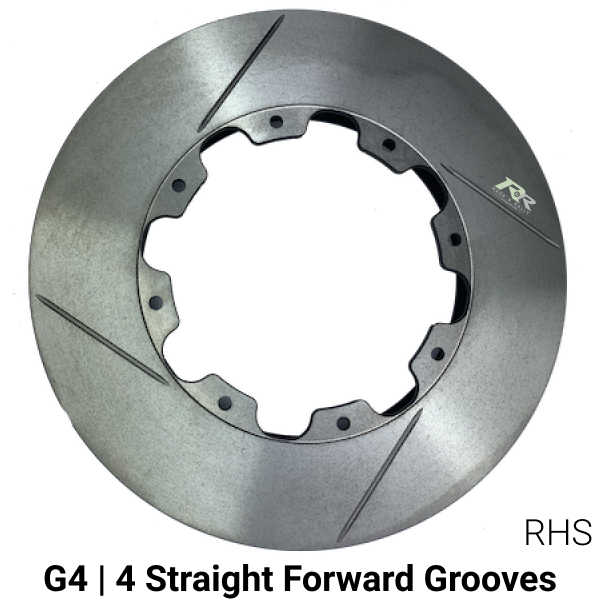

    • CP4448-410G4 - Right hand ventilated brake disc - G4 | 4 Forward facing grooves face

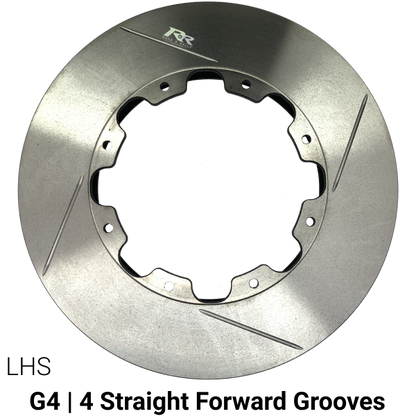

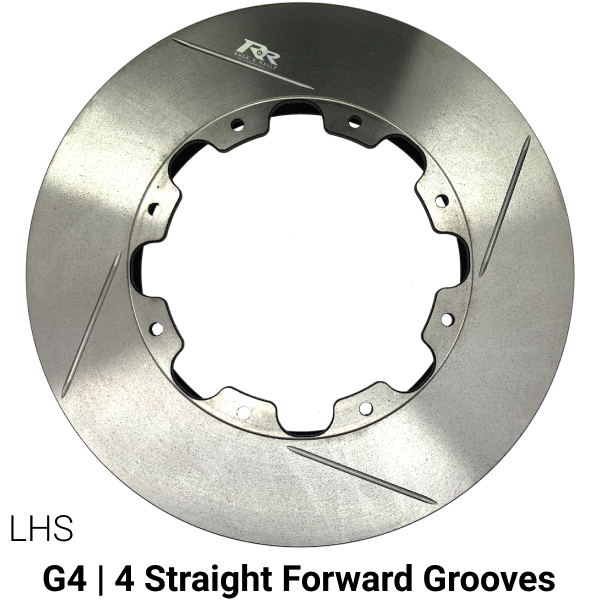

    • CP4448-411G4 - Left hand ventilated brake disc - G4 | 4 Forward facing grooves face

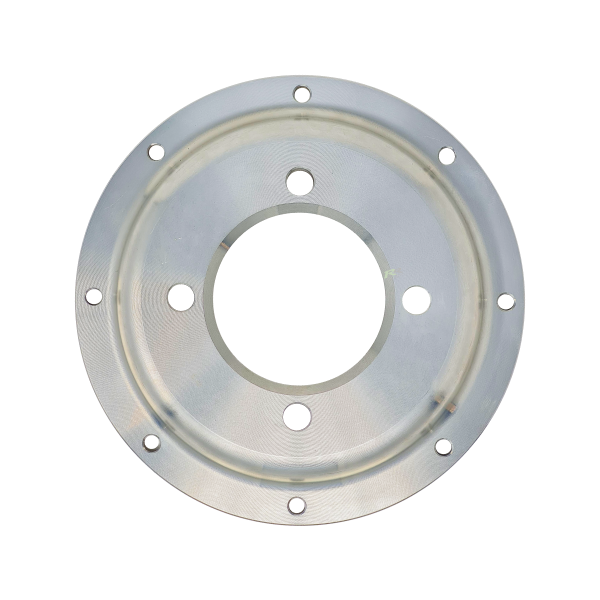

  • 2x CNC Machined aluminum brake disc mounting bells
    • RBR27708B158-AE86
  • 2x Brake disc bell mounting kits
    • CP3845-100K08

CP4567 4-POT CALIPER

Piston Sizes

2x Ø34.9mm
2x Ø41.3mm

Piston Area

45.92cm²

Weight - No Pads

1.6kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
30mm Mounting Offset
Ø10.2mm Mounting Hole

'PL' Dimension

50.5mm

Brake Pad Family

AP - CP3345D44
Ferodo - FRP219
PFC - 7745


Ø277 X 25.4MM VENTILATED BRAKE DISC

'A' Outside Diameter

277mm

'B' Thickness

25.40mm

'M' P.C.D.

158.80mm

Fixing Type: Bolted

8 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

174.10mm

'D' Inside Flange Diameter

141.00mm

'H' Mounting Flange Thickness

4.82mm

Max Pad Depth

D50

Number of Vanes

48

Air Gap

10.50mm

Weight

4.20kg [per disc]

Face Types Available

G4 | 4 Straight Forward Grooves
**  'Letter' from above relates to disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

AP4567-277-25-G4-AE86
